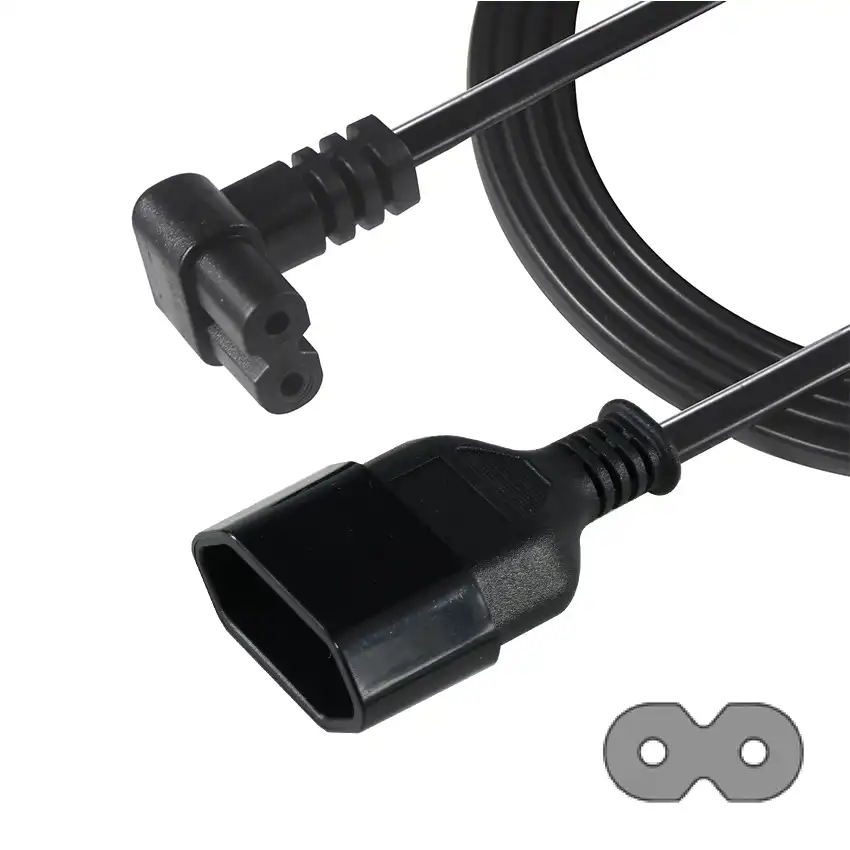

European 2-Pin Female Socket to Right Angle IEC C7 Power Cable
The 90-degree IEC C7 connector reduces cable projection behind the device, supporting cleaner routing in cabinets, wall-adjacent installations, shelves, and other confined spaces.
Both ends are female interfaces: the European socket accepts a compatible 2-pin male plug, while the IEC C7 connector mates with an IEC C8 equipment inlet.
Typical configurations include 250V AC, a 2.5A current option, 2x0.75mm² cable, and lengths from 0.3m to 2m; final rating depends on the complete connection system.
Cable length, wire gauge, C7 bending direction, connector molding, jacket, color, labeling, logo, and packaging can be customized for OEM and B2B orders.
- Product Description

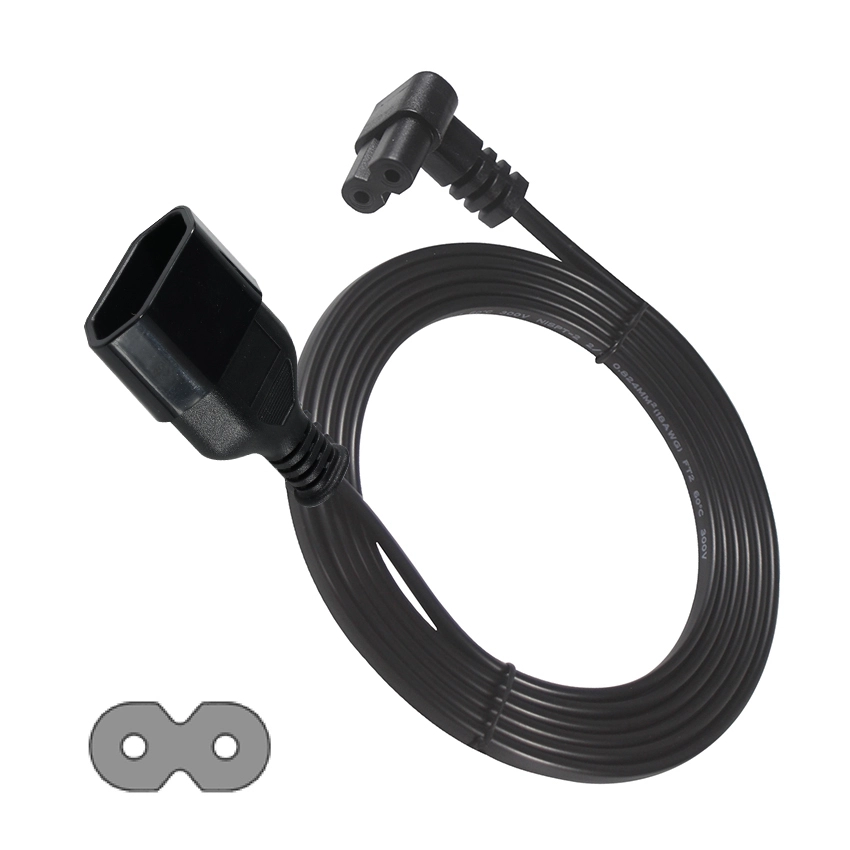

European 2-Pin Female Socket to Right Angle IEC C7 Power Cable
This European 2-pin female socket to right angle IEC C7 power cable connects a compatible Europlug power lead to equipment fitted with an IEC C8 appliance inlet. Its 90-degree figure-8 connector directs the cable along the equipment surface, helping reduce rear clearance requirements in compact installations.
The cable uses a female-to-female interface arrangement. The European two-pin socket accepts a compatible male Europlug, while the angled IEC C7 connector mates with an IEC C8 inlet on the target device. Typical order configurations include 250V AC, a 2.5A current option, 2x0.75mm² cable, and lengths from 0.3m to 2m.
Why Choose Our Euro Female Socket to Right Angle IEC C7 Cable?
This adapter cable is intended for equipment manufacturers, repair suppliers, electronics distributors, and OEM buyers that need a compact connection between an existing European two-pin power lead and an IEC C8-equipped device.
Space-Saving Right Angle IEC C7 Connector
The 90-degree IEC C7 connector reduces outward cable projection behind the equipment. This supports more controlled routing when the device is installed near a wall, inside a cabinet, on a shelf, or within a compact enclosure.
European Two-Pin Female Socket
The molded European female socket accepts a compatible two-pin male plug, allowing an existing Europlug cable to connect to the IEC C7 adapter without removing or replacing its molded plug.
Non-Grounded Two-Core Construction
The two-contact connection carries line and neutral without a protective earth conductor. It is intended only for compatible Class II or other equipment designed for non-grounded AC input.
Configurable for Equipment Integration
Cable length, wire gauge, European socket dimensions, IEC C7 bending direction, molding profile, jacket, color, cable marking, labeling, and packaging can be configured according to the target equipment.
Complete Product Specifications
| Specification | Details |
|---|---|
| Product Type | European female socket to right angle IEC C7 adapter cable |
| European-Side Connector | European 2-pin female socket |
| European-Side Mating Plug | Compatible 2-pin male Europlug; mating dimensions should be confirmed before ordering |
| IEC Connector | Right angle IEC C7 female connector |
| IEC Mating Inlet | IEC C8 male appliance inlet |
| Connector Angle | 90-degree / right angle IEC C7 structure |
| Connector Arrangement | European female socket to female IEC C7 connector |
| Grounding | Non-grounded 2-core configuration |
| Rated Voltage | 250V AC typical, configuration dependent |
| Rated Current | 2.5A common option; final rating depends on the European socket, IEC C7 connector, cable, and connected power lead |
| Frequency | 50/60Hz typical |
| Wire Gauge | 2x0.75mm² common option; customized wire gauge available upon request |
| Cable Length | 0.3m / 0.5m / 1m / 1.5m / 1.8m / 2m common options; custom length available upon request |
| Cable Shape | Round cable |
| Cable Jacket | PVC common option; alternative materials available upon request |
| Conductor Material | Copper conductor options available upon request |
| Cable Color | Black shown; custom colors available upon request |
| Molding Structure | Molded European female socket and molded 90-degree IEC C7 connector with strain relief |
| Typical Applications | Audio equipment, radios, small appliances, chargers, adapters, office electronics, and compatible devices with IEC C8 inlets |
| Certifications / Standards | Available upon request according to the completed cable configuration and destination market |
| Customization | Length, wire gauge, socket dimensions, C7 bending direction, molding, jacket, color, cable marking, label, logo, packaging, and carton marking |
Buyer's Insight: This cable has two female interfaces and cannot connect directly to a wall outlet by itself. Confirm the mating European male plug, IEC C8 inlet orientation, and required C7 cable-exit direction before ordering. The completed installation must stay within the rating of its lowest-rated plug, connector, or cable component.
Professional Applications You Can Trust
For devices installed close to walls or cabinet panels, the right angle IEC C7 connector reduces the space required behind an IEC C8 inlet. Its downward cable exit can support cleaner routing and reduce sharp cable bends.
For audio equipment, radios, adapters, and compact Class II electronics, the two-core cable connects a compatible European two-pin power lead to the device without adding an unused grounding conductor.
For OEM integration and replacement projects, buyers can specify cable length, socket dimensions, C7 orientation, molding profile, cable marking, label, and packaging to match the final equipment layout.
Advanced Safety Features
The molded European socket and IEC C7 connector enclose their cable terminations. Strain relief at both ends supports the cable where repeated bending commonly occurs.
This cable does not include a protective earth conductor. It must only be used with compatible non-grounded equipment and must not replace a grounded Schuko or IEC C13 connection.
Because it is a female-to-female adapter cable, the complete connection method must be reviewed before use. The power lead, European socket, IEC C7 connector, wire gauge, and target device must have compatible voltage and current ratings.
Manufacturing Excellence
This European two-pin female socket to right angle IEC C7 cable can be configured for B2B and OEM purchasing requirements. Buyers can confirm cable length, conductor size, socket dimensions, C7 bending direction, molded profile, jacket material, cable marking, labeling, and packaging before production.
Frequently Asked Questions
Q: Are both cable ends female?
A: Yes. One end is a European two-pin female socket, and the other is a right angle IEC C7 female connector.

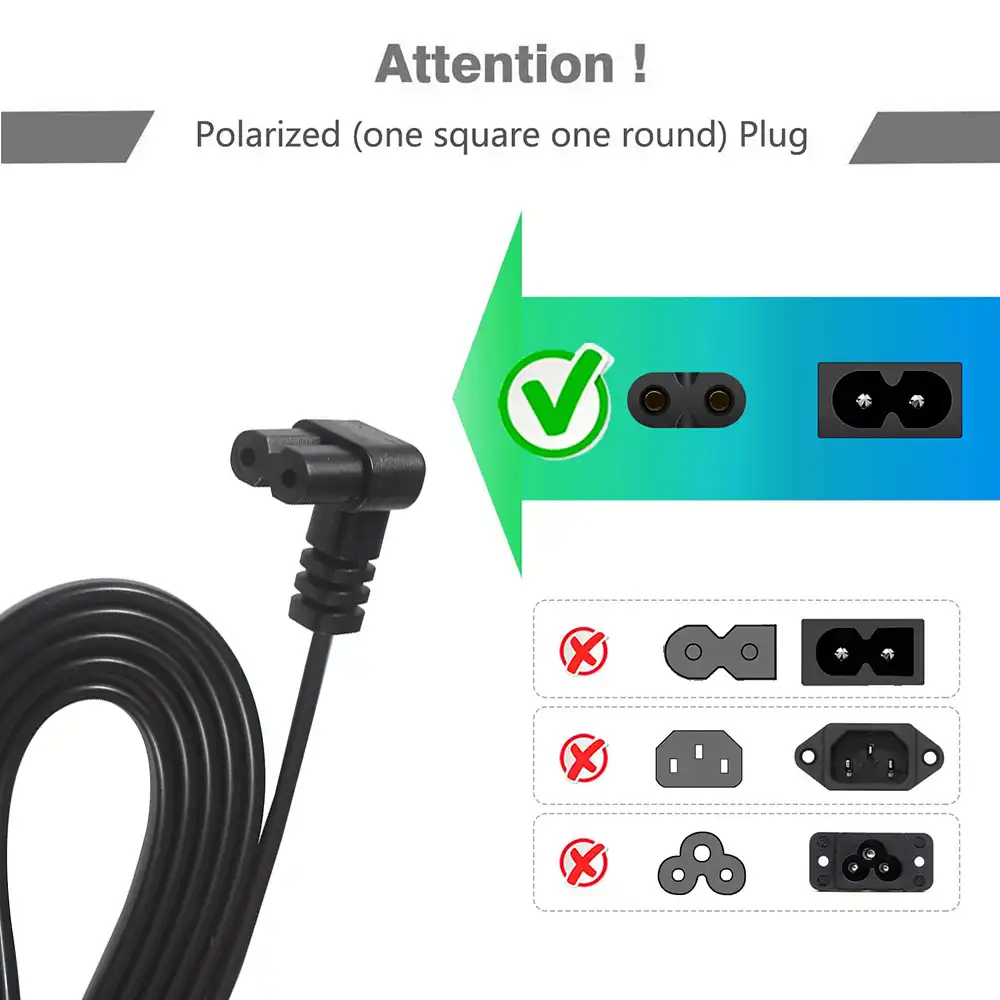

Q: What equipment interface matches the IEC C7 connector?
A: The right angle IEC C7 connector mates with a compatible IEC C8 appliance inlet.
Q: What is the advantage of the right angle C7 connector?
A: It directs the cable along the equipment surface instead of straight outward, helping reduce rear clearance requirements in cabinets, shelves, and wall-adjacent installations.
Q: Can the bending direction and cable length be customized?
A: Yes. The IEC C7 cable-exit direction, cable length, wire gauge, connector molding, jacket, color, cable marking, label, logo, and packaging can be configured upon request.
Custom Solutions for Your Business
Cable Length: Common options include 0.3m, 0.5m, 1m, 1.5m, 1.8m, and 2m, with custom lengths available for equipment integration projects.
Wire Gauge & Jacket: 2x0.75mm² is a common option. The final conductor and jacket structure can be matched to the required rating and destination market.
Right Angle C7 Direction: The cable-exit direction should be confirmed against the IEC C8 inlet orientation, equipment surface, and available installation space.
European Female Socket: Socket dimensions, internal contact arrangement, molded body shape, grip profile, and strain relief can be matched to the mating two-pin plug.
Branding & Packaging: Custom cable marking, logo, product label, inner packaging, and carton marking are available upon request.
Contact Us
✔ OEM & ODM Support | ✔ Connector Matching Support | ✔ Custom Specification Support | ✔ B2B Quotation Support
For an accurate quotation, please provide the cable length, wire gauge, required rating, mating Europlug dimensions, IEC C8 inlet orientation, preferred C7 bending direction, destination market, certification requirement, packaging method, and estimated order quantity.
Ready to discuss your European female socket to right angle IEC C7 power cable requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
