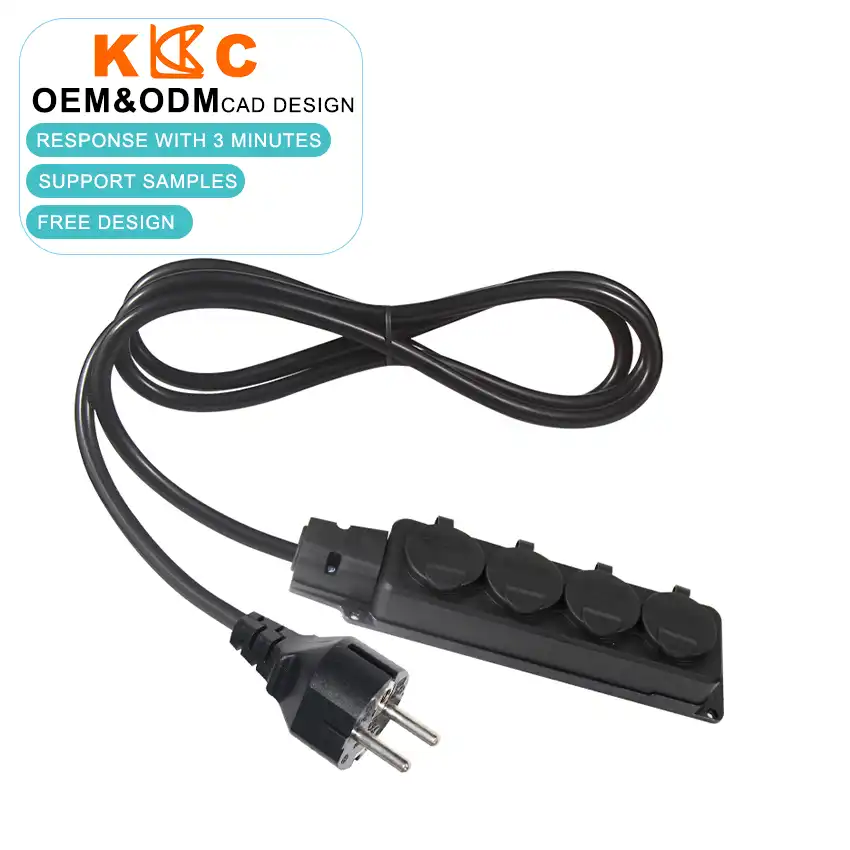

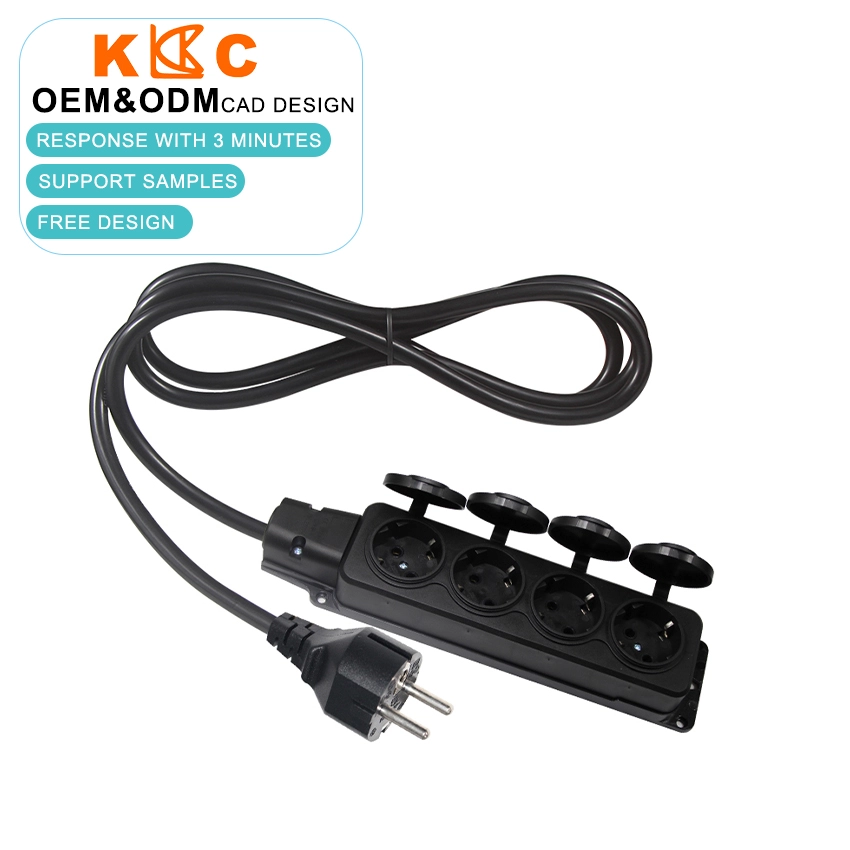

Outdoor IP44 4-Gang European Extension Socket with Covers
4-Gang European Power Distribution: Provides four grounded European Schuko-type outlets from one input cable, allowing users to power multiple compatible tools, lighting fixtures, chargers, or appliances from a centralized power point.
16A / 250V Rated Structure: Supports up to 16A total combined current and 3680W maximum load when configured with suitable 3-core copper cable, helping buyers match the socket block to European household and commercial power requirements.
Wall-Mountable Socket Block: The housing can be designed with mounting holes or fixing tabs so installers can secure the socket block to walls, benches, racks, or temporary structures instead of leaving live connections loose on the ground.
OEM Configuration Support: Cable length, wire section, jacket material, plug type, socket color, cover style, IP rating requirement, cable printing, packaging, and certification route can be customized according to your target European market.
- Product Description
Outdoor IP44 4-Gang European Extension Socket with Covers for Garden and Worksite Power Distribution
The Outdoor IP44 4-Gang European Extension Socket with Covers is designed for buyers who need grounded multi-outlet power distribution in splash-prone outdoor environments. The 4-gang Schuko-type socket block expands one supply line into four usable outlets, while individual hinged covers help protect unused sockets from rain splash, dust, and debris. Rated for 250V AC and up to 16A total combined load when built with the correct 3-core copper cable, it is a practical power solution for gardens, garages, workshops, temporary lighting, and commercial maintenance setups.
Why Choose Our Outdoor IP44 4-Gang European Extension Socket?
Outdoor power distribution fails most often at the exposed connection point, not the cable itself. This socket block is designed to keep four power access points organized, covered, and ready for controlled outdoor use.
IP44 Splash-Proof Housing Helps Reduce Outdoor Connection Risk
The housing and covers are designed for IP44-level splash resistance, meaning the socket block can handle water splashes from normal outdoor use when installed and operated correctly. Not submersible. Not for standing water.
For garden lighting, garage use, or covered work areas, this helps keep dust, rain splash, and debris away from unused socket contacts, reducing corrosion and short-circuit risk over repeated outdoor use.
4-Gang Schuko-Type Layout Expands One Power Line into Four Usable Outlets
The socket block provides four grounded European outlets in one compact housing. Instead of connecting several short adapters in a chain, users can centralize power distribution at one controlled point.
For procurement teams, this is the safer and cleaner layout: fewer loose adapters, fewer tangled cables, and easier load management across multiple tools or lighting fixtures.
16A / 250V Rated Configuration Matches European Power Requirements
When configured with suitable cable such as 3G1.5mm² copper, the assembly can support up to 16A total combined current at 250V AC, equivalent to a maximum 3680W load.
The key word is total. Four outlets do not mean four times the load. Buyers should calculate the combined current of all connected devices before confirming cable section and certification route.
Wall-Mountable Body Keeps Connections Off Wet Ground
The socket block can be produced with mounting holes or fixing tabs for installation on walls, benches, racks, or temporary structures. Keeping the socket block raised improves cable organization and reduces contact with puddles, mud, or workshop debris.
This matters for outdoor users. A covered socket on a wet floor is still a risk; a properly mounted socket block is easier to inspect and safer to operate.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Outdoor IP44 4-Gang European Extension Socket with Covers |
| Socket Type | 4 x European Schuko-Type Grounded Sockets |
| Protection Level | IP44 splash-proof design, depending on final certified configuration |
| Covers | Individual hinged protective covers for each socket |
| Standard Classification | European Outdoor Multi-Outlet Extension Socket / IP44 Schuko Socket Block |
| Voltage Rating | 250V AC |
| Current Rating | Up to 16A total combined load |
| Maximum Power | Max 3680W at 250V AC, depending on cable section and certified configuration |
| Cable Structure | Grounded 3-core copper cable |
| Wire Section Options | 3G1.0mm² / 3G1.5mm² pure copper options |
| Cable Jacket Options | H05VV-F / H05RR-F / H07RN-F depending on indoor, outdoor, or heavy-duty use |
| Mounting Option | Wall-mountable housing with fixing holes or mounting tabs |
| Certification Options | CE / VDE / GS / RoHS compliant components |
Buyer's Insight: IP44 is suitable for splash resistance, not immersion. Many return claims come from using outdoor socket blocks directly in puddles or heavy pooling water. If your target users work in gardens, events, or construction areas, specify not only the IP rating but also the cable jacket, plug type, socket cover structure, and user warning label together.
Professional Applications You Can Trust
For garden lighting and patio equipment, users often need several outlets in one area. This 4-gang socket block keeps the connections centralized, and the hinged covers protect unused sockets from dust, leaves, and rain splash.
For garages and workshops, power tools, chargers, and work lights are frequently used at the same bench. A wall-mounted 4-gang socket block keeps the power point visible and away from sawdust piles, oil stains, or foot traffic.
For temporary event lighting, installers need fast but organized power distribution. The 16A / 250V rating and grounded Schuko-type socket layout allow multiple compatible fixtures to share one controlled supply line, provided the total load remains within the approved limit.
Advanced Safety Features
The socket block is designed with grounded European outlets, helping maintain earth continuity for compatible metal-chassis equipment. Grounding must be verified through the plug, cable, and socket assembly during production testing.
The individual hinged covers reduce direct exposure to dust and splashing when sockets are not in use. However, protection depends on correct use. Once a plug is inserted, the final ingress protection depends on the mating plug design and how the connection is positioned.
For full 16A load applications, 3G1.5mm² copper cable is commonly specified. Lighter cable sections may be suitable for lower-load applications, but buyers should not approve them for heavy heaters, power tools, or continuous maximum-load operation without certification review.
Manufacturing Excellence
Our factory supports OEM and ODM production for European outdoor socket blocks, extension cords, plug assemblies, and custom power distribution products. With 17 years of power cord manufacturing experience, we provide 100% factory electrical testing, including continuity, polarity, ground continuity, insulation resistance, and Hi-Pot testing according to the final product standard and buyer checklist.
Frequently Asked Questions
Q: Is IP44 waterproof enough for outdoor use?
A: IP44 means splash-resistant protection. It is suitable for controlled outdoor use such as gardens, patios, garages, and covered work areas, but it is not suitable for immersion, standing water, or buried installation.
Q: Can all four sockets be used at the same time?
A: Yes, if the total combined load of all connected devices does not exceed the approved rating of the assembly. For a 16A / 250V configuration, the maximum total power is 3680W, not 3680W per socket.
Q: Which cable should I choose for outdoor use?
A: For basic indoor or sheltered use, H05VV-F may be enough. For tougher outdoor or worksite use, H07RN-F rubber cable is a better option because it offers stronger abrasion resistance, oil resistance, and low-temperature flexibility.
Q: What information is needed for a quotation?
A: Please provide cable length, plug type, socket type, wire section, jacket material, target IP rating, certification requirement, order quantity, color requirement, cable printing, and packaging details.
Custom Solutions for Your Business
Cable Length Customization: Produce short lengths for wall-mounted workshop use or longer extension leads for gardens, garages, and event power routing.
Wire Section & Jacket Matching: Select 3G1.0mm² or 3G1.5mm² copper cable and match it with H05VV-F, H05RR-F, or H07RN-F jacket according to the target load and use environment.
Plug and Socket Configuration: Match the input plug and socket design to the destination market, including Schuko-type plugs, French grounding compatibility, and required protective cover structure.
Branding & Compliance Matching: Cable printing, molded logo, color customization, warning labels, retail packaging, and certification documents can be prepared according to your European purchasing checklist.
Contact Us
✔ OEM & ODM Support | ✔ IP44 Outdoor Socket Configuration | ✔ 100% Factory Electrical Testing
Ready to discuss your Outdoor IP44 4-Gang European Extension Socket with Covers requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
