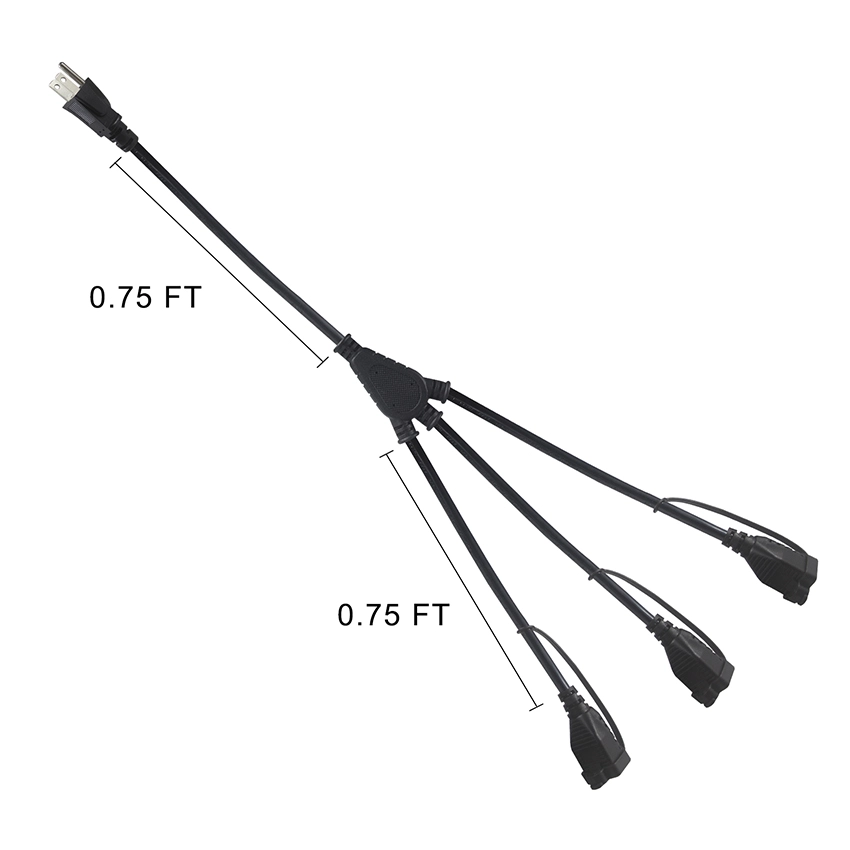

1 in 3 NEMA1-15P to NEMA5-15R extension cord

1 in 3 NEMA 1-15P to NEMA 5-15R Extension Cord for High-Density Power Distribution

You manage server racks or diagnostic carts. Outlet space is finite. Our UL-compliant 1 in 3 NEMA 1-15P to NEMA 5-15R extension cord multiplies power access directly at the source. We manufacture these splitters using heavy-duty SJT jackets and pure copper conductors. Rely on our 17 years of factory expertise. Every unit ships with complete electrical continuity data.

​​​​​​​

Why Choose Our 1 in 3 NEMA 1-15P to NEMA 5-15R Extension Cord?

Distributing electrical load across three receptacles introduces severe thermal risks. We engineer the internal junction block to eliminate this exact failure point.

Ultrasonic Welded Junctions

Cheap splitters use manual solder joints. These crack under mechanical strain. We utilize ultrasonic welding for the internal 1-to-3 wire split. This fuses the copper at a molecular level. It guarantees zero resistance increases at the main distribution node.

Heavy-Duty Strain Relief

Cables fail at the flex point. We extend the PVC molding an extra 1.5 inches past the junction block. This limits the bend radius. The internal conductors remain protected even when cables are routed sharply through equipment racks.

Complete Product Specifications

Professional Applications You Can Trust

Mobile medical carts face severe spatial constraints. You cannot mount bulky power strips on IV poles or diagnostic stations. Our 3-way splitter routes power directly to monitors, scanners, and local processors. You save vital physical space.

Retail point-of-sale systems require multiple peripheral connections. Scanners, receipt printers, and payment terminals all cluster at one desk. This cord consolidating design allows installers to power three devices from a single wall outlet. Cable clutter disappears. Maintenance access improves.

Advanced Safety Features

Thermal accumulation at the split node is dangerous. We design the junction block housing with a 30% thicker PVC wall than standard retail cables. This acts as a substantial thermal heat sink. It prevents casing degradation during continuous maximum amperage draw.

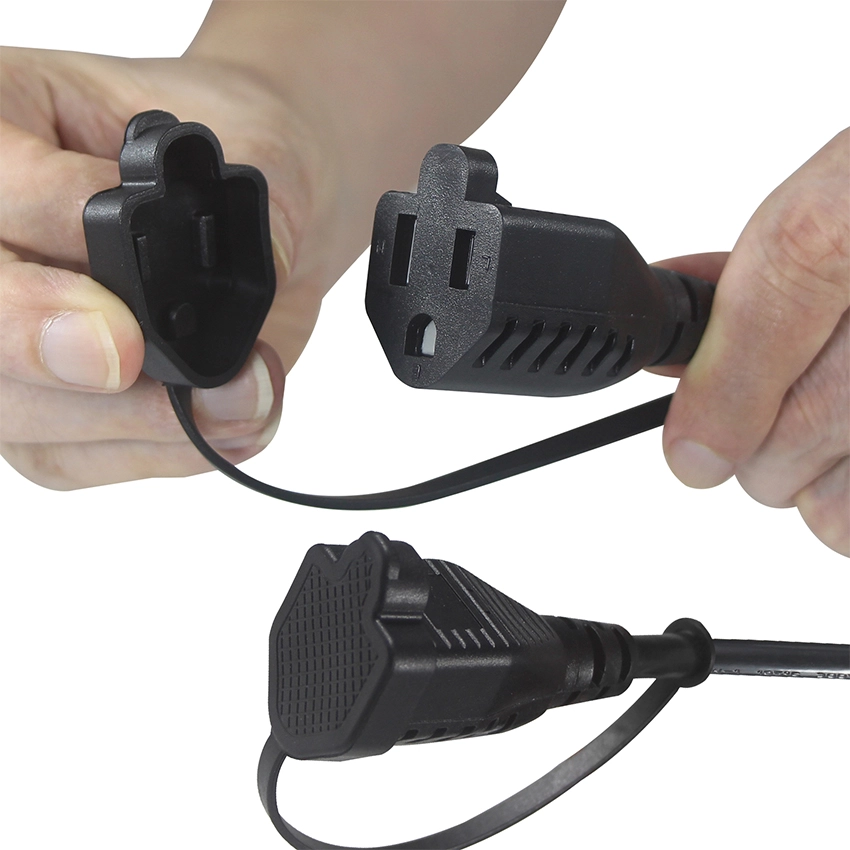

The NEMA 5-15R receptacles feature precision-stamped brass contacts. Poor contact pressure causes arcing. We engineer our brass female contacts with high-tension mechanical memory. Plugs insert securely. They remain locked in place despite ambient vibration.

Manufacturing Excellence

We leverage 17 years of direct OEM manufacturing experience. We test 100% of our products before shipping. Hi-Pot testing and polarity verification are mandatory on our assembly line. We source only RoHS and REACH compliant materials. You receive safe, environmentally compliant power assemblies.

Frequently Asked Questions

Q: Can I plug a 3-prong grounded device into the NEMA 5-15R ends if the input is a 2-prong NEMA 1-15P?

A: The 5-15R receptacles will physically accept a 3-prong plug. However, because the input NEMA 1-15P plug lacks a ground pin, the connected equipment will not be electrically grounded. You must assess this against your specific hardware grounding requirements.

Q: How do you handle voltage drop across the three receptacles?

A: We over-spec the main trunk wire. If you draw 10 amps across the branches, the primary 14 AWG trunk minimizes electrical resistance. Voltage drop remains strictly within the acceptable 3% margin.

Q: Are these splitters UL certified for commercial building use?

A: Yes. We use UL-listed wire and injection-molded plugs. We can provide the specific UL file numbers for your compliance documentation and local fire safety audits.

Custom Solutions for Your Business

Your hardware BOM requires specific tolerances. We provide deep OEM/ODM manufacturing. We customize cord lengths from the main plug to the junction, and from the junction to the receptacles. Standard lead time for custom bulk production runs is 15 to 21 days following final engineering drawing approval.
