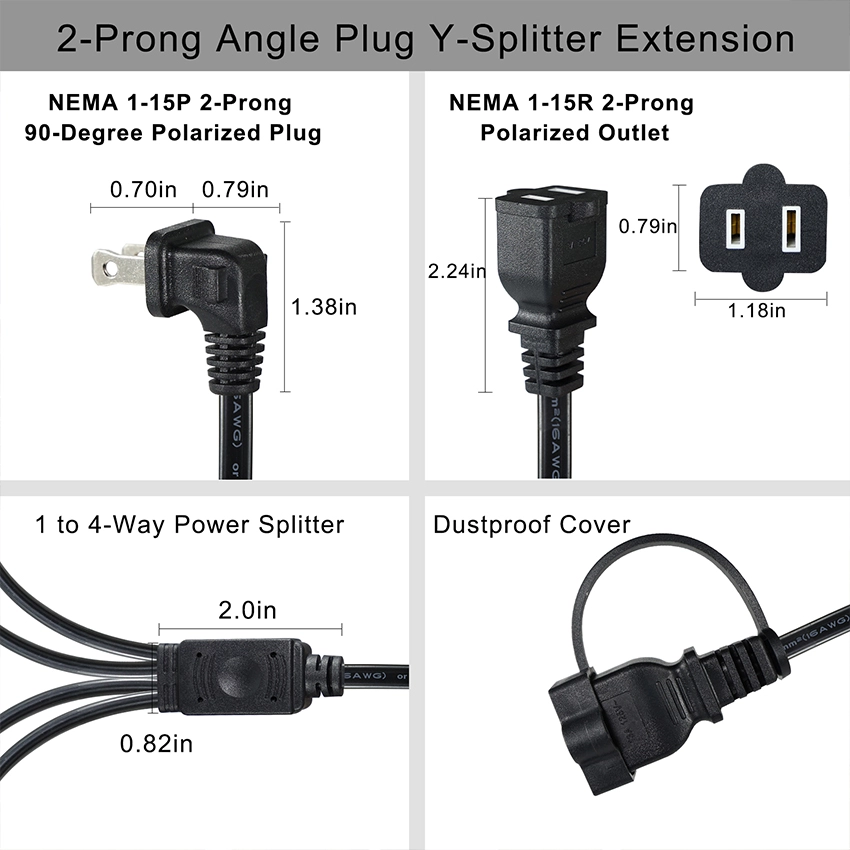

90-Degree Angled NEMA 1-15P to 4-Way 1-15R Power Splitter Cord with Safety Dust Covers
1-to-4 Radial Power Distribution: Utilizes a central injection-molded junction to split a single 125V AC feed into four independent NEMA 1-15R branches. This high-density architecture replaces multiple power strips, instantly optimizing cable management for multi-device deployments.
Tethered Receptacle Safety Covers: Each of the four NEMA 1-15R female ends is equipped with a friction-fit safety cap. This physical barrier blocks dust, moisture, and debris from entering the brass contacts when specific branches are inactive, preventing localized short circuits in warehouse environments.
Injection-Molded Strain Relief (SR): Constructed with extended, multi-ribbed strain reliefs at the main plug, the central junction, and all four receptacles. This mechanical reinforcement absorbs acute pulling tension, protecting the internal copper strands from snapping during repeated field routing.
Verified Thermal Stability: Manufactured with 18AWG or 16AWG pure copper conductors enclosed in a flexible flat SPT PVC jacket. Delivers stable current across all four branches simultaneously, minimizing voltage drop and preventing unsafe thermal buildup under continuous commercial loads.
- Product Description
90-Degree Angled NEMA 1-15P to 4-Way 1-15R Power Splitter Cord | High-Density Indoor Distribution
Deploying multiple low-current devices from a single wall receptacle requires exacting structural design to avoid overcrowding and electrical hazards. The 90-Degree Angled NEMA 1-15P to 4-Way 1-15R Power Splitter Cord divides one standard outlet into four independent 2-prong branches. Engineered with a specialized 90-degree flush-mount plug and heavy-duty injection-molded strain reliefs (SR), this assembly maximizes spatial efficiency. Tested to maintain a strict 0.1% defect rate, it provides verified stable 125V AC transmission across all four connections for commercial retail and IT environments.
Why Choose Our 4-Way Y-Splitter?
Engineered to resolve the hazards of daisy-chaining multi-plug adapters in professional indoor deployments.

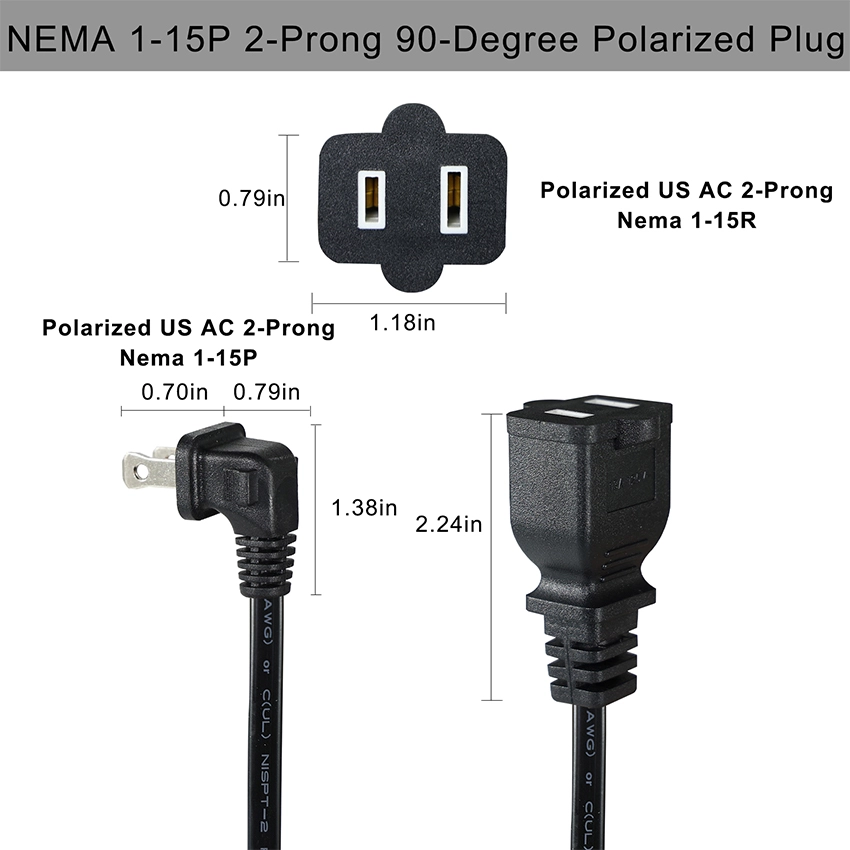

90-Degree Space-Saving Plug Geometry
The specialized 90-degree angle of the NEMA 1-15P male plug directs the main trunk wire straight downward. This physical alignment ensures the cable does not obstruct the adjacent socket on a standard duplex wall plate (when used in the bottom socket). Facility managers can push heavy display cabinets up to 1.5 inches closer to the wall without crushing the internal copper conductors.
1-to-4 Over-Molded Junction Block
Unlike snap-fit splitters that crack under pressure, this central junction is completely injection-molded over the internal splice. It distributes tension evenly across the four branch lines. This design prevents internal wire separation when technicians pull branches in opposite directions to power dispersed equipment.
Tethered Receptacle Safety Covers
Each of the four NEMA 1-15R female ends features an integrated friction-fit sealing cap. This mechanical barrier physically blocks dust, dirt, and warehouse debris from entering the brass contacts when a specific branch is unused, significantly extending the operational lifespan of the cable assembly.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Standard Classification | NEMA 1-15P (90-Degree Angled) to 4 x NEMA 1-15R |
| Voltage Rating | 125V AC |
| Current Capacity | 10A / 13A (Dependent on AWG selection) |
| Wire Gauge Options | 18AWG / 16AWG Pure Copper |
| Jacket Material | Flame-retardant Flat PVC (SPT-1 or SPT-2) |
| Special Features | Tethered Dust Caps, Molded SR, 90° Angle Plug |
| Certifications | UL/cUL, RoHS, REACH |
Buyer's Insight: Installing standard straight-plug extension cords behind digital signage often leads to severe bending stress and hidden wire fractures. The 90-degree angled plug eliminates this mechanical conflict entirely. Furthermore, IT procurement teams report that the individual tethered caps significantly reduce downtime caused by dust accumulation in unused receptacles during long-term office deployments.
Professional Applications You Can Trust
Commercial retail fixtures frequently require localized power for multiple LED drivers or small display monitors. The flat SPT PVC profile allows installers to route this 4-way splitter discreetly along metal shelving channels. The four separate branches eliminate the need to mount bulky, rigid power strips inside the display hardware.
In corporate testing laboratories or diagnostic stations, technicians need to power arrays of low-current devices simultaneously. This cable consolidates the power footprint. Feeding four units from a single drop heavily optimizes cable management pathways and removes tripping hazards across the facility floor.
Advanced Safety Features
Distributing power to four devices simultaneously demands strict thermal control. The pure copper core minimizes electrical resistance, ensuring the PVC jacket maintains safe operating temperatures even when all four branches draw continuous current. The flat PVC material is formulated to self-extinguish immediately upon exposure to fire.
Each female NEMA 1-15R receptacle utilizes high-tension brass alloy contacts. This metallurgy maintains exact clamping force on adapter prongs over thousands of insertion cycles. It mitigates the loose connections that lead to hazardous micro-arcing and voltage drops.
Manufacturing Excellence
Supported by [Years of Experience] years of dedicated cable extrusion and over-molding expertise. Every assembled 4-way splitter undergoes a 100% factory Hi-Pot (Dielectric Withstand) and automated continuity check before packaging. Backed by our fast-response engineering team, we provide free OEM & ODM CAD design drawings within exactly 3 minutes of receiving your technical requirements.
Frequently Asked Questions
Q: What is the maximum combined power rating when all four branches are active?
A: When utilizing the 16AWG copper configuration, the entire assembly safely handles a combined total load of 13A at 125V AC (approx. 1625 Watts). You must verify that the cumulative draw of all four connected devices does not exceed this specification.

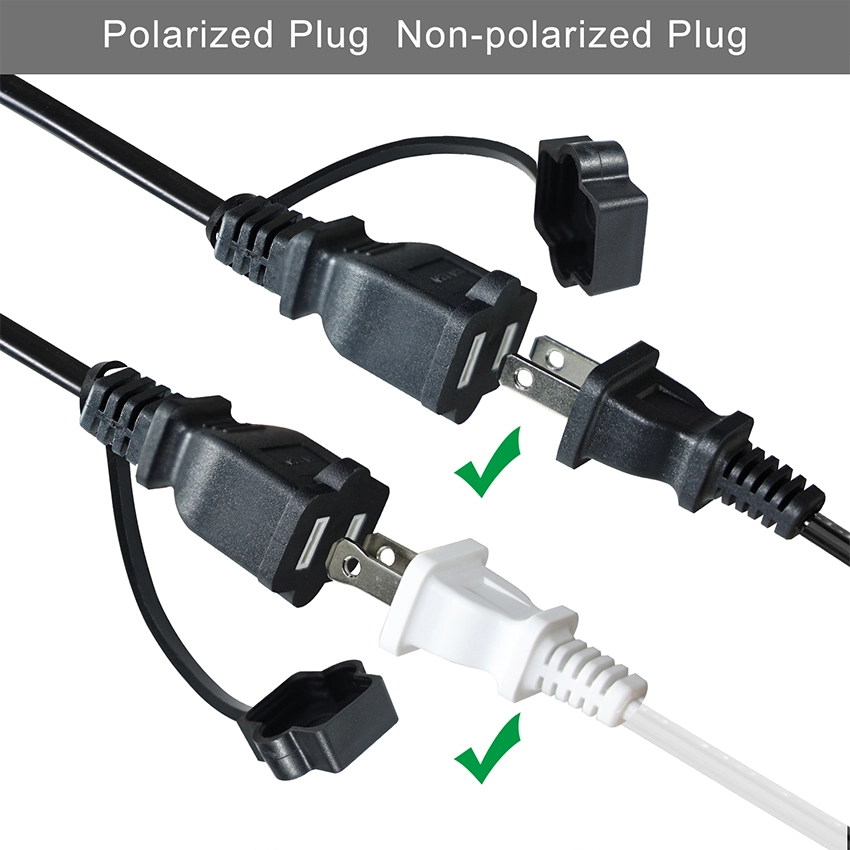

Q: Can the 2-prong receptacles accept polarized plugs?
A: Yes. The NEMA 1-15R female ends are polarized (featuring one widened slot) to safely accept both polarized and non-polarized 2-prong plugs, maintaining proper hot and neutral alignment for double-insulated appliances.
Q: How fast can you dispatch samples for a custom configuration?
A: We strongly support sample testing for commercial projects. Standard off-the-shelf units are dispatched immediately. For custom branch lengths, please allow [Sample Dispatch Timeline] business days for engineering sample production.
Custom Solutions for Your Business
We tailor high-density power architectures to fit your deployment hardware. Length Customization: Specify the exact trunk length and distinct lengths for each of the four branches to match your spatial layout. Wire Gauge (AWG): Select 18AWG for standard loads or upgrade to 16AWG for maximum 13A capacity. Plug Angle Adjustments: We can modify the mold to a 45-degree angle, or left/right orientation based on your specific PDU orientation. Branding: We can emboss your corporate logo directly onto the central 1-to-4 junction block. Low MOQ Sampling: We support agile pilot runs for your site evaluations.
Contact Us
✔ CAD Design in 3 Mins | ✔ Support Samples | ✔ OEM & ODM Free Design
Ready to discuss your 90-Degree Angled 1-to-4 Power Splitter Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
