90-Degree Right-Angled NEMA 1-15P to Dual 1-15R Power Splitter Cord with Safety Covers
1-to-2 Power Distribution: Utilizes a central injection-molded Y-junction to split a single wall feed into two NEMA 1-15R female receptacles. This exact architecture eliminates the need for bulky multi-plug adapters and optimizes cable management for dual-device deployments.
Tethered Receptacle Covers: Each NEMA 1-15R branch is equipped with an integrated, friction-fit safety cap. This mechanical barrier effectively blocks dust, moisture, and warehouse debris from entering the brass contacts when the branch is not actively powering a device.
Injection-Molded Strain Relief (SR): Engineered with heavy-duty, multi-ribbed strain reliefs at the plug, central junction, and receptacle transitions. This critical reinforcement absorbs physical tension during field routing, preventing internal copper strand fatigue and extending operational lifespan.
Verified Electrical Stability: Constructed with 18AWG or 16AWG pure copper conductors enclosed in a flexible flat SPT-2 PVC jacket. Tested to strict UL/cUL safety standards, it delivers stable 125V AC transmission and minimizes voltage drop under continuous commercial indoor loads.
- Product Description
90-Degree Right-Angled NEMA 1-15P to Dual 1-15R Power Splitter Cord | Space-Saving Distribution
Deploying dual-device power in constrained indoor spaces requires specialized physical form factors. The 90-Degree Right-Angled NEMA 1-15P to Dual 1-15R Power Splitter Cord divides a single wall outlet into two 2-prong receptacles while maintaining an ultra-low clearance profile. Engineered with heavy-duty injection-molded strain reliefs (SR) and tethered safety dust caps, this cable eliminates structural weak points found in standard Y-splitters. Tested to maintain a 0.1% defect rate, it guarantees verified stable 125V AC transmission for commercial display and office environments.
Why Choose Our 90-Degree Y-Splitter?
Engineered to resolve clearance limitations and mechanical stress failures common in standard retail and office power setups.

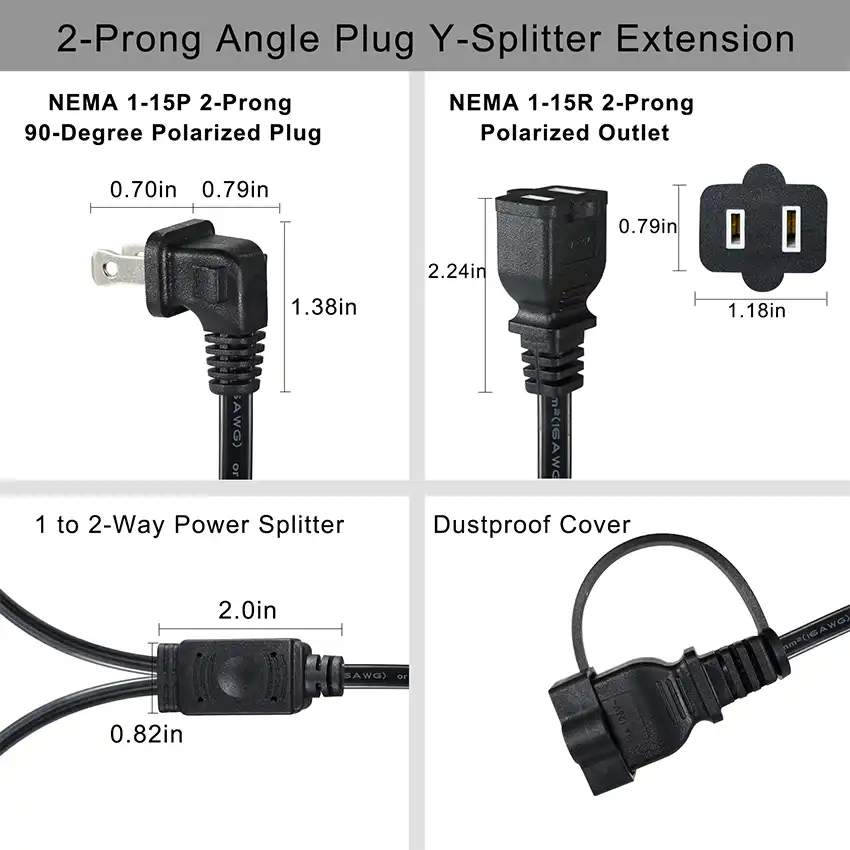

90-Degree Flush-Mount Plug Geometry
The specialized 90-degree right angle of the NEMA 1-15P male plug directs the cable straight downward. This mechanical alignment achieves two critical benefits: it leaves the secondary outlet on a standard duplex receptacle completely unobstructed (when used in the bottom socket), and it allows commercial cabinets or desks to be pushed up to 1.5 inches closer to the wall without crushing the copper conductors.

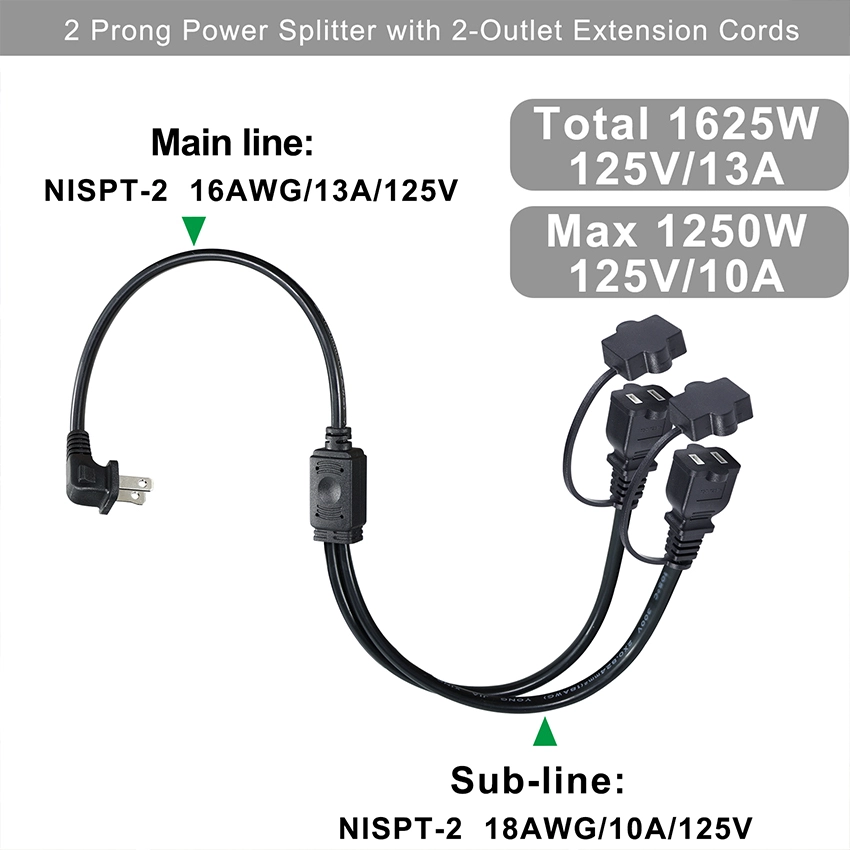

Over-Molded Y-Junction with Strain Relief
Unlike cheaply assembled snap-fit housings, the central 1-to-2 junction is continuously injection-molded. Integrated multi-ribbed strain reliefs (SR) extend from the junction and terminal ends. This design disperses kinetic tension across the PVC jacket, preventing internal splice separation when technicians route branches in opposite directions.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Standard Classification | NEMA 1-15P (90-Degree Right-Angled) to 2 x NEMA 1-15R |
| Voltage Rating | 125V AC |
| Current Capacity | 10A / 13A (Dependent on AWG selection) |
| Wire Gauge Options | 18AWG / 16AWG Pure Copper |
| Jacket Material | Flame-retardant Flat PVC (SPT-1 or SPT-2) |
| Special Features | Tethered Safety Caps, Molded SR, 90° Angled Plug |
| Certifications | UL/cUL, RoHS, REACH |
Buyer's Insight: Traditional straight-plug splitters suffer from severe bending stress when installed behind retail fixtures, leading to hidden wire fractures. The 90-degree angle permanently solves this geometric conflict. Furthermore, procurement managers report that the tethered safety caps drastically reduce localized short circuits caused by accumulated dust in long-term warehouse or retail deployments.
Professional Applications You Can Trust
Retail display lighting often requires powering two separate LED drivers from a single hidden wall outlet. This 1-to-2 splitter routes power discreetly using its flat SPT jacket, which conceals easily behind shelving channels. The tethered caps protect any unused branch from accumulating debris during store remodeling.
In corporate workstations, managing dual low-current devices (like monitor power adapters or desktop phone chargers) creates unnecessary cable bulk. This cord replaces two separate extension cables with one streamlined solution, significantly improving under-desk cable management and reducing tripping hazards.
Advanced Safety Features
Electrical safety in confined spaces requires strict thermal management. The 18AWG or 16AWG pure copper core minimizes internal resistance, ensuring the PVC jacket remains well below safety temperature limits even under a sustained 10A continuous draw. The flat PVC material is formulated to self-extinguish immediately upon exposure to an open flame.
The female NEMA 1-15R receptacles are engineered with high-tension brass alloy contacts. This metallurgical choice guarantees exact clamping force on inserted plug prongs over thousands of insertion cycles, mitigating the loose connections that lead to hazardous micro-arcing.
Manufacturing Excellence
Supported by 17 years of specialized cable molding experience. Every completed splitter cord undergoes a 100% factory Hi-Pot (Dielectric Withstand) and automated continuity check before packaging. Our engineering team provides initial CAD drawings for custom modifications within 3 minutes of receiving your technical requirements.
Frequently Asked Questions
Q: Can this 2-prong splitter accommodate 3-prong grounded devices?
A: No. This is strictly a NEMA 1-15 system designed exclusively for double-insulated, Class II ungrounded appliances. Attempting to force a 3-prong plug into these receptacles is a safety violation.
Q: Does the 90-degree angled plug block the second socket on a standard wall outlet?
A: No. When installed in the lower socket of a standard duplex outlet, the 90-degree downward angle directs the wire straight down, leaving the top receptacle entirely unobstructed and fully usable.
Q: What is the sample dispatch timeline for a customized branch length?
A: Standard off-the-shelf configurations ship within 3 business days. If you require specific asymmetrical branch lengths or upgraded 16AWG wire, engineering samples are dispatched within 7 business days following your CAD design approval.
Custom Solutions for Your Business
We tailor power routing architectures to fit your exact hardware deployment. Length Customization: Specify exact trunk and branch lengths to eliminate coiled wire behind your displays. Wire Gauge (AWG): Select 18AWG for standard loads or upgrade to 16AWG for higher 13A current capacity. Plug Angle Adjustments: While this is a standard 90-degree down-angle, we can modify the mold to a 45-degree, left-angled, or right-angled profile based on your wall plate orientation. Branding: We can emboss your corporate logo onto the central junction block. Low MOQ Sampling: We fully support agile pilot runs for your site evaluations.
Contact Us
✔ CAD Design in 3 Mins | ✔ OEM & ODM Support | ✔ Fast Sample Dispatch
Ready to discuss your 90-Degree Right-Angled 1-to-2 Power Splitter Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
