flying lead connections

This industrial-grade NEMA 5-15P power cord features precise stripped-and-tinned conductors, engineered for rapid hardwiring and seamless equipment assembly. Designed for OEMs and appliance manufacturing, its "ready-to-terminate" tail significantly reduces installation time and labor costs.
As a precision manufacturing partner, we provide bespoke tailoring to match your assembly line. Our services include custom ROJ (Remove Outer Jacket) lengths, precise conductor stripping, and pre-installed terminals (Ring, Spade, or Quick Disconnect). We offer flexible packaging, from individual P/N labeled polybags to bulk coils, ensuring a streamlined supply chain for high-volume production.

Product Description

Flying Lead Connections - Industrial-Grade NEMA 5-15P Power Cords

Our NEMA 5-15P power cords with flying lead connections stripped-and-tinned conductors deliver enterprise-level performance for OEM and appliance manufacturing. These ready-to-terminate solutions reduce installation time by up to 30% while ensuring consistent ROJ accuracy through automated stripping machines. Supporting 10A-15A/125V ratings with UL/cUL certifications, our customizable wire gauges (18AWG to 12AWG) and flexible conductor materials provide optimal connectivity for high-volume production environments requiring immediate hardwiring capabilities.

What Are Flying Lead Connections?

The items speak to a specialized interconnect design where electrical conductors amplify specifically from a component's lodging as adaptable, free-hanging leads. Not at all like unbending bulkhead connector interfacing, this plan kills bulk and potential disappointment focuses in requesting environments.

These associations exceed expectations in applications where space is restricted and vibration resistance is vital. Businesses like subsea operations, aviation, and mechanical robotization depend on this innovation to overcome establishment challenges and guarantee solid execution.

Key Technical Specifications

Parameter	Specifications
Length Options	6ft / 8ft / 10ft / 12ft / 25ft (Customizable)
Wire Gauge	18AWG / 16AWG / 14AWG / 12AWG

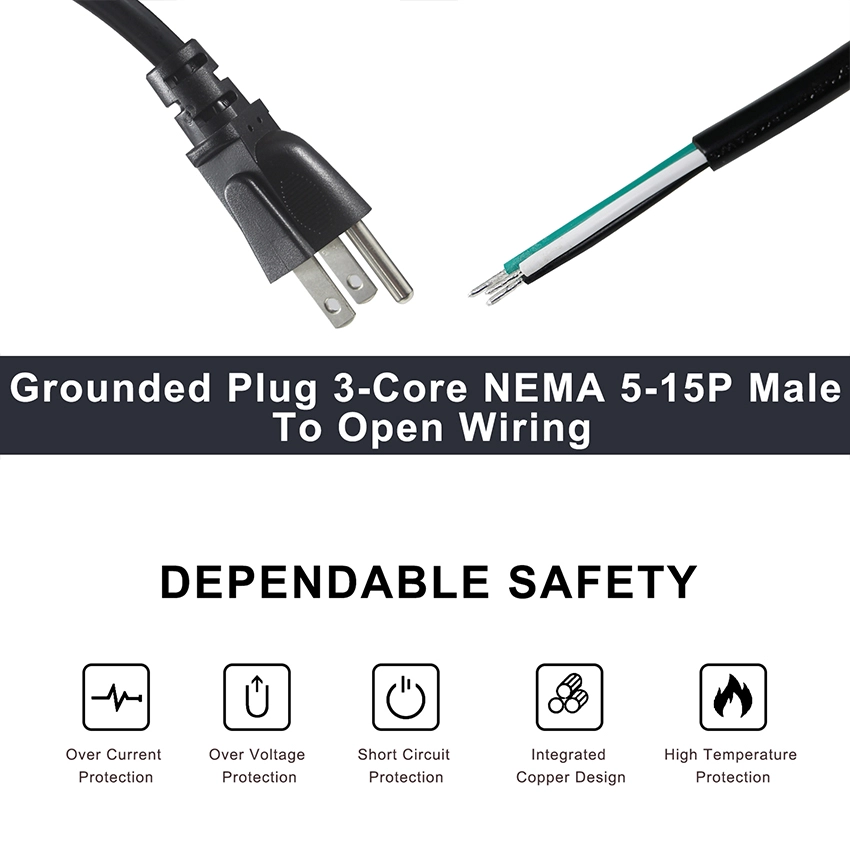

Plug Type	NEMA 5-15P (Molded US 3-Pin Grounded)
Connector End	Open End / Blunt Cut

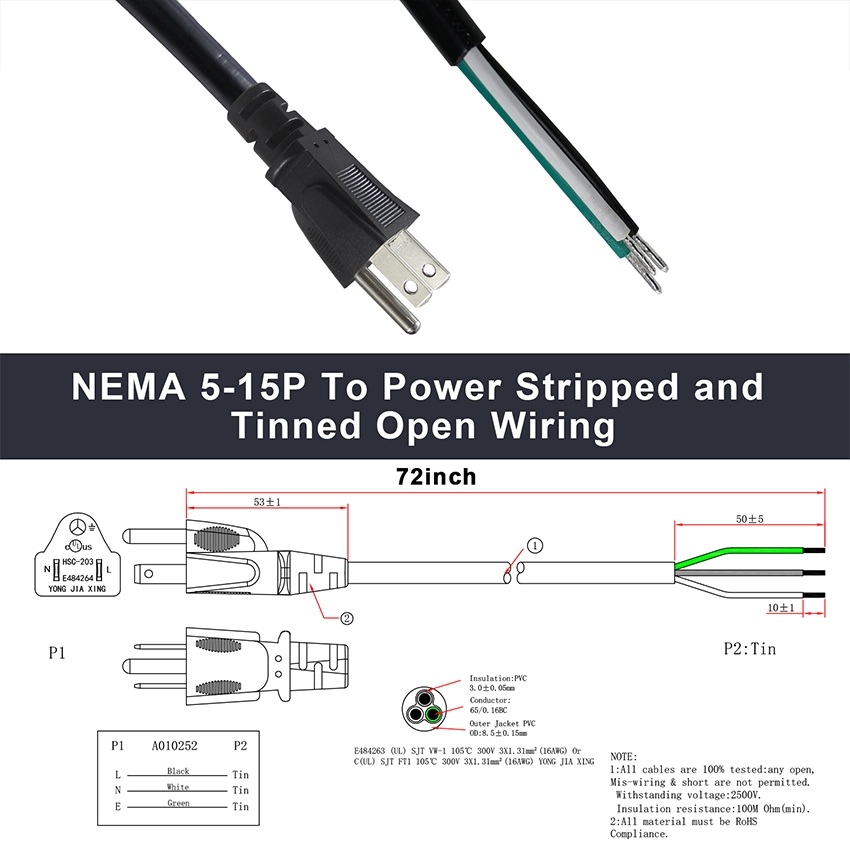

ROJ Strip Length	Customizable (Standard: 50.8mm / 2 inches)
Strip Length	Customizable (Standard: 6.35mm / 1/4 inch)
Finish Options	Fully Tinned / Half Tinned / Twisted Copper

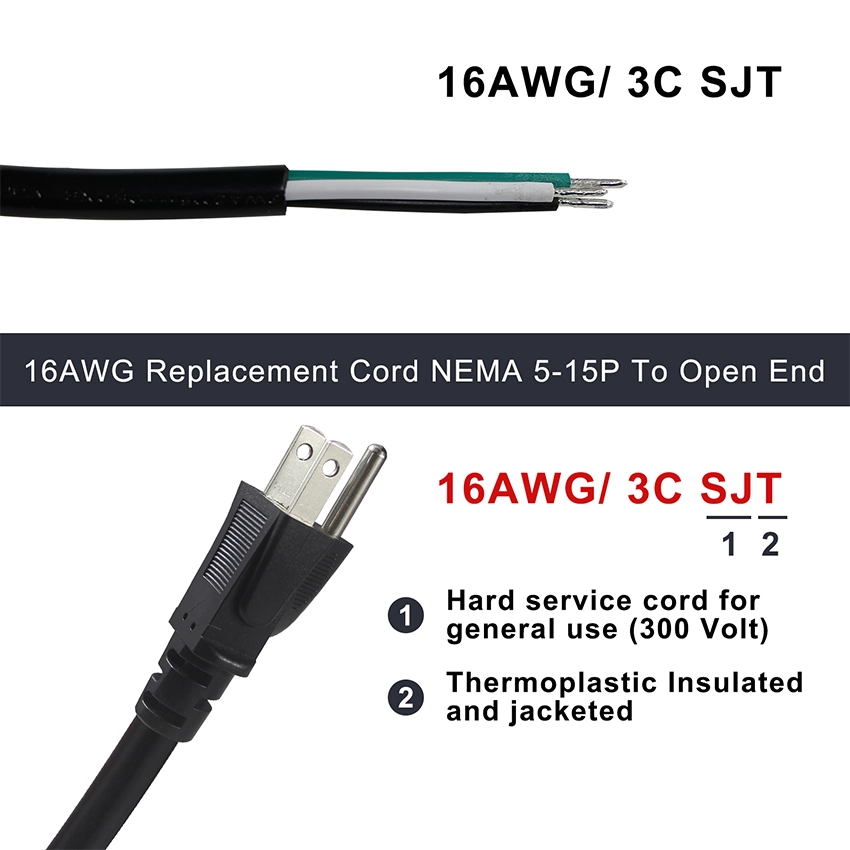

Wire Types	SVT, SJT (Indoor) / SJTW, SJTOW (Outdoor)
Current Rating	10A-15A / 125V
Voltage Rating	300V / 600V
Temperature Rating	60°C / 75°C / 105°C
Conductor Material	Stranded Bare Copper (Class K or M)
Color Code	Black (Line), White (Neutral), Green (Ground)
Certifications	UL / cUL Listed

Why Choose Our Flying Lead Solutions?

Ready-to-Solder Design

Our pre-tinned conductor ends prevent wire fraying and ensure instant, solid bonding during soldering or terminal crimping. This eliminates preparation time and reduces assembly complexity.

Superior Time Efficiency

You'll save valuable assembly time by eliminating on-site stripping and preparation requirements. Our automated processing increases your production line speed significantly.

Precision Strip Accuracy

Advanced automated stripping machines ensure consistent ROJ lengths every time. This precision guarantees perfect fitment inside equipment enclosures without manual adjustments.

Versatile Applications

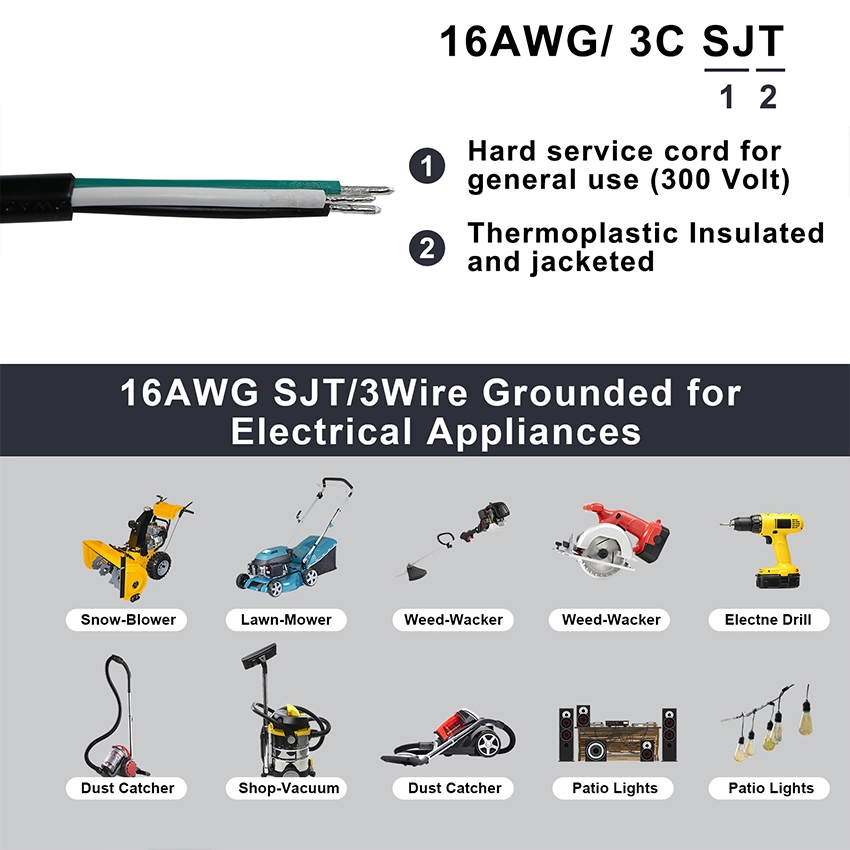

These cords work perfectly for dishwashers, garbage disposals, table saws, compressors, and various heavy-duty tools requiring reliable power connections.

Customizable Terminations

While stripped-and-tinned ends are standard, we can upgrade tails to include ring terminals, fork terminals, or other specifications based on your blueprints.

flying lead connections

Industries and Applications

Heavy Industrial Automation

Our flying lead connections excel in compact servo motors and robotic end-effectors where junction box space is unavailable. The flexible leads route through tight articulated arms to remote control cabinets, maintaining continuous power transmission despite repetitive bending.

OEM Manufacturing

Equipment manufacturers benefit from our streamlined assembly process. The pre-processed conductors integrate seamlessly into production lines, reducing labor costs and improving consistency.

Appliance Manufacturing

Domestic machine producers depend on our arrangements for fast hardwiring amid get together. The ready-to-terminate plan speeds up generation whereas keeping up electrical reliability.

Quality and Compliance

With 17 a long time of fabricating involvement, we deliver control cables beneath strict ISO guidelines. Our certifications incorporate CE, VDE, ETL, SAA, BS/UKCA, FCC, and EMC for worldwide showcase compliance.

Every item experiences 100% testing utilizing RoHS and REACH compliant materials. We give secure private tooling, steady estimating, and comprehensive one-year guarantee scope.

Customization Capabilities

We offer extensive customization options including:

Private mold logo embossing
Custom colors and wire gauges
Various materials (PVC, TPE, Rubber, LSZH)
Private label packaging
Custom ROJ and strip lengths
Pre-installed terminals (Ring, Spade, Quick Disconnect)

Our engineers provide free design review and technical support to ensure optimal performance for your specific requirements.

Production and Delivery

Our efficient production schedule includes:

Sample production: 3-7 days
Mass production: 15-25 days
24-hour response time for inquiries
Rush order support available

Found in Dongguan/Shenzhen, we give adaptable coordinations through discuss, ocean, and railroad, guaranteeing competitive cargo costs and on-time delivery.

Frequently Asked Questions

I need to customize

Please give us with more data almost the item you need.

In what situation is a flying lead association most invaluable for an engineer?

This association sort is perfect for limited spaces where unbending connectors cannot fit or where vibration resistance is a priority.

How are flying leads ordinarily secured amid the get together process?

The amplifying wires are for the most part patched specifically to a printed circuit board or grafted into a wiring saddle for a changeless electrical bond.

Get Started with Professional Flying Lead Solutions

Ready to streamline your assembly process with our industrial-grade flying lead connections? Contact our technical team today for customized solutions that meet your exact specifications.
