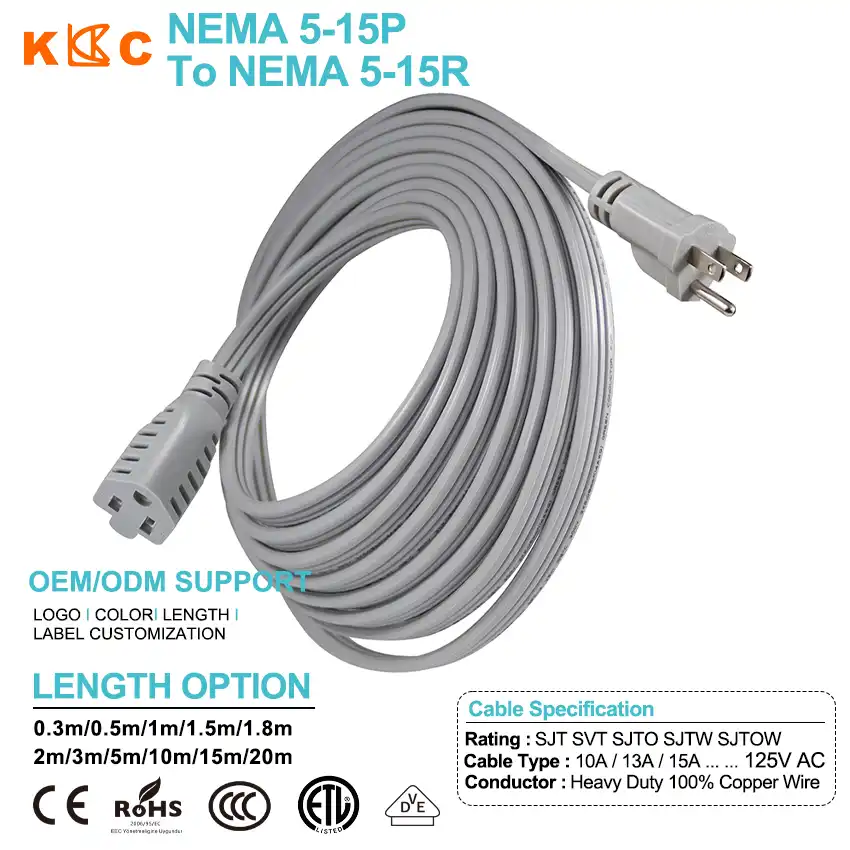

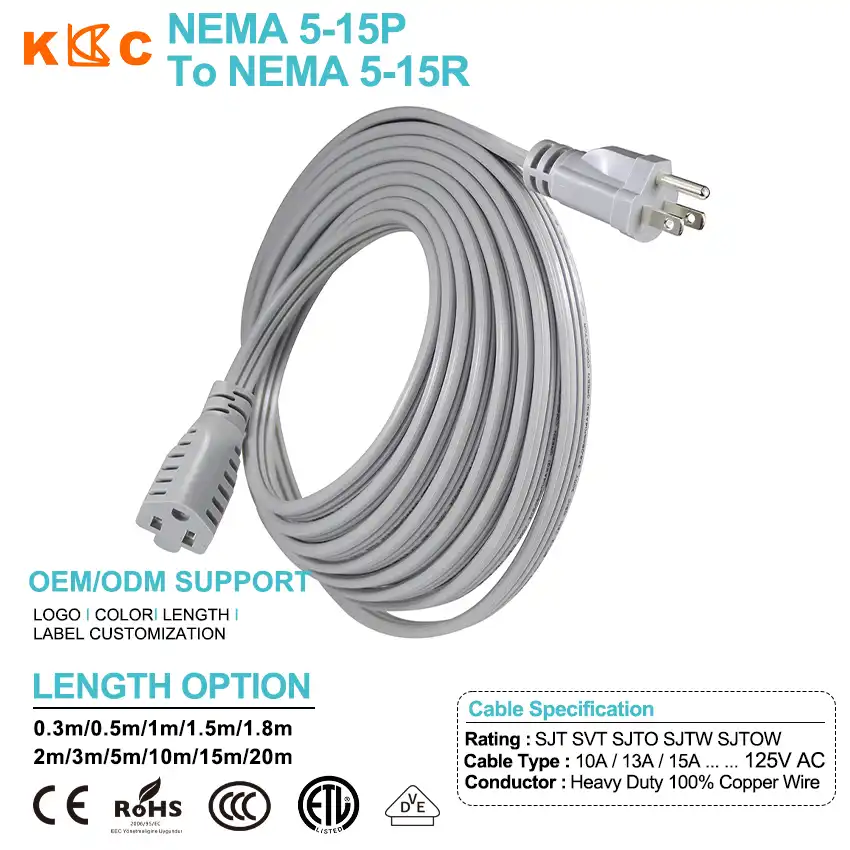

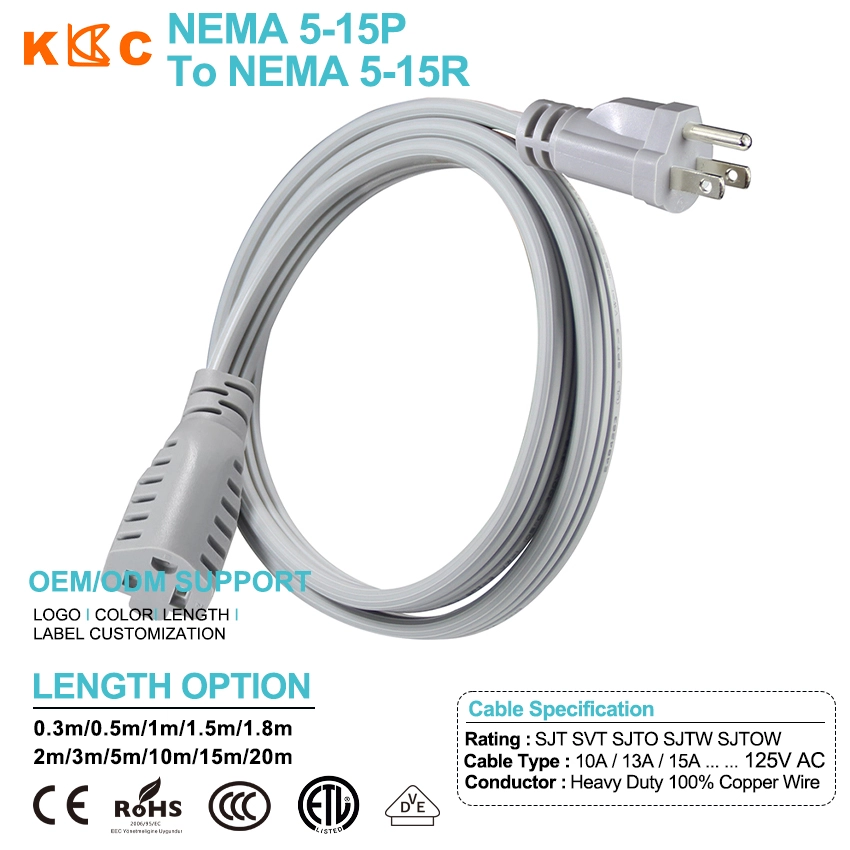

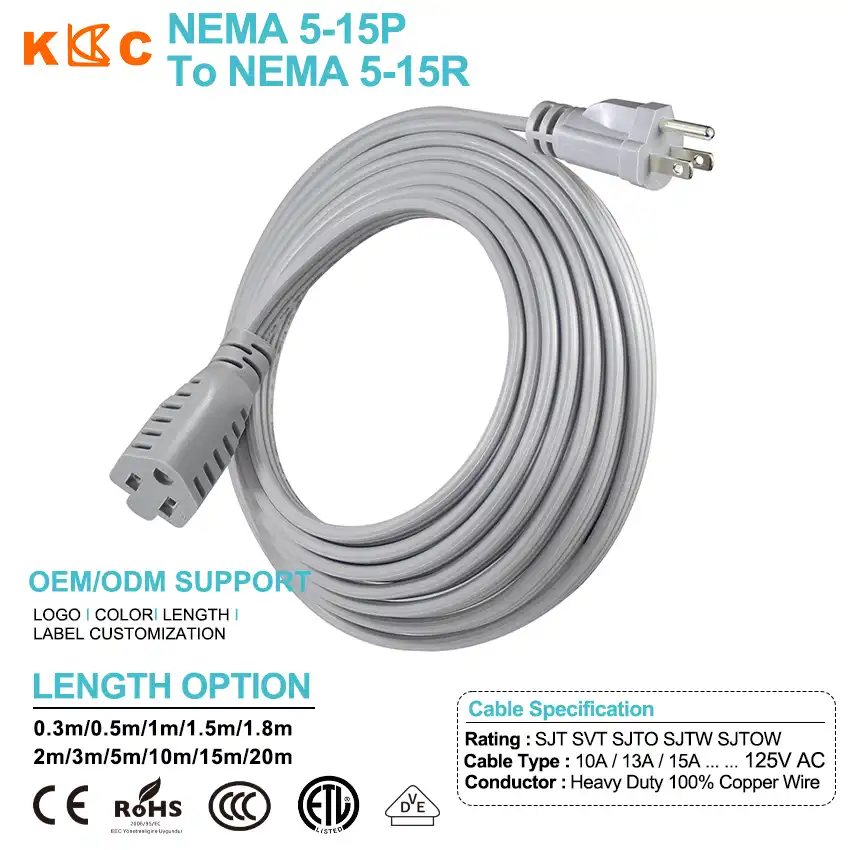

Gray NEMA 5-15P to 5-15R Extension Cord
Gray PVC Jacket Design: Manufactured with a gray outer jacket that blends cleanly with light-colored walls, server cabinets, or medical carts. This specific color-coding helps IT administrators visually distinguish power lines within high-density data center cable trays.
Ribbed Injection-Molded Strain Relief: Both the male plug and female receptacle are reinforced with heavy-duty ribbed transitions. This structural addition disperses extreme bending forces, preventing inner copper strands from snapping when the cord is aggressively pulled or coiled.
100% Pure Copper Conductors: Available with SVT, SJT, or SJTW jackets and 18AWG to 14AWG pure copper wiring. This strict material selection ensures maximum conductivity and prevents dangerous voltage drops when powering heavy 15A commercial loads.
OEM Length and Specification Support: Exact lengths from 0.3m up to 20m, exact wire gauge, jacket rating, and compliance labeling can be customized.Procurement teams can perfectly match the required specifications for consumer electronics or industrial machinery.
- Product Description
Gray NEMA 5-15P to 5-15R Extension Cord for Commercial and IT Power Delivery
The Gray NEMA 5-15P to 5-15R Extension Cord is engineered for commercial, medical, and IT environments where black cables disrupt aesthetics or cable management logic. Utilizing a standard 3-prong grounded configuration, this cable extends 125V AC power reliably up to 20 meters. Built exclusively with 100% pure copper conductors and injection-molded strain relief, it maintains a verified 0.1% defect rate. Consistent power. Clean routing. Zero compromises on electrical safety.
Why Choose Our Gray NEMA 5-15P to 5-15R Extension Cord?
Standard black extension cords often clash with light interior walls or get lost in massive data center bundles. This gray extension cord solves both visual and technical integration problems simultaneously.
Gray PVC Jacket Improves Visual Management
The light gray PVC jacket blends naturally with medical equipment carts, modern office walls, and white or gray server cabinets. For IT administrators managing high-density racks, using gray cords for specific power feeds (like UPS backup lines or specific phases) speeds up maintenance tracing and prevents accidental unplugging.
Ribbed Strain Relief Prevents Copper Fracture
The transition point between the molded plug and the flexible cable is the most vulnerable part of any power cord. Both the NEMA 5-15P and 5-15R ends feature deep, ribbed injection-molded strain reliefs. This structural design absorbs kinetic tension when the cord is bent tightly behind a desk or pulled across a floor, extending the mechanical lifespan of the internal conductors.
100% Pure Copper Conductors Support Full Capacity
We do not use copper-clad aluminum (CCA). This extension cord is manufactured with 100% pure heavy-duty copper wire. This material choice guarantees maximum electrical conductivity, minimal heat generation, and zero dangerous voltage drops when supplying high-draw 15A loads over longer lengths.
Multiple Jacket Ratings Fit Any Environment
Depending on the buyer's requirement, this cord can be extruded with SVT for light office use, SJT for standard commercial duty, or SJTW/SJTOW for harsh environments requiring oil and weather resistance. This flexibility allows procurement teams to match the exact jacket rating to their specific regulatory requirements.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Gray NEMA 5-15P to 5-15R Extension Cord |
| Input Plug | NEMA 5-15P Male Plug, 3-Prong Grounded |
| Output Receptacle | NEMA 5-15R Female Receptacle, 3-Slot Grounded |
| Standard Classification | Single-Outlet Grounded Power Extension Cable |
| Voltage Rating | 125V AC |
| Current Rating | 10A / 13A / 15A depending on wire gauge and length |
| Conductor Material | Heavy Duty 100% Pure Copper Wire |
| Wire Gauge Options | 18AWG / 16AWG / 14AWG |
| Cable Jacket Options | SVT / SJT / SJTO / SJTW / SJTOW, Gray Color |
| Length Options | 0.3m, 0.5m, 1m, 1.5m, 1.8m, 2m, 3m, 5m, 10m, 15m, 20m |
| Certification Options | ETL, UL, CE, RoHS compliant components |
Buyer's Insight: The relationship between cord length and wire gauge is absolute. If you are ordering a 15m or 20m cord to carry a 15A load, you must specify 14AWG copper. Using 18AWG on a 20m run will cause a severe voltage drop, potentially damaging the connected equipment's motor or power supply. Always align the AWG with your required length and maximum expected amperage.
Professional Applications You Can Trust
In medical and healthcare facilities, visual cleanliness is strictly maintained. The gray jacket blends with hospital walls and medical carts far better than industrial black cords, while the grounded NEMA 5-15 configuration securely powers non-critical monitoring equipment and workstations.
For data centers and server rooms, power redundancy requires clear visual indicators. Using a gray extension cord for a specific power phase or backup UPS circuit allows technicians to trace connections instantly without guessing or unplugging the wrong device.
In modern open-plan offices, desks are often located far from wall outlets. Short 0.5m to 2m cords help bypass bulky power bricks at the surge protector, while longer 5m to 10m runs safely bring grounded power across the room without creating an eyesore.
Advanced Safety Features
This cable provides a continuous earth ground from the NEMA 5-15P plug to the NEMA 5-15R receptacle. Grounding is a non-negotiable safety requirement for IT equipment and appliances with exposed metal chassis, safely directing electrical faults away from the user.
The standard SJT PVC jacket is rated for standard 300V indoor environments. If your application involves outdoor exposure or contact with commercial oils, specify the SJTW or SJTOW jacket during the quoting process.
The molded plug design eliminates the risk of exposed wiring or loose internal screws commonly found in manually assembled replacement plugs. The entire assembly is sealed against moisture and physical tampering.
Manufacturing Excellence
With 17 years of OEM power cord manufacturing experience, we control the entire process from copper drawing to final PVC extrusion. Every NEMA 5-15 extension cord undergoes 100% automated electrical testing, checking for polarity accuracy, ground continuity, and dielectric withstand (Hi-Pot). We deliver consistent, certified performance for high-volume commercial buyers.
Frequently Asked Questions
Q: What is the maximum wattage this cord can handle?
A: The maximum wattage depends entirely on the wire gauge you select. A 14AWG cord rated for 15A at 125V AC can handle up to 1875W. A thinner 18AWG cord rated for 10A is limited to 1250W. Always match the gauge to your equipment.
Q: Can the gray color tone be matched to a specific Pantone?
A: Yes. While we offer a standard industrial gray, we can match the PVC jacket and molded plugs to a specific Pantone color code for volume OEM orders to perfectly align with your brand or equipment chassis.
Q: What is the difference between SJT and SJTW jackets?
A: SJT is designed for standard indoor commercial use. SJTW adds a "W" for weather resistance, meaning the PVC compound is formulated for outdoor use and remains flexible in lower temperatures.
Q: What information is needed for a quotation?
A: Please provide the exact length (from 0.3m to 20m), wire gauge (18/16/14AWG), required jacket type (SJT, SJTW, etc.), target current rating, order quantity, and packaging requirements.
Custom Solutions for Your Business
Precision Length Options: Whether you need a 0.3m "cable saver" to prevent blocking adjacent outlets on a UPS, or a 20m run for facility maintenance, we manufacture the exact length your project requires.
Wire Gauge and Jacket Selection: Choose 18AWG for lightweight monitors, 16AWG for standard PCs, or 14AWG for heavy-duty appliances. Pair it with SVT for extreme flexibility or SJTOW for industrial resilience.
Color and Branding Options: Beyond gray, we can produce these cords in white, blue, red, or custom colors. We also support custom molded logos on the NEMA plug and specific warning labels printed on the cable jacket.
Retail and Bulk Packaging: We provide packaging solutions ranging from simple bulk polybags for factory assembly lines to printed retail sleeves and coiled zip-ties for hardware store distribution.
Contact Us
✔ OEM & ODM Support | ✔ 0.3m to 20m Lengths | ✔ 100% Pure Copper
Ready to discuss your Gray NEMA 5-15P to 5-15R Extension Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
