Green NEMA 5-15P to 3-Way Splitter Power Extension Cord with Safety Covers

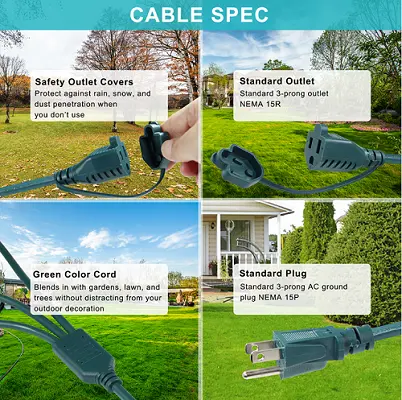

Integrated Safety Covers: Each of the three NEMA 5-15R female ends is equipped with a tethered, weather-resistant sealing cap. This mechanical barrier blocks moisture, dust, and debris from entering the contacts when the receptacle is not actively engaged.
Injection-Molded Strain Relief: Engineered with extended, multi-ribbed strain reliefs (SR) at the central Y-junction and all plug terminations. This heavy-duty reinforcement absorbs physical tension and prevents internal copper strand fatigue during frequent field routing.
Commercial Grade Copper Core: Constructed utilizing 16AWG or 14AWG pure copper conductors encased in a durable green SJTW PVC jacket. Delivers stable 125V AC transmission while minimizing voltage drop across extended outdoor or warehouse cable runs.
Verified Safety Compliance: Manufactured under strict UL/cUL standards with a self-extinguishing flame-retardant exterior. The specialized green color profile blends naturally into landscaping and architectural environments, ensuring discreet and code-compliant commercial installations.
- Product Description

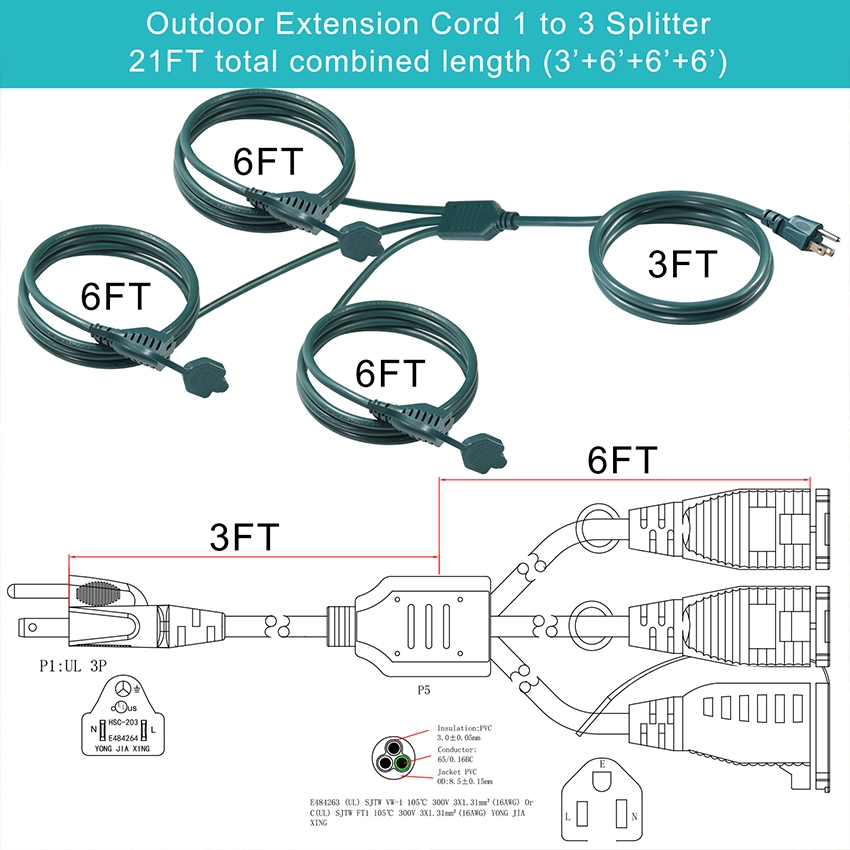

NEMA 5-15P to 3-Way Splitter Power Extension Cord | Multi-Outlet Commercial Distribution
Powering multiple hardware units from a single drop requires structural integrity and environmental protection. The NEMA 5-15P to 3-Way Splitter Power Extension Cord divides one wall outlet into three independent NEMA 5-15R branches. Equipped with tethered safety covers and heavy-duty injection-molded strain reliefs (SR), this assembly withstands aggressive commercial field use. Produced with a strict 0.1% defect rate. It provides verified stable 125V AC power distribution for demanding indoor and outdoor commercial arrays.
Why Choose Our 3-Way Power Splitter?
Engineered to resolve the hazards of daisy-chaining multiple power strips in industrial and staging environments.
1-to-3 Radial Distribution Architecture
A central molded junction splits the primary AC feed into three separate extension coils. This configuration eliminates the need for bulky plug adapters. Facility managers can cleanly route power to three different directional zones from one central drop, reducing fire code violations associated with cascaded extension cords.

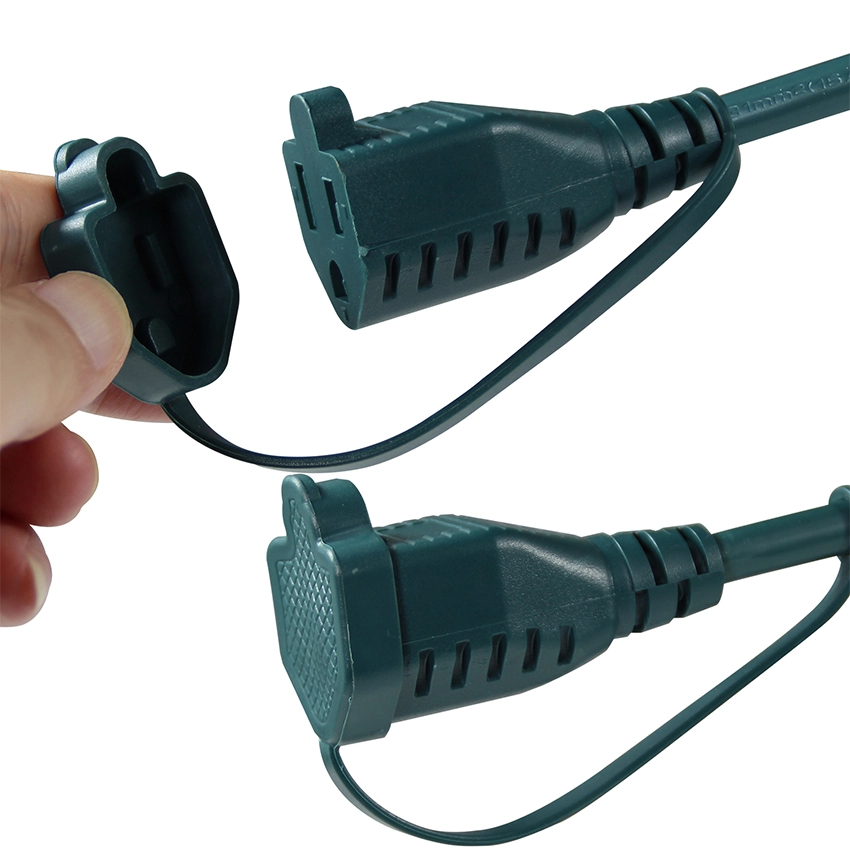

Tethered Receptacle Safety Covers
Each NEMA 5-15R female end features an integrated friction-fit sealing cap. This mechanical barrier physically blocks water splashes, dirt, and warehouse debris from entering the brass contacts when a branch is unused. It prevents localized short circuits and significantly extends the operational lifespan of the cable.
Injection-Molded Strain Relief (SR)
The central splitter block and all plug terminations are reinforced with extended, multi-ribbed strain reliefs. This critical design absorbs acute bending forces. It prevents the internal copper strands from fracturing when technicians repeatedly drag or yank the cables across rough staging floors.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Standard Classification | NEMA 5-15P Male to 3 x NEMA 5-15R Female |
| Voltage Rating | 125V AC |
| Current Capacity | 13A / 15A (Depending on AWG selection) |

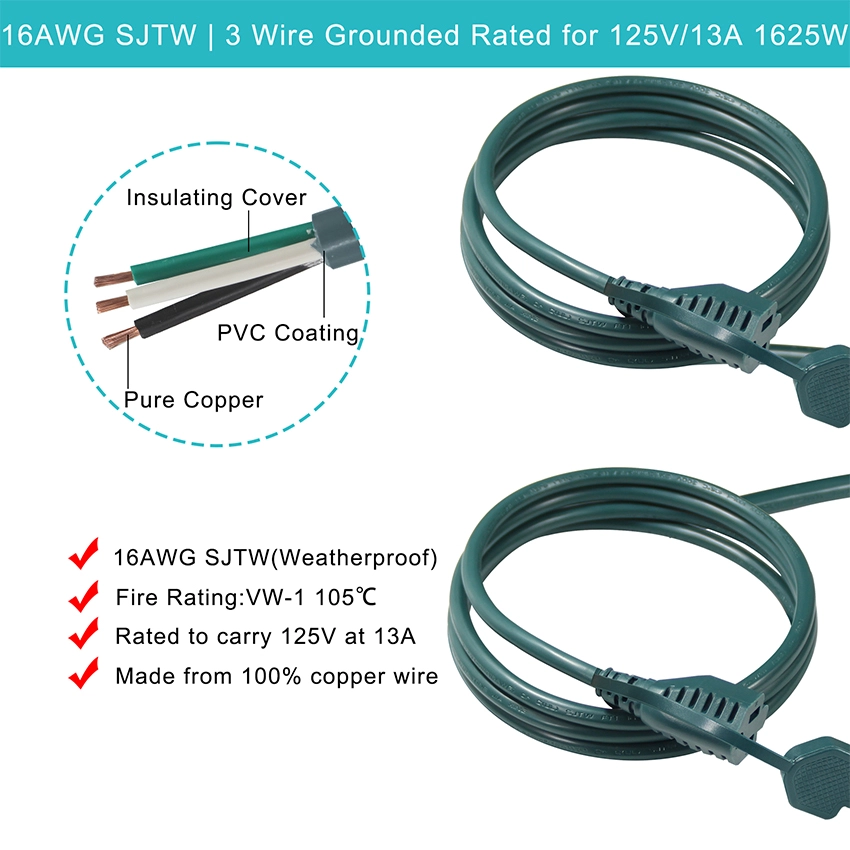

| Wire Gauge Options | 16AWG / 14AWG Pure Copper |
| Jacket Material | SJTW Weather-Resistant PVC (Green) |
| Special Features | Tethered Safety Caps, Heavy-Duty SR |
| Certifications | UL/cUL, RoHS, REACH |
Buyer's Insight: Standard multi-plug extensions often fail at the central junction due to inadequate molding. We solved this by continuously over-molding the 1-to-3 junction block, ensuring absolute isolation of the internal splice. Procurement teams working in commercial horticulture and event staging highly value the discreet green jacket, which hides the wiring infrastructure within grass, foliage, or dark stage backgrounds.
Professional Applications You Can Trust
Commercial landscape lighting requires discreet and protected power delivery. The green SJTW jacket blends seamlessly into outdoor environments. The individual safety caps ensure that if a specific lighting fixture is removed for maintenance, the exposed 5-15R receptacle remains sealed against morning dew and soil.
In warehouse and greenhouse facilities, localized power drops often need to feed multiple fans or diagnostic terminals simultaneously. This 3-way cord optimizes the power infrastructure. It allows technicians to spread three distinct hardware units across a wider radius without running three separate 50-foot cables back to the main breaker panel.
Advanced Safety Features
Thermal stability is mandatory for multi-device loads. The 14AWG pure copper core minimizes electrical resistance, ensuring the PVC jacket remains within safe temperature limits even when all three branches draw peak amperage. The SJTW-rated PVC jacket is specifically formulated to resist UV degradation and remain flexible in freezing environments.
The female NEMA 5-15R receptacles utilize high-tension brass alloy contacts. This maintains exact clamping force on inserted plug prongs over thousands of insertion cycles, mitigating loose connections that lead to hazardous micro-arcing.
Manufacturing Excellence
Supported by 17 years of specialized cable extrusion and molding expertise. Every assembled splitter undergoes a 100% factory Hi-Pot (Dielectric Withstand) and automated polarity check before packaging. We source only compliant, virgin PVC to guarantee long-term insulation integrity, maintaining our rigorous 0.1% defect rate across high-volume orders.
Frequently Asked Questions
Q: What is the maximum combined power rating when all three branches are in use?
A: When configured with 14AWG copper wiring, the entire assembly safely handles a combined load of 15A at 125V AC (approx. 1875 Watts). Users must ensure the total draw of the three connected devices does not exceed this rating.
Q: Is this SJTW-rated cord fully waterproof for outdoor use?
A: The SJTW jacket is weather-resistant, UV-resistant, and designed for outdoor environments. However, the connection points (plugs and receptacles) are not submersible. The safety caps prevent water ingress only when the receptacle is completely unplugged and sealed.
Q: What is the standard sample dispatch timeline for this 3-way splitter?
A: Standard off-the-shelf samples ship within 3 business days. For customized branch lengths or upgraded 12AWG configurations, engineering samples are typically dispatched within 7 to 10 business days following final specification approval.
Custom Solutions for Your Business
We build multi-outlet architectures tailored to your deployment needs. Custom Branch Lengths: Specify the exact length of the main trunk and the three individual branches to match your spatial layout. Wire Gauge (AWG): Upgrade to 14AWG or 12AWG for heavy-duty industrial equipment loads. Jacket Color: While green is standard for outdoor camouflage, we offer high-visibility yellow, orange, or black for stage and studio applications. Certification Matching: Adapt the plugs to specific regional standards. Low MOQ Sampling: We support agile pilot runs for your site evaluations.
Contact Us
✔ Rigorous QC Testing | ✔ OEM & ODM Welcomed | ✔ Fast Sample Dispatch
Ready to discuss your NEMA 5-15P to 3-Way Splitter Power Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
