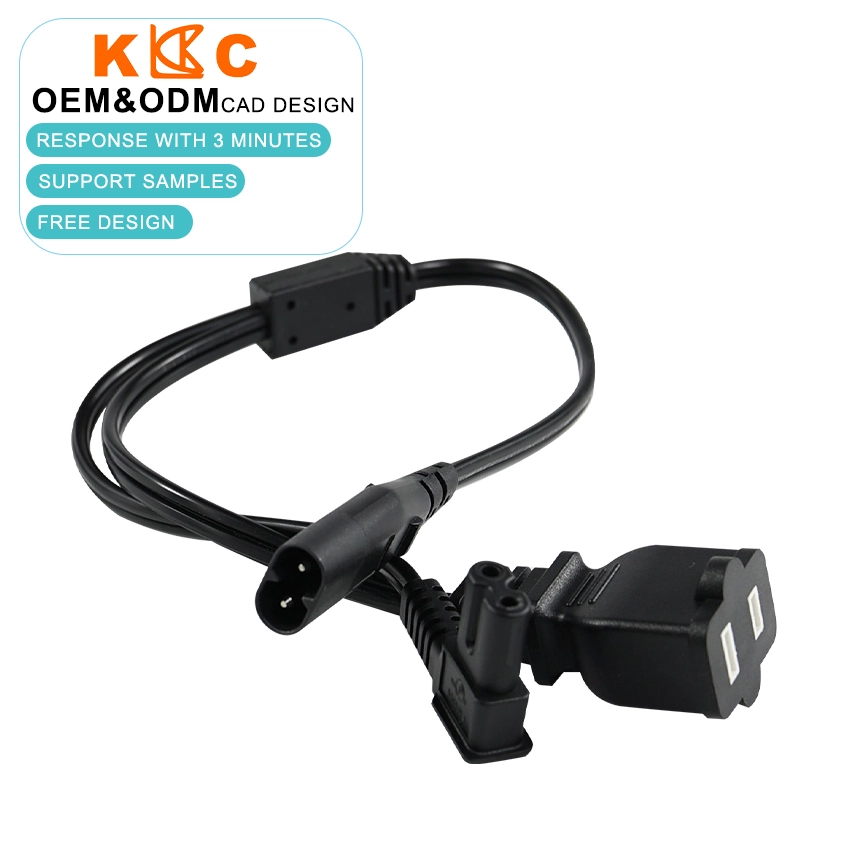

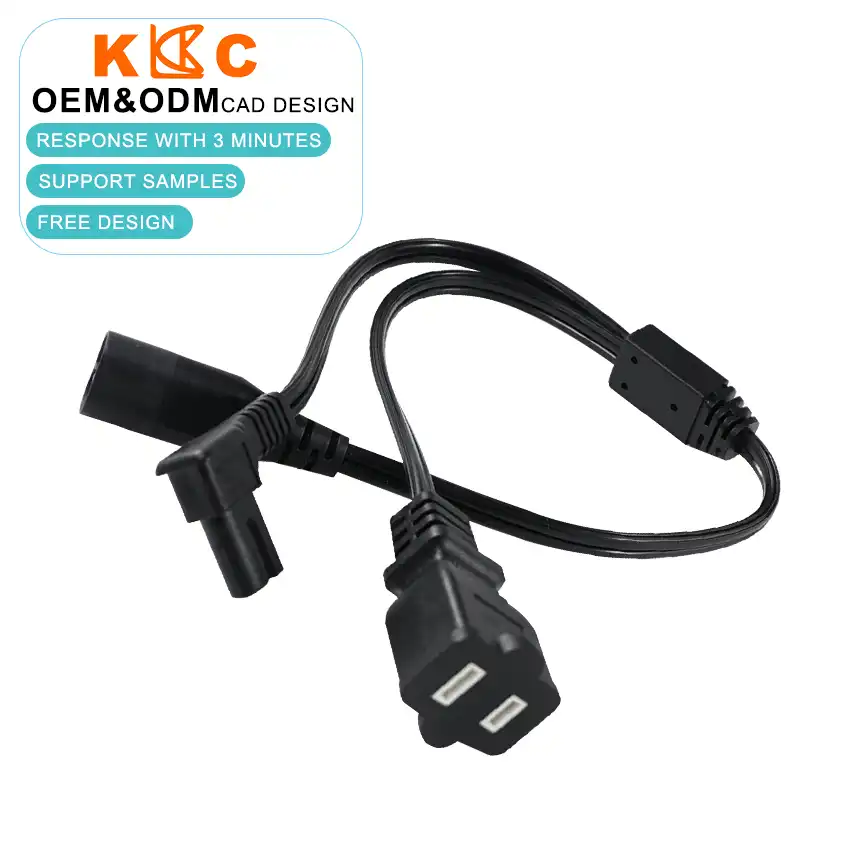

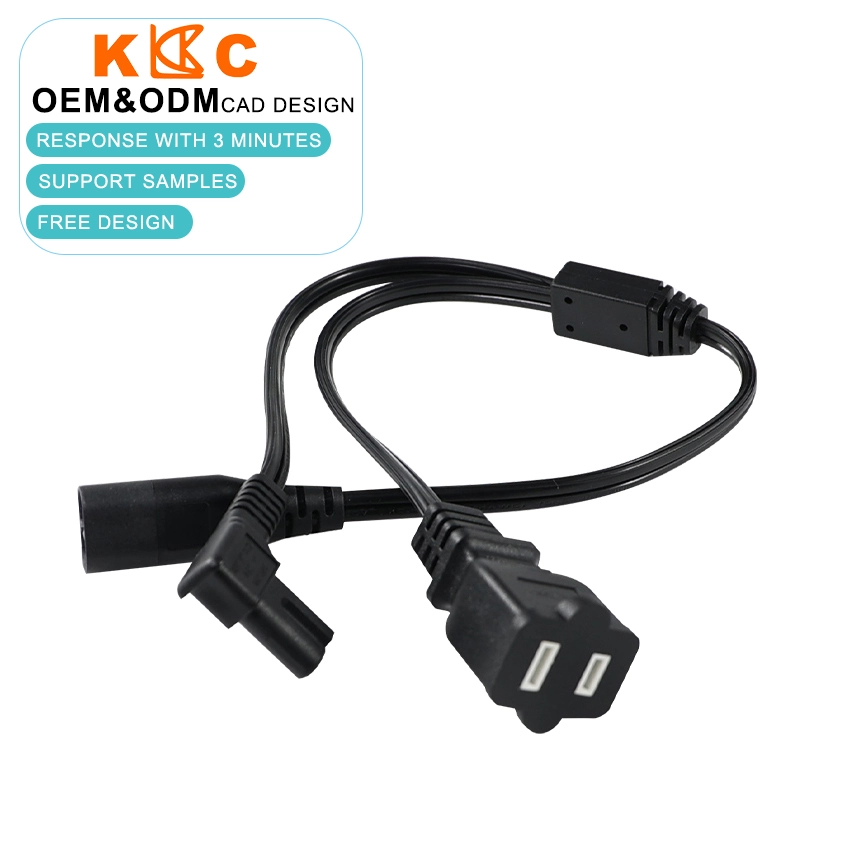

IEC 320 C8 Male to C7 and NEMA 1-15R Female Y-Splitter Power Cable

IEC 320 C8 Male to C7 and NEMA 1-15R Female Y-Splitter Power Cable for Dual-Device Power Distribution

Consolidating power feeds reduces rack clutter and installation time. Our IEC 320 C8 Male to C7 and NEMA 1-15R Female Y-Splitter Power Cable delivers precise electrical branching for confined spaces. We utilize certified copper conductors. Direct factory manufacturing ensures structural integrity at the critical Y-junction. You receive verified continuity testing data with every shipment.

​​​​​​​

Why Choose Our IEC 320 C8 Male to C7 and NEMA 1-15R Female Y-Splitter Power Cable?

Splitting power lines introduces electrical resistance at the junction. We eliminate this thermal weak point.

Reinforced Y-Junction Molding

Typical consumer splitters fail at the bifurcation point. The internal wires pull loose under tension. We utilize a high-pressure injection molding process for the central junction block. This completely encapsulates the internal solder joints. Mechanical stress transfers to the outer jacket. It never reaches the copper core.

Dual Compatibility Architecture

Integrating a non-polarized C7 and a standard NEMA 1-15R receptacle requires precise spacing. We tool our molds to ensure zero physical interference when both ports are occupied. Connect your A/V equipment and a standard US plug device simultaneously. No adapter blocks required. Space is maximized.

Complete Product Specifications

Professional Applications You Can Trust

Digital signage deployments face severe space constraints behind the mounting panels. Running separate power lines to the main display and the local media player wastes conduit space. This splitter allows you to power the monitor via the C7 port and the localized compute unit via the NEMA 1-15R receptacle from a single C8 power source. Installation times drop significantly.

Medical cart integration also benefits from simplified wiring architectures. Diagnostic monitors often use the figure-8 C7 standard. Auxiliary devices like thermal printers require a standard US two-prong outlet. One cable manages both inputs. It prevents cable tangles near sensitive patient care environments. Maintenance becomes predictable.

Advanced Safety Features

Junction overheating is a severe risk in multi-leg cables. We engineer the internal copper splice with overlapping mechanical crimps before soldering. This creates a zero-gap electrical connection. The resistance remains identical to a solid, unbroken wire.

We specify flame-retardant polyvinyl chloride for all external jacketing. If connected hardware faults, the cable will not propagate the fire. The NEMA 1-15R receptacle features strict insertion force tolerances. Plugs seat firmly. They do not vibrate loose during equipment transit.

Manufacturing Excellence

We leverage 17 years of direct factory experience in power cord manufacturing. We skip the middlemen. Every splitter cable undergoes 100% automated electrical testing before leaving our facility. We verify continuity, polarity, and dielectric withstanding voltage. We source only RoHS and REACH compliant raw materials.

Frequently Asked Questions

Q: Can the Y-junction withstand hanging weight if the cable is routed vertically?

A: Yes. The molded transition block acts as a heavy-duty strain relief. It isolates the internal splices from axial loads. We test the junction to withstand sustained static hanging tension without electrical degradation.

Q: Is the NEMA 1-15R side polarized?

A: This specific configuration relies on the C8 male input, which is inherently unpolarized. Therefore, the NEMA 1-15R female end is also unpolarized. Both slot widths are identical to match the input phase flexibility.

Q: Can we adjust the leg lengths of the C7 and NEMA extensions?

A: Absolutely. While standard configurations feature equal length splits, we can offset the lengths based on your enclosure geometry. You provide the exact dimensions. We adjust the tooling.

Custom Solutions for Your Business

Off-the-shelf cables rarely fit optimized engineering BOMs. We maintain deep OEM/ODM capabilities. We can specify unique wire gauges, alternate jacket materials like LSZH, or specific leg-length ratios for the Y-split. Standard production lead time for bulk customized orders is 15 to 21 days following schematic approval.

Contact Us

Ready to discuss your IEC 320 C8 Male to C7 and NEMA 1-15R Female Y-Splitter Power Cable requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing. Request your IEC 320 C8 Male to C7 and NEMA 1-15R Female Y-Splitter Power Cable quotation today.
