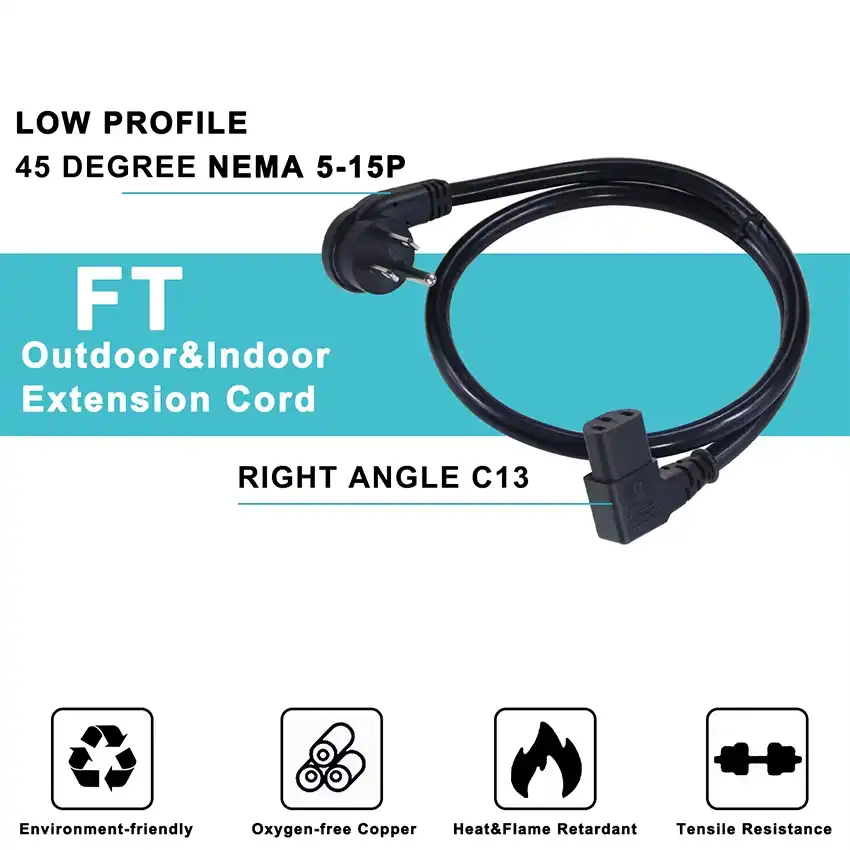

Low Profile 45-Degree NEMA 5-15P to Right Angle C13 Power Cord
Right Angle IEC C13 Connector: The IEC 60320 C13 female end uses a right-angle molded design to route the cable close to the connected device, reducing rear-panel protrusion on computers, monitors, power supplies, and rack equipment.
Grounded Power Connection: Built with NEMA 5-15P and IEC C13 grounded connector standards for compatible equipment requiring ground continuity. Final grounding structure should be confirmed according to the approved wire configuration and certification route.
Molded Strain Relief Protection: Both plug ends are reinforced with injection-molded strain relief to spread bending stress across the cable jacket, reducing conductor fatigue during installation, routing, transport, and repeated plugging cycles.
OEM Configuration Ready: Available with customized cable length, wire gauge, jacket type, plug angle direction, C13 connector orientation, jacket color, molded logo, cable printing, packaging, and certification matching for project-specific procurement.
- Product Description
Low Profile 45-Degree NEMA 5-15P to Right Angle C13 Power Cord for Space-Constrained Equipment
The Low Profile 45-Degree NEMA 5-15P to Right Angle C13 Power Cord is designed for grounded AC power connections where both wall-side clearance and equipment-side clearance are limited. The 45-degree NEMA 5-15P plug reduces protrusion at the wall outlet, while the right angle IEC C13 connector helps route the cable tightly along the rear panel of compatible computers, monitors, servers, and power supplies. Compact routing. Less bend stress. Better fit in real installations.
Why Choose Our Low Profile 45-Degree NEMA 5-15P to C13 Power Cord?
This cable is built for procurement teams and equipment manufacturers who need more than a standard straight power cord. The value is in the geometry: both ends are shaped to solve clearance problems.

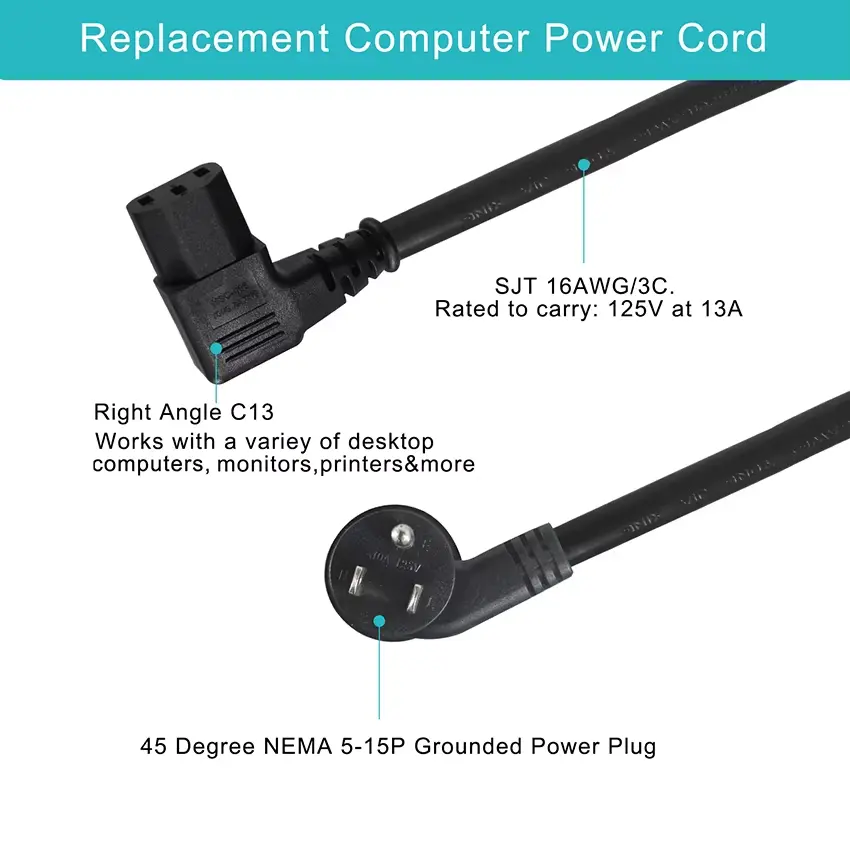

45-Degree NEMA 5-15P Plug Reduces Wall-Side Protrusion and Protects the Cable
The input side uses a low profile 45-degree NEMA 5-15P male plug. Compared with a straight plug, the angled body guides the cable away from the outlet face and reduces pressure when furniture, cabinets, or equipment racks sit close to the wall.
The benefit is practical. Installers can route the cord with less forced bending at the plug exit, helping reduce jacket deformation and internal conductor stress over long-term use.
Right Angle IEC C13 Connector Improves Rear-Panel Cable Management
The equipment side uses a right angle IEC 60320 C13 female connector. This connector orientation helps the cable sit closer to the connected device, especially where rear clearance is restricted by walls, rack doors, desk panels, or mounting brackets.
For OEM equipment, POS terminals, display systems, and IT hardware, the right angle C13 end helps keep the back of the device cleaner and easier to service. Less cable bulge. Less interference with nearby components.
Grounded NEMA 5-15P to IEC C13 Structure Supports Compatible Equipment
NEMA 5-15P and IEC C13 are commonly used for grounded AC power connections in North American equipment applications. When produced with the correct conductor structure and approved configuration, this cable can support ground continuity from the wall outlet to the device inlet.
For buyer safety documentation, confirm the final AWG, jacket type, plug orientation, C13 angle direction, and certification route before order approval. Do not treat angle and rating as cosmetic details. They affect fit, compliance, and field performance.
Molded Strain Relief Reduces Failure at Connector Exit Points
Both connector ends can be produced with injection-molded strain relief. These ribbed transition sections help distribute bending force along the jacket instead of concentrating stress at the plug or C13 exit point.
This matters in applications where the cord is routed behind desks, pushed into rack spaces, packed with equipment, or repeatedly reinstalled. A controlled molded transition reduces one of the most common cable failure points.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Low Profile 45-Degree NEMA 5-15P to Right Angle C13 Power Cord |
| Input Plug | Low Profile 45-Degree NEMA 5-15P Male Plug |
| Output Connector | Right Angle IEC 60320 C13 Female Connector |
| Standard Classification | NEMA 5-15P to IEC C13 Grounded Power Cord |
| Voltage Rating | 125V AC |
| Current Rating | Up to 15A, depending on wire gauge and final certified configuration |
| Wire Gauge Options | 18AWG / 16AWG / 14AWG pure copper conductor options |
| Cable Jacket | SJT / SVT PVC jacket, black or customized color |
| Connector Direction | 45-degree wall plug with right angle C13 equipment connector |
| Customization Options | Cable length, AWG, jacket material, plug angle direction, C13 orientation, molded logo, cable printing, packaging |
| Certification Options | [Certification Options] |
Buyer's Insight: The most common mistake is choosing only by connector type and ignoring connector direction. A straight NEMA 5-15P to straight C13 cord may be electrically correct but physically wrong for tight installations. If the device sits close to a wall, rack door, or cabinet panel, the 45-degree plug and right angle C13 connector can prevent forced bending and reduce installation rework.
Professional Applications You Can Trust
For desktop computers and monitors placed close to walls, rear clearance is often limited. A straight plug or straight C13 connector can press against the wall or device panel. This low profile 45-degree to right angle structure helps route the cable cleanly without forcing the connector into an unnatural bend.
For rack-mounted IT equipment, installers must keep cable paths predictable while leaving access for rack doors and airflow. The right angle C13 connector reduces rear-panel protrusion, while the NEMA 5-15P angled plug helps simplify routing from the wall outlet or compatible power source.
For POS systems, kiosks, medical carts, and display equipment, exposed cable loops can affect appearance and service access. This cord helps keep the AC connection closer to the device body, making the final installation cleaner and easier to inspect.
Advanced Safety Features
The NEMA 5-15P to IEC C13 configuration is intended for compatible grounded AC equipment. Ground continuity, current rating, jacket type, and certification route should be confirmed in the final approved drawing and production specification.
Using a right angle connector can reduce mechanical stress, but it does not change the electrical rating by itself. Buyers should match the wire gauge, cord length, and device load to the approved rating of the complete cable assembly.
The molded strain relief helps protect the conductor transition area from repeated bending. This is especially important when cables are packed tightly behind equipment or routed through narrow furniture openings.
Manufacturing Excellence
Our factory supports OEM and ODM production for low profile power cord assemblies, including angled NEMA plugs, right angle IEC connectors, molded strain relief, custom cable printing, jacket color selection, packaging, and compliance documentation. Testing scope, production history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.
Frequently Asked Questions
Q: Is this a grounded power cord?
A: Yes, the NEMA 5-15P to IEC C13 connector family is normally used for grounded AC power connections when manufactured with the correct three-conductor cable structure. Ground continuity should be confirmed in the final drawing and certified configuration.
Q: What is the advantage of a 45-degree NEMA 5-15P plug?
A: The 45-degree plug helps direct the cable away from the outlet face, reducing wall-side protrusion and cable pressure in tight spaces. It is useful behind furniture, racks, cabinets, and mounted equipment.
Q: Can the C13 connector angle direction be customized?
A: Yes. The C13 end can be designed in different right angle orientations according to the device inlet direction, rear-panel clearance, and cable routing plan.
Q: What information is needed for a quotation?
A: Please provide cable length, wire gauge, jacket type, plug angle direction, C13 connector orientation, target certification, packaging requirement, MOQ target, and any cable printing or molded logo requirement.
Custom Solutions for Your Business
Length Customization: Define the exact cable length according to your device position, cabinet depth, or workstation layout. Correct length selection reduces excess cable and improves final assembly appearance.
Wire Gauge & Material: Select 18AWG, 16AWG, or 14AWG pure copper conductor options based on current rating, flexibility, and certification route.
Custom Molding: Adjust the NEMA 5-15P plug angle, C13 connector direction, strain relief length, connector housing shape, and molded logo to match your product structure.
Certification Matching: Certification options and testing documentation can be prepared according to the buyer's target market, compliance route, and purchasing file requirements.
Contact Us
✔ OEM & ODM Support | ✔ CAD Design Support | ✔ Sample Support
Ready to discuss your Low Profile 45-Degree NEMA 5-15P to Right Angle C13 Power Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
