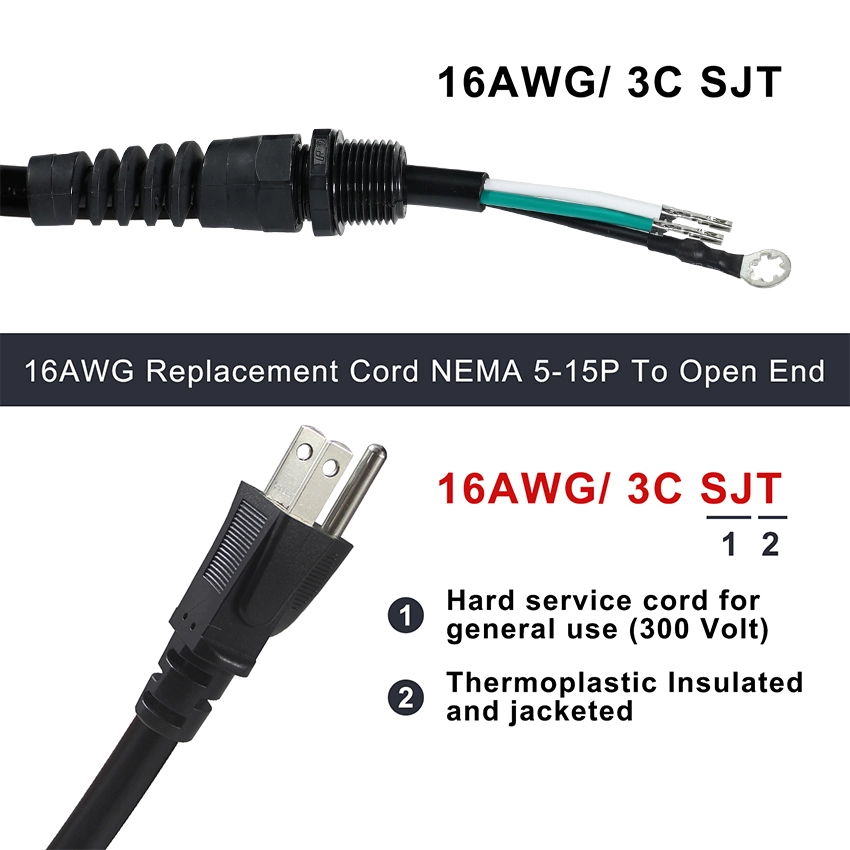

NEMA 5-15P Open End Power Cable with Terminals and Strain Relief Connector
Strain Relief Connector Included: The strain relief connector helps secure the cable at the equipment entry point, reducing pulling force on internal terminals and preventing wire movement after installation.
Grounded 3-Conductor Structure: Built for line, neutral, and ground routing when manufactured with the correct conductor layout and approved specification, supporting equipment designs that require protective earth continuity.
Production-Ready Terminal Options: Ring terminals, fork terminals, quick-disconnect terminals, ferrules, or buyer-specified crimp terminals can be prepared according to your assembly drawing, reducing extra manual wiring steps on the production line.
OEM Configuration Ready: Cord length, wire gauge, jacket type, terminal style, stripped length, conductor color, strain relief connector size, plug molding, cable printing, packaging, and certification route can be customized for project-specific procurement.
- Product Description

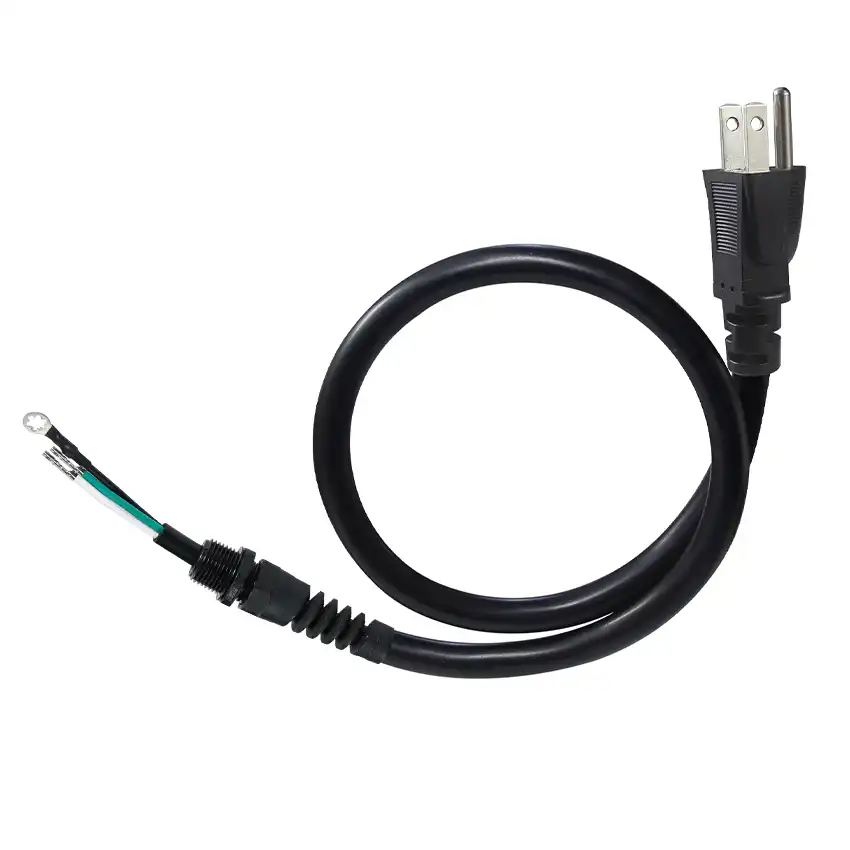

NEMA 5-15P Open End Power Cable with Terminals and Strain Relief Connector for OEM Equipment Wiring
The NEMA 5-15P Open End Power Cable with Terminals and Strain Relief Connector is designed for OEM buyers, repair teams, and electrical assembly projects that require a North American grounded plug with prepared internal wiring ends. The NEMA 5-15P plug connects to compatible 125V AC receptacles, while the open-end conductors can be supplied with terminals for direct connection to terminal blocks, switches, relays, power modules, or control panels. The strain relief connector helps secure the cable where it enters the equipment housing, reducing pull stress on the internal wiring.
Why Choose Our NEMA 5-15P Open End Power Cable?
This cable is built for production wiring where the equipment side needs defined terminal preparation, not a molded receptacle. The key value is controlled assembly: plug standard, wire preparation, terminal type, and strain relief fit.
NEMA 5-15P Plug Provides Standard Grounded US Power Input
The input side uses a NEMA 5-15P male plug for compatible North American 125V AC power environments. It gives equipment manufacturers a familiar wall-side connection while leaving the equipment side ready for direct internal wiring.
For procurement teams, this reduces plug compatibility risk. One end is standardized; the other end is engineered according to your equipment drawing.
Open End with Terminals Reduces Manual Wiring Preparation
The output side can be supplied with prepared conductors and terminals such as ring terminals, fork terminals, ferrules, or quick-disconnect terminals. This allows installers to connect the cord directly to internal terminal blocks or electrical components.
Small detail. Big assembly impact. When terminal type, strip length, conductor color, and wiring sequence are specified correctly, production teams spend less time cutting, stripping, and reworking each cable.

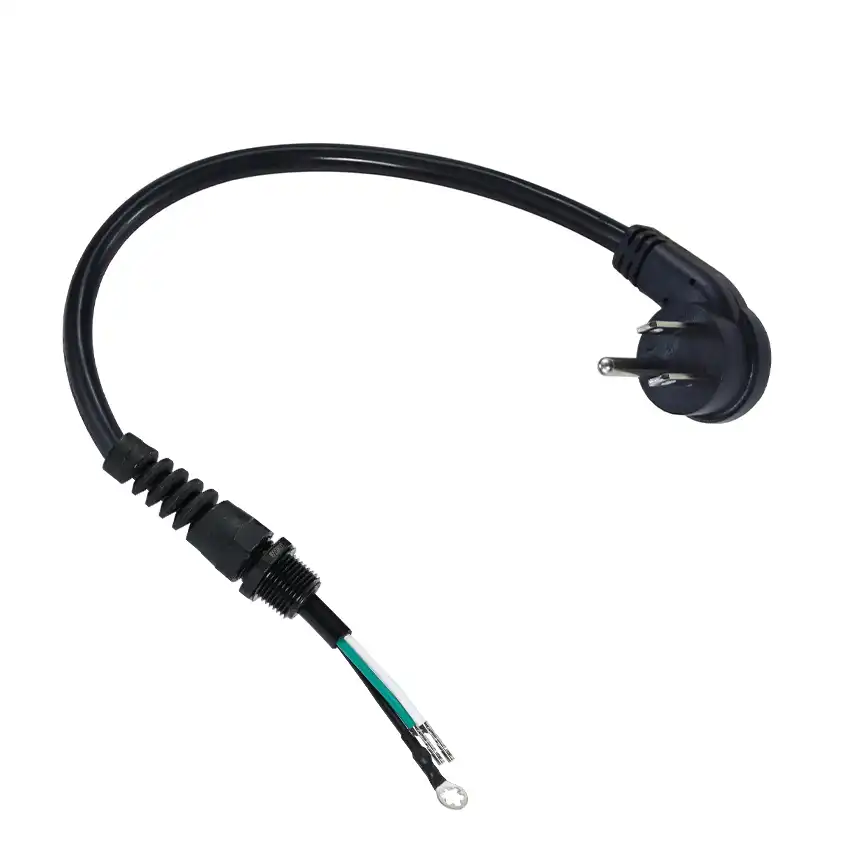

Strain Relief Connector Protects the Equipment Entry Point
The strain relief connector helps clamp or secure the cable where it passes through the equipment housing, panel, or enclosure wall. This reduces the chance that pulling force is transferred directly to the terminal connection.
For appliances, control boxes, lighting systems, and industrial panels, this protects the internal wiring layout and helps keep the assembly stable during transport, service, and repeated handling.
Grounded 3-Conductor Cable Structure Supports Safety Planning
The cable can be built with line, neutral, and ground conductors for equipment that requires protective earth continuity. The ground conductor must be routed to the correct terminal point according to the approved wiring diagram.
Do not rely on color alone. Confirm conductor assignment, terminal style, strain relief size, and final test requirements before production.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | NEMA 5-15P Open End Power Cable with Terminals and Strain Relief Connector |
| Input Plug | NEMA 5-15P Male Plug, 3-Prong Grounded |
| Output End | Open End Conductors with Pre-Attached Terminals |
| Standard Classification | NEMA 5-15P to Open End Terminal Power Cable |
| Voltage Rating | 125V AC |
| Current Rating | Up to 15A, depending on wire gauge, terminal type, cable length, and final certified configuration |

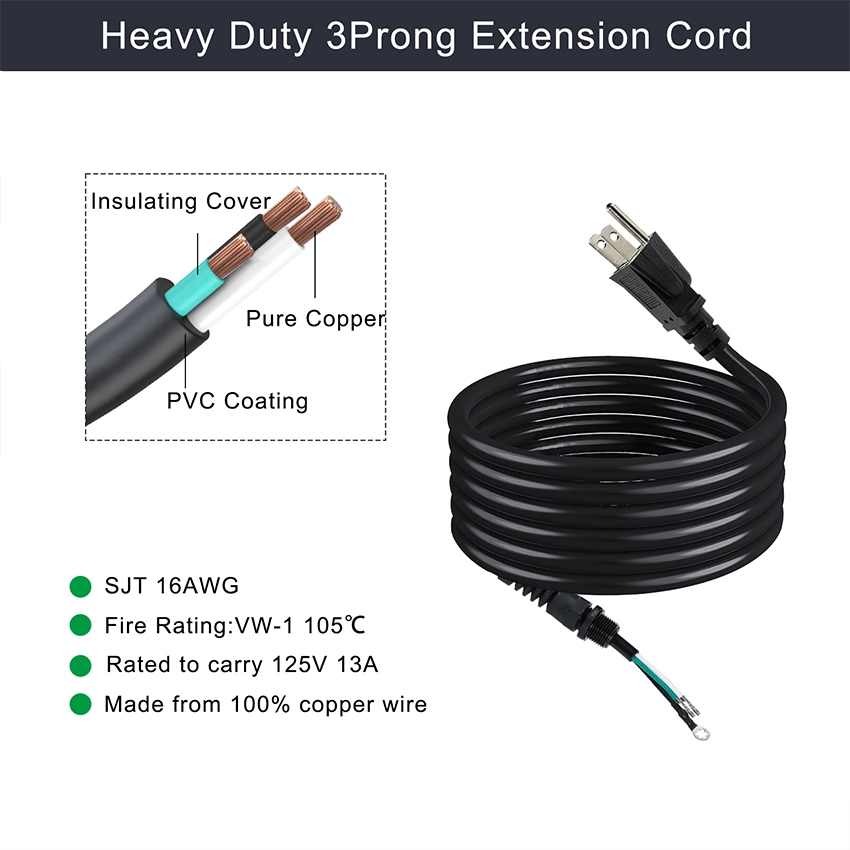

| Wire Gauge Options | 18AWG / 16AWG / 14AWG pure copper conductor options |
| Conductor Structure | Line / Neutral / Ground, according to approved wiring diagram |
| Cable Jacket | SJT / SVT / PVC jacket options |
| Terminal Options | Ring terminal, fork terminal, quick-disconnect terminal, ferrule, or custom crimp terminal by drawing |
| Strain Relief Connector | Cable gland, bushing, clamp, or custom strain relief connector according to panel and cable dimensions |
| Wire Preparation | Custom jacket strip length, conductor strip length, exposed copper length, terminal direction, and lead length |
| Certification Options | [Certification Options] |
Buyer's Insight: For this product, the strain relief connector is as important as the plug. If the cable enters a metal or plastic enclosure without proper strain relief, pulling force can transfer directly to the terminals. Specify cable outer diameter, panel thickness, mounting hole size, terminal type, and conductor strip length before requesting a quotation.
Professional Applications You Can Trust
For OEM equipment wiring, production teams need a repeatable cable format that connects quickly to internal terminals. This NEMA 5-15P open end power cable gives them a standard wall-side plug, prepared terminal ends, and strain relief support for the enclosure entry point.
For appliance repair and retrofit projects, technicians often need a replacement cord that can be routed through an existing housing and connected to the original terminal system. Custom terminals and lead lengths help match the old wiring layout without unnecessary on-site modification.
For control cabinets, lighting fixtures, and test equipment, wire preparation affects both installation speed and safety. A defined terminal type and strain relief connector help keep the internal wiring secure, identified, and mechanically protected.
Advanced Safety Features
The NEMA 5-15P plug supports grounded power input when paired with a proper three-conductor cable structure. Ground continuity and terminal assignment must be confirmed according to the final wiring diagram and certification route.
The strain relief connector should match cable outer diameter, panel cutout, enclosure thickness, and pull-force requirement. Incorrect sizing can allow cable movement and place stress on internal terminal connections.
The open-end terminal side should be installed only by qualified personnel. Exposed conductors and terminals must be enclosed or insulated according to the final equipment design and applicable electrical requirements.
Manufacturing Excellence
Our factory supports OEM and ODM production for custom open-end terminal power cables, including NEMA 5-15P plugs, terminal crimping, stripped conductor preparation, strain relief connector matching, wire color assignment, cable printing, packaging, and compliance documentation. Inspection scope, terminal pull-test requirements, test records, factory history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.
Frequently Asked Questions
Q: What terminal types can be supplied on the open end?
A: Common options include ring terminals, fork terminals, quick-disconnect terminals, ferrules, insulated terminals, or non-insulated crimp terminals. The final choice should match the equipment terminal block, screw size, conductor gauge, and installation method.
Q: What is the purpose of the strain relief connector?
A: The strain relief connector secures the cable where it enters the equipment housing or panel. It helps prevent pulling force from being transferred directly to the internal terminals.
Q: Is this NEMA 5-15P open end cable grounded?
A: It can be manufactured as a grounded cable when built with line, neutral, and ground conductors. Ground continuity and terminal assignment should be confirmed in the final approved wiring diagram.
Q: What information is needed for a quotation?
A: Please provide cable length, wire gauge, jacket type, terminal type, crimp size, conductor strip length, outer jacket strip length, strain relief connector type, panel thickness, target certification, order quantity, packaging requirement, and any cable printing or molded logo requirement.
Custom Solutions for Your Business
Terminal Customization: Select ring, fork, quick-disconnect, ferrule, insulated, or non-insulated terminal options according to your terminal block and assembly workflow.
Strain Relief Connector Matching: Choose cable gland, bushing, clamp, or custom strain relief connector according to cable diameter, panel opening, enclosure thickness, and pull-force requirement.
Wire Preparation: Define outer jacket strip length, conductor strip length, exposed copper length, terminal direction, conductor color, and lead length according to your wiring drawing.
Branding & Compliance Matching: Cable printing, molded logo, warning label, packaging label, and certification documents can be prepared according to your market and purchasing requirements.
Contact Us
✔ OEM & ODM Support | ✔ Custom Terminal Options | ✔ Strain Relief Matching
Ready to discuss your NEMA 5-15P Open End Power Cable with Terminals and Strain Relief Connector requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
