NEMA 5-15P to 4-Way powerCON-Style Locking Connector Power Splitter Cord for Stage Lighting and Pro AV Equipment

Why Choose Our NEMA 5-15P to 4-Way powerCON-Style Power Splitter Cord?

This product is not a basic household extension cord. It is a purpose-built power distribution cable for professional equipment layouts where each branch must stay connected during setup, transport, and live operation.

4-Way Splitter Structure Reduces Cable Clutter and Simplifies Equipment Power Layout

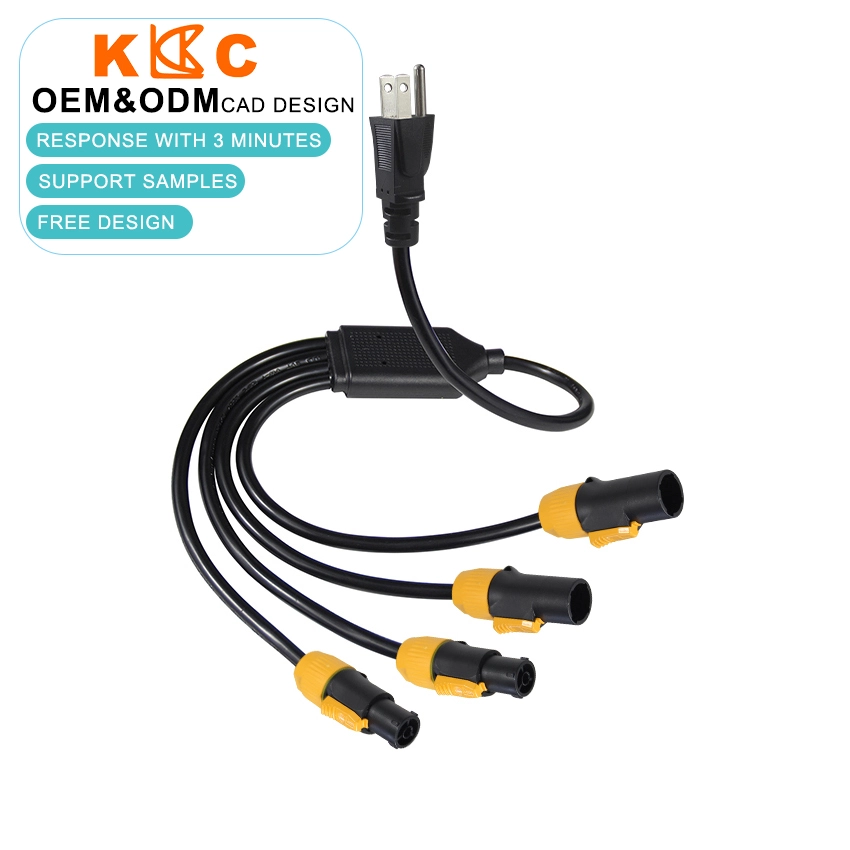

The cable uses one NEMA 5-15P input plug and four locking output branches. This design helps installers power several compatible stage lights, display fixtures, or AV devices from one organized distribution point instead of running multiple separate cords from the same area.

For buyers, the benefit is practical: cleaner installation, faster setup, and fewer tangled power leads behind lighting truss, display walls, or equipment racks.

Locking Output Connectors Improve Connection Security During Stage Use

Each output connector is designed with a twist-lock style mechanical interface. Compared with friction-fit connectors, a locking connector is less likely to loosen when cables are pulled, moved, suspended, or exposed to vibration from speakers and stage equipment.

This matters in live events. One loose power connector can turn into one dead fixture, one dark display section, or one troubleshooting delay during showtime.

Molded Splitter Block Protects the Branching Point and Improves Handling

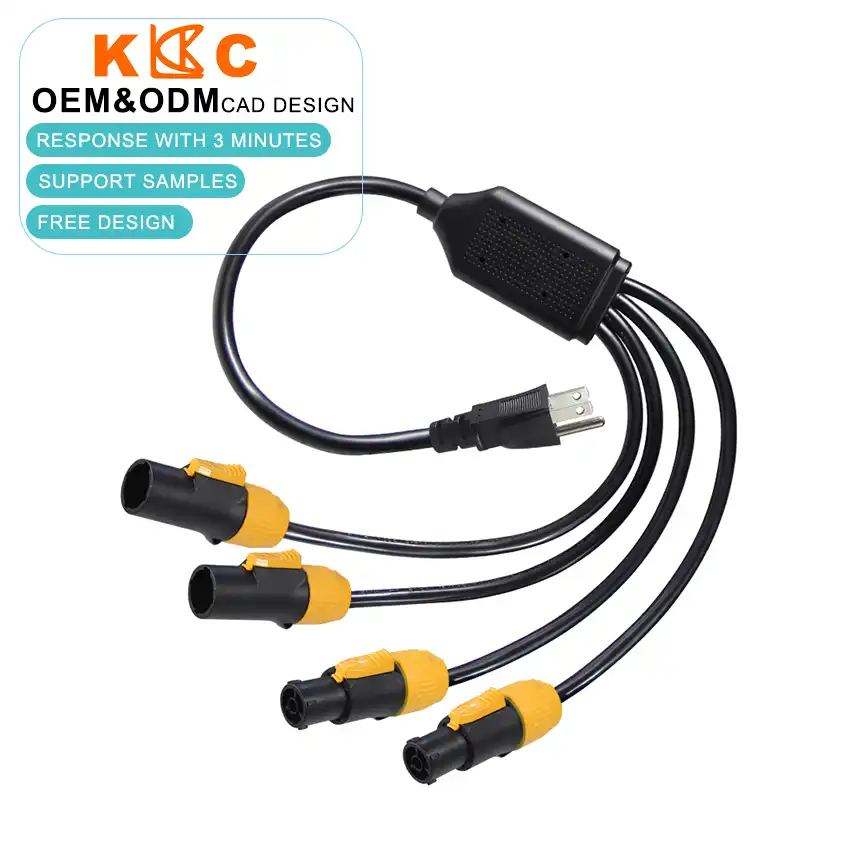

The central molded splitter block creates a defined junction between the input cord and the four output branches. It helps keep the branch structure compact and reduces uncontrolled bending at the wire separation point.

For rental companies and installation teams, a molded splitter body also makes the cable easier to pack, label, inspect, and reuse across repeated event cycles.

Grounded 3-Conductor Design Supports Professional AV Power Requirements

When configured with line, neutral, and ground conductors, this power splitter supports grounded equipment connections for compatible professional lighting and AV devices. Ground continuity, wire gauge, connector rating, and certification route should all be confirmed before production.

For procurement teams, this reduces selection risk. The cable can be matched to the final equipment load instead of being treated as a generic splitter with unknown internal wiring.

Complete Product Specifications

Buyer's Insight: The important detail is total load, not the number of output branches. A 4-way splitter does not mean each branch can draw the full plug rating at the same time. Because the NEMA 5-15P input is the limiting side, buyers should calculate the combined current of all connected fixtures before confirming wire gauge, connector series, and certification route.

Professional Applications You Can Trust

For stage lighting rigs, several fixtures are often installed close together on a truss or display frame. Running one splitter cable with four locking outputs helps reduce loose cords and keeps power distribution easier to inspect before the show starts.

For DJ equipment, mobile events, and temporary AV systems, cables are repeatedly packed, carried, pulled, and reconnected. The molded splitter block and locking connector design help reduce connection failure caused by movement and repeated handling.

For exhibition booths and retail display lighting, installers need compact power routing behind panels, shelves, and light boxes. Custom branch lengths allow each connector to reach the target device without leaving excessive coils in visible areas.

Advanced Safety Features

This cable should be used only with compatible equipment in the correct voltage and current range. The total current of all four connected devices must not exceed the rating of the NEMA 5-15P plug, cable gauge, connector series, and final certified assembly.

The locking connector helps prevent accidental disconnection, but it should not be used as a switch. Disconnecting under load or under live operating conditions may not be suitable for all connector series. Power down equipment before connecting or disconnecting unless the selected connector series is specifically approved for that use.

If outdoor or touring use is required, buyers should specify jacket type, temperature range, abrasion resistance, and water-resistance requirements before production. Connector appearance alone does not define the complete environmental rating.

Manufacturing Excellence

Our factory supports OEM and ODM production for professional AV power splitter cords, including NEMA plug molding, locking connector assembly, molded splitter blocks, branch-length control, cable printing, labeling, and packaging. Production inspection can include continuity testing, polarity checking, ground continuity verification, insulation resistance testing, and Hi-Pot testing according to the final product standard and buyer requirements.

Frequently Asked Questions

Q: Can all four output connectors be used at the same time?

A: Yes, if the combined load of all connected devices stays within the approved rating of the entire cable assembly. The input plug, wire gauge, connector rating, and certification configuration must be checked together before bulk production.

Q: Is this cable suitable for outdoor stage events?

A: It depends on the selected cable jacket and connector series. For outdoor or touring use, specify SJTW, SOOW, or other suitable jacket options, and confirm the environmental rating of the locking connector before ordering.

Q: Is the yellow/black connector the same as a standard blue powerCON NAC3FCA?

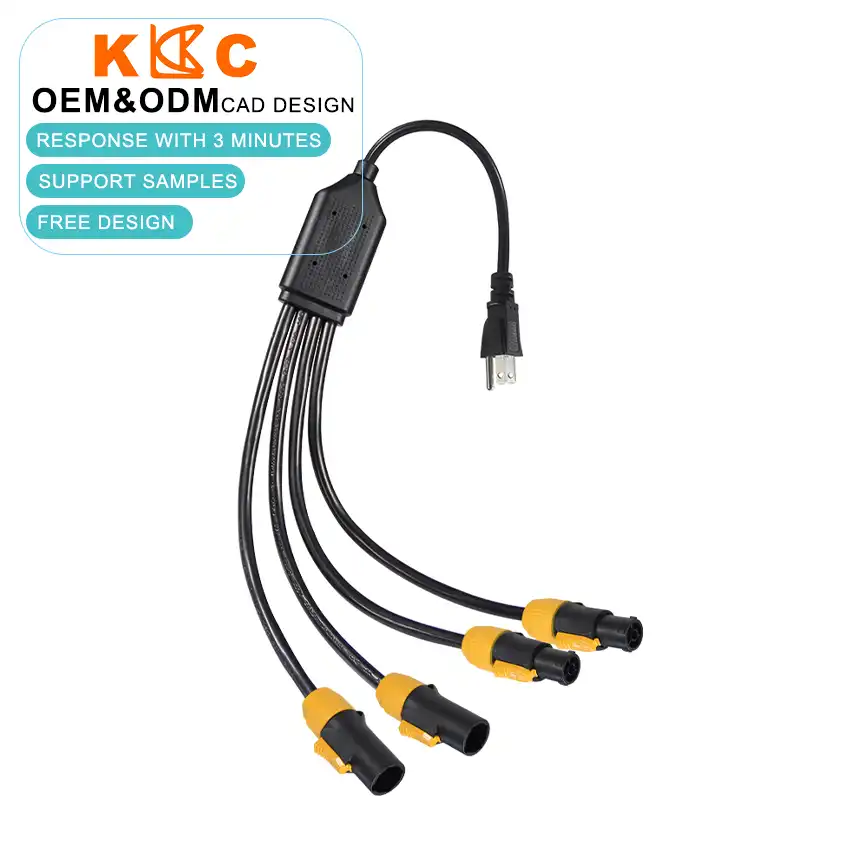

A: Not necessarily. The image shows yellow/black locking power connectors, but the exact connector series should be confirmed by part number, buyer drawing, or the mating equipment inlet. We can quote based on your required connector model.

Q: What information is needed for a quotation?

A: Please provide the total cable length, each branch length, wire gauge, connector model, jacket type, target certification, current rating requirement, order quantity, cable marking, packaging requirement, and whether the cable is for indoor, outdoor, or touring use.

Custom Solutions for Your Business

Length Customization: The input cable length and each of the four output branch lengths can be adjusted to match truss spacing, fixture layout, rack position, or display installation drawings.

Wire Gauge & Jacket Selection: Choose 16AWG, 14AWG, or 12AWG copper conductors with SJT, SJTW, SOOW, or PVC jacket options according to load requirement, flexibility target, abrasion exposure, and target market compliance.

Connector Matching: The locking connector series, housing color, mating direction, and branch configuration can be produced according to the equipment inlet used by your lighting, speaker, or AV device.

Branding & Compliance Matching: Cable printing, molded logo, warning label, packaging label, carton mark, and certification documents can be prepared according to your purchasing checklist and destination market.
