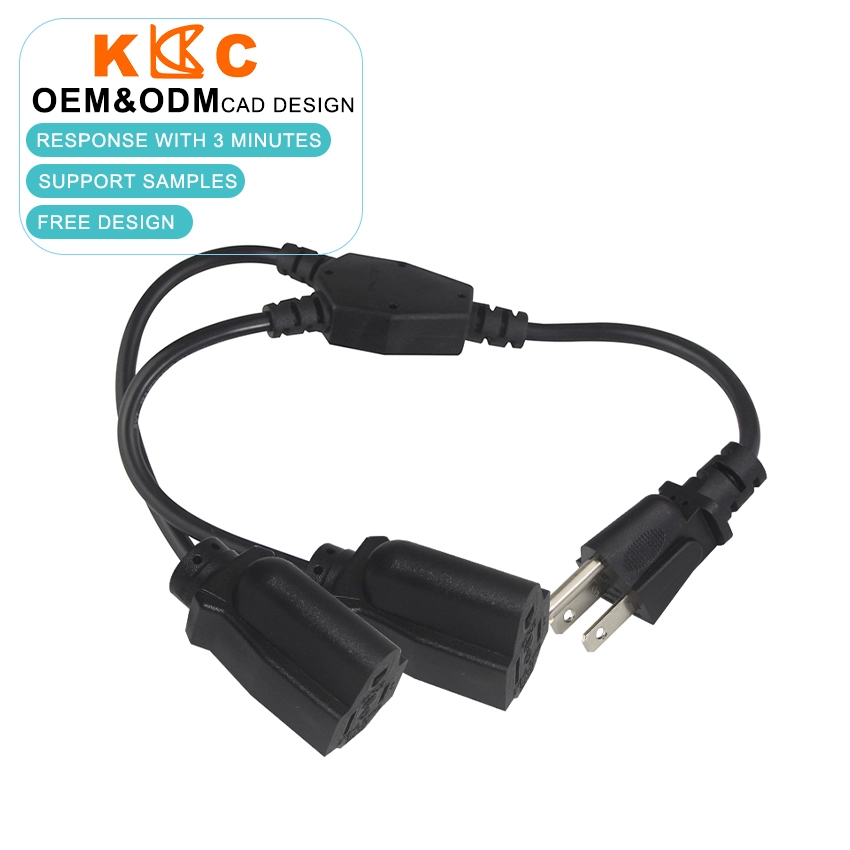

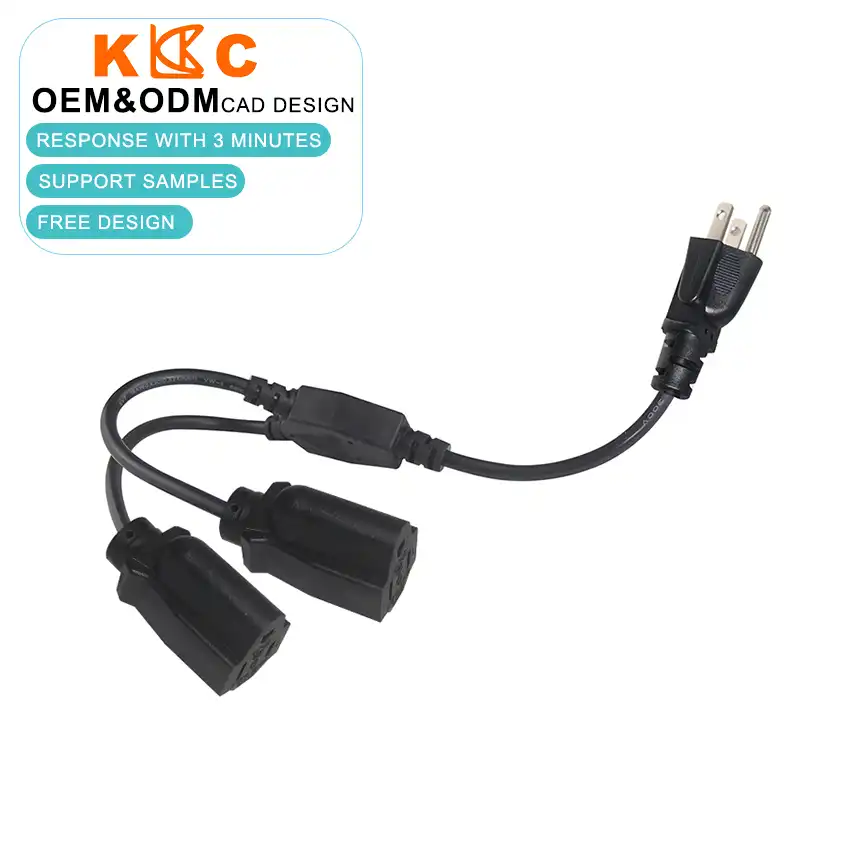

NEMA 5-15P to Dual NEMA 5-15R Y-Splitter Power Cord
Grounded 3-Prong Power Structure: Built with NEMA 5-15 connector standards for line, neutral, and ground continuity when manufactured with the correct three-conductor cable layout and approved certification route.
Molded Y-Splitter Junction: The center splitter body helps organize the two branch outputs from one defined input cord, reducing loose adapter stacking and improving cable routing around desks, cabinets, racks, and equipment frames.
Molded Strain Relief Protection: The plug, splitter junction, and receptacle ends can be reinforced with molded strain relief sections to reduce bending stress at common cable failure points during installation and repeated handling.
OEM Configuration Ready: Cord length, branch length, wire gauge, jacket type, plug style, receptacle shape, jacket color, molded logo, cable printing, packaging, and certification matching can be customized according to buyer requirements.
- Product Description
NEMA 5-15P to Dual NEMA 5-15R Y-Splitter Power Cord for Grounded Power Distribution
The NEMA 5-15P to Dual NEMA 5-15R Y-Splitter Power Cord is designed for buyers who need one grounded North American plug feeding two compatible output receptacles. The NEMA 5-15P male plug connects to a standard 125V AC power source, while two NEMA 5-15R female receptacles extend power to separate devices. One input. Two outputs. Cleaner routing than stacking adapters or adding a bulky outlet strip in a tight installation area.
Why Choose Our NEMA 5-15P to Dual NEMA 5-15R Y-Splitter Power Cord?
This cable is built for projects where grounded power distribution must stay compact, organized, and easy to specify for repeat purchasing.
1-to-2 Y-Splitter Structure Reduces Outlet Pressure and Cable Clutter
The molded Y-splitter layout converts one NEMA 5-15P input into two NEMA 5-15R output receptacles. This helps installers power two compatible devices from one available outlet without using separate short extension cords or loose plug adapters.
For desks, displays, racks, and test benches, the benefit is immediate: fewer connection points around the wall socket and a cleaner cable path toward each device.
NEMA 5-15P to NEMA 5-15R Grounded Configuration Supports Compatible Equipment
The cable uses the NEMA 5-15 connector family, with a 3-prong male plug and two 3-slot female receptacles. When produced with the correct three-conductor structure, it supports line, neutral, and ground continuity for compatible equipment.
This is suitable for office electronics, commercial devices, adapters, display equipment, and equipment accessories that require grounded extension within the approved rating of the complete assembly.
Molded Splitter Junction Helps Control Branch Direction
The center junction keeps the two output branches organized from a single input cord. Instead of forcing two cords into one crowded area, each branch can be routed toward a different device position.
For OEM and facility buyers, this improves installation repeatability. Cable paths become easier to map, label, and service across multiple workstations or equipment sets.
Molded Strain Relief Helps Reduce Connector-End Stress
The NEMA plug, Y-splitter body, and female receptacle ends can be produced with molded strain relief. These transition sections help distribute bending force across the cable jacket instead of concentrating stress at the connector exit.
This matters when the cord is routed behind furniture, tied into cable trays, packed with equipment, or handled repeatedly during maintenance.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | NEMA 5-15P to Dual NEMA 5-15R Y-Splitter Power Cord |
| Input Plug | NEMA 5-15P Male Plug, 3-Prong Grounded |
| Output Receptacles | 2 x NEMA 5-15R Female Receptacles, 3-Slot Grounded |
| Standard Classification | NEMA 5-15P to Dual NEMA 5-15R Grounded Y-Splitter Power Cord |
| Voltage Rating | 125V AC |
| Current Rating | Up to 15A, depending on wire gauge, cable length, and final certified configuration |
| Wire Gauge Options | 18AWG / 16AWG / 14AWG pure copper conductor options |
| Cable Jacket | SJT / SVT / SPT / PVC jacket options |
| Cable Structure | 1 input to 2 output Y-splitter power cord |
| Connector Protection | Molded plug, molded receptacles, molded splitter junction, strain relief available |
| Customization Options | Cord length, branch length, wire gauge, jacket type, plug shape, receptacle housing, cable printing, molded logo, packaging |
| Certification Options | [Certification Options] |
Buyer's Insight: The key point is total load. A dual-output Y-splitter does not double the available current from the wall outlet. The combined load of both NEMA 5-15R branches must stay within the approved rating of the complete cable assembly. Confirm wire gauge, branch length, and device load before quotation.
Professional Applications You Can Trust
For office workstations, two devices may need power from one nearby outlet: a monitor and docking station, a printer and adapter, or two low-current accessories. This Y-splitter power cord keeps the layout compact without adding a rigid power strip under the desk.
For retail displays, installers often need to power two lighting modules, demo units, or signage accessories from one hidden outlet. The dual NEMA 5-15R branches allow each device to sit in a different position while the main input remains centralized.
For racks, service carts, and test benches, cable count affects maintenance speed. A defined 1-to-2 splitter structure helps technicians identify the input path and branch routing faster than multiple loose extension cords.
Advanced Safety Features
The NEMA 5-15P to NEMA 5-15R connector family supports grounded power extension when manufactured with the correct three-conductor cable structure. Ground continuity should be verified according to the final approved drawing and certification route.
The total connected load across both branches must remain within the rated current of the complete cord assembly. Do not treat each branch as an independent circuit unless the system design specifically provides separate protection.
Molded strain relief helps reduce mechanical stress at the plug, splitter junction, and receptacle exits. This is especially useful when the cord is routed behind furniture, across equipment frames, or through cable management channels.
Manufacturing Excellence
Our factory supports OEM and ODM production for custom NEMA splitter power cords, including NEMA 5-15P plugs, dual NEMA 5-15R receptacles, molded Y-junctions, strain relief structures, cable printing, jacket selection, packaging, and compliance documentation. Inspection scope, test records, factory history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.
Frequently Asked Questions
Q: Does this Y-splitter provide two independent power circuits?
A: No. It splits one input supply into two output receptacles. The total load across both NEMA 5-15R branches must stay within the approved rating of the complete cord assembly.
Q: Is this NEMA 5-15P to dual NEMA 5-15R splitter grounded?
A: It can be manufactured as a grounded splitter cord when built with a proper three-conductor cable structure. Ground continuity should be confirmed in the final approved configuration.
Q: What wire gauge should we choose?
A: The correct wire gauge depends on total connected load, cord length, flexibility requirement, and certification route. Common options include 18AWG, 16AWG, and 14AWG. Higher-current or longer cable runs usually require thicker conductors.
Q: What information is needed for a quotation?
A: Please provide trunk length, two branch lengths, wire gauge, jacket type, plug style, receptacle style, target certification, order quantity, packaging requirement, and any cable printing or molded logo requirement.
Custom Solutions for Your Business
Branch Length Customization: Define the main trunk length and two output branch lengths so each NEMA 5-15R receptacle reaches its target device without excess cable.
Wire Gauge & Jacket Selection: Choose 18AWG, 16AWG, or 14AWG pure copper conductor options with SJT, SVT, SPT, or PVC jacket configurations according to load, flexibility, and certification route.
Custom Molding: Adjust the NEMA 5-15P plug shape, NEMA 5-15R receptacle housing, splitter junction size, strain relief length, and molded logo according to your project.
Branding & Compliance Matching: Cable printing, molded logo, warning label, packaging label, and certification documents can be prepared according to your target market and purchasing requirements.
