NEMA 5-15P to Dual powerCON TRUE1 TOP Y Splitter Power Cord
The powerCON TRUE1 TOP output connectors are IP65-rated and feature a locking, break-before-make design, protecting the connection from moisture and dust and preventing accidental disconnection on LED walls, stage rigs, and outdoor installations.
The right-angle flat NEMA plug sits low against the wall, easing installation behind fixtures, signage frames, and weatherproof covers while reducing outlet strain compared with a bulky straight plug.
Input cable and both output legs are available in multiple wire gauges and lengths, letting integrators match combined load, control voltage drop, and route power cleanly to two devices at different positions.
For touring, rental, signage, and OEM programs, request a NEMA 5-15P to Dual powerCON TRUE1 TOP Y Splitter Power Cord quotation with your required plug style, connector gender (PWR IN / PWR OUT), AWG, leg length, and destination market.
- Product Description
NEMA 5-15P to Dual powerCON TRUE1 TOP Y Splitter Power Cord for LED Walls, Stage Lighting, and Outdoor Installations

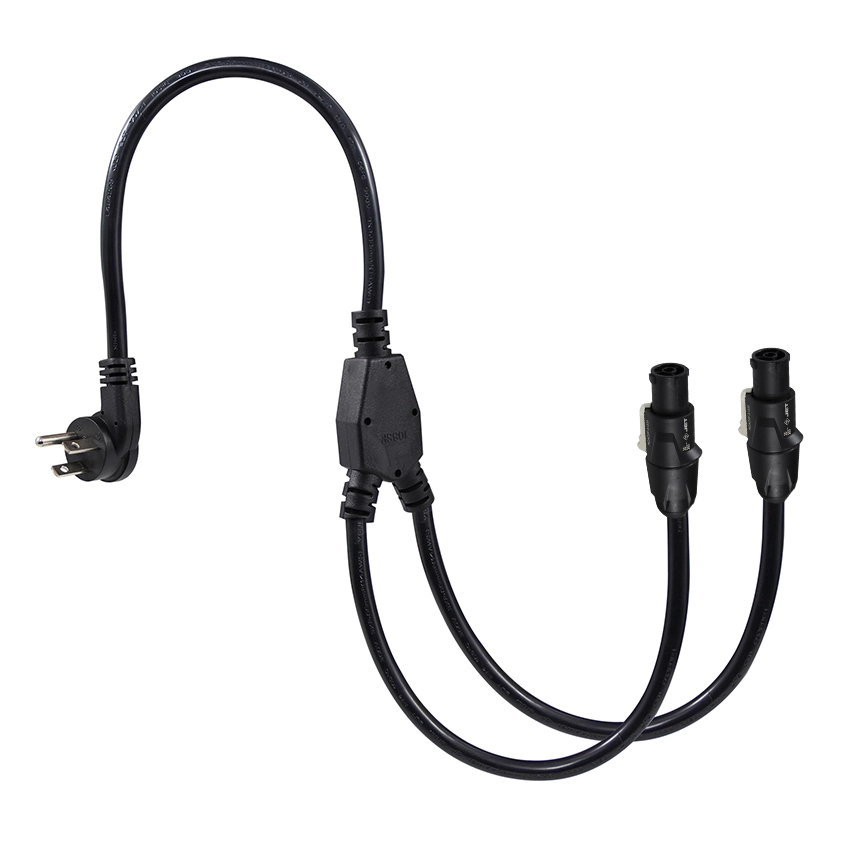

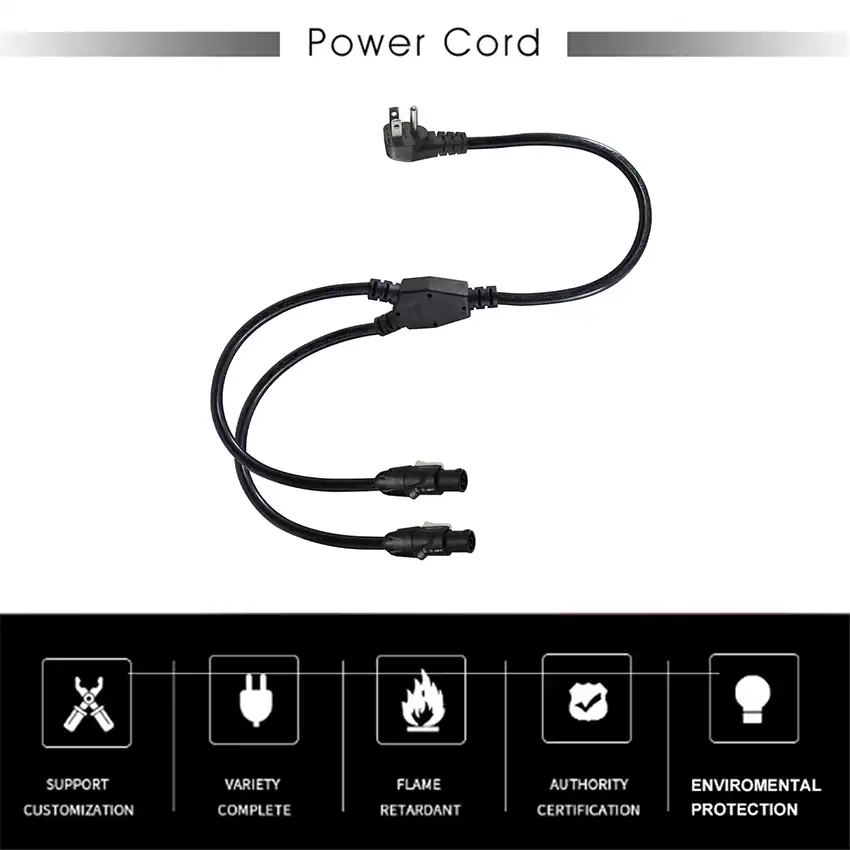

The NEMA 5-15P to Dual powerCON TRUE1 TOP Y Splitter Power Cord is a grounded 1-to-2 power distribution cable that feeds two professional fixtures from a single North American outlet. The input uses a flat (right-angle) NEMA 5-15P grounded plug, while the two output legs terminate in genuine Neutrik powerCON TRUE1 TOP locking connectors, IP65-rated for moisture and dust protection. It is built for LED video walls, touring and stage lighting, architectural lighting, and outdoor signage where a secure, weatherproof, lockable AC connection is required.
Why Choose Our powerCON TRUE1 TOP Y Splitter?
In professional lighting and video, the connector is the product. Integrators buy on connection security, weather protection, and compatibility with installed powerCON TRUE1 TOP equipment. This splitter is built around those exact concerns, not around a generic waterproof plug.
Genuine Neutrik powerCON TRUE1 TOP Connectors Deliver Locking, IP65 Weatherproof Power
Each output leg terminates in a genuine Neutrik powerCON TRUE1 TOP connector with a locking latch and IP65 sealing when mated. This protects the contacts from rain, dust, and vibration, and the latch prevents accidental unplugging during a show or a long outdoor run.
For rental houses and integrators, this means fewer field failures, fewer callbacks, and full compatibility with existing powerCON TRUE1 TOP fixtures and daisy-chain infrastructure already on site.
1-to-2 Y Splitter Feeds Two Fixtures and Cuts Outlet and Cable Count
The Y splitter takes one grounded NEMA input and delivers two locking outputs. For LED panels, moving heads, or signage sections, this reduces the number of wall outlets and separate cords needed, simplifying rigging and cable management.
For OEM and distribution buyers, it positions the product as a ready-to-deploy power distribution solution rather than a plain extension cord.
Flat Right-Angle NEMA Plug Sits Close to the Wall and Fits Tight Spaces
The flat (right-angle) NEMA 5-15P plug keeps the outlet connection low-profile. This helps behind LED walls, signage frames, road cases, and weatherproof covers, and it reduces cable stress at the outlet compared with a bulky straight plug.
A straight NEMA plug version is also available when the installation calls for it.
Correct Load Matching Across One Grounded Input
Although the powerCON TRUE1 TOP connector is rated up to 20A/250V on its own, this assembly is fed by a single NEMA 5-15P plug, so the usable system limit is 15A at 125V (up to 1875W) shared across both outputs.
Wire gauge is selected to match that combined load and the cable length, keeping voltage drop and heating under control across both legs.
Custom Leg Length and Wire Gauge Match Real Rigging Layouts
The input cable and each output leg can be built in different lengths and gauges, so two fixtures at different positions can be powered without excess cable loops or extra adapters. This is critical for clean video-wall and stage installations.
Complete Product Specifications
| Parameter | Available Specification |
|---|---|
| Product Name | NEMA 5-15P to Dual powerCON TRUE1 TOP Y Splitter Power Cord (1 to 2) |
| Product Type | US 3-prong grounded 1-to-2 Y splitter power cord |
| Input Plug | NEMA 5-15P grounded male plug, flat (right-angle) style |
| Plug Style Options | Flat (right-angle) plug / straight plug available by order |
| Output Connectors | Dual genuine Neutrik powerCON TRUE1 TOP locking connectors |
| Connector Gender Options | powerCON TRUE1 TOP male (PWR OUT) or female (PWR IN), specified per project |
| Connector Model Reference | Neutrik NAC3 X-W-TOP series (TRUE1 TOP) |
| Connector IP Rating | IP65 when mated (weatherproof, locking) |
| Connector Rating | Up to 20A / 250V (UL) at connector; system limited by NEMA input |
| NEMA Classification | NEMA 5-15P input to dual powerCON TRUE1 TOP output, grounded 3-prong Y splitter |
| System Rated Voltage / Current | 125V AC, up to 15A total (limited by NEMA 5-15P input) |
| System Power Rating | Up to 1875W total for 15A 125V (shared across both outputs) |
| Wire Gauge Options | 16AWG / 14AWG / 12AWG available according to load and length |

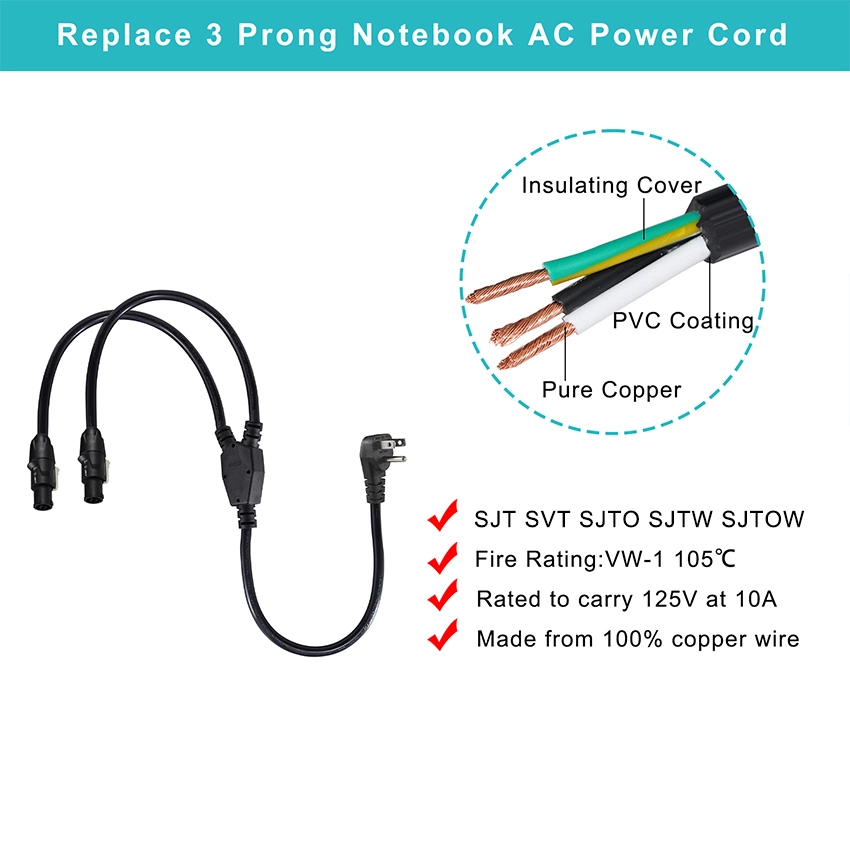

| Conductor Structure | 3-core grounded cable, stranded copper conductor construction |
| Cable Type Options | SJT / SJTW / STW available; SJTW or STW recommended for outdoor use |
| Cable Length Options | Input and output legs customizable; common builds from 0.3m to 3m or per project |
| Jacket Material | PVC jacket; outdoor-rated or cold-resistant jacket available on request |
| Color Options | Black standard; custom color available by order |
| Application | LED video walls, stage and touring lighting, architectural and outdoor lighting, illuminated signage, broadcast and events |
| Certification Options | Input cord UL / cUL / ETL by cable type and market; powerCON TRUE1 TOP connectors carry Neutrik UL/CSA/VDE recognition |
| Customization | Plug style, connector gender, leg length, AWG, jacket type, color, logo printing, and packaging |
Buyer's Insight: Two things separate a professional powerCON TRUE1 TOP splitter from a cheap copy. First, use genuine Neutrik connectors — field crews can spot a fake latch instantly, and a failed lock outdoors means a callback. Second, get the connector gender right: powerCON TRUE1 TOP is keyed and non-reversible, so PWR IN and PWR OUT are not interchangeable. Tell us which end plugs into the fixture before we build, because a wrong-gender batch cannot be re-mated in the field. Also remember the whole assembly is capped by the 15A NEMA input, not by the 20A connector rating.
Professional Applications You Can Trust
For LED video walls, panels are daisy-chained and space behind the wall is tight. The pain point is feeding two panel columns from one nearby outlet without a bulky plug or loose connectors. The right-angle NEMA input stays flat against the wall, and the two locking powerCON TRUE1 TOP outputs stay mated even under cable tension and vibration.
For stage and touring lighting, gear is rigged, struck, and re-rigged constantly. Accidental power loss mid-show is unacceptable. The TRUE1 TOP latch holds the connection, while the break-before-make contact design supports safe connect and disconnect under load per its rating.
For outdoor and architectural lighting, moisture at the connector is the top cause of failure. The IP65 sealing when mated protects the contacts against rain and dust, and SJTW or STW jacket options handle outdoor exposure across long runs.
Advanced Safety Features
The grounded 3-prong NEMA input provides a protective earth path to both output legs. Because this is a splitter, the combined load of both outputs must stay within the 15A/1875W limit set by the NEMA 5-15P input and the selected wire gauge.
The powerCON TRUE1 TOP connectors provide a locking, IP65-sealed connection when mated, protecting contacts from moisture and preventing accidental disconnection. The connector is keyed to avoid cross-mating and supports connect/disconnect under load within its rating.
The molded plug and Y-junction protect the internal wiring at the splitter point, a common stress area on Y-shaped cables. Final ratings, connector gender, and certification should be confirmed against the real application before mass production.
Manufacturing Excellence
With 17 years of experience in power cord and cable assembly production, we support OEM and ODM buyers with controlled manufacturing, 100% outgoing inspection, and genuine Neutrik component sourcing. Orders can be configured by plug style, powerCON TRUE1 TOP connector gender, wire gauge, leg length, jacket material, color, packaging, and certification matching.
Frequently Asked Questions
Q: Are these genuine Neutrik powerCON TRUE1 TOP connectors?
A: Yes, we supply assemblies built with genuine Neutrik powerCON TRUE1 TOP connectors (NAC3 X-W-TOP series). If you require a specific alternative connector brand, please specify it before quotation.
Q: What is the maximum total load for this 1-to-2 splitter?
A: The connector is rated up to 20A/250V, but this assembly is fed by a single NEMA 5-15P plug, so the usable limit is 15A at 125V (up to 1875W) shared across both outputs. Wire gauge is matched to that combined load and the cable length.
Q: Should the output be powerCON TRUE1 TOP male (PWR OUT) or female (PWR IN)?
A: It depends on the mating connector on your fixture. TRUE1 TOP is keyed and non-reversible, so please confirm the gender and which end connects to the device before production to ensure field compatibility.
Q: What is the sample dispatch timeline for OEM orders?
A: Standard configurations can move faster after specification confirmation. For custom leg lengths, specific connector gender, custom molding, private-label printing, or certification matching, the sample timeline depends on component sourcing and testing requirements.
Custom Solutions for Your Business
Leg length customization is available for both output legs and the input cable, so two fixtures at different positions can be powered without excess cable or extra adapters.
Connector customization covers powerCON TRUE1 TOP gender selection (PWR IN / PWR OUT) to match your fixtures and existing installed infrastructure for full field compatibility.
Wire gauge and cable type can be selected according to combined load, voltage-drop control, and outdoor performance. Options include 16AWG, 14AWG, 12AWG with SJT, SJTW, or STW jackets depending on the application.
Plug style can be flat (right-angle) or straight, and branding options include cable printing, Y-junction marking, label design, barcode label, and private-label packaging. Certification matching can be planned per destination market.
Contact Us
✔ Genuine Neutrik powerCON TRUE1 TOP | ✔ OEM & ODM Supported | ✔ 100% Outgoing Inspection
Ready to discuss your NEMA 5-15P to Dual powerCON TRUE1 TOP Y Splitter Power Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
