NEMA 5-15P to Dual Saf-D-Grid Power Cord with Switch

The cord combines a molded NEMA 5-15P plug, an inline switch box, and two output branches terminated with Saf-D-Grid-style connectors. Image-listed options include 125V AC, 10A, 13A, or 15A configurations, several SJT-family cable types, and lengths from 0.3m to 20m. Exact connector compatibility and switch-control logic must be confirmed against the target equipment.

Why Choose Our Dual Saf-D-Grid Power Cord with Switch?

This switched Y-splitter cable is intended for equipment manufacturers, electrical integrators, replacement-cord suppliers, and project buyers that need to power two compatible devices or internal modules from one North American input.

Two Equipment Connections from One Input

The Y-splitter layout divides one NEMA 5-15P supply connection into two Saf-D-Grid output branches. This can reduce the number of wall connections required when two compatible loads form part of the same equipment system.

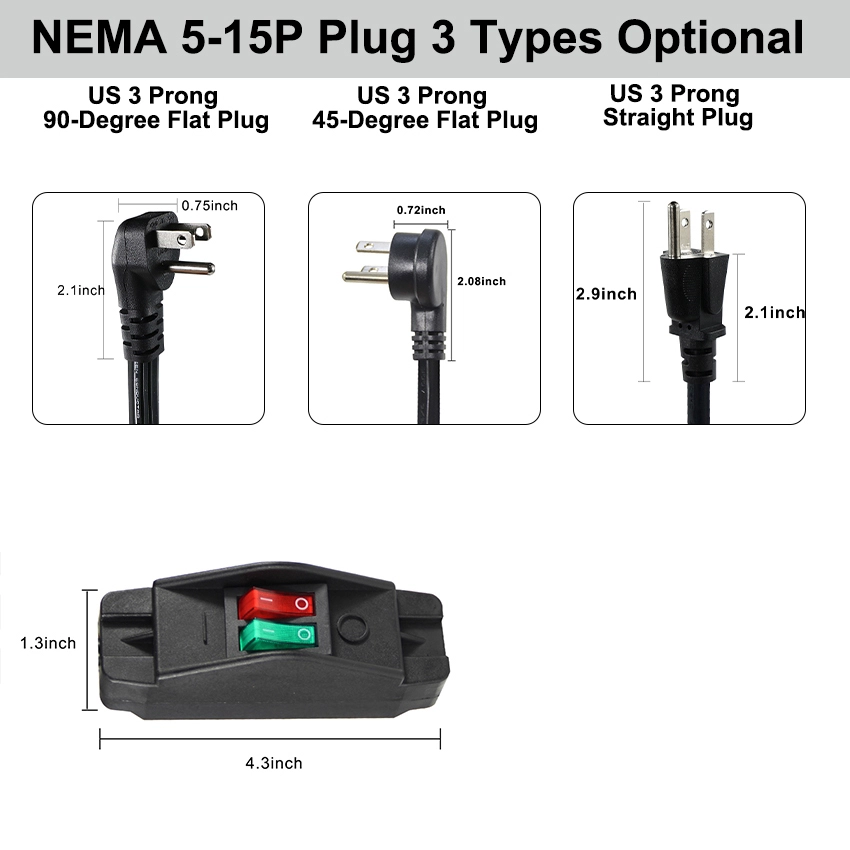

Inline Dual-Rocker Switch Assembly

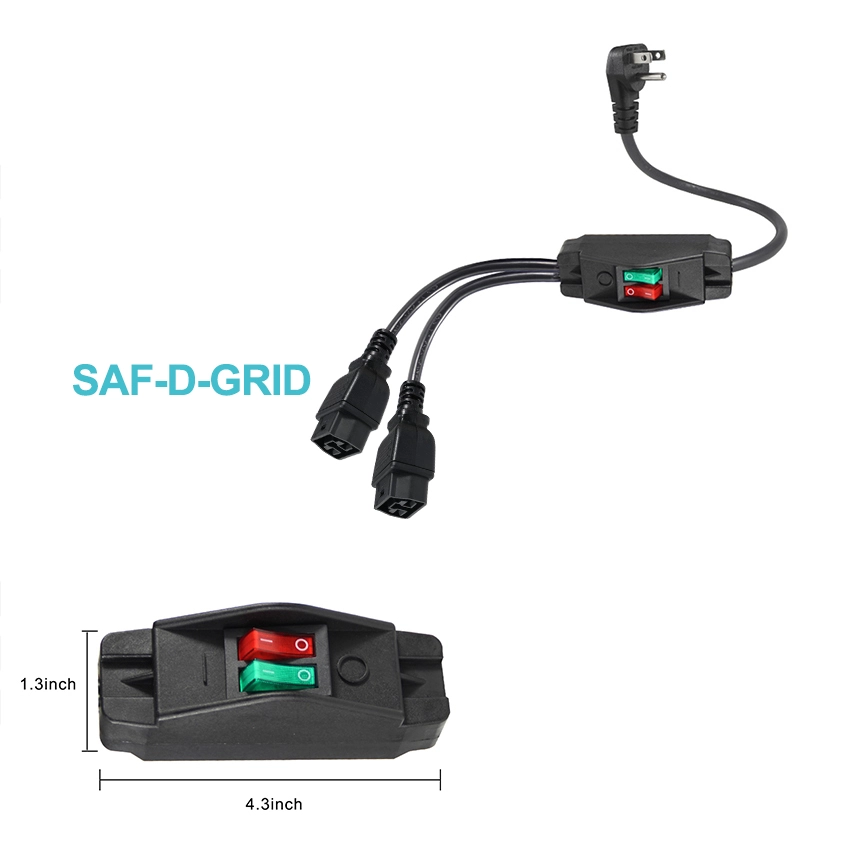

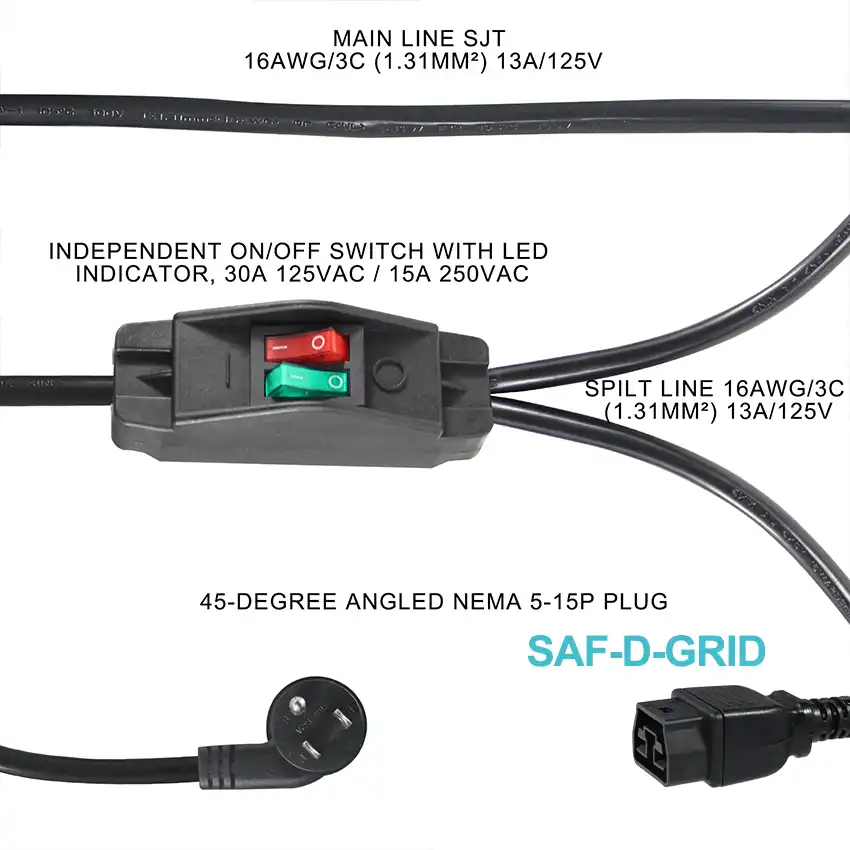

The central housing visibly incorporates one red and one green rocker switch with I/O-style markings. Switch illumination, contact arrangement, electrical rating, and whether each rocker independently controls one output branch must be defined in the approved wiring specification.

Configurable Saf-D-Grid Equipment Connections

Two Saf-D-Grid-style connectors are shown at the output branches. The exact connector series, mating inlet, gender designation, keying, and retention or locking details must be confirmed before production to prevent interface mismatch.

Multiple Cable and Length Options

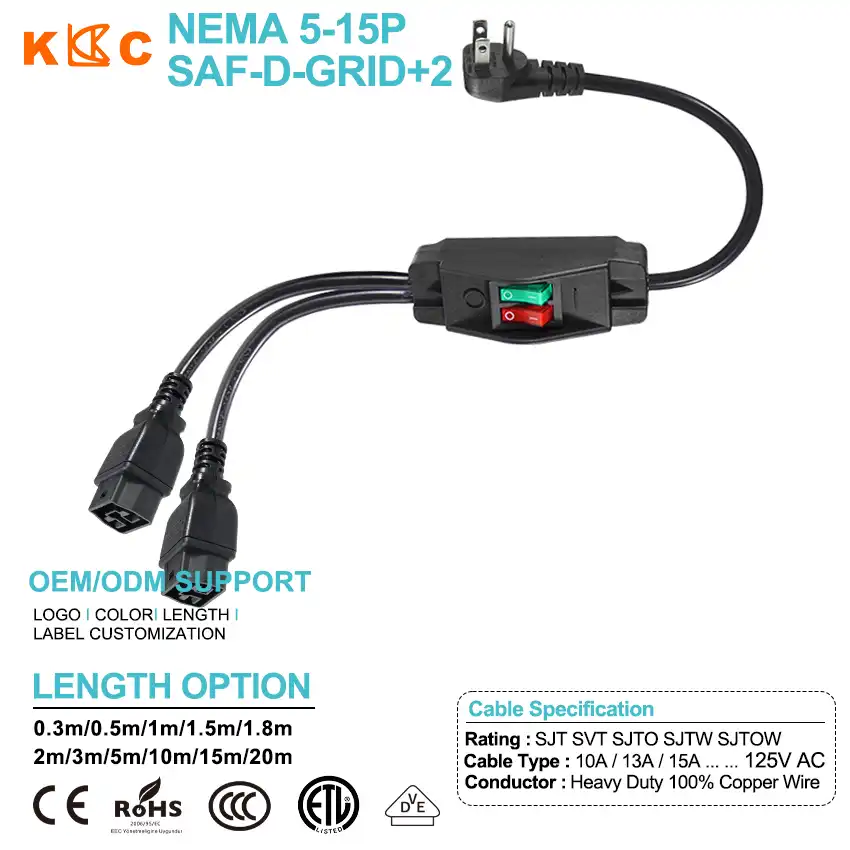

Image-listed cable options include SJT, SVT, SJTO, SJTW, and SJTOW. Overall length, input lead length, individual branch length, wire gauge, and jacket type can be selected according to load, routing, flexibility, and environmental requirements.

Complete Product Specifications

Buyer's Insight: The listed current is the maximum rating of the complete cord assembly, not an independent allowance for each output. The combined load connected to both branches must remain within the confirmed assembly rating. Buyers should also verify the Saf-D-Grid inlet profile, switch wiring diagram, wire gauge, branch lengths, and certification scope before placing an order.

Professional Applications You Can Trust

For equipment containing two powered modules, the Y-splitter layout provides two equipment connections from one NEMA 5-15P input. This can simplify external routing when both loads belong to the same coordinated system.

For installations that require local power control, the inline switch housing places two rocker controls between the source plug and output branches. The required ON/OFF relationship must be defined through an approved wiring diagram rather than assumed from switch color.

For equipment carts, laboratory systems, and commercial electronics, customizable input and branch lengths help position the switch box and output connectors where operators and assembly technicians can reach them.

Advanced Safety Features

The grounded cable structure provides line, neutral, and protective ground conductors. Ground continuity must be maintained across the input plug, splitter assembly, both output branches, and connected equipment.

Molded terminations enclose the internal cable connections, while strain-relief sections support the cable at the plug, switch housing, branch transition, and equipment connectors.

Electrical loading must be calculated for both branches together. The final assembly rating is limited by its lowest-rated component, including the NEMA plug, switches, internal splitter wiring, branch conductors, connectors, cable type, and approved construction.

Manufacturing Excellence

This NEMA 5-15P to dual Saf-D-Grid power cord can be configured for OEM and B2B equipment programs. Buyers can define the wiring diagram, switch-control relationship, connector interface, cable type, wire gauge, input length, branch lengths, molding, cable printing, labels, and packaging before production.

Frequently Asked Questions

Q: Does each rocker switch independently control one Saf-D-Grid output?

A: The image shows two rocker switches and two output branches, but it does not verify the internal circuit. Independent branch control can be specified if supported by the required design; the wiring diagram must be confirmed before production.

Q: Can each output carry the full listed current?

A: No such assumption should be made. The confirmed rating applies to the complete assembly, and the combined load across both outputs must remain within that rating.

Q: Will the output connectors fit every Saf-D-Grid inlet?

A: Compatibility requires confirmation of the connector series, mating profile, keying, gender designation, and retention details. An inlet photo, drawing, or sample is recommended for matching.

Q: Are the red and green rocker switches illuminated?

A: Their colors and I/O-style markings are visible, but illumination cannot be verified from the image. Illuminated or non-illuminated switch requirements should be stated in the order specification.

Custom Solutions for Your Business

Switching Circuit: Define whether each rocker controls one branch, both rockers operate different functions, or another circuit arrangement is required. Switch rating and illumination requirements should also be specified.

Cable Length: Image-listed options range from 0.3m to 20m. The input lead, first output branch, and second output branch can be dimensioned separately on the approved drawing.

Wire Gauge & Cable Type: Common 18AWG, 16AWG, and 14AWG configurations can be evaluated with SJT, SVT, SJTO, SJTW, or SJTOW cable according to load, length, flexibility, and environmental conditions.

Connector Matching: Connector series, mating inlet, keying, retention method, molding profile, and cable exit can be confirmed against the target equipment or inlet sample.

Branding & Packaging: Cable printing, switch labels, product labels, logo, individual packaging, and carton marking can be customized for OEM and distribution programs.

Contact Us

✔ OEM & ODM Support | ✔ Wiring Diagram Confirmation | ✔ Connector Matching Support | ✔ B2B Quotation Support

For an accurate quotation, please provide the total load, load on each branch, switch-control logic, required current rating, wire gauge, cable type, input and branch lengths, mating inlet photo or drawing, destination market, compliance requirements, and estimated order quantity.
