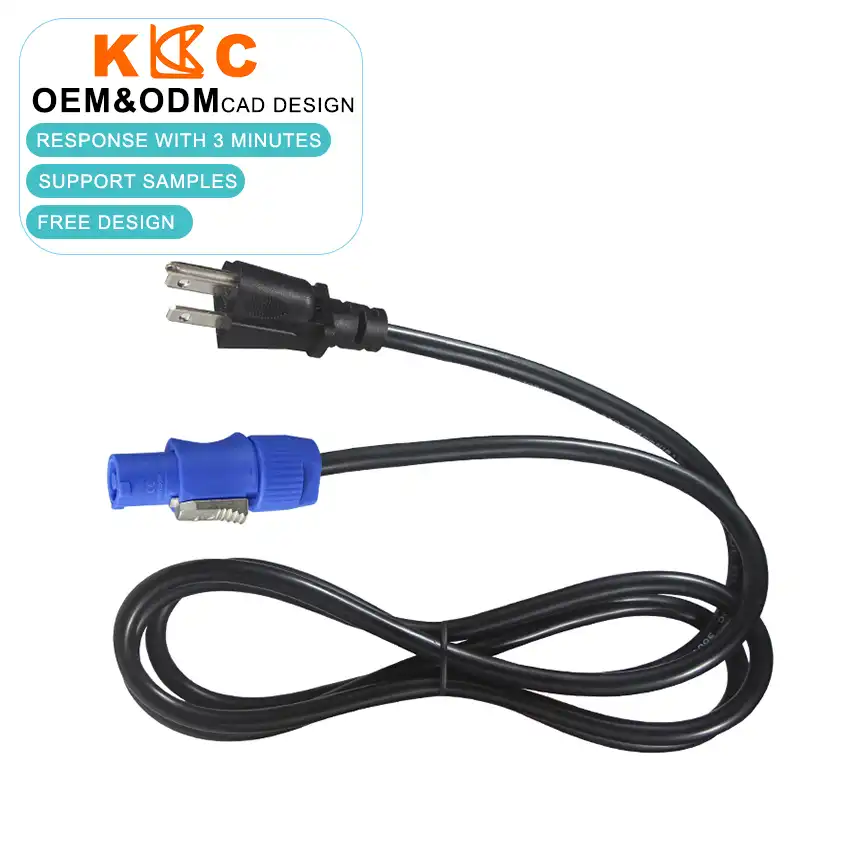

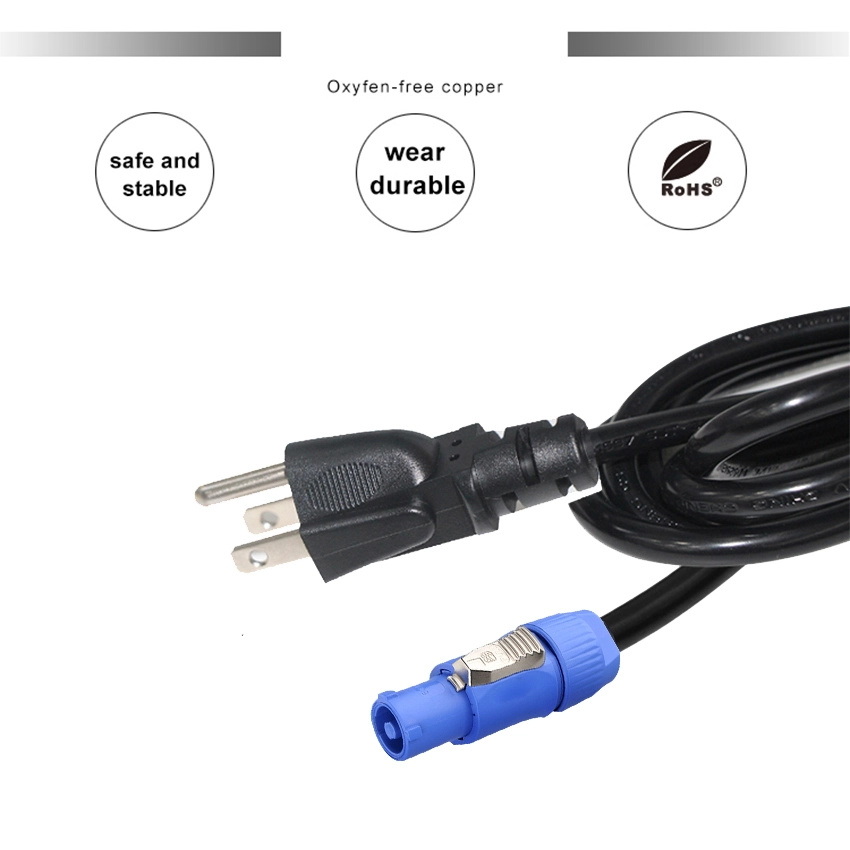

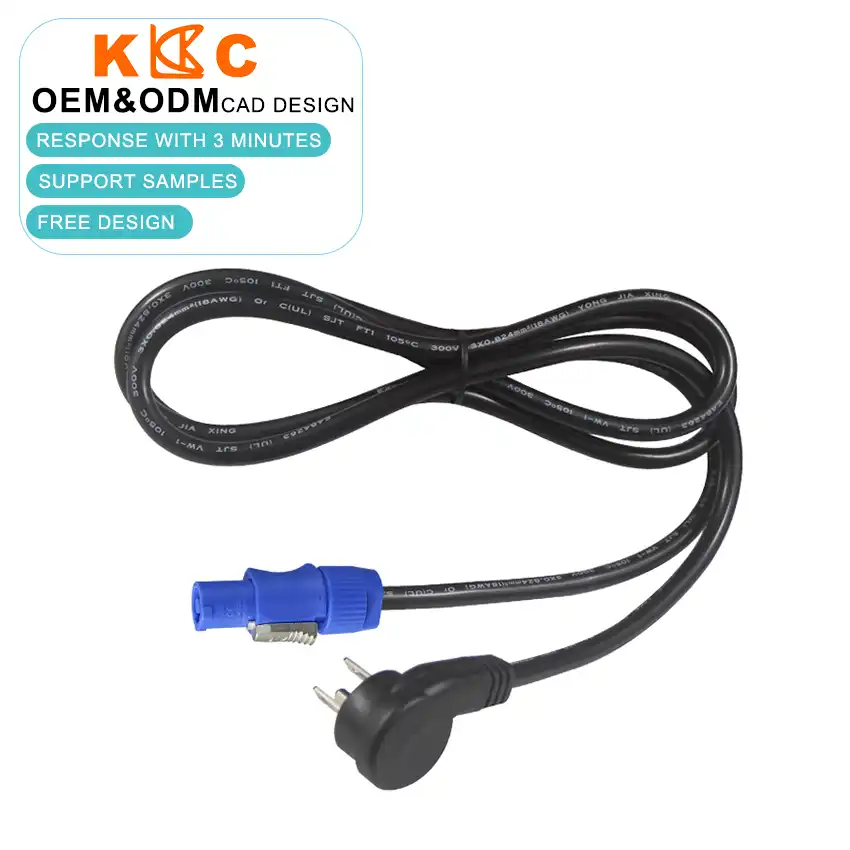

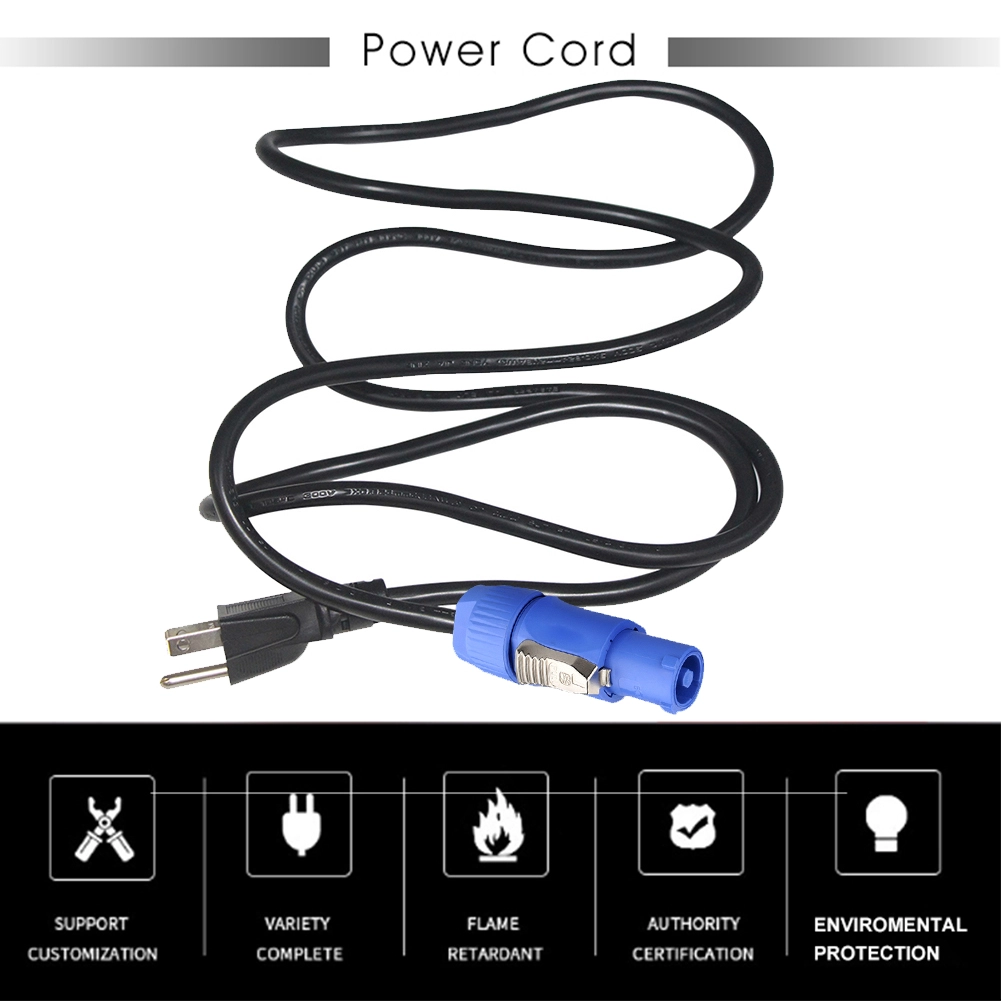

NEMA 5-15P to powerCON (Blue/NAC3FCA) Power Cord for Pro AV Equipment

Why Choose Our NEMA 5-15P to powerCON Blue Power Cord?

Standard IEC connectors can vibrate loose on subwoofers or get pulled out of moving stage lights. The powerCON system replaces friction-fit cables with a mechanical locking mechanism.

Twist-Lock Mechanism Prevents Accidental Disconnection

The blue NAC3FCA connector uses a quick-release lock. Once inserted and twisted, it latches securely into the mating chassis inlet. This physical lock ensures that foot traffic, cable weight, or stage vibration cannot disconnect the power supply during a live show.

For touring companies and AV installers, this means fewer troubleshooting delays. The power stays connected until the technician physically pulls the release latch.

NEMA 5-15P Plug for Universal US Power Source Compatibility

While the equipment side uses the specialized powerCON interface, the input side features a standard NEMA 5-15P male plug. This allows production teams to plug advanced AV gear directly into standard 125V AC wall outlets, power strips, or stage PDUs without custom adapters.

Pre-Mating Ground Contact for Electrical Safety

The powerCON connector is built with an early-mating (make-first, break-last) ground contact. This design ensures that the protective earth connection is established before the live and neutral pins engage.

In environments with heavy amplifiers and interconnected audio gear, this grounding sequence helps prevent equipment damage and reduces ground-loop noise.

Tour-Grade Cable Jackets Protect Internal Conductors

Stage cables take heavy physical abuse. We offer jacket options including SJT for standard indoor setups, and SJTW or SOOW for outdoor-rated, heavy-duty applications. These jackets resist scuffing, coiling fatigue, and temperature changes.

Complete Product Specifications

Buyer's Insight: Color coding is critical here. The blue powerCON (NAC3FCA) is exclusively for power-in (supplying power to the device). It will not physically mate with the gray power-out inlet. Always confirm whether your equipment requires the blue power-in cable or the gray power-out link cable before purchasing.

Professional Applications You Can Trust

For active PA speakers and subwoofers, heavy bass vibration often loosens standard IEC cables. The locking powerCON connector maintains a continuous connection, ensuring the amplifier receives stable power throughout the entire event.

For stage lighting, including moving heads and LED wash fixtures, cables are frequently suspended in overhead rigging. The locking connector prevents the cable from falling out under its own weight, improving overhead safety and rig reliability.

For LED video walls and broadcast gear, reliable power is the foundation of the visual display. The grounded 3-pole architecture protects against electrical faults, while the customizable cable length allows production teams to build clean, organized power distributions behind the screens.

Advanced Safety Features

The powerCON connector is a connector without breaking capacity. It should not be connected or disconnected under load or live circuit conditions. Power down the equipment before engaging or releasing the locking mechanism.

While the powerCON connector itself may be rated for 20A, the NEMA 5-15P plug limits the entire assembly's rating to 15A on 125V AC circuits. Buyers must ensure the connected equipment does not exceed the continuous load rating of the selected wire gauge and plug.

Strain relief on both the NEMA plug and the locking connector helps prevent conductor separation caused by extreme bending during cable wrap-up and transport.

Manufacturing Excellence

Backed by [Years of Experience] years of cable manufacturing expertise, our factory supports OEM production for stage and AV power cords. Every assembly undergoes automated Hi-Pot and continuity testing before packaging. We offer custom CAD design drawings with a [Response Time] response time to assist with your specific equipment configurations.

Frequently Asked Questions

Q: What is the difference between the Blue and Gray powerCON connectors?

A: The Blue connector (NAC3FCA) is designated for power-in (delivering power from the wall to the equipment). The Gray connector (NAC3FCB) is designated for power-out (linking power from one device to the next). They are physically keyed differently to prevent short circuits.

Q: Can this cable support 20A equipment?

A: No. Because this cable uses a NEMA 5-15P wall plug, it is limited to a maximum of 15A on 125V AC circuits. If you need a true 20A supply, you must specify a NEMA 5-20P plug and 12AWG wiring.

Q: How fast can custom lengths be prepared for a touring project?

A: Standard sample configurations ship within [Sample Dispatch Timeline]. Bulk orders with custom lengths, specific wire gauges, or heavy-duty SOOW jackets are scheduled based on production availability and material approval.

Custom Solutions for Your Business

Cable Length Customization: Define exact lengths (e.g., 3ft, 10ft, 25ft) to avoid excess coiled wire on stage or insufficient reach during rigging.

Tour-Grade Wire Gauges: Choose 14AWG or 12AWG pure copper conductors to reduce voltage drop across long runs in large venues or festival grounds.

Jacket Specifications: Upgrade from standard SJT to SJTW or SOOW jackets for enhanced resistance to oil, water, and extreme temperatures during outdoor festivals.

Branding and Accessories: Add custom printed heat-shrink tubing, colored cable ties, and molded branding to help your AV rental team manage inventory efficiently.
