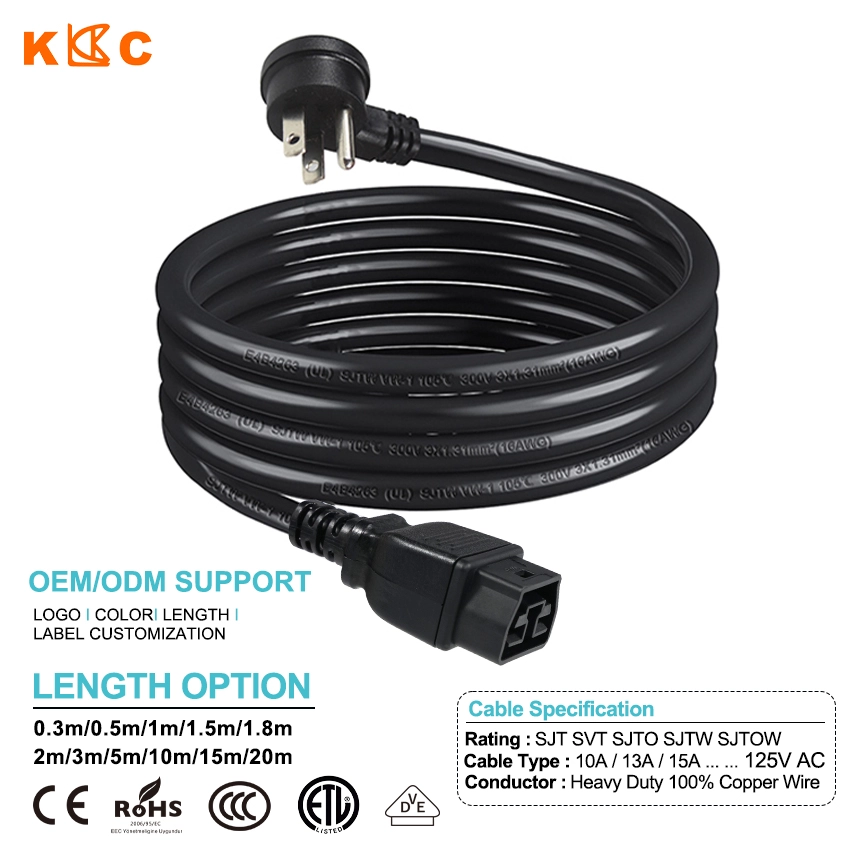

NEMA 5-15P to Saf-D-Grid Locking Power Cord
The T-shaped locking equipment connector helps resist unintended disconnection caused by equipment movement, cable tension, or routine handling in demanding operating environments.
Available image-listed current configurations include 10A, 13A, and 15A, with SJT, SVT, SJTO, SJTW, and SJTOW cable options selected according to the application and target environment.
Standard length options range from 0.3m to 20m, while common 18AWG, 16AWG, and 14AWG conductor options allow the cable structure to be matched to current, length, and voltage-drop requirements.
Cable length, wire gauge, jacket type, current rating, molding, color, cable printing, label, logo, and packaging can be customized for OEM equipment manufacturers and B2B procurement projects.
- Product Description

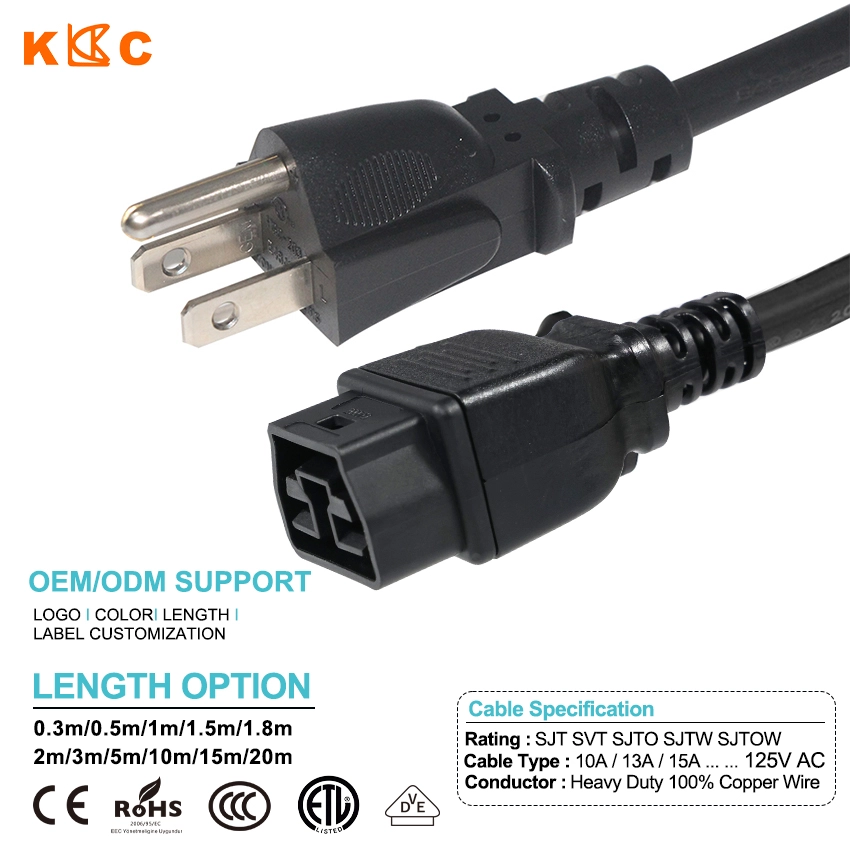

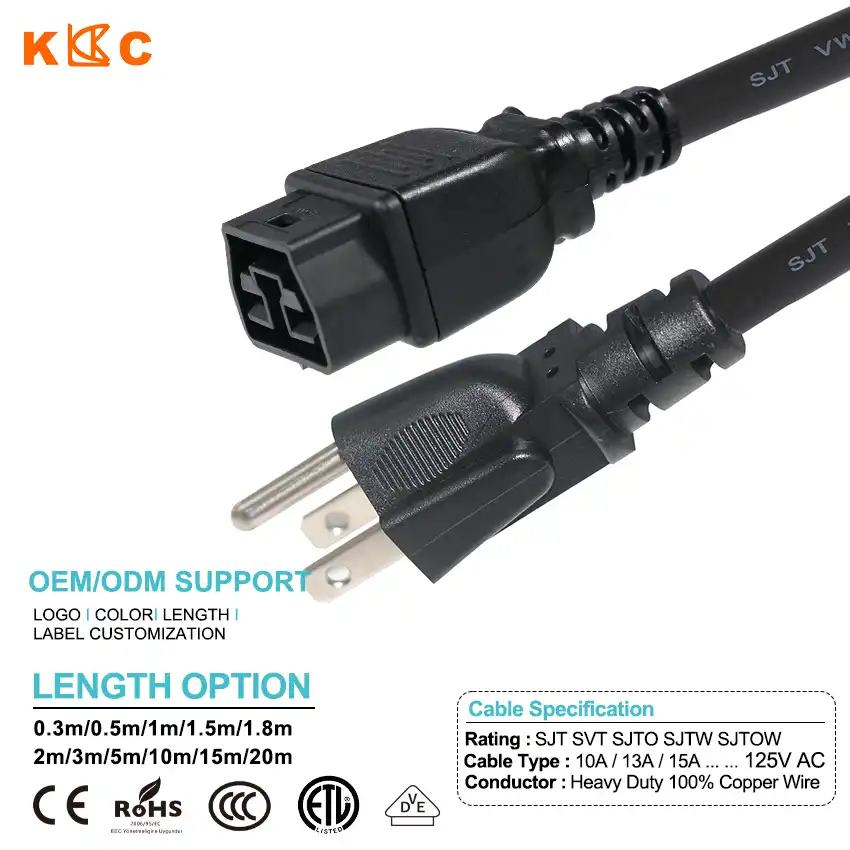

NEMA 5-15P to Saf-D-Grid Locking Power Cord
This NEMA 5-15P to Saf-D-Grid power cord provides a grounded 125V AC connection between a standard North American outlet and compatible equipment fitted with a Saf-D-Grid inlet. Its T-shaped locking connector helps maintain the equipment-side connection when the cable is moved, pulled, or routed around mobile devices.
Image-listed configurations include 10A, 13A, and 15A current ratings, multiple SJT-family cable types, and lengths from 0.3m to 20m. The cable can be configured for medical equipment, diagnostic instruments, laboratory devices, mobile carts, and other products that require a matching Saf-D-Grid equipment connection.
Why Choose Our NEMA 5-15P to Saf-D-Grid Power Cord?
This cable is intended for equipment manufacturers, replacement-cord suppliers, medical-device accessory distributors, and project buyers who need a grounded North American supply cord with a retained equipment-side connection.
T-Shaped Locking Equipment Connector
The Saf-D-Grid connector uses a keyed T-shaped interface with a retention feature. When paired with the correct equipment inlet, this structure helps reduce unintended separation caused by cable tension, device movement, or routine handling.
Grounded NEMA 5-15P Input
The three-prong NEMA 5-15P plug provides line, neutral, and protective ground connections for compatible 125V North American outlets. This makes the cord suitable for grounded equipment designed around the matching electrical configuration.
Multiple Current and Cable Options
Image-listed current options include 10A, 13A, and 15A. SJT, SVT, SJTO, SJTW, and SJTOW cable types allow buyers to select a construction aligned with equipment load, flexibility, oil exposure, moisture exposure, and installation conditions.
Flexible OEM Configuration
Length, wire gauge, jacket type, rated current, molding, cable printing, color, labels, logo, packaging, and carton marking can be matched to the equipment program and purchasing requirements.
Complete Product Specifications
| Specification | Details |
|---|---|
| Product Type | North American locking equipment power cord |
| Input Plug | NEMA 5-15P male plug |
| Equipment Connector | Saf-D-Grid T-shaped female locking connector |
| Mating Interface | Compatible Saf-D-Grid equipment inlet; inlet profile and connector model must be confirmed |
| Connector Retention | Locking equipment-side interface designed to reduce unintended disconnection |
| Rated Voltage | 125V AC |
| Rated Current | 10A / 13A / 15A image-listed options; final rating depends on the complete cord configuration |
| Frequency | 60Hz typical for North American applications |
| Grounding | Grounded three-conductor configuration |
| Wire Gauge | 18AWG / 16AWG / 14AWG common options; final selection depends on current rating, cable length, and cable type |
| Cable Types | SJT / SVT / SJTO / SJTW / SJTOW image-listed options |
| Cable Length | 0.3m / 0.5m / 1m / 1.5m / 1.8m / 2m / 3m / 5m / 10m / 15m / 20m image-listed options; custom length available upon request |
| Conductor | Copper wire as stated in the supplied image; final conductor specification should be confirmed with the order |
| Cable Jacket | Thermoplastic jacket typical; properties depend on the selected SJT-family cable type |
| Cable Color | Black shown; custom colors available upon request |
| Molding | Molded plug and equipment connector with integrated strain relief |
| Typical Applications | Compatible medical equipment, diagnostic devices, laboratory instruments, mobile carts, commercial electronics, and specialized equipment |
| Certifications | Certification symbols are displayed in the supplied image; applicable certification scope and documents must be confirmed for the ordered configuration |
| Customization | Length, wire gauge, cable type, current rating, molding, color, cable printing, label, logo, packaging, and carton marking |
Buyer's Insight: Confirm the equipment inlet before ordering because a similar external shape does not guarantee Saf-D-Grid compatibility. The cord's final rating is determined by its lowest-rated component, including the NEMA plug, locking connector, wire gauge, cable type, cable length, and certification configuration. Longer cords may require a larger conductor size to control voltage drop.
Professional Applications You Can Trust
For mobile medical carts and diagnostic equipment, cable movement can place stress on a conventional detachable connection. The retained Saf-D-Grid interface helps keep the connector engaged when paired with the correct inlet.
For laboratory instruments and commercial equipment, buyers often need different cable lengths and jacket properties for the installation environment. Multiple length and SJT-family cable options allow the cord to be aligned with routing distance and exposure conditions.
For replacement and OEM programs, the molded NEMA 5-15P input provides compatibility with standard North American outlets, while configurable printing, labels, and packaging help identify the cable for the intended equipment model.
Advanced Safety Features
The grounded three-conductor structure provides dedicated line, neutral, and protective ground paths. The protective ground must remain correctly connected through the plug, cable, equipment connector, and matching inlet.
Molded terminations enclose the internal conductor connections, while strain-relief sections support the cable near both connector bodies. The locking equipment connector also helps reduce partial or unintended disengagement from a compatible inlet.
SJT, SVT, SJTO, SJTW, and SJTOW constructions have different service characteristics. Select the cable type according to indoor or outdoor use, oil exposure, moisture exposure, flexibility, temperature requirements, and applicable approval conditions.
Manufacturing Excellence
This NEMA 5-15P to Saf-D-Grid cord can be configured for OEM equipment and B2B replacement programs. Buyers can define the electrical rating, wire gauge, cable type, length, connector molding, jacket color, cable printing, product label, and packaging before production.
Frequently Asked Questions
Q: Does this connector fit a standard IEC appliance inlet?
A: No. The equipment end is a Saf-D-Grid-style T-shaped locking connector and requires a matching Saf-D-Grid inlet. It should not be treated as an IEC C13 or another IEC connector.
Q: Is the power cord rated for 15A?
A: A 15A, 125V AC configuration is listed as an option. The final rating requires a matching connector, suitable wire gauge, cable type, length, and applicable certification configuration.
Q: Which cable type should I select?
A: SJT and SVT are commonly considered for indoor equipment, while SJTO, SJTW, and SJTOW provide different oil- or weather-related properties. Final selection should be based on the operating environment and target-market requirements.
Q: Can the length and cable marking be customized?
A: Yes. Image-listed lengths range from 0.3m to 20m. Custom length, wire gauge, jacket type, color, cable printing, labels, logo, packaging, and carton marking are available upon request.
Custom Solutions for Your Business
Electrical Configuration: Select 10A, 13A, or 15A according to the equipment load, connector rating, wire gauge, cable type, length, and approval requirements.
Cable Length: Image-listed options include 0.3m, 0.5m, 1m, 1.5m, 1.8m, 2m, 3m, 5m, 10m, 15m, and 20m. Custom lengths can be supplied for specific equipment layouts.
Wire Gauge & Cable Type: Common 18AWG, 16AWG, and 14AWG conductor options can be combined with a suitable SJT-family cable type based on current, routing distance, flexibility, and environmental exposure.
Connector & Molding: Saf-D-Grid inlet compatibility, locking details, molding profile, strain-relief shape, and cable exit should be confirmed against the target equipment.
Branding & Packaging: Custom cable printing, product labels, logo, individual packaging, and carton marking are available for OEM and distribution programs.
Contact Us
✔ OEM & ODM Support | ✔ Connector Matching Support | ✔ Custom Cable Configuration | ✔ B2B Quotation Support
For an accurate quotation, please provide the required current rating, wire gauge, cable type, length, equipment inlet photo or drawing, destination market, certification requirements, cable marking,
packaging method, and estimated order quantity.
Ready to discuss your NEMA 5-15P to Saf-D-Grid power cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
