NEMA14-30P O-ring terminal
Secure O-Ring Terminal Design: The open-end termination features pre-installed, high-conductivity O-ring (ring lug) terminals. This ensures a rock-solid, vibration-proof, and screw-tightened connection directly onto your appliance's terminal block.
Standard NEMA 14-30P Compatibility: Equipped with a heavy-duty 4-prong NEMA 14-30P male plug, this cable connects directly into modern 30A 4-wire dryer outlets and EV power stations, conforming strictly to updated electrical safety standards.

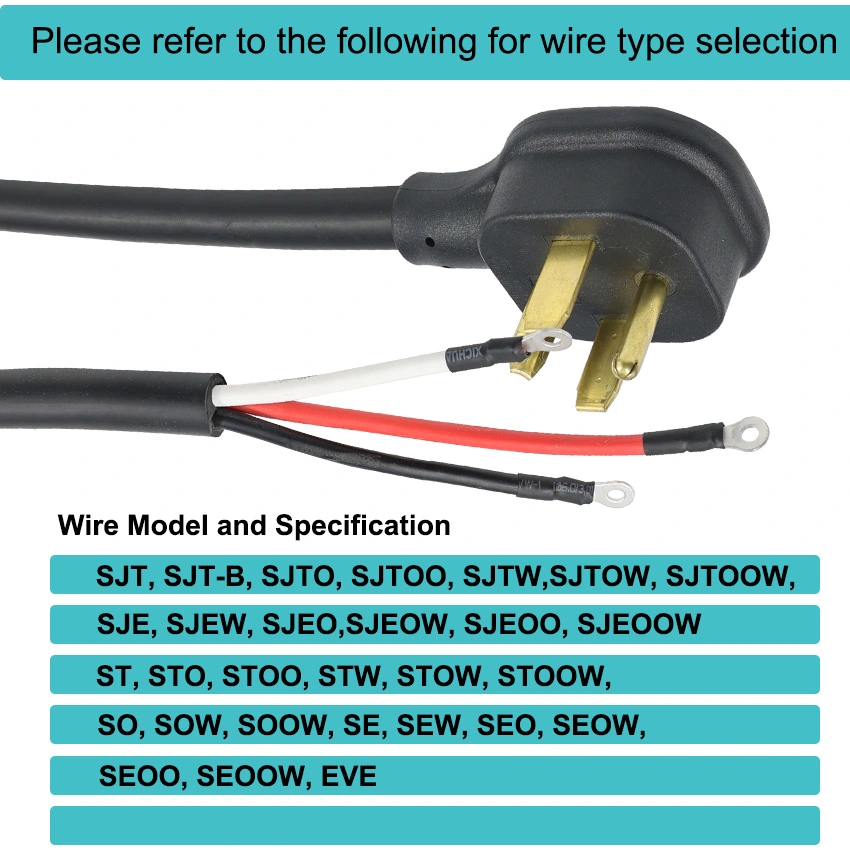

Rugged Insulation & Weather Resistance: Wrapped in a premium, flame-retardant SRDT/STW PVC jacket, this cable offers excellent resistance against heat, moisture, abrasion, and aging, ensuring an ultra-long service life for indoor or garage installations.
Easy DIY Installation & Relocation: The molded 4-prong plug features an ergonomic grip design for effortless plugging and unplugging, while the flexible cable body allows for easy routing behind heavy appliances or tight laundry room corners
- Product Description
High-Capacity NEMA 14-30P to O-Ring Terminal Power Cord for Heavy Appliance Loads
High-amperage equipment demands absolute connection stability. The NEMA 14-30P to O-Ring Terminal Power Cord eliminates voltage drop under 30A continuous loads. We engineer these heavy-duty assemblies for high-heat operational environments. Verified 10 AWG copper stranding. Strict adherence to North American electrical safety testing protocols. You secure your supply chain directly with the manufacturer.
Why Choose Our NEMA 14-30P to O-Ring Terminal Cords?
Terminal failure causes critical thermal events. We prevent mechanical disconnects right at the source.
Precision Hydraulic Crimp Mechanics
Standard automated crimps often fail baseline pull tests. We utilize heavy-tonnage hydraulic crimping for high-amperage assemblies. The O-ring terminals physically cold-weld to the bare copper strands. This prevents micro-arcing at the internal terminal block. The connection remains absolutely stable.
Optimized Thermal Jacketing
Heavy duty appliances generate significant ambient heat. We extrude our external jackets using advanced temperature-resistant polymers. They maintain physical flexibility while resisting thermal degradation over years of continuous load operation.
Complete Product Specifications
| Parameter | Specification Data |
|---|---|
| Plug Standard | NEMA 14-30P (4-Prong, Grounded) |
| Equipment Termination | 4x O-Ring Terminals (Stud Size Configurable) |
| Conductor Geometry | 4 Conductor, 10 AWG (Pure Bare Copper) |

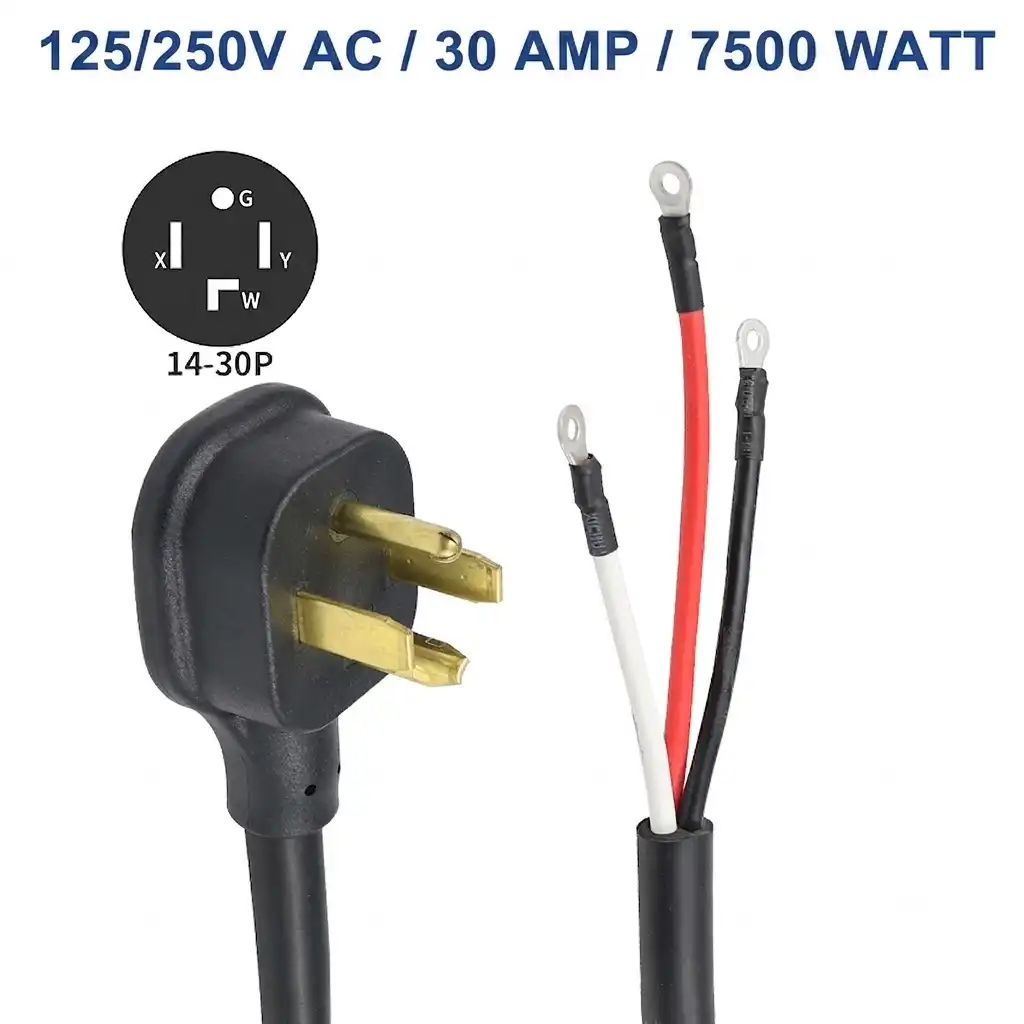

| Electrical Rating | 30 Amps, 125/250 Volts AC |
| Jacket Material | Industrial Thermoplastic (SRDT/DRT Equivalent) |
| Terminal Plating | Anti-Corrosive Tin/Nickel Alloy |
Professional Applications You Can Trust
Industrial drying cabinets and large-scale residential appliances require dedicated 4-wire power configurations. The NEMA 14-30 standard provides the necessary independent neutral and ground return paths. Our specific cord assemblies guarantee that heavy current transfers safely from the wall receptacle directly to the internal machine terminal block. No power loss. No excessive heat generation.
Power distribution units and local generator transfer switches also utilize this exact configuration. The integrated O-ring terminals bolt directly onto the chassis studs. This specific mechanical fastening resists the heavy physical vibrations generated by internal motors and rotating machinery. The connection will not vibrate loose.
Advanced Safety Features
High-resistance wire connections start electrical fires. By utilizing cold-welded ring lugs rather than bare wire or standard spade terminals, we maximize the surface area of the conductive interface. You tighten the locking nut down. The physical connection becomes permanent.
The molded plug side features a massive internal strain relief architecture. We inject the dielectric polymer directly into the wire bundle base. This internal structural reinforcement absorbs extreme pulling forces. End-users cannot accidentally tear the internal conductors away from the solid brass plug pins.
Manufacturing Excellence
We hold 17 years of specialized factory experience in high-amperage power transmission assemblies. We execute strict pull-force testing on every terminal crimp line. Automated Hi-Pot testing guarantees dielectric integrity up to thousands of volts before any unit leaves the facility. We strictly utilize environmentally compliant resins and certified pure copper.
Frequently Asked Questions
Q: Can you customize the inner wire strip length and O-ring stud size?
A: Yes. We program our automated stripping machinery to match your exact internal BOM specifications. We currently stock ring terminals designed to fit #8, #10, and 1/4-inch equipment studs.
Q: How do you verify the integrity of the terminal crimp?
A: We execute destructive tensile pull-force testing on randomized batch samples hourly. We also measure the precise milliohm resistance across the physical crimp joint to guarantee absolute electrical transparency.
Q: Do these specific power cords meet North American electrical standards?
A: Absolutely. We manufacture in strict accordance with the recognized electrical safety standards for the target market. We supply all required internal laboratory documentation to facilitate your import clearance and local compliance.

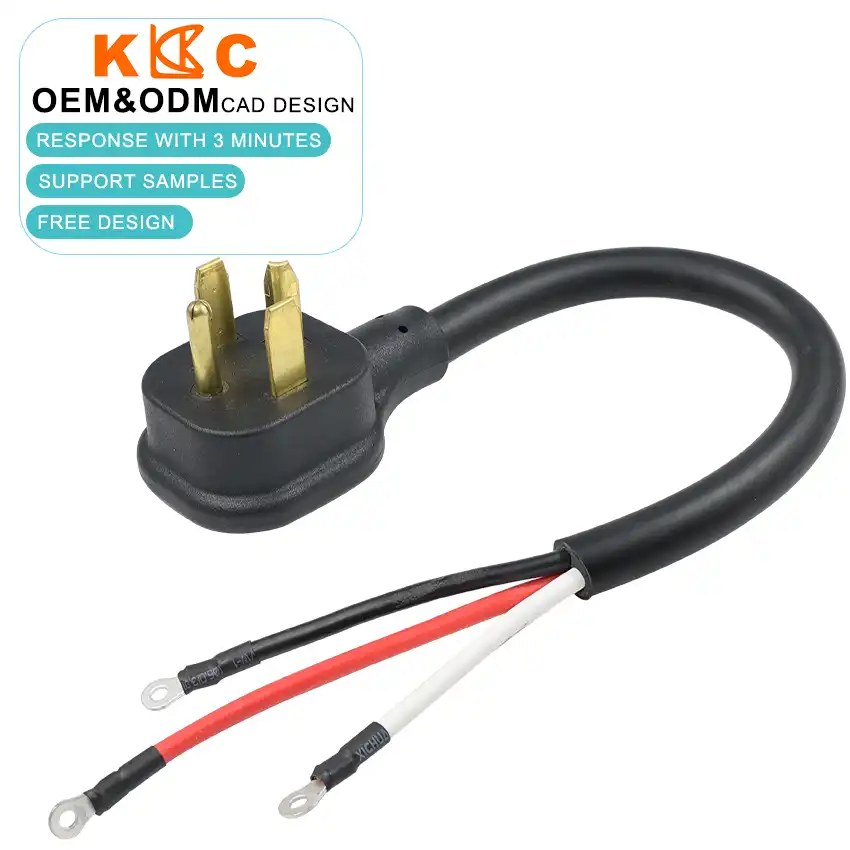

Custom Solutions for Your Business
We adapt the baseline engineering to your specific equipment requirements. Modify total wire lengths, jacket colors, strip dimensions, and terminal plating configurations. We support high-volume OEM manufacturing schedules. Expect a 15 to 21 day production lead time for standard bulk wire configurations following drawing approval.
Contact Us
Ready to discuss your NEMA 14-30P to O-Ring Terminal Power Cord requirements? contact us at rhea@szkuncan.net for expert technical guidance and competitive factory pricing. Request your customized quotation today.
