NEMA5-15P to stripped and tinned Power Cord
As a precision manufacturing partner, we offer full customization to match your assembly line. Our services include specific ROJ (Remove Outer Jacket) lengths, precise conductor stripping, and pre-installed terminals (Ring, Spade, or Quick Disconnect). We provide flexible packaging, from individual P/N labeled polybags to bulk coils, ensuring a seamless supply chain for high-volume production.
- Product Description

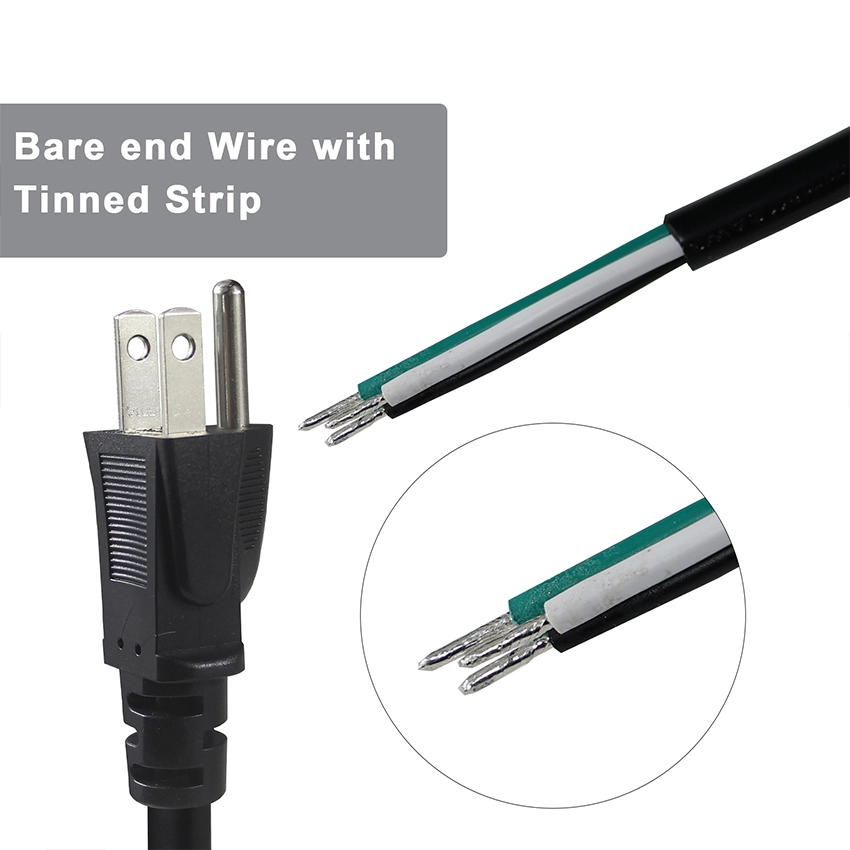

NEMA5-15P to Stripped and Tinned Power Cord
Professional-Grade Power Cord Solutions for OEM Manufacturing
The NEMA5-15P to stripped and tinned Power Cord from Kuncan Electronics combines 17 years of precision manufacturing expertise with enterprise-grade reliability. Our industrial-standard cords feature pre-tinned conductors that eliminate assembly labor by up to 30%, precise ROJ stripping with ±2mm tolerance, and full UL/cUL compliance for North American markets. Engineered for high-volume OEM production, these ready-to-terminate power solutions undergo 100% electrical testing and utilize premium copper conductors rated from 10A to 15A at 125V AC, ensuring consistent performance across diverse industrial applications.

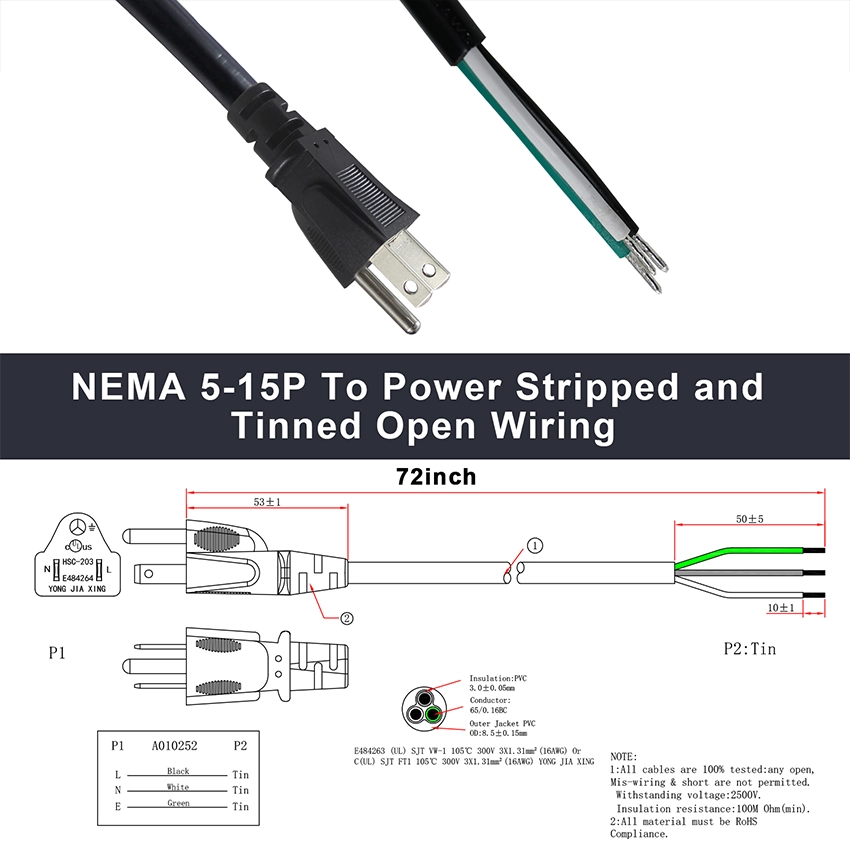

Technical Specifications
| Parameter | Specifications |
|---|---|
| Length | Customizable: 6ft / 8ft / 10ft / 12ft / 25ft |
| Wire Gauge (AWG) | 18AWG / 16AWG / 14AWG / 12AWG |
| Plug Type | NEMA 5-15P (Molded US 3-Pin Grounded) |
| Connector End | Open End / Stripped & Tinned |
| ROJ Strip Length | Customizable (Standard: 50.8mm / 2 inches) |
| Conductor Strip | Customizable (Standard: 6.35mm / 1/4 inch) |

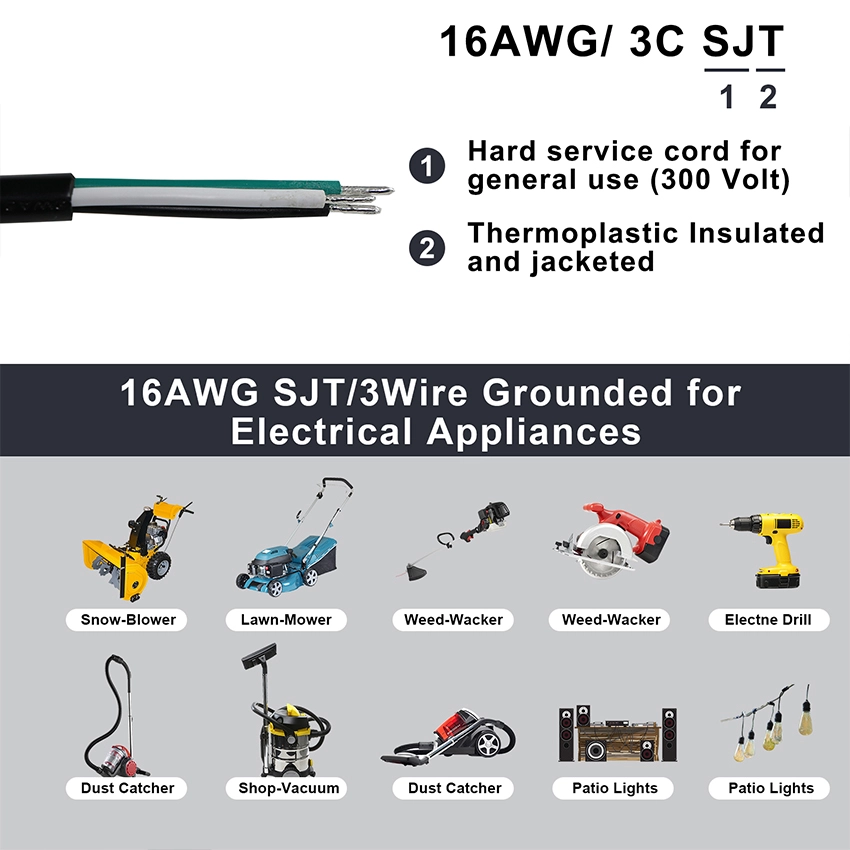

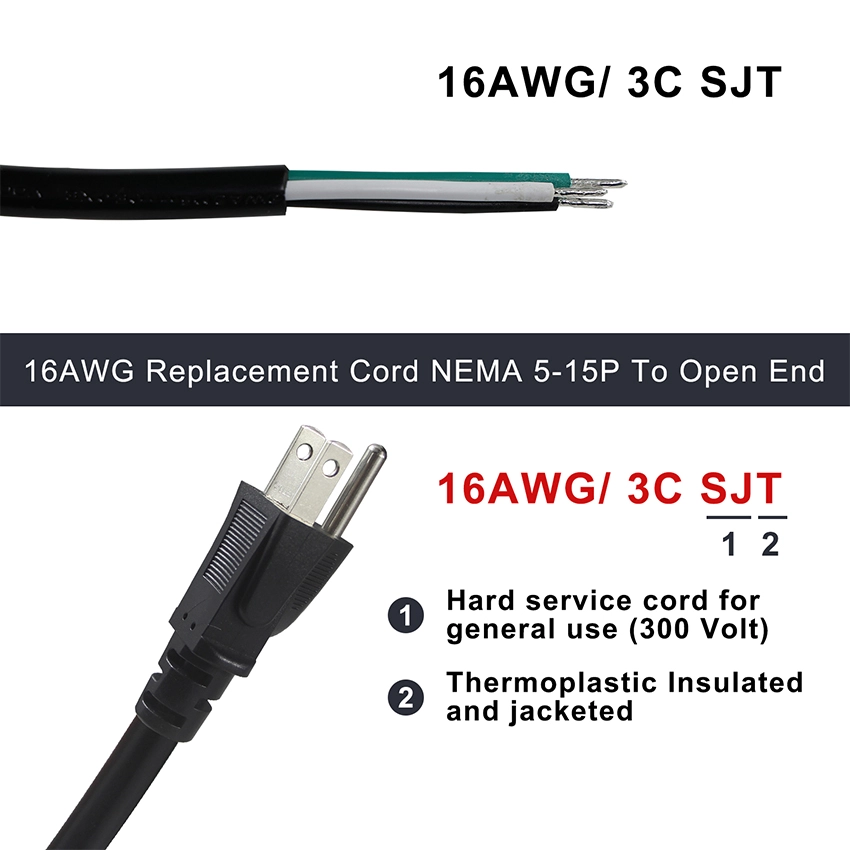

| Wire Types | Indoor: SVT, SJT / Outdoor: SJTW, SJTOW |
| Current Rating | 10A-15A / 125V AC |
| Wire Voltage | 300V / 600V rated |
| Temperature Rating | 60°C / 75°C / 105°C |
| Conductor Material | Stranded Bare Copper (Class K/M) |
| Color Code | Black (Hot), White (Neutral), Green (Ground) |
| Certifications | UL / cUL Listed, RoHS & REACH Compliant |
Why Choose Our Pre-Tinned Power Cords?
Instant Assembly Advantage
Our NEMA5-15P to stripped and tinned Power Cord eliminates time-consuming wire preparation on your production line. The pre-tinned conductors create an instant, solid electrical connection during soldering or terminal crimping. This ready-to-solder design prevents copper strand fraying and ensures gas-tight connections every time.
Precision Engineering
Using automated stripping equipment, we guarantee consistent ROJ lengths and conductor preparation. This precision ensures perfect fitment inside equipment enclosures without excess wire slack. Your assembly teams can rely on uniform quality across every cord.
Versatile Industrial Applications
These power cords excel in OEM appliance manufacturing, particularly for garbage disposals, dishwashers, and industrial pumps. They're also essential for control panel wiring, power supply units, and LED driver connections where reliability is critical.
Superior Manufacturing Process
Quality Materials
We utilize as it were premium stranded copper conductors with lead-free tinning that meets RoHS guidelines. Our coat materials extend from standard PVC for indoor utilize to weather-resistant compounds for open air applications.
Rigorous Testing
Every rope experiences 100% electrical testing some time recently bundling. Our quality control handle incorporates extremity confirmation, separator resistance testing, and visual review of tinned connections.
Custom Configuration Options
Beyond our standard item offerings, we give custom ROJ lengths, particular conductor arrangements, and indeed pre-installed terminals like ring or spade connectors based on your blueprints.
Installation and Safety Guidelines
Proper Wire Connection
Always take after standard electrical hones when interfacing the stripped closes. The color coding takes after North American measures: dark wire interfaces to the hot terminal, white to unbiased, and green to the ground connection.
Environmental Considerations
Choose the suitable coat sort for your application. Standard SJT lines work well inside, whereas SJTW variations give the climate resistance required for open air installations.
Frequently Asked Questions
How much is this product?
Thanks for your intrigued in our control strings. We fabricate them in our possess production line. To plan the best citation for you, may I affirm: the cable length you require, the amount for your to begin with arrange, and the plug sort or a item photo to affirm the model.
How do I accurately interface the colored wires on the stripped end?
You ought to interface the dark wire to the live terminal, the white wire to unbiased, and the green wire to the ground screw.
What is the standard voltage and amperage rating for this sort of cord?
A standard NEMA 5-15P rope is by and large evaluated for utilize with 125-volt AC frameworks and up to 15 amps of current.
Production and Delivery Excellence
With our Dongguan fabricating office, we keep up brief lead times of 3-7 days for tests and 15-25 days for generation runs. Our adaptable coordinations alternatives incorporate discuss, ocean, and railroad shipping to guarantee competitive cargo costs and on-time delivery.
Every item comes with our comprehensive 1-year guarantee and is supported by our commitment to building long-term organizations through steady quality and responsive benefit.
Contact Us
Ready to streamline your NEMA5-15P to stripped and tinned Power Cord assembly process? Contact rhea@szkuncan.net for custom quotes and technical support.
