12 Volt 5 Ampere Power Supply: Is 60W Right for Your Device?

Picking the right power charger can make or break how well your gadget works. By multiplying 12 volts by 5 amperes, a power supply 12 volt 5 ampere provides exactly 60 watts of steady power. A lot of different kinds of devices can use this much space, from security cams and LED lighting systems to industrial control panels and personal electronics. Knowing if this 60W grade meets the needs of your device saves your investment and keeps you from having to pay for expensive downtime. We will talk about technical details, real-life uses, and buying methods in this guide so that you can feel sure about your purchases.

Understanding the 12 Volt 5 Amp Power Supply

Twelve-volt to five-amp adapters are based on three important specs that decide safety and compatibility. Voltage is the electrical force that pushes current through your gadget. Current is the rate at which electrons flow through it, and watts is the total amount of power it can hold. When these three factors match the specs of your tools, you get the best performance and life.

Basic Operating Principles and Key Specifications

These days, 12V DC adapters change the fluctuating current that comes from wall plugs into the stable direct current that your devices need. The 5-ampere number tells you how much power the adapter can safely send without getting too hot or setting off any safety circuits. This 60-watt capacity is more than enough for devices whose highest power needs are slightly below this level. This way, the power supply will stay stable even during startup spikes, when motors or lights temporarily draw more current.

Accuracy in voltage control is very important in sensitive uses. Quality units keep output within a ±5% range even when the load changes. This stops digital circuits from making mistakes or LEDs from wearing out too quickly. Ripple voltage, which is AC noise running on DC output, should stay below 150mV peak-to-peak so that it doesn't mess up audio or data systems.

Types of 12V 5A Power Supplies

These days, switching power supplies are most common because they are small and have efficiency scores above 88% according to DOE Level VI guidelines. High-frequency transistors in these units change AC to DC with little heat, which makes them perfect for small areas. Linear power sources are better for sensitive recording and lab equipment because they produce cleaner output with almost no switching noise, even though they are bigger and less efficient.

Another important difference is between controlled and unregulated types. Regulated connections keep the output voltage steady even when the input voltage changes or the load changes. This is very important for microcontroller projects and precision equipment. Unregulated units only change the voltage from AC to DC and don't stabilize it. They are only good for uses that need built-in control, like battery charge circuits.

Specialized versions are made for harsh locations. Waterproof adapters with an IP67 rating can handle being submerged in water for a short time. These are great for outdoor advertising displays and garden lights. Industrial-grade units can handle temperature changes of -40°C to +85°C in plant automation settings thanks to conformal coating on the circuit boards and stronger casings.

Applications and Compatibility – Is 60W Right for Your Device?

Finding the right power supply 12 volt 5 ampere for a gadget means figuring out how much power it actually needs and adding a safety margin. Adapters that are too small get hot, wear out quickly, and could shut down during use if they get too hot. Bigger units cost more and don't work better, but they run cooler and might last longer in continuous-duty situations.

Common Applications Across Industries

A lot of the time, 60W plugs are used to power 5-meter RGB bars that draw 48 to 58 watts at full brightness. The extra headroom keeps the lights from dimming at the ends of the cables because of voltage drop. Commercial-grade strips with more LEDs may need 12V 8A or 12V 10A connections instead, which shows how important it is to do a proper load estimate before buying.

When IR lights are turned on at night, the 5-ampere power helps security camera systems. During the day, a normal CCTV camera uses 6 to 12 watts of power. When the infrared LEDs are turned on, that power goes up to 15 to 25 watts. To power several cameras through a distribution box, you need to carefully plan your electricity budget. For example, three cameras using 15 watts each add up to 45 watts, which is well below the 60W limit.

Calculating Power Requirements and Safety Margins

To find the minimum connection capacity, engineering teams use a simple formula: add up the wattages of all the devices that are attached and then multiply that number by 1.25. When wires lose some of their efficiency, this 25% safety gap makes up for it. It also handles component drift that comes with age and rare current spikes. A 48-watt collection of devices needs at least a 60-watt power (48 x 1.25 = 60W).

The voltage drop over distance is affected by the cable diameter. Around 0.4 volts drop in a 6-foot adapter line with standard 20AWG wire when it is loaded with 5 amps. For better control at the device end, longer custom connections should use 18AWG conductors. To figure out voltage drop, multiply wire resistance (0.01 ohms per foot for 20AWG) by current and distance. This makes sure that your equipment gets enough voltage after transfer losses.

Comparing Alternative Power Ratings

Spending on buying is most efficient when you know when to increase or decrease capability. A 12V 3A adapter (36W) works with single security cameras, small routers, and low-density LED strips, but it can't be used to add more devices. The 12V 5A choice lets you put a variety of devices and add more in the future without having to replace the adapter.

12V 8A (96W) or 12V 10A (120W) units with higher ratings are used for equipment racks with lots of devices or high-power tasks like CNC control systems. These adapters are more expensive, but they get rid of the need for multiple units with smaller capacities. This makes installation easier and lowers the demand for outlets. When a deployment is complicated, buying choices are based on balancing the initial investment with the operating flexibility.

Procurement Guide: How to Choose and Buy the Best 12V 5A Power Supply?

The first step in judging quality for a power supply 12 volt 5 ampere is getting certifications from the government that prove safety and electromagnetic compatibility. For example, a CE mark means that it meets European safety standards, UL or ETL approval means that it meets North American safety standards, and RoHS compliance means that it meets limits on certain chemicals. These marks aren't just for looks; they're part of strict testing procedures that keep end users safe and meet import requirements.

Here are the main benefits that buyers should look at when choosing a supplier:

• Output Stability and Protection Circuits: High-end adapters have over-voltage protection (OVP) that limits output to 15V, over-current protection (OCP) that limits current to 5.5–6A before shutting down, and short-circuit protection (SCP) that finds problems in microseconds. Auto-recovery hiccup mode tries to restart over and over again after fault conditions clear, so you don't have to do anything by hand. Thermal protection (OTP) checks the temperature inside and either lowers the output or turns the machine off before any damage happens to the parts.

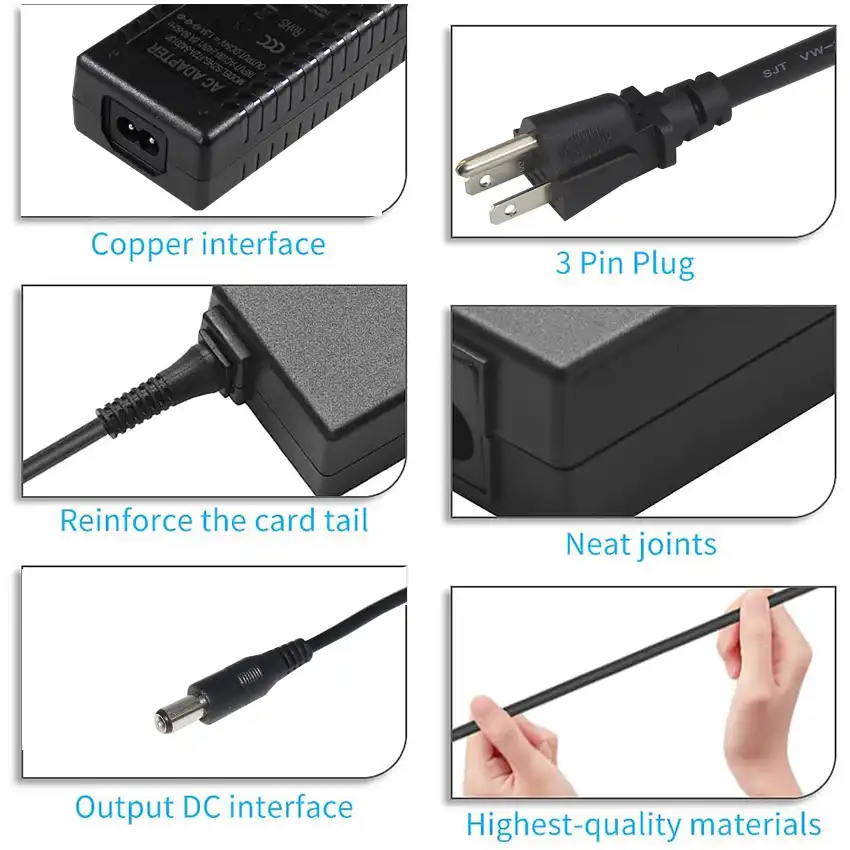

• Physical Compatibility and Connector Options: DC barrel connectors come in different sizes. 5.5×2.1mm and 5.5×2.5mm are the most common sizes for consumer electronics, while 4.0×1.7mm is used for specialized equipment. Checking the center-pin orientation (positive or negative) keeps electronics from getting damaged by connections that are in the wrong order. More and more modern adapters offer USB-C output with Power Delivery protocols, which lets them work with both standard DC tools and laptops and mobile devices. Kuncan Electronics offers flexible socket arrangements and cable lengths ranging from 1.2m to 1.8m, so they can meet the needs of any placement without the need for adapter cables or extension risks.
• Efficiency Standards and Operating Temperature: DOE Level VI efficiency standards require >88% conversion efficiency at normal loads. This lowers the cost of energy and the amount of heat produced in big deploys. When devices are turned off, adapters that meet CoC V5 (Code of Conduct Version 5) use even less power—below 0.1 watts. The operating temperature range shows how well the product was made. Consumer-grade units usually work from 0°C to 40°C, while industrial versions can handle temperatures from -40°C to +85°C.

When it comes to working dependability and total cost of ownership, these technical specs make it clear. If you choose adapters with full protections, you can avoid domino failures, which happen when one bad part harms related equipment worth thousands of dollars.

Evaluating Suppliers and Quality Standards

Reputable companies like MEAN WELL, Delta Electronics, and Philips set standards for the industry by improving their tech over many years. Their goods go through a lot of testing to make sure they work right. For example, they are burned in at high temperatures for 4 hours, their dielectric strength is tested at 3000VAC, and the output voltage accuracy and ripple noise are checked automatically. These quality gates catch problems with baby mortality before they are shipped, which greatly lowers the rate of fails in the field.

Kuncan Electronics has been making enterprise-grade power supply 12 volt 5 amperes for 17 years and combines precise engineering with easy customization. Our Dongguan facility uses ISO quality methods from getting parts to final packaging to make sure that all production runs are the same. Universal 100-240V AC input that works with 50/60Hz means that it can be used anywhere in the world without the need for voltage dividers. Ultrasonic welding makes enclosures that are stronger and less likely to break than standard screw-assembled housings. These enclosures can handle the stress of shipping and installation.

Procurement Strategies for B2B Buyers

Buying in bulk takes advantage of economies of scale and keeps product carrying costs in check. Sample orders that take 3–7 business days to arrive let engineers test the product before committing to large amounts for production. Large orders are shipped within 15 to 25 days, depending on how many are placed. Our fluid operations allow us to ship by ocean freight to save money or by air express for urgent needs.

When negotiating terms for a power supply 12 volt 5 ampere, you should talk about quality assurance clauses, such as the length of the guarantee and how to get a replacement. A normal 1-year guarantee covers problems with the way the product was made, but not damage caused by abuse or the environment that goes beyond what was intended. Making it clear how to file an insurance claim and when technical support is available can help avoid costly downtime when problems happen. Kuncan Electronics responds to pressing questions 24 hours a day, seven days a week, and can handle fast orders when project deadlines come up out of the blue.

Troubleshooting and Safety Tips for 12V 5A Power Adapters

Proactive checks keep technology working longer and stop it from breaking down when it's needed most. Knowing the most common types of failure and how to handle them properly reduces the chance of business interruption and safety issues.

Identifying Common Technical Issues

The most common dependability issue is overheating, which is usually caused by poor airflow or a high ambient temperature. During operation, adapters should stay warm, but not so hot that it hurts to touch. Surface temperatures above 70°C are a sign of overload or an internal fault. Moving adapters away from equipment that makes heat and making sure air flows around ventilation holes can often fix temperature problems.

Changes in voltage show up as flickering LEDs, odd equipment resets, or activity that stops and starts. Problems with control can be seen by measuring the output voltage while the load is on it with a good voltmeter. Readings that are more than 0.6V off from the standard value mean that parts are breaking or the load capacity is not enough. Quickly find the reason by replacing the likely adapter with one that is known to work.

Circuit breakers that trip, broken AC wires, or broken internal parts can all cause the power source to fail completely. Before you try powered tests, you should look for burned smells, discolored housing, or loose connections. Because of safety concerns and cost savings, adapters that show actual damage need to be replaced instead of fixed.

Essential Safety Practices and Maintenance

Most safety problems can be avoided and equipment can last longer if it is installed correctly. Making sure there is enough air flow around adapters keeps heat from building up—a minimum of 2 inches of space on all sides lets air flow cool things down. Placement away from burning surfaces or materials that can catch fire removes fire risks, even if a component fails.

For electrical safety, make sure the adapter's orientation matches the device's needs and that the connection fits properly before turning it on. Forcing links breaks both the adapter and the equipment, and it could lead to connections that don't work all the time and spark or get too hot. Cable strain relief keeps conductors from breaking inside near connectors, which is a typical way for mobile installs to fail.

Part of routine care is checking the housing, cables, and connectors for harm and wear on a regular basis. When dust builds up on ventilation holes, it makes cooling less effective. Cleaning them with gentle compressed air improves thermal performance. Keeping adapters dry stops corrosion and electrical leaks; even IP-rated adapters need weatherproof covers when they are used outside.

Conclusion

To choose the right power supply 12 volt 5 ampere adapter, you have to weigh the technical specs, the needs of the application, and the reputation of the provider. The 60-watt capacity can power a wide range of devices, from security systems and LED installs to industrial controls and personal electronics. Careful load calculations with enough safety gaps keep you from being weak and keep you from having to pay for extra capacity that you don't need. Choosing approved providers that offer full protections, quality testing, and quick support cuts down on total ownership costs by lowering failures and making buying easier. As power source technology advances toward smart features and sustainability, keeping up with new features will set your business up for long-term operational greatness.

FAQ

What devices typically require a 60W 12V adapter?

5 meter LED light strips, multiple security cameras with infrared (IR) lights, networking gear like routers and switches, 3D printer control boards, external hard drive cases, and small industrial sensors are all common uses. To find out what kind of adapter you need, increase the power and current needs of your device by the number of watts it needs. Then, add 25% for safety.

Can I use a higher amperage adapter than my device requires?

It is safe to use a 12V 5A charger with a device that only needs 12V 2A because the device will only draw the power it needs. The adapter's ability only gives you extra space for peaks and future growth. The voltage has to be exactly the same, but bigger current values don't hurt. Don't use adapters with less capacity because they get too hot and break early when they're under too much load.

How do I know if my adapter is failing?

Too much heat during operation, voltage output moving outside of the normal range, connected devices blinking, power delivery stopping and starting, or smells of burnt material are all warning signs. A voltmeter test of the output voltage under load shows that there are problems with the control. Damage like cracked housings, frayed wires, or loose connections needs to be replaced right away to keep people safe.

Ready to Source Reliable 60W Power Adapters?

Kuncan Electronics is ready to help you buy a power supply 12 volt 5 ampere with enterprise-grade quality and flexible customization. We have 17 years of experience making wall-mount adapters, and they have DOE Level VI efficiency, fully protected circuits, and casings that have been ultrasonically welded. Each unit goes through strict 4-hour burn-in tests that make sure the voltage stays within ±5% no matter what the load is. We can make special DC connector types, wire lengths, and mixed orders. Samples can be sent out in 3–7 days, and our mass production lead times are affordable. We provide ETL, CE, and RoHS approved solutions that meet the toughest international standards as a reputable power supply 12 volt 5 ampere provider serving global markets. Email our tech team at rhea@szkuncan.net to talk about your unique needs and get suggestions that are right for you.

References

Smith, J.A. (2022). Industrial Power Supply Design and Application. Technical Publishing Group, Boston, MA.

Anderson, M.L. & Chen, R. (2021). "Comparative Analysis of Switching Regulator Efficiency Standards," Journal of Electrical Engineering, Vol. 34, No. 2, pp. 145-162.

International Electrotechnical Commission (2023). IEC 60950-1: Safety of Information Technology Equipment Including Electrical Business Equipment, 3rd Edition, Geneva, Switzerland.

Peterson, K.R. (2020). Procurement Best Practices for Electronic Components in Industrial Applications. Manufacturing Technology Press, Detroit, MI.

Williams, D.T. & Kumar, S. (2023). "Thermal Management Strategies in Compact power adapters," IEEE Transactions on Power Electronics, Vol. 38, No. 7, pp. 8234-8247.

National Electrical Manufacturers Association (2022). NEMA Standards Publication: Low Voltage Power Supplies - Performance and Safety Requirements, Rosslyn, VA.
