C19 vs C13: Which Power Cord Is Right for Your Server?

When your rack-mounted server suddenly trips a breaker or throttles under load, the power cord is rarely the first thing you check — but it should be. Choosing between a C19 and C13 connector is not a minor detail; it directly affects thermal stability, uptime, and infrastructure safety. For North American deployments, the c19 to nema 5 15p Power Cord has become a go-to solution for connecting high-current enterprise hardware to standard wall outlets, while C13 remains the workhorse for lighter loads. This guide breaks down both options so your procurement team can make the right call the first time.

Understanding the Basics: What Are C19 and C13 Power Cords?

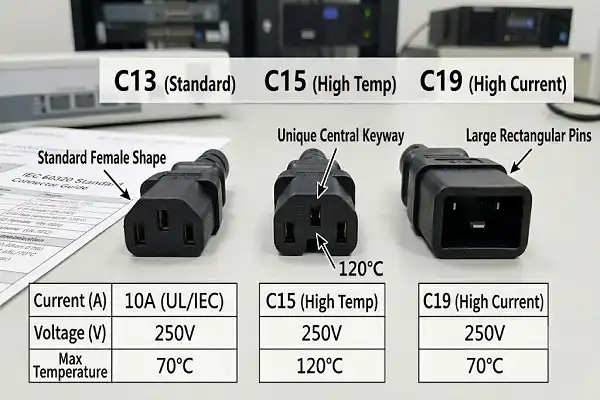

Connector Design and Current Ratings

Both connectors are defined by the IEC 60320 standard, but their electrical ceilings are very different. The C13 connection can handle 10A at 250V and works with a C14 inlet. You can find this type of socket on desktop computers, monitors, and basic servers. It can handle up to 16A (or 20A in UL-rated North American configurations) and pairs with a C20 inlet, which makes it the best interface for blade servers, high-density PDUs, and big network switches.

How C19 Integrates Into North American Data Centers

C19 lines usually end at a NEMA 5-15P or NEMA 5-20P plug in North American buildings. A c19 to nema 5 15p Power Cord is commonly used to connect high-current equipment with a C19 inlet to standard building circuits. The NEMA 5-15P configuration is especially common in server rooms used for multiple purposes, where 15A wall outlets are standard. When selecting a c19 to nema 5 15p Power Cord, cable length and conductor size should also be considered. Cable lengths usually range from 3 to 15 feet, while thicker wire gauges, typically 14 AWG or 12 AWG, help maintain stable voltage along the entire run. A reliable c19 to nema 5 15p Power Cord is particularly important in environments that operate 24 hours a day, seven days a week, because consistent power delivery supports the dependable operation of critical equipment. Choosing a high-quality c19 to nema 5 15p Power Cord can therefore contribute to safer and more reliable power distribution.

Comparison and Decision-Making: Choosing the Right Power Cord for Your Server

The table below gives procurement teams a direct, side-by-side reference for evaluating both cord types against mission-critical criteria.

When Does a C19 Cord Outperform a C13?

The best place for C19 to be used is in high-density rack settings. According to a report released by the Uptime Institute, a measured portion of avoidable data center incidents are caused by power cables that are too small. If a server continuously pulls more than 8A, a C13 cord close to its rating will produce too much heat at the connector interface, which damages the insulation and shortens the cord's usefulness. This extra risk is completely eliminated by the C19's heavier wires and better connector connection.

Regional Plug Compatibility Considerations

In addition to the NEMA 5-15P configuration, a c19 to nema 5 15p Power Cord is commonly used to connect C19-equipped equipment to standard 15A North American circuits. C19 cords are also available with NEMA 5-20P plugs for buildings with dedicated 20A circuits and with Schuko (CEE 7/7) plugs for use in Europe. When purchasing a c19 to nema 5 15p Power Cord or other regional power cable configurations, procurement managers should carefully verify that the plug type is compatible with the electrical infrastructure of each destination. This is especially important when sourcing cables for international data center rollouts. Checking regional compatibility before placing large orders can help avoid expensive field replacements and unnecessary installation delays. By selecting the appropriate c19 to nema 5 15p Power Cord and other region-specific power cords in advance, companies can improve procurement efficiency and ensure more reliable equipment deployment across different markets.

Procurement Guide: Where and How to Buy C19 to NEMA 5-15P Power Cords

It takes more than a catalog look to find the right wire for large orders. Before you commit to a supplier, here are the main things you should check:

• Certifications: For North American deployments, you should require UL/cUL listing as a minimum. RoHS and REACH compliance is a must for places that are concerned with the environment. Suppliers with ETL, CE, and VDE certifications show that they follow a wider range of quality standards around the world.
• Wire and Jacket Specifications: You should insist on 14 AWG or 12 AWG pure copper wires and a PVC jacket that is SJT-rated and can handle temperatures up to 105°C. In warm rack settings, jackets with ratings below 75°C are less safe.
• Customization Capability: Manufacturers who are ready to work with OEMs should be able to offer unique lengths, color coding to help identify circuits, and a range of gauges. When a supplier has their own CAD design and rapid prototyping lab, they can cut project timelines by a lot.
• MOQ Flexibility and Lead Times: Reliable sellers don't set minimum order numbers for small batches of restocking, and normal bulk lead times should be between 15 and 25 business days.
• Testing Protocols: Before being sent out, every unit must pass all hi-pot, continuity, and polarity tests at the factory level. For mission-critical deployments, this is a must.

All of these qualifications protect your procurement team from problems in the field and legal problems throughout the whole supply chain lifecycle.

Top C19 to NEMA 5-15P Power Cord Brands and Quality Assurance

Industry-Recognized Manufacturers

Tripp Lite, APC, and Belkin are all well-known names in the market for power accessories for data centers. Tripp Lite is known for having a lot of different SKUs that cover a lot of different IEC line setups and always meeting UL standards. APC uses the fact that its lines work well with APC infrastructure because they are integrated with rack PDU environments. Belkin has a good name for enterprise-grade peripheral connections, and their warranty support is easy to get in touch with.

What Rigorous Quality Assurance Looks Like

A power cord's real-world dependability is based on more than just its brand reputation. Whether evaluating a c19 to nema 5 15p Power Cord or another power connection solution, every line made by a legitimate company should go through dielectric resistance testing (hi-pot) to make sure the insulation stays intact when voltage stress is applied. Pull-force testing on strain-relief moldings shows that internal terminations can handle the mechanical tension that is common in places with a lot of cables. This is particularly important for a c19 to nema 5 15p Power Cord used in demanding IT and power-distribution environments. Flex-cycle testing, which simulates thousands of bends, proves that the jacket and wire will remain strong over the product's useful life. By selecting a properly tested c19 to nema 5 15p Power Cord, buyers can gain greater confidence in the long-term mechanical and electrical reliability of their power connections.

Installation Best Practices and Safety Tips for C19 and C13 Power Cords

If you place the cord correctly, it will last longer and protect the hardware that is attached to it. Follow these rules as if they were normal business:

• Match connector to inlet: You should never force a C13 plug into a C20 opening or the other way around. Arcing happens at the terminal contact when the connections aren't right. This wears down both the cord and the outlet over time.
• Observe bend radius: Routing cables at sharp angles squeezes the copper strands inside, which raises the resistance and makes more heat. Keep the bend radius at least four times the width of the wire.
• Inspect strain relief integrity: The plastic strain relief at both ends must be still be in place and not broken. If the connection plate cracks or comes apart from itself, it needs to be replaced right away.
• Conduct periodic visual audits: In places where power is on all the time, check every three months to see if the jacket is discolored, the connectors are loose, or there are any strange heat signs near the termination points.

When these habits are used regularly, they cut down on unplanned downtime and help business and industrial installations meet the standards of NFPA 70 (National Electrical Code).

Conclusion

In addition to the NEMA 5-15P configuration, a c19 to nema 5 15p Power Cord is commonly used to connect C19-equipped equipment to standard 15A North American circuits. C19 cords are also available with NEMA 5-20P plugs for buildings with dedicated 20A circuits and with Schuko (CEE 7/7) plugs for use in Europe. When purchasing a c19 to nema 5 15p Power Cord or other regional power cable configurations, procurement managers should carefully verify that the plug type is compatible with the electrical infrastructure of each destination. This is especially important when sourcing cables for international data center rollouts. Checking regional compatibility before placing large orders can help avoid expensive field replacements and unnecessary installation delays. By selecting the appropriate c19 to nema 5 15p Power Cord and other region-specific power cords in advance, companies can improve procurement efficiency and ensure more reliable equipment deployment across different markets.

FAQ

Can I use a C19 to NEMA 5-15P cord with a standard desktop PC?

Instead of C20, desktop PCs use C13/C14 or C5/C6 ports. They can't be directly connected to a C19 line. It was made to work with high-current devices that have C20 inputs, like corporate computers and high-density PDUs.

What is the maximum voltage rating for a C19 power cord?

IEC 60320 says that the C19 connector can handle 250V. The NEMA 5-15P plug can only be used with 125V circuits in North American UL-rated configurations because it has a 15A circuit breaker protecting it.

How do I know if my server needs a C19 rather than a C13?

Check the power source port on your computer. A C19 cord is needed for a C20 plug. Check the PSU's maximum wattage as well. Units that draw more than 1,000W of continuous load usually benefit from the higher current ceiling and heavier gauge of a C19 wire.

Does wire gauge affect server performance?

Yes. Conductors that are too small add resistance, which shows up as a drop in power and a buildup of heat. In situations with a lot of current flow, 14 AWG or 12 AWG pure copper conductors keep the voltage stable, which keeps sensitive server hardware safe from brownouts.

Is a UL-listed C19 cord required for US data centers?

Even though UL listing isn't required by law, most business building managers and insurance companies do. UL certification is usually seen as the basic level that facilities must meet in order to follow OSHA rules and local building codes.

Partner With Kuncan Electronics for Certified C19 Power Cord Solutions

Every wire Kuncan Electronics makes is the result of 17 years of careful production. Our catalog of C19 to NEMA 5-15P Power Cord suppliers has UL/cUL-listed, RoHS-compliant cords made with 14 AWG/12 AWG oxygen-free copper and 105°C-rated SJT jackets. These cords are ready for your next bulk order or custom OEM project. You can send your requirements to rhea@szkuncan.net or go to nema5-15.com to see our full range and ask for a sample right away.

References

1. Uptime Institute — Annual Data Center Survey Report, 2023.

2. IEC 60320 — Appliance Couplers for Household and Similar General Purposes, International Electrotechnical Commission, 2021.

3. NFPA 70 — National Electrical Code, National Fire Protection Association, 2023.

4. UL 817 — Standard for Cord Sets and Power-Supply Cords, Underwriters Laboratories, 2022.

5. ASHRAE — Thermal Guidelines for Data Processing Environments, 4th Edition, 2015.

6. Data Center Power Distribution Best Practices, IEEE Transactions on Industry Applications, Vol. 57, 2021.
