Extension Cord Safety Standards: What Buyers Must Verify Before Ordering

Choosing the right extension cord goes far beyond picking the nearest option off a shelf. Every year, the U.S. Consumer Product Safety Commission (CPSC) reports that faulty or misused extension cords contribute to roughly 3,300 residential fires annually. For B2B buyers—whether sourcing for industrial sites, retail distribution, or commercial facilities—the stakes are even higher. Verifying safety certifications, wire gauge ratings, jacket materials, and conductor quality before placing a bulk order is not optional; it is a procurement discipline that protects people, equipment, and your bottom line.

What Safety Standards Actually Govern Extension Cords?

UL, CSA, and ETL: The North American Certification Baseline

In the US and Canada, you can't really trust a power line that doesn't have a listing from UL, cUL, ETL, or CSA. This proof shows that the item passed normal electrical, heat, and mechanical tests. UL 817 sets rules for cord sets and power source cords. These rules cover dielectric strength, current-carrying ability, and temperature protection. Extension cord buyers who bring in or sell cords that don't have these marks could be sued and have their goods turned down by stores. It is important to always ask for the real certificates and not just a label with a name on it.

RoHS and REACH: Environmental Compliance You Cannot Ignore

RoHS (Restriction of Hazardous Substances) and REACH rules control the chemicals that are used in insulation materials and conductor coatings. They also make sure that electricity is safe. When you sell your goods in Europe or your company's green plans need paperwork about banned substances, these standards become very important. Manufacturers you can trust only use PVC or TPE jacket materials that are safe for RoHS and REACH. That way, lead, cadmium, and other banned substances don't get into the supply chain.

Which Technical Ratings Must Buyers Verify Before Ordering?

Wire Gauge, Amperage, and Voltage Drop

Wire gauge is arguably the single most consequential variable in extension cord safety. The American Wire Gauge (AWG) system uses an inverse scale—lower numbers indicate thicker conductors with higher current capacity. Using an undersized gauge for a high-draw application causes resistance buildup, heat generation, and potential insulation failure.

Voltage drop increases proportionally with cord length. A 10 AWG conductor minimizes this effect across extended distances—which is why Kuncan's heavy-duty cables use 100% bare stranded copper conductors at 10 AWG, rated for continuous 30A operation up to 100ft. Copper-clad aluminum (CCA), a common cost-cutting substitute, exhibits approximately 61% of copper's conductivity and degrades significantly under thermal cycling. We never use CCA in our products.

Jacket Material and Environmental Rating

Jacket type directly determines where a power cord can be safely deployed. Here are the most relevant cord designations and their application boundaries:

• SJT – Standard thermoplastic jacket rated for indoor use. Suitable for dry environments, office equipment, and light commercial settings. Not rated for moisture or UV exposure.
• SJTW – Weather-resistant version of SJT. The "W" suffix indicates resistance to moisture and sunlight, making it appropriate for outdoor job sites and seasonal installations.
• STW – Heavy-duty thermoplastic with full weather resistance, designed for sustained outdoor use with high-current tools, construction equipment, and generator connections.
• SJOW – Oil-resistant, outdoor-rated jacket constructed with thermoset rubber. Preferred for industrial environments where petroleum-based fluid exposure is possible.

Buyers frequently overlook the difference between SJT and SJTW, deploying indoor-only cords in partially exposed environments. This compromises insulation integrity over time and creates measurable fire risk.

How Do Different Cord Types Compare Across Key Safety Criteria?

Extension cords are not just one kind of product; they can be used for many different things. Knowing the basic differences between cord types will help you avoid buying something that won't work for the purpose you need it for, which could cost you a lot of money.

Most home wires (16 AWG with an SJT jacket) are made to be used occasionally with little power. They aren't good for high-amperage loads that will be on for a long time. On the other hand, heavy-duty industrial cords have grounded NEMA configurations, thicker wires, and reinforced jacketing that keep the link strong even when the temperature changes and the cord is bent many times.

Surge safety units on specialty cords reduce voltage spikes, which is helpful in places where the power isn't always stable. On the other hand, picking the right gauge is still important even with surge protection. A 16-AWG cord will still burn if it's under a 20A load, even if it has surge protection.

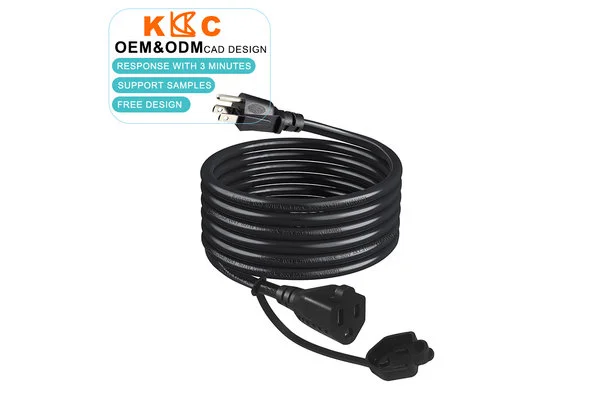

Kuncan's NEMA 5-15P to NEMA 5-15R setup has a solid-blade grounded design that keeps the blades in place even after a lot of use. You can check to see if the circuit is working with the extra LED power display. This is a useful safety feature for dark buildings or industrial sites.

What Are the Best Practices for Safe Usage and Storage?

Safety at work depends on more than just how the cord is made. You can break even the best-made, fully certified power cable quickly if you don't use it right. The following steps greatly reduce the number of events that happen in business-to-business situations:

When you "daisy-chain" several extension cords together, the resistance goes up, and the original current rating is skipped. It's clear from the CPSC that this is not a good idea. The actual gauge number goes down with each cord in a chain, and heat builds up in places that can't be seen. Every time you buy something, single-cord runs should be the right size for the job.

The way things are stored is just as important as how they are used. If you load and wind cords too tightly, heat builds up in the middle of the coil. The name for this is the "induction effect." By putting things on smooth hooks, you keep them away from sharp edges, water, and direct sunlight. This protects the jacket and keeps the conductor loose. A maintenance rule that can't be broken is to look for cracks, discoloration, or exposed wires before every launch.

How Should Buyers Evaluate Suppliers for Long-Term Compliance?

Questions That Reveal a Supplier's Actual Compliance Posture

Asking for a certificate is not the end of your research. Buyers should ask sellers for the certification body's proof number. They should also make sure that the testing was done only on the SKU being bought and not on the whole family. Finally, sellers should let buyers know if the testing was done by a recognized third-party lab. The manufacturing process is mature when it can be linked to batches of raw materials.

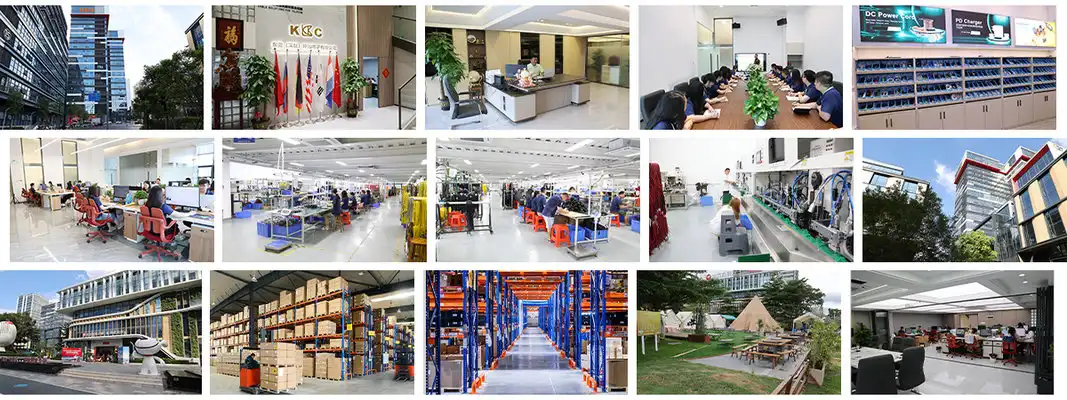

Kuncan Electronics has been making power cords for 17 years and has always used production methods that are in line with ISO standards. Each product has its own UL/cUL, ETL, and CSA listing, and all of our cables are fully tested for electricity before they are sent out. We offer full paperwork packages that include RoHS declarations and conductor material proof for shops and dealers in North America.

OEM Customization Without Compromising Compliance

People who want to be different but need private-label or custom-specified goods can't give up following the rules. You can print your brand on the jacket, change the color from Safety Orange to High-Visibility Yellow, and make retail-ready color sleeve packaging with Kuncan's OEM/ODM program. The length can be changed from 6ft to 100ft. The UL/cUL approval is still on the finished product. No matter how much you buy, it takes 3–7 business days to ship samples and 15–25 days to ship large orders.

Conclusion

Important safety, legal, and business consequences of extension cord purchases call for careful consideration. Three important parts of responsible sourcing are checking that the wire gauge fits the load needs, that the jacket ratings match the deployment conditions, and that the certifications are real by reading the paperwork and not just guessing. Since 1997, Kuncan Electronics has been making electronics. They have product-specific certifications, use 100% bare copper wires, and can help North American buyers who need reliable, compliant power options on a big scale.

FAQ

Can this extension cord be used outdoors?

Unless the cord carries an SJTW, STW, or SJOW designation, it is rated strictly for dry indoor use. Kuncan's outdoor-grade cords feature weather-resistant jackets engineered to withstand UV exposure, moisture, and temperature fluctuations. Always verify the jacket designation before deploying any power cord in a partially or fully exposed environment.

Is it safe to plug high-wattage appliances into a standard extension cord?

You must verify the cord's amperage rating before connecting high-draw equipment. A 16 AWG cord rated at 13A will overheat under a 20A load regardless of how briefly it is used. Match the cord's current rating to the appliance's actual draw—not its maximum nameplate rating—and select a gauge with appropriate headroom.

What is the difference between a polarized and non-polarized cord?

Polarized cords have one blade wider than the other, ensuring the plug inserts in only one orientation. This maintains correct hot/neutral alignment for safety-sensitive devices. Non-polarized cords have two identical blades and can insert in either direction—useful for compatibility with older two-slot outlets but unsuitable for equipment requiring directional wiring.

Does cord length affect safety?

Yes. Longer cords increase resistance, which generates heat and reduces voltage at the load end. A 10 AWG conductor mitigates this effect across distances up to 100ft, but thinner gauges at extended lengths create measurable voltage drop and thermal risk.

Get a Custom Quote from Kuncan Electronics — Trusted Extension Cord Manufacturer

These heavy-duty extension cords are UL/cUL-certified and made to North American standards. You can trust Kuncan Electronics to sell them. All of our products, from 10 AWG industrial cables to custom-length SJTW outdoor cords and OEM products that are already packed and ready to sell, are of the same high quality and can be sent out as samples quickly. Please email our team at rhea@szkuncan.net or visit nema5-15.com for unique price quotes, samples, or information on how to buy in bulk for your project.

References

1. Underwriters Laboratories — UL 817: Standard for Cord Sets and Power-Supply Cords, 2020.

2. U.S. Consumer Product Safety Commission — Home Electrical Fire Data Report, 2021.

3. National Fire Protection Association — NFPA 70: National Electrical Code, 2023 Edition.

4. International Electrotechnical Commission — IEC 60227: Polyvinyl Chloride Insulated Cables, 2022.

5. Occupational Safety and Health Administration — OSHA 29 CFR 1910.305: Wiring Methods, Components, and Equipment for General Use, 2019.

6. CSA Group — CSA C22.2 No. 42: General Use Power Cables, 2022.
