How Cable Gauge and Length Affect Extension Cord Performance

When you plug a power-hungry tool into an undersized extension cord stretched across a job site, you're not just risking a tripped breaker — you're risking equipment damage, overheating, and serious safety hazards. Cable gauge and cord length are the two most consequential variables that determine whether your extension cord delivers reliable power or becomes a liability. Understanding how these factors interact helps procurement managers, engineers, and distributors select the right power cable every time, avoiding costly downtime and compliance failures.

Understanding Extension Cord Basics: Cable Gauge and Length Explained

What Does AWG Actually Mean for Your Power Supply?

AWG stands for "American Wire Gauge." It measures how thick a wire is. Even though it doesn't make sense, a lower AWG number means the wire is larger and can carry more electricity. A 10 AWG wire can carry more power than a 16 AWG wire. The National Electrical Code (NEC) says that lines that are too small are the main cause of electrical fires in businesses.

The longer cord makes it worse. When you move farther away, the voltage drops because the resistance goes up. Voltage drop is the difference in voltage between the power source and the device that is connected to it. A power drop of 2% to 5% is fine most of the time. Anything higher than that puts stress on motors, makes tools less useful, and damages parts more quickly. Business-to-business users who need to buy a lot of power cords can use this number to find out how reliable the equipment is and how much it costs to run.

Many people think that no matter how long a line is, if it has a certain power rating, it will always work the same way. What you said is not true. Does a 14 AWG cord work the same way at 100 feet as it did at 25 feet? It might not have enough power. The length and the measure must match up.

The Interplay Between Cable Gauge and Length: Ensuring Optimal Performance

Why Resistance Is the Variable You Cannot Ignore

The electrical resistance of an extension cord increases with the length of its copper conductors, which can lead to greater voltage drop and heat generation under load. For a long extension cord, selecting the appropriate wire gauge is essential because thinner conductors generally have higher resistance than thicker conductors of the same material and length. For example, a 16 AWG extension cord has a higher resistance per unit length than a 10 AWG cord, so it may experience greater voltage drop and heating when carrying the same current over the same distance. At longer lengths, these differences become increasingly important for safe and reliable power delivery. Choosing an extension cord with the correct wire gauge, rated current, and suitable length can help reduce excessive heating and maintain stable equipment performance. Buyers should also check the cord's insulation quality, temperature rating, and intended application before use. Using an undersized extension cord with high-power equipment can increase overheating risks and potentially create a fire hazard. For residential, commercial, and industrial applications, selecting a properly rated extension cord helps improve electrical safety, reduce unnecessary energy loss, and support dependable operation.

Electrical wires in North America should not be longer than what is shown in the table below, which is broken down by size and load:

For everyday tasks, 10 AWG is 30A and 100 feet long, and it's used for powering industrial tools, engines, and RVs. 12 AWG is 50 feet long, 20A, and is used for power tools and shop ware. 14 AWG is 15A and 25 feet long. It's used for home and office appliances. 16 AWG is 13A and 15 feet long, so it's good for light home use.

A construction worker kept breaking the motor of a 15A table saw with a 50-foot 16 AWG line, which shows this is true. We saw the same voltage drop when we used a 10 AWG cord of the same length. The tools also stopped breaking down completely. It was a lot cheaper to just get the right line than to buy a new motor.

Buildings and factories must use cords that are the right size, according to UL and OSHA rules. The SJTW and STW ratings mean that the jacket is made to last in bad weather. As time goes on, normal wear and tear and UV damage can damage conductors. These shields keep water out and make resistance rise faster.

Choosing the Right Extension Cord for Your Application: A Buyer's Guide

Which Specifications Actually Matter at the Point of Purchase?

Before you pick a power line, you need to know how much load you need. Add up how much power all the connected devices need and the length of the run. Pick a gauge that can handle at least 20% more weight than you think you will be pulling.

This is what people who work in B2B buying should think about when they have to make a choice:

When selecting an extension cord, check the conductor wire gauge, current rating, and maximum power capacity to ensure the cord is suitable for the intended application. For example, a properly rated 10 AWG extension cord may support currents of up to 30A under specified conditions, making it suitable for certain high-power applications when the cord's overall rating and installation requirements permit. However, the safe operating capacity of an extension cord depends on more than conductor thickness alone; factors such as cord length, insulation temperature rating, ambient temperature, and whether the cord is used indoors or outdoors can also affect its performance. Buyers should never select an extension cord solely by looking at the plug rating, because the conductors, connectors, and complete assembly must all be rated for the intended load. Before purchasing an extension cord, verify the manufacturer's specifications and confirm that the rated current and wattage meet the requirements of the connected equipment. Choosing a properly rated extension cord helps reduce excessive heating, minimize voltage drop, and support safer, more reliable power delivery.

Type of jacket: SJTW and STW jackets can handle water, UV rays, and the wear and tear that comes with being outside. When used inside, SJT can be kept in dry places. The certificates are not valid if the wrong clothes are worn.

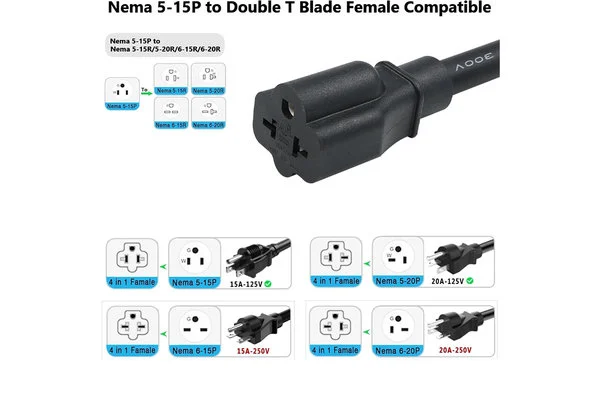

In North America, most 15A/125V lines have plugs that are set up as NEMA 5-15P to NEMA 5-15R. Make sure that the things you buy will fit in your store before you buy a lot of them.

Products with UL/cUL, ETL, and CSA marks show that they meet North American safety standards, the company says. If you have these licenses, you are less likely to be charged by the seller. They also meet the needs of insurance and safety checks.OEM buyers should see if they can get them in custom lengths (6ft–100ft) and jacket colors (Safety Orange, Safety Yellow) that are easy to see on the job site. They should also see if they can print their logo on them for branded retail packaging.

• Gauge and current rating: 10 AWG conductors handle up to 30A, making them the standard for high-draw industrial applications. Never select a cord based on plug rating alone — the conductor determines real-world capacity.
• Jacket type: SJTW and STW jackets withstand outdoor exposure, including UV, moisture, and mechanical abrasion. SJT is appropriate for dry indoor environments. The wrong jacket degrades rapidly and voids certifications.
• Plug configuration: NEMA 5-15P to NEMA 5-15R is the standard North American configuration for 15A/125V circuits. Verify compatibility with your outlet infrastructure before bulk ordering.
• Certifications: UL/cUL, ETL, and CSA listings confirm compliance with North American safety standards. These certifications reduce distributor liability and satisfy insurance and compliance audits.
• Customization requirements: OEM buyers should assess availability of custom lengths (6ft–100ft), jacket colors for job site visibility (Safety Orange, Safety Yellow), and logo printing for branded retail packaging.

These things not only find out what the success is, but also what the risk of procurement is. You don't have to worry about the safety of the goods you're buying when you buy from stores that follow ISO standards and write down how they test their products.

Best Practices for Using and Maintaining Extension Cords to Maximize Lifespan and Safety

How Do You Protect Your Investment After Purchase?

If the power link is treated wrong, it's possible for it to break before it should. When a wire is full, you should never wind it up. This is because the insulation breaks down faster because the heat inside has nowhere to go. Store wires in a figure-eight shape to keep them from getting stress cracks in the conductor that are hard to see over time.

Make sure the jacket is still in good shape every time you wear it at work or outside. If the item has damage like cracks, stains, or wires that stick out, it should be thrown away right away instead of being fixed. Outside-rated wires are no longer waterproof when the jacket breaks.

Proper strain relief is an important safety consideration when using an extension cord, as it helps prevent excessive tension, damaged insulation, and loose electrical connections. Connecting multiple extension cord units in a daisy chain can increase the total circuit resistance, contribute to voltage drop, and create additional overheating risks, especially when the connected equipment draws a high current. For workplace applications, OSHA generally prohibits using extension cords in ways that violate applicable electrical safety requirements, so users should follow relevant regulations and manufacturer instructions rather than connecting cords together to extend their reach. Instead, choose an extension cord with a suitable length, conductor gauge, and current rating for the intended load. Each extension cord should be inspected for damaged insulation, loose connectors, and signs of overheating before use. Selecting a single, appropriately rated extension cord for each run can help maintain reliable power delivery while reducing unnecessary connection points and potential electrical hazards. For commercial and industrial environments, choosing the correct extension cord from the outset also supports safer work practices and more dependable equipment operation.

There is too much stress on the cord if the voltage drops. This is clear when lights are dim, motors start slowly, and plugs are warm. If you see these signs, don't put up with bad work any longer. Either get a stronger gauge or cut the run down.

Future Trends in Extension Cord Technology and Performance Optimization

What Should Procurement Teams Watch in the Next Product Cycle?

Power lines are moving toward making better ones that last longer. TPE jackets are being used instead of PVC jackets on some high-end product lines because they are more flexible at low temperatures (-40°C) and don't lose their chemical protection. Important for business clients who work outside, in cold storage, or in places that are harsh on chemicals.

Now you can buy power lines that are linked to the Internet of Things and have chips built in that track energy use. These let building managers see the wattage right now, report overloads right away, and find out how much energy is being used for energy checks. There's no question that this helps companies that are in charge of a lot of tools.

Green standards like RoHS and REACH are being looked for by more and more buyers, especially those who sell to stores in North America and Europe. These standards help companies a lot in the supply chain because they already use them when they make things.

Conclusion

Choosing the right extension cord is essential for maintaining electrical safety, protecting equipment, and ensuring reliable operations. The wire gauge and cord length are not minor details; they directly affect voltage drop, current-carrying capacity, and heat generation. When selecting an extension cord, buyers should choose the appropriate American Wire Gauge (AWG) based on the distance between the power source and the equipment, as well as the expected electrical load. A properly rated extension cord helps maintain stable voltage, reduce excessive heating, and support the long-term performance of connected devices. For B2B procurement teams, evaluating the specifications of each extension cord before purchasing can also help prevent compatibility issues and reduce unexpected maintenance costs. Buyers should consider conductor size, rated current, insulation quality, environmental conditions, and applicable safety certifications when comparing suppliers. Selecting a suitable extension cord for commercial, industrial, or outdoor applications can minimize electrical risks, improve operational reliability, and support compliance with relevant workplace safety requirements. By making informed purchasing decisions, businesses can source an extension cord that meets their technical needs while helping protect equipment, personnel, and day-to-day operations.

FAQ

How do I select the correct gauge based on my equipment's amperage and cord length?

Get the number of amps your gear needs and then match it with the length of run you need. 10 AWG works best for 30A and is up to 100 feet long, 12. AWG is best for runs up to 50 feet long at 20A. AWG is best for small loads and short distances. People should always size up when they are working with a gauge that is almost full.

Is it safe to use an extension cord outdoors?

Outside, you should only use lines with jacket grades of SJTW, STW, or SJOW. You can wear these jackets in rain, sun, and everyday wear and tear. On the wire, if it says SJT or SVT, it can only be used inside when it is dry. They break down quickly when they are outside in the weather.

What is the difference between a polarized and non-polarized power cord?

There is one bigger blade on a polarized wire that makes sure the plug can only fit in one way. This is for your safety. The two blades on this line are the same, so it can be put in either way. Three-prong grounded plugs are the best way to protect NEMA 5-15 equipment used in business and industry.

Can I connect multiple extension cords in series to reach greater distances?

There is less useful power that can flow when lines are linked together in a daisy chain. Too much heat and fire can happen this way. It's against OSHA rules to do this at work. Instead, use a single line that is the right width and length.

What certifications should I require when sourcing power cables for North American distribution?

Must have at least UL/cUL, ETL, or CSA ratings. The product is safe in North America because it has these certifications. They also make it less likely that someone will sue the seller. When environmental laws govern a market, it must also make sure that products follow RoHS and REACH.

Source Your Heavy-Duty Extension Cord Supplier Through Kuncan Electronics

Kuncan Electronics makes these heavy-duty extension cords. The cords are rated SJTW/STW for outdoor use, and the wires are 100% bare stranded copper. They are UL/cUL-certified and can be cut to any length between 6ft and 100ft. It's been 17 years since we started making extension cords, and we're a real company. We can take OEM/ODM orders with no minimum order size. Samples can be sent out in 3–7 days, and ready-to-sell items can be packed up. To learn more and get a price quote for buying in bulk, email our team at rhea@szkuncan.net or go to nema5-15.com.
