OEM Cigarette Lighter Plug Manufacturing Guide

When sourcing reliable automotive power accessories, understanding OEM cigarette lighter plug manufacturing becomes essential for product success. A cigarette lighter male plug serves as the critical connection point between vehicles and portable devices, delivering 12V or 24V power across automotive, marine, RV, and industrial applications. Quality manufacturing involves selecting heat-resistant materials like Bakelite, integrating dual fuse protection, and ensuring precise dimensional tolerances for secure connections. At Kuncan Electronics, we combine 17 years of manufacturing expertise with rigorous testing protocols to deliver heavy-duty solutions featuring pure copper cores, 105°C temperature resistance, and customizable 12-16AWG configurations that meet global safety standards.

Understanding the Core Components and Design of Cigarette Lighter Male Plugs

To build a solid power system for your car, you must first understand how these connectors work. To provide a steady flow of electricity, a Cigarette Lighter Male Plug is made up of a number of designed parts.

Basic Electrical Parameters and Voltage Requirements

In private cars, standard cigarette lighter sockets work at 12V, but in industrial trucks and boats, they work at 24V. The amperage range is usually between 10A and 20A, and heavy-duty models can handle loads of up to 300W continuously. At Kuncan Electronics, our products have nickel-plated brass contacts that keep the resistance below 50mΩ. This makes sure that there is very little voltage drop when power is transferred. The center pin with a spring set on it and the two side springs are made of manganous steel, which keeps the contact pressure constant even when the car is moving.

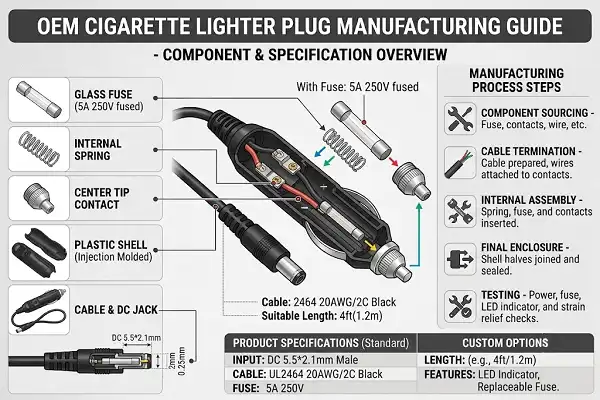

Internal Construction and Safety Features

Both conductivity and security are given top priority by the internal design. The premium Bakelite case has a UL94 V-0 flame retardancy grade, which means it stays structurally sound in temperatures ranging from -40°C to +85°C. Each plug has replacement glass tube fuses that are set for a certain amount of amperage. These fuses protect both the devices that are plugged in and the vehicle's electrical systems from overcurrent situations. Built-in strain relief keeps the cable from breaking when it's being used a lot, and the reinforced tail design protects wire links from mechanical stress in harsh work settings.

Common Applications Across Industries

These connectors are used in many professional fields besides consumer vehicles. The cigarette lighter male plug is widely applied in vehicle-to-vehicle power transfer, emergency response systems, and portable power solutions where reliable connections are required. Emergency reaction teams use durable Cigarette Lighter Male Plug cables to jump-start vehicles and support the operation of critical equipment during urgent situations. Portable power stations with extended cable connections are used on construction sites, allowing tools and devices to be positioned in different locations while maintaining stable power delivery. Marine and RV applications require corrosion-resistant Cigarette Lighter Male Plug designs that can maintain secure electrical links despite vibration, movement, and changing weather conditions. Our heavy-duty Cigarette Lighter Male Plug products are engineered for these demanding environments, featuring extra-thick pure copper conductors, low-resistance performance, reinforced housings, and reliable current transmission for automotive, outdoor, and industrial power applications.

Key Factors in OEM Cigarette Lighter Plug Manufacturing

Reliable industrial-grade products are different from consumer-level options when it comes to manufacturing quality. For production to be of high quality, the materials must be carefully chosen, the engineering must be precise, and quality assurance must be thorough.

Material Selection and Compliance Standards

Automotive power connectors are made of strong plastics and metals that conduct electricity. We use high-quality Bakelite for plug housings because it is better at withstanding heat and flames. Nickel plating is used to keep brass contacts from oxidising and to maintain their ability to conduct electricity over thousands of insertion cycles. Different types of cable insulation, like PVC, TPE, rubber, and LSZH substances, are chosen based on the area they will be used in. Our goods are certified by CE, VDE, ETL, SAA, BS/UKCA, FCC, and EMC, which means they meet international safety standards such as RoHS. This global recognition gets rid of the need for extra testing when going into new markets.

Precision Engineering and Dimensional Tolerances

The fit between the plug and socket has a direct effect on how well the electricity works and how safe it is. Tolerances in manufacturing have an impact on the contact pressure, entry force, and holding strength. Our factories follow strict rules for measuring sizes, which are confirmed by thorough testing methods that are in line with SAE J563 and ISO 4165 standards. Temperature rise testing shows that the contact points stay within 40°C of room temperature after one hour of full load use. This keeps the parts from burning and breaking. Insertion and withdrawal life testing confirms that the plug can be used more than 5,000 times while still keeping electrical continuity. This shows that the plug is reliable for long-term use in business settings.

Customization Options for OEM Clients

We know that different markets need answers that are made just for them. Our OEM customisation includes a range of wire gauges (12-16AWG), custom cable lengths for specific uses, and private mould image embossing to help people recognise your brand. Different product lines can be set apart by custom colour choices, and waterproof grades of up to IP67/IP68 are available for outdoor advertising and security equipment. Our engineering team will review your design for free and help you with technology issues so that it works best in your application. Before it is shipped, we test every customised product for electrical and thermal issues. This is how we keep up the high-quality standards that are part of our manufacturing history.

How to Choose the Best OEM Cigarette Lighter Male Plug for Your Applications

To choose the best car power connection, you need to think about a number of important factors that are related to your needs and the requirements of your equipment.

Matching Specifications to Equipment Requirements

Electrical and environmental needs are different for each application. Emergency service cars need to be able to handle a lot of current for jump-starting and powering extra tools. They usually need a continuous rating of 15A to 20A. Cables with longer lengths and jackets that don't wear down easily are better for power distribution on construction sites. Marine uses need parts that don't rust and seals that keep water out to keep saltwater out. We walk buying teams through this process of categorising and help them find the voltage rates, amperage capacities, and environmental protection levels that are right for your equipment.

Comparing Plug Variants and Features

There are different Cigarette Lighter Male Plug configurations on the market, and each one improves performance in a different way. Standard plugs have housings made of ABS plastic that are good for light-duty consumer uses. Our heavy-duty Cigarette Lighter Male Plugs are made of heat-resistant Bakelite and fire-resistant polycarbonate, which keeps the structure strong even when it's under a lot of stress. Overcurrent prevention is built into fuse-integrated designs, and dual-fuse setups provide extra safety for important uses. Connections in outdoor security cameras, smart lighting, and digital signs are kept safe by waterproof types with IP-rated sealing. Knowing about these trade-offs can help you balance the need for performance with the budget for the project.

Evaluating Supplier Credentials and Certifications

Long-term product reliability depends a lot on the skills and quality processes of the maker. Check out potential suppliers' production capacity, quality certifications, and experience in the field. Our 17-year history of making shows that we are dedicated to providing power options for cars. The Dongguan factory has high-tech production tools that are run by more than 300 skilled technicians who are committed to always producing high-quality goods. We follow well-known quality management systems, as shown by our ISO certification and other foreign approvals. During the sourcing process, we keep communication open and honest. Sample production takes 3–7 days, and mass production takes 15–25 days, depending on the size of the order. This makes sure that your supply chain stays flexible enough to meet market needs.

Step-by-Step Guide: OEM Manufacturing Process for Cigarette Lighter Male Plugs

Knowing how the production process works helps business-to-business clients plan their schedules, find ways to customise products, and set reasonable quality standards.

Design Briefing and Prototype Development

Clear specification documentation is the first step in any successful OEM project. During the first meetings, we talk about electricity needs, space limitations, natural factors, and the need to follow rules and regulations. These factors are turned into technical models and material choices by our engineering team. Usually, prototype production is finished in one week, which gives time for physical and electrical testing before committing to full-scale production. This step of confirmation finds any changes that need to be made to the design to improve fit, performance, or cost-effectiveness.

Strategic Material Sourcing

A diversified supply chain makes sure that parts are always available and that quality stays stable. For Bakelite housings, brass contacts, wire conductors, and insulation compounds, we keep in touch with certified suppliers. Before the material is used in production, it is inspected to make sure it meets the requirements. This method of controlled buying stops quality differences that might hurt product safety or performance ratings.

Assembly and Quality Assurance

To achieve the best accuracy in manufacturing Cigarette Lighter Male Plug products, production uses both automated equipment and skilled hand-assembly methods. Wire cutting and stripping tools ensure that the conductors are prepared correctly, while contact crimping equipment applies controlled compression force to create secure electrical connections. During Cigarette Lighter Male Plug assembly, production stations carefully install housings, contacts, switches, and strain relief components to improve durability and safety. Every finished Cigarette Lighter Male Plug unit undergoes electrical testing to verify proper operation, continuity, resistance levels, and protection performance. Thermal performance under load conditions is confirmed through sample batch testing for temperature rise, while corrosion resistance for marine and outdoor applications is validated through salt spray testing. This multi-level quality control system ensures that Cigarette Lighter Male Plug products deliver reliable performance, long service life, and the safety standards required by emergency services, automotive suppliers, and industrial users.

Packaging and Logistics Coordination

The finished goods come in protected wrapping that is made for shipping in bulk and can be customised to fit the brand's needs. For store display or warehouse delivery, we have poly bags, blister cards, color boxes, and master cartons that are just right for you. With shipping options by air, sea, and train, you can get the best deal on logistics costs based on how quickly you need the order and where it's going. Our 24-hour reaction team takes care of paperwork, working with customs, and recording shipments. This makes sure that the supply chain is managed clearly from the end of production to delivery.

Procurement Tips and Best Practices for B2B Clients

Improving your buying plan will help you get the best products at the lowest cost and with the fewest risks in the supply chain.

Supplier Vetting and Sample Evaluation

A thorough evaluation of the supplier stops quality problems and project delays that cost a lot of money. For more information on production capacity, testing equipment, and certification scope, ask for detailed capability statements. Check sample goods for quality of construction, accuracy of measurements, and electrical performance in conditions that are similar to real-life situations. To make sure that claims of compliance are true, compare the specifications to published standards. Potential customers are welcome to come to our Dongguan plant to see how things are made and look over our quality paperwork. This openness makes people more confident in our production skills and dedication to quality.

Pricing Negotiations for Bulk and Custom Orders

Volume pricing takes into account savings of scale when buying materials, setting up production, and moving goods around. Give exact estimates of the number of items you'll need, when you need them delivered, and what customisations you need when you ask for prices. We set our prices in a way that rewards long-term relationships while still upholding our quality standards. Don't choose suppliers based only on the lowest price at first. Poor quality control often leads to higher total costs through failed products, returns, and damage to the brand. Our low prices are a good balance between keeping costs low and using high-quality materials and testing them thoroughly to make sure they work well.

Building Long-Term Partnership Value

Strategic relationships with suppliers have perks that go beyond individual deals. Established relationships make it possible to work together to create new versions of products that meet the needs of new markets. Open lines of contact make it easier to respond quickly to changes to designs or orders that need to be filled quickly. Flexible minimum order amounts help optimise supplies without requiring too much cash. We don't have any MOQ restrictions for current product lines, so we can handle both big production runs and small replenishment orders. This flexibility helps clients act quickly on market opportunities while keeping costs low by reducing the amount of inventory they need to keep on hand. Technical support is available for the entire lifetime of a product and helps with installation, fixing, and making the best use of the product.

Conclusion

To find good automotive power connectors, you need to know how the parts are designed, what the manufacturing standards are, and what the supplier can do. The right Cigarette Lighter Male Plug is made of materials that can handle heat, is precisely engineered, and has been through a lot of tests to make sure it works well in all kinds of situations. We've talked about how the high-quality Bakelite construction, dual fuse safety, and flexible designs meet the needs of a wide range of industries, from emergency services to industrial automation. A good procurement process balances technical requirements with the credentials of the supplier, focusing on things like production capacity, certifications, and the flexibility of the partnership. Kuncan Electronics has been making electronics for 17 years and has a lot of quality systems in place to help your product succeed through open processes, quick prototypes, and quick logistics.

FAQ

What amperage rating should I specify for heavy-duty applications?

For heavy-duty uses, 15A to 20A of continuous current is usually enough. Industrial power tools and emergency car equipment work better with connections that have a wire gauge of 12AWG or higher. Our pure copper core construction reduces resistance to a minimum, which lets high currents run for a long time without making too much heat. Overcurrent safety is provided by two fuses at each end of the wire.

Can cigarette lighter plugs be customised with integrated switches or LED indicators?

Integrated rocker switches for manual control, LED indicators that show power status, and voltage displays for checking the health of the electrical system are all customisation options. In professional settings where visual confirmation or manual override is useful, these features make the user experience better. Our tech team helps with figuring out if something is possible and making prototypes.

How do I ensure product safety in harsh outdoor environments?

To keep water out, outdoor projects need to be rated IP67/IP68 waterproof. UV-resistant cable jackets keep insulation from breaking down when they are exposed to sunshine. In marine or coastal environments, electrical integrity is kept up by materials that don't corrode and connections that are sealed. Temperature-rated parts make sure they work reliably in temperatures ranging from -40°C to +85°C, which is what security cams, outdoor advertising, and industrial control systems need.

Partner with a Trusted Cigarette Lighter Male Plug Manufacturer

Kuncan Electronics makes vehicle power options that are reliable and work well for businesses. As an experienced manufacturer with global certifications and quality systems that have been shown to work, we can use efficient OEM processes to turn your specifications into custom products. Our heavy-duty Cigarette Lighter Male Plug male-to-male cables have pure copper cores, heat-resistant Bakelite plugs, and dual fuse protection. They can be used for off-grid power distribution, emergency operations, and industrial power distribution. Sample production takes 3–7 days, and mass production can be scaled up or down depending on your needs. Email our team at rhea@szkuncan.net to talk about the details of your project, ask for samples, or get multiple prices. We offer expert advice, design review, and ongoing help to make sure that the product works well and is integrated smoothly for a long time.

References

1. Society of Automotive Engineers, "SAE J563: 12 Volt Cigar Lighter Standard," SAE International Standards, 2018.

2. International Organization for Standardization, "ISO 4165: Road Vehicles - Electrical Connections - Auxiliary Power Supply," ISO Technical Committee, 2020.

3. Underwriters Laboratories, "UL 2089: Vehicle Battery Adapters," UL Safety Standards, 2019.

4. National Highway Traffic Safety Administration, "FMVSS 302: Flammability of Interior Materials," Department of Transportation, 2021.

5. International Electrotechnical Commission, "IEC 60884: Plugs and Socket-Outlets for Household and Similar Purposes," IEC Standards Catalog, 2017.

6. Association of Electrical Equipment and Medical Imaging Manufacturers, "NEMA WD 6: Wiring Devices - Dimensional Specifications," NEMA Publications, 2020.
