US to IEC C5 Power Cord Guide for Reliable Notebook and IT Equipment Power

When sourcing power solutions for enterprise IT infrastructure, the US to IEC C5 Power Cord represents a critical yet often overlooked component. This cloverleaf-style cable links North American wall outlets to laptops, projectors, and terminal equipment, forming the final connection between your electrical grid and sensitive digital assets. Understanding the technical specifications, safety certifications, and procurement strategies around these cables can significantly reduce downtime and enhance operational reliability across your organization.

Understanding the US to IEC C5 Power Cord

What Defines the Cloverleaf Power Cable

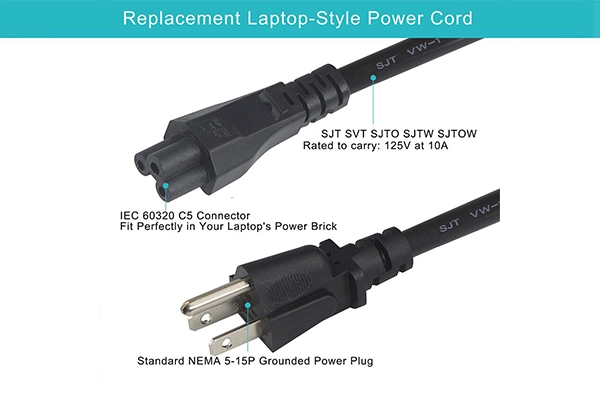

The IEC 60320 C5 connector, also known as the "Mickey Mouse" or "cloverleaf" plug because it has three holes, works with small power bricks that are used in many portable computers. In contrast to the bigger C13 connector found on desktop computers, the C5 footprint is better for places with limited room where weight and shape are important.

The NEMA 5-15P plug, on the other hand, has three prongs that are designed to fit standard 120V outlets found in the US and Canada. The grounding pin protects against power surges, and the two flat blades carry the live and neutral wires. This setup makes a solid way for AC power to get to your computer ports and other devices.

Core Technical Specifications for Enterprise Deployment

Our 16 AWG SVT power cord can handle up to 10 amps at 125 volts and can deliver up to 1,250 watts. The copper core wires, which are made up of three twisted 18-AWG copper strands, keep electrical resistance and heat buildup to a minimum during long-term use. This design requirement stops voltage drop problems that happen with cheaper options that use copper covered in metal or wire gauges that are too small.

The length of 1.8 meters (6 feet) is a good length for workstation setups. Cables longer than 10 feet add measured resistance, while shorter runs make it harder to change where the cables are placed. We've seen that this exact length works with most office layouts without making the cords more dangerous or needing extra cable management tools.

Safety Certifications That Mitigate Liability

Power cords carrying UL and CSA marks have undergone third-party evaluation for applicable fire and electrical safety requirements. When evaluating a US to IEC C5 Power Cord, buyers should verify that the product has the appropriate certifications and ratings for its intended market and application. Certification testing may include assessments of flammability, insulation performance, dielectric strength, and other relevant safety characteristics. Instead of relying only on markings printed on the cable jacket, procurement teams should verify certification information through the appropriate certification organization's official database when reviewing a US to IEC C5 Power Cord supplier. Checking these details can help confirm the authenticity and compliance of a US to IEC C5 Power Cord before purchase. A properly certified US to IEC C5 Power Cord provides greater confidence in electrical safety, product quality, and reliable use in compatible equipment.

RoHS and REACH compliance make sure that chemicals like lead and phthalates don't get into your supply chain. These environmental standards protect the reputation of your brand and make it easier to get rid of things when they're no longer useful. Our manufacturing processes keep full records of the raw materials used, which is something that is being asked for more and more during ISO 9001 audits.

Comparing US to IEC C5 Power Cords with Other Cord Types

C5 Versus C13: Matching Physical Design to Device Needs

There needs to be 5.7 millimeters more vertical clearance around the C13 inlet than around the C5 inlet. When putting equipment in short rack cases or behind wall-mounted displays, this difference is very important. When buying projectors for conference rooms, procurement teams always choose C5 cables so that they don't interfere with the mounting brackets.

The amount of power available also varies a lot. Most C13 systems can handle 15 amps, but in most areas, the C5 standard can only handle 10 amps. Laser printers and high-performance computers, for example, need the stronger C13 link to keep the connector from getting too hot.

C5 Versus C7: The Grounding Advantage

The figure-8 C7 connector doesn't have a grounding pin, so it can only be used with Class II devices that are double-insulated. Manufacturers of audio equipment like C7 because it doesn't pick up noise. But more and more, business IT gear needs to be grounded to meet EMI shielding standards and keep it safe from ESD damage.

Our grounded C5 design safely sends fault currents to earth, which is very important when putting equipment on high floors where static electricity builds up. Dell, HP, Lenovo, Acer, and Asus laptop adapters usually have C5 inputs because their aluminum bodies need to be grounded to pass FCC emissions tests.

Insulation Material Trade-offs: SVT Versus SJT Jacketing

When compared to heavier SJT formulations, SVT (Service Vacuum Thermoplastic) jacketing is more flexible. Because the walls are thinner, the bend radius is cut down to 50 millimeters, which lets cables go thru cable trays without getting tangled. This makes the service life longer in settings that change quickly and where people move computers around a lot.

SJT jackets make things more resistant to wear and tear in industrial settings, but they are stiff, which makes fitting harder in small areas. Our choice of SVT shows that we are focusing on IT environments where stress is caused by bending rather than pushing or pulling on rough surfaces.

How to Choose the Right US to IEC C5 Power Cord for Your Business Needs

Matching Electrical Ratings to Device Requirements

Look at the nameplate on the power charger for your laptop to see how much electricity it can accept. Under full load, most adapters use between 2.5 and 5 amps, which is well within the 10-amp limit of our wire. Small computers and workstation-class laptops, on the other hand, may get close to 7 amps, which means that lower-rated cords don't offer much safety.

When planning for future foreign missions, voltage ratings are important. NEMA 5-15P plugs can only fit into 120V outlets, but UL standards say that the cable can handle 300V. This extra space guards against short-term overvoltages that can happen when the power goes out.

Selecting Optimal Cable Length for Installation Environments

We always keep 1.8-meter US to IEC C5 Power Cord assemblies on hand because they are a practical length for connecting floor-level outlets to desks positioned above the floor. For data center applications, custom lengths of US to IEC C5 Power Cord are often needed to keep cable routing organized inside racks and equipment cabinets. Our OEM services can produce US to IEC C5 Power Cord assemblies between 0.5 meters and 5 meters long, depending on application requirements. Automated cutting and stripping equipment helps maintain consistent cable lengths and dimensions during production. By providing accurately manufactured US to IEC C5 Power Cord products in standard and custom lengths, we can support different installation layouts while maintaining consistent production quality.

Don't go with a longer wire length "just in case." Every extra meter adds 0.03 ohms of resistance, which means that the voltage drops when 10 amps are continuously applied. Low-voltage lockouts can happen on sensitive power sources because of this drop.

Sourcing from Verified Manufacturers Versus Resellers

When you deal directly with a maker, you avoid having to pay markups to middlemen and can get access to technical paperwork and track your lot. We keep full test records for every production batch, which you can't do when you buy from generic distributors. The fact that we can make material certifications and dimensional inspection reports on demand is appreciated by procurement departments that are auditing suppliers.

Authorized distributors add value by keeping goods close to home and shipping quickly, but they usually can't change the specs. People who buy in bulk (500 units or more) can save money by working directly with production facilities like Kuncan Electronics. We can change the packing, labels, and orientation of the connectors to fit your integration processes.

Where and How to Purchase US to IEC C5 Power Cords

Evaluating Online Marketplaces and Direct Supplier Channels

Amazon and other similar sites make it easy to buy small amounts, but it can be hard to tell if a certification is real. Imported cables often have fake UL marks, and the risk is higher when product listings don't have contact information for the manufacturer or safety documents.

By working directly with producers, you can see how their quality processes work. Virtual checks are welcome at our site. This lets procurement teams see automatic testing stations and look over statistical process control charts. This makes people more sure that certified goods will come when they say they will.

Decoding Pricing Structures and Cost Drivers

Cost is mostly affected by the quality of the materials used. Cables with 100% bare copper conductors cost more than those with copper-clad aluminum conductors, but they are better at conducting electricity and last longer. The PVC materials we choose meet UL 94 V-0 flammability grades. This is a more expensive formulation that stops the spread of fire.

Certification costs are set costs that are spread out over the amount of production. In order to save money, smaller sellers often skip third-party testing, which puts the risk of responsibility on the buyers. Our UL listing includes a lot of different store items, which keeps all of our products compliant and spreads out the cost of testing.

When you order in bulk, you can get volume discounts because it takes less time to set up and move the materials. Tier pricing can cut the cost per unit by 20 to 35 percent compared to small-batch purchases when an order is over 1,000 pieces. We have flexible minimums to help businesses that are growing but aren't ready to ship pallets of goods yet.

Logistics and After-Sales Support Considerations

Lead times have a direct effect on planning supplies and making plans for projects. Standard products are shipped within three business days. Custom orders, on the other hand, take 15 to 25 days, depending on how complicated they are and how big the order is. To meet urgent requests, we keep extras of common configurations in stock.

Our one-year warranty for the US to IEC C5 Power Cord covers manufacturing defects and provides additional assurance when cables are deployed across different office environments. This warranty helps ensure that users do not have to handle product-related problems independently. For the US to IEC C5 Power Cord repair and support process, customers can provide a clear picture of the issue, so our team can evaluate the problem without necessarily requiring the defective unit to be shipped back for inspection. This approach can simplify after-sales service and reduce the time and cost associated with returning a US to IEC C5 Power Cord for review. Reliable warranty support for the US to IEC C5 Power Cord also gives procurement teams greater confidence when purchasing cables for larger office deployments.

Ensuring Long-Term Reliability and Safety in Notebook and IT Power Solutions

Maintenance Practices That Extend Cable Service Life

Keep extra wires in climate-controlled spaces away from UV light and equipment that makes ozone. Long-term exposure to sunlight breaks down PVC jacketing, revealing internal conductors thru surface cracks. To keep your options open, we suggest sealed bins or cable management drawers.

Visual inspections done on a regular basis find damage before it causes problems. Check for discoloration near connectors, which means there is internal arcing, and make sure that strain reliefs are not coming off of the jacket. To avoid fire risks, replace any wire that shows these signs right away.

Do not tightly bend the wires over and over in the same place. This wears out the copper strands and raises the electrical resistance. People who wrap wires tightly around laptop adapters make them wear out faster. Teach your staff how to loosely coil cables using over-under techniques that AV professionals know how to do.

Identifying and Avoiding Counterfeit Products

Most fake wires don't have any internal safety features, but they do have approval marks that look real. A quick way to tell if something is real is to look at its weight. A 6-foot piece of real 16 AWG wire weighs about 190 grams. Cables that seem suspiciously light probably have wires that are too small or strain reliefs that are hollow.

Before making big purchases, make sure you get proof of compliance. Genuine makers give test reports that are special to each batch and show the high-potential (hi-pot) breakdown voltages and continuity readings. Generic "certificates" that don't have serial numbers or date codes should be looked at more closely.

Real-World Performance in Enterprise IT Environments

Our C5 power cords are common on 1,200 computers for a regional hospital network that we work with. During the 18 months of deployment, they found that cable faults caused no power-related equipment failures. This record of dependability got rid of unexpected service calls and lowered the total cost of ownership by cutting down on the number of new parts needed.

A school that wanted to add interactive screens to classrooms needed cords that could handle being connected and disconnected many times. Our molded strain reliefs kept the connector's holding force above 10,000 insertions during rapid life testing. This meant that the products could be used by students for five years without breaking.

Conclusion

To choose the right cloverleaf power cable, you need to consider the technical requirements, applicable certification needs, and supplier reliability. The 16 AWG SVT construction used in a US to IEC C5 Power Cord can provide suitable electrical capacity, flexibility, and insulation performance for compatible IT applications. Understanding the differences between C5, C7, and C13 connectors helps procurement teams avoid compatibility mistakes that could delay projects. When selecting a US to IEC C5 Power Cord, buyers should verify the connector configuration, conductor size, electrical ratings, and applicable safety certifications. Purchasing from manufacturers that provide traceability and third-party certification can help reduce procurement risks and support consistent quality. Proper handling and storage can also help extend the service life of a US to IEC C5 Power Cord, while careful supplier verification can help reduce the risk of counterfeit products. Because a US to IEC C5 Power Cord provides an important connection between power infrastructure and compatible computing equipment, careful specification and sourcing are essential for reliable business operations.

FAQ

How Can I Verify Authentic Certification Marks on Power Cords?

The UL file number on the wire jacket should be checked against the UL Product iQ database. Listings that are real show the name of the maker, a description of the product, and the date of the certificate. Many fake wires have wrong file names or don't have them at all.

What Cable Length Provides Optimal Performance for Office Workstations?

The 6-foot length works with standard desk heights and outlet locations and doesn't cause any noticeable voltage drops. For longer runs, it may be necessary to use heavier wire gauges to keep the voltage stable at the device's input when it's drawing the most current.

Can These Cords Function with International Voltage Converters?

The UL rating says that the cable can handle up to 300V of voltage, but the NEMA 5-15P plug can only be used in North American outlets. To use with voltage changers, you need an adapter plug that is rated for the outlet type and voltage range in the target area.

Partner with Kuncan Electronics for Certified Power Solutions

Kuncan Electronics can help you with the power needs of your IT infrastructure by providing certified cloverleaf cable assemblies that are built to last. With 17 years of experience making things, we can guarantee the same high quality for large orders, and our OEM skills let us meet specific length and link needs. Every power line that leaves our plant goes thru 100% electrical testing, including continuity, hi-pot, and dimensional checks, to make sure it meets UL, CSA, and RoHS standards. Our vendor-managed stocking plans and streamlined supply chain make it easier to buy what you need, whether it's 50 cables for a test launch or 5,000 units for a full rollout across the company. Email our team at rhea@szkuncan.net to talk about your specific needs. We offer technical information, sample units, and competitive quotes within 24 hours as a reliable US to IEC C5 Power Cord supplier.

References

1. International Electrotechnical Commission, "IEC 60320-1: Appliance Couplers for Household and Similar General Purposes – Part 1: General Requirements," 2021 Edition.

2. Underwriters Laboratories, "UL 817: Standard for Safety Cord Sets and Power-Supply Cords," 2019 Revision with Updates Through 2023.

3. National Electrical Manufacturers Association, "NEMA WD 6: Wiring Devices – Dimensional Specifications," 2022 Publication.

4. Institute of Electrical and Electronics Engineers, "IEEE 1100: Recommended Practice for Powering and Grounding Electronic Equipment," 2020 Update.

5. Canadian Standards Association, "CSA C22.2 No. 21: Appliance Couplers," 2018 Consolidated Standard.

6. European Union Restriction of Hazardous Substances Directive, "RoHS 3 (2015/863/EU): Compliance Requirements for Electrical Cables and Accessories," 2023 Guidance Document.
