How to Avoid Ordering the Wrong 3-Prong Dryer Extension Cord: Five Checks for NEMA 10-30P to 10-30R

When a wall outlet is out of reach, the dryer cord is too short, or the space behind the appliance is limited, a short extension cord may appear to be a simple solution. For OEM buyers, distributors, and installation service providers, however, a similar-looking plug is not enough. An unclear connector type, wiring configuration, conductor size, installation environment, or certification scope can result in an unusable sample, a warm connection point, or field rework. Dongguan Kuncan Electronics Co., Ltd. recommends completing the following five checks before ordering a NEMA 10-30P to 10-30R Extension Cord.

1. Confirm a 10-30P Male End and a 10-30R Female End

In a NEMA designation, “P” identifies the plug and “R” identifies the receptacle or female connector. For a straight-through extension application, the 10-30P connects to an existing 10-30R wall outlet, while the cable-end 10-30R accepts the equipment’s 10-30P plug. If a purchase order states only “10-30 extension cord,” the supplier may still be unable to determine the required connector orientation.

Buyers should state NEMA 10-30P male to NEMA 10-30R female on the inquiry, engineering drawing, and packaging, then verify the blade and slot arrangement. Clear front-view connector images also reduce the risk of confusing 10-30 with visually similar configurations such as 10-50 or 14-30, preventing a shipment that cannot connect at the jobsite.

2. Confirm 30A, 250V, and the 3-Wire Configuration

The confirmed product rating is 30A, 250V AC, while the NEMA 10-30 interface uses a 3-pole, 3-wire, non-grounding configuration. Its three conductors generally serve two line conductors and one neutral, without a separate equipment-grounding conductor. This is the critical distinction between NEMA 10-30 and the 4-wire NEMA 14-30 configuration. Purchase documents should use the product's stated 30A, 250V rating and also verify the equipment nameplate and existing circuit.

A NEMA 10-30 extension cord should therefore be positioned primarily for a compatible existing 3-prong dryer circuit. It is not interchangeable with 14-30 merely because both may be rated 30A, and it should not be promoted for EV charging or general industrial loads without application-specific confirmation. Buyers need to check the wall receptacle, equipment plug, nameplate ratings, and local installation requirements. Equipment requiring a separate ground needs a connection system designed for that requirement.

3. Confirm the STW 10AWG/3C Cable and 2FT Finished Length

This product uses an STW 10AWG/3C cable with a finished length of 2FT (approximately 0.61 m). The three-conductor 10 AWG construction supports the 30A application baseline, while the short 2FT format is intended to bridge a limited outlet-to-appliance distance without leaving excessive cable behind the dryer.

A shorter conductive path does not eliminate heat at the connection points. Buyers should still confirm the conductor material, cable printing, plug terminals, and female-contact retention because excessive local contact resistance can produce temperature rise. If an OEM project changes the product to a longer length, voltage drop and heat rise should be reassessed against the equipment load, ambient temperature, and routing method rather than relying on the 2FT version.

4. Confirm the Jacket, Bending Clearance, and Strain Relief

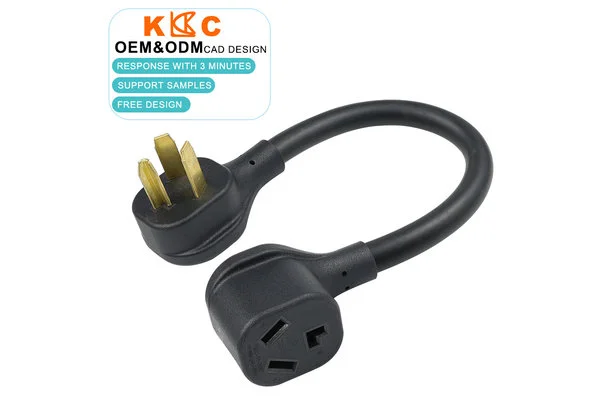

The pictured product uses molded male and female connectors with integrated strain-relief transitions. This construction helps distribute pulling and repeated bending stress near the cable exits. The image alone, however, cannot verify the internal conductors, jacket rating, or finished-product certification. Buyers still need to review cable markings and technical documentation.

This product is confirmed to use an STW 10AWG/3C cable, but its exact temperature rating, weather-resistance scope, and certification marks should still be verified from the complete cable printing and technical documentation. Dryers are often installed close to a wall, so even a 2FT cord may be pinched when the connector thickness, cable exit direction, or bending radius is unsuitable. OEM buyers should confirm the outlet position and available clearance behind the appliance while avoiding routing that subjects the cable to sharp bends, crushing, or excessive tension.

5. Confirm Finished-Cord Certification and Labeling Scope

Certification marks on the individual plug, cable, or female connector do not automatically establish that the complete extension cord carries the same finished-product certification. Connector combinations, cable length, conductor specification, molding process, and labeling can all affect the final compliance documentation.

Before ordering, buyers should define the target-market requirement and review both component documentation and the certification status of the finished cord assembly. The purchase specification should also identify electrical tests, polarity or wiring checks, dielectric testing, label content, cable printing, and batch traceability requirements. These checks reduce the risk of specifications changing after sample approval, rejected documentation, or shipment delays.

Put the Five Checks into the OEM Specification

The OEM specification baseline for this product is: NEMA 10-30P male, NEMA 10-30R female, 30A 250V AC, 3-pole 3-wire non-grounding configuration, STW 10AWG/3C cable, 2FT finished length, and molded construction. Before ordering, buyers should also confirm the conductor material, complete cable printing, use environment, test requirements, and finished-product compliance target. During sample approval, the drawing, cable printing, and physical connectors should be compared to verify that all three are consistent.

Selecting a 3-prong dryer extension cord is not about finding a cable that merely fits. The connector, electrical configuration, wire gauge, and application environment must work together. Dongguan Kuncan Electronics Co., Ltd. recommends moving these five checks into the inquiry and sampling stages to reduce connector-selection errors, heat-related complaints, installation rework, and compliance-document disputes.
