How to Choose a 16AWG US AC Power Cord for High-Demand Equipment Safety

Choosing the right power cord for high-demand equipment is not a minor procurement decision—it directly affects operational safety, equipment longevity, and regulatory compliance. A 16AWG US AC Power Cord with NEMA 5-15P to IEC C13 connectors delivers 125V/13A rated power across servers, industrial machines, and workstations while maintaining minimal voltage drop under continuous load. Certified under UL File No. E484253, this cord type balances current capacity, thermal management, and mechanical durability. Whether you manage a data center, an industrial automation floor, or a medical facility, selecting the correct specification prevents failures before they happen.

Understanding the Basics of 16AWG US AC Power Cords

What Does 16AWG Actually Mean for Your Equipment?

A smaller number means a thicker conductor in the American Wire Gauge (AWG) method. A 16AWG wire has a cross-sectional area of 1.31 mm² per conductor and can handle up to 13A continuously at 125V, as required by NEC rules. Compared to the standard 18AWG cord (rated at 10A), the 16AWG design lowers the amount of resistive heat that builds up during long-term use. This keeps the linked gear safe from thermal stress.

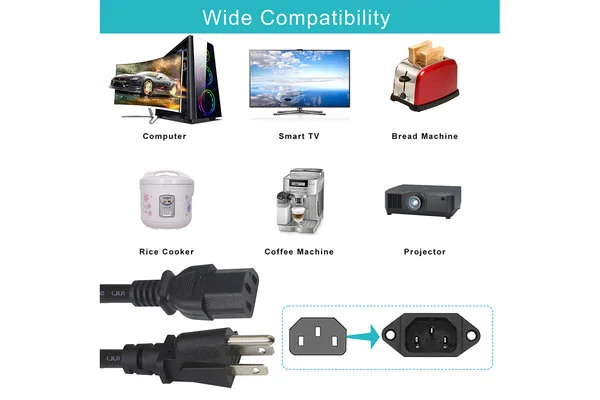

The NEMA 5-15P plug is the standard three-prong grounded plug for US wall outlets. It can handle 125V/15A circuits. The IEC 60320 C13 inlet is built into almost all servers, network switches, desktop workstations, UPS units, and lab instruments, so it works perfectly with them. This mix is what makes business and industry power distribution in North America work.

For B2B settings, it's important that products meet UL, cUL (Canadian UL), and NEC standards. A cord that is UL-listed means that it has been tested by a third party and found to meet certain safety standards. This is something that random cords that haven't been tested can't promise.

Comparing 16AWG vs. 14AWG Power Cords for High-Demand Equipment

Heavy-duty uses can be met by both 16AWG and 14AWG cords, but they are not always interchangeable. Knowing the difference in performance can help you avoid making mistakes that cost a lot of money when buying something. | 16AWG (1.31mm²) | 14AWG (2.08mm²) | Rated Current (125V) | 13A–15A | 15A–20A | Conductor Area | 1.31mm² | 2.08mm² | Flexibility | High | Moderate | Voltage Drop (10ft run) | Very Low | Minimal | Typical Application | Servers, workstations, instruments | High-draw HVAC, power tools | Cost-Efficiency | Higher | Lower | Cable Weight | Lighter | Heavier |

The 16AWG US AC Power Cord -NEMA 5-15P to IEC C13 is the best choice for most business IT and light industrial equipment because it provides the right amount of current capability and routing freedom. A lighter, more flexible cord puts less stress on outlet panels and rack PDUs, which is important in computer racks with a lot of cables.

When running things that constantly draw at or near 20A, like some industrial heaters or big motor-driven machines, the 14AWG cord makes sense. But for most C13-inlet devices, 14AWG adds extra bulk that isn't needed and doesn't improve safety in any way that can be measured.

Key Selection Criteria for 16AWG US AC Power Cords

Does Cable Length Affect Safety and Performance?

Yes, and this is often forgotten. The voltage drop goes up as the length of the wire goes up. For a 10A load, a 16AWG cord that is 6 feet long doesn't drop much, but a 25-foot cord with the same load adds resistance that can be felt. The NEC says that on branch circuits, the voltage drop should be less than 3%. Picking the shortest length that will work for each installation point is a real scientific choice, not a personal one.

In addition to length, the way a jacket is made determines how well it fits its environment. The Service Junior Thermoplastic Weather-resistant properties—rated for 300V, 105°C, and VW-1 flame retardancy—are combined in the SJTW jacket name. This means it can be used for both high-density rack operations inside and temporary installs outside. In strictly indoor settings, the SJT variant provides the same thermal performance.

Here are the main things that buying teams should look at before agreeing to a specification:

• Conductor material: Stranded pure copper conductors (not copper-clad aluminum) ensure consistent conductivity and resist fatigue from repeated flexing. Kuncan Electronics uses 16AWG x 3C pure copper, verified through 100% continuity testing at the factory level.
• Connector configuration: Straight NEMA 5-15P plugs suit standard open-access installations, while right-angle configurations allow rear-panel connections in tight server racks without straining the outlet housing or blocking adjacent ports.
• Certification traceability: UL File No. E484253 provides publicly verifiable certification status. Always request the UL file number from a supplier—not just a certificate image—to confirm authenticity.
• Insertion cycle durability: Industrial-grade connectors rated beyond 10,000 insertion cycles are essential for environments where cords are regularly swapped during maintenance rotations.

These factors make up a useful list that lowers the risk of buying the wrong things and helps the supply chain stay consistent across big deployments.

Installation and Maintenance Best Practices for 16AWG Power Cords

How Should You Route and Manage Power Cords in Dense Environments?

If you route things correctly, you can avoid three types of failure: thermal buildup from bundling, mechanical wear at bend points, and unexpected separation from people walking on them or equipment shaking with the 16AWG US AC Power Cord -NEMA 5-15P to IEC C13. Vertical cable managers keep C13 cords organized and away from data cables in server racks. This cuts down on electromagnetic interference and makes air flow better.

During installation, the integrity of the grounding must be checked. In grounded circuits, you should never use a two-prong adapter instead of the three-prong NEMA 5-15P design because it has its own ground line. In places where vibration is a constant problem in industrial automation, strain relief that is molded into both the plug and C13 connector ends keeps the internal conductors from separating over time.

Routine repair makes things last longer in a measurable way. Check the connection points every three months for oxidation or distortion. Use an isopropyl alcohol-soaked lint-free swab to clean areas that come into contact with things. Never use rough materials. Throw away any cord that has jacket cracks, discoloration close to the connector body, or a noticeable rise in the resistance to insertion. These signs show that the insulation is breaking down or the conductors are getting old, which an eye check alone might not pick up on.

Where and How to Buy 16AWG NEMA 5-15P to IEC C13 Power Cords?

16AWG power cords from well-known names like Tripp Lite, C2G, and Belkin are safe because they have UL listings and are consistently checked for quality. People who buy things for data centers really like Tripp Lite because it has a lot of different SKUs and clear testing standards. For medium-sized deployments, C2G (Cables to Go) has reasonable prices, while Belkin is a well-known brand in business IT settings.

Kannan Electronics has a clear edge when it comes to B2B purchases that need special specs like lengths, colors, right-angle setups, or private labels. Kuncan has been making things for 17 years and has been certified by UL under File No. E484253; they can handle OEM/ODM orders with a minimum order quantity of just 10 PCS and offer free CAD design services. They also promise to answer any custom questions within 3 minutes. All of our products follow the rules set by RoHS and REACH, and before they are sent out, they are all tested for 100% Hi-Pot and continuity.

Customers who buy in bulk can expect wait times of 15–25 days based on volume, a warranty against manufacturing defects for 1 year, and a diverse raw material supply chain that protects against shipping problems. You can see the full list of products at nema5-15.com.

Conclusion

The choice of the correct 16AWG US AC Power Cord -NEMA 5-15P to IEC C13 is an engineering and purchasing choice that has direct effects on the safety of the equipment and its ability to keep running. In the US market, the NEMA 5-15P to IEC C13 configuration works with the most business and industry tools. The most common failure points are taken care of by prioritizing UL-listed certification, pure copper conductors, the right jacket ratings, and tested connector durability. Whether you buy from a well-known distributor or a qualified original equipment manufacturer (OEM) like Kuncan Electronics, you should always check the UL file numbers, ask for test paperwork, and make sure that the cord specs exactly match the load and environmental needs.

FAQ

What is the maximum safe load for a 16AWG US AC power cord?

According to the NEC, a 16AWG cord can handle up to 13A of continuous use at 125V. The NEMA 5-15P outlet can handle 15A circuits, but the cord's continuous-duty rating shouldn't go over 80% of its maximum capacity, which is about 10.4A for continuous use. Always look at the nameplate of the tools to see the real draw.

Can a 16AWG power cord work safely with servers and rack PDUs?

Yes. The IEC C13 inlet is the standard for all power inputs to servers and PDUs. One- and two-unit rack servers that draw between 3A and 10A continuously use a 16AWG cord with a NEMA 5-15P plug that has been properly certified.

How do I verify that a power cord is genuinely UL listed?

Ask your provider for the UL file number and check it directly on UL's public Product iQ database. The 16AWG cords from Kuncan Electronics have UL File No.

Is an SJTW jacket necessary for indoor server rooms?

SJTW adds weather resistance that indoor-only settings don't need. However, the 105°C heat resistance and VW-1 flame retardancy are useful in high-density rack settings, even if the material is exposed to moisture. It is never a bad thing to choose SJTW over SJT.

What is the minimum order quantity for custom-length power cords?

Kuncan Electronics takes custom orders with a minimum order quantity (MOQ) of just 10 PCS. They can be made in any length, color, or connector combination, and they offer free CAD design help.

Power Up Your Procurement — Get a Custom Quote from Kuncan Electronics

Kuncan Electronics has been making 16AWG US AC Power Cord NEMA 5-15P to IEC C13 for 17 years and has been approved to do so. Our UL E484253-listed cords are made to last in the industrial world, and our OEM/ODM program lets purchasing teams make cords to exact specifications without having to commit to large orders. You can email our team at rhea@szkuncan.net or visit nema5-15.com to see all of our products and ask for samples or bulk prices. Our team gets back to you in three minutes or less. Your next supply chain upgrade starts with a message.

References

1. National Electrical Code (NEC) NFPA 70, Standard for Electrical Installations, National Fire Protection Association, 2023.

2. Underwriters Laboratories, UL 817: Standard for Cord Sets and Power-Supply Cords, UL Standards, 2022.

3. IEC 60320, Appliance Couplers for Household and Similar General Purposes, International Electrotechnical Commission, 2021.

4. American Wire Gauge Standard, ASTM B258: Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes, ASTM International, 2022.

5. Occupational Safety and Health Administration (OSHA), Electrical Standards 29 CFR 1910.303, U.S. Department of Labor, 2022.

6. IEEE Std 1100, Recommended Practice for Powering and Grounding Electronic Equipment (Emerald Book), Institute of Electrical and Electronics Engineers, 2005.
