Why Should a NEMA 6-20P Cord Not Be Labeled 125V? Rating Checks for Inline Ground-Fault Protection Cords

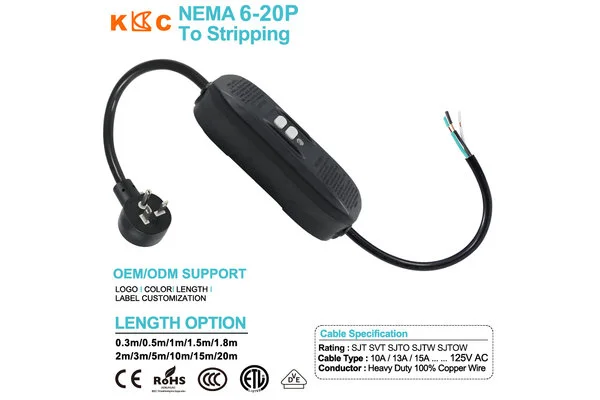

In OEM projects for industrial equipment, HVAC systems, and commercial appliances, buyers may see the plug and TEST/RESET buttons first and then treat generic artwork as the finished-cord specification. The pictured NEMA 6-20P conflicts with the “125V AC, 10A/13A/15A” text shown in the same image. A standard NEMA 6-20P belongs to the 20A, 250V class, while the inline module, cable, and stripped-end termination must each be verified for the same finished-cord rating. Dongguan Kuncan Electronics Co.,Ltd recommends resolving this conflict before quotation or production so that generic data from another product family is not applied to the final assembly.

1. What Does NEMA 6-20P Establish?

NEMA 6-20P is a 20A, 250V, 2-pole, 3-wire grounding straight-blade plug. Its electrical paths normally serve L1, L2, and PE: two ungrounded conductors plus protective earth. It does not use the line-neutral-ground arrangement associated with an ordinary 125V circuit.

Once a product uses a 6-20P, the complete design must be reviewed for the applicable line-to-line voltage, circuit arrangement, and equipment input. If “125V AC” in the artwork is generic template information, it should be removed from this configuration. If the supplier claims that the module supports multiple voltages, technical evidence must cover the exact part number, wiring arrangement, and finished assembly. Housing shape and button appearance are not sufficient proof.

2. A 20A Plug Does Not Automatically Make a 20A Cord

The lowest-rated component governs the finished assembly. Even though the NEMA 6-20P is rated 20A, the cord cannot be labeled 20A if the inline module, cable, or equipment-side termination is limited to 15A.

For a version intended to carry the full 20A rating, 12 AWG/3C can serve as an engineering baseline because conductor cross-section affects resistance, voltage drop, and temperature rise under continuous load. This is not a specification confirmed by the image. Buyers still need to verify cable printing, conductor material, jacket designation, length, ambient temperature, termination capability, and finished-cord certification scope.

The production BOM should identify the plug, protection module, cable, and stripped-end treatment with separate part numbers and ratings. The finished label should then follow the lowest rating in the assembly, preventing a gap in which the plug is 20A, the module is 15A, but the product is still marked 20A.

3. TEST and RESET Buttons Do Not Prove 250V Compatibility

TEST and RESET buttons show that the module has a user interface; they do not prove that its internal circuit is approved for a 250V line-to-line system or that it interrupts the conductors required by the application. OEM buyers should confirm the module manufacturer, exact part number, rated voltage, frequency, maximum current, monitored conductors, switched poles, trip threshold, trip time, and reset mode.

The module should also be functionally evaluated as part of the finished cord. Testing should verify whether it sets normally after energization, whether the TEST button creates the intended trip, whether the output reaches the approved disconnected state, and whether power restoration requires manual reset. For equipment capable of motion or heating, the choice between manual and automatic reset also affects unexpected-restart risk and should not remain undefined in the purchase specification.

4. Why Is the Stripped End Vulnerable to L1, L2, and PE Errors?

The image shows a three-conductor stripped equipment end. In a NEMA 6-20P assembly, these conductors should normally be defined as L1, L2, and PE according to the approved drawing. If an operator applies experience from a 125V product and treats one conductor as neutral, the result may be incorrect equipment wiring, failed functional testing, or an abnormal protective-earth path.

The engineering drawing should identify which plug blade corresponds to each conductor after the inline module and should define conductor color, breakout length, strip length, and tolerance. Production inspection needs point-to-point continuity, miswire, short-circuit, and protective-earth continuity checks. Color can assist identification, but the controlled drawing and test result must remain the governing evidence.

5. Cable Jacket and Environment Must Match

The promotional artwork lists SJT, SVT, SJTO, SJTW, and SJTOW options, but these should not be treated as cosmetic alternatives that can be substituted freely. Jacket designations relate to voltage, temperature, oil, weather, and location conditions. Final suitability must follow the complete cable marking and approved documentation.

If the assembly is used near moisture, outdoors, or around pumps and wash-down equipment, buyers also need to verify the environmental rating of the module housing, seams, buttons, and cable exits. A weather-resistant cable alone does not make the complete inline module assembly equally protected. A change from a short cord to a longer cord should also trigger a renewed review of voltage drop, conductor gauge, strain relief, and certification scope.

What Rating Checklist Is Needed Before Production?

An actionable OEM file should include the NEMA 6-20P 20A, 250V interface; the exact inline-module model and rating; the L1/L2/PE wiring table; wire gauge, conductor count and material, and jacket; plug-to-module, module-to-open-end, and overall lengths; trip and reset behavior; test requirements; labeling; and finished-assembly certification status.

Certification marks shown in promotional artwork do not automatically prove approval for every combination of module, cable, and length. Dongguan Kuncan Electronics Co.,Ltd recommends completing equipment-side wiring, TEST/RESET operation, fault-trip, power-restoration, and temperature-rise validation during sample approval before freezing the drawing and BOM. Only when the plug, module, cable, and equipment termination carry compatible ratings can the NEMA 6-20P protected cord have a clear and traceable production specification, reducing mislabeling, miswiring, nuisance trips, and after-sales disputes.
