Buy Guide to IEC C7 Power Cords

If you want to find solid power solutions for your business, you need to know how IEC C7 power lines work. In the workplace, these figure-8 plugs keep a lot of electronic devices, from radio tools to consumer goods, working. For low-power uses where safety, reliability, and longevity are most important, a c7 power cord is the best choice. It has a normal, ungrounded connection rating of 2.5A 250V. This complete guide tells you everything buying professionals need to know, from technical specs to choosing a seller, to make sure that your investment pays off in the long run and keeps operations running smoothly.

Understanding IEC C7 Power Cords: Basics and Specifications

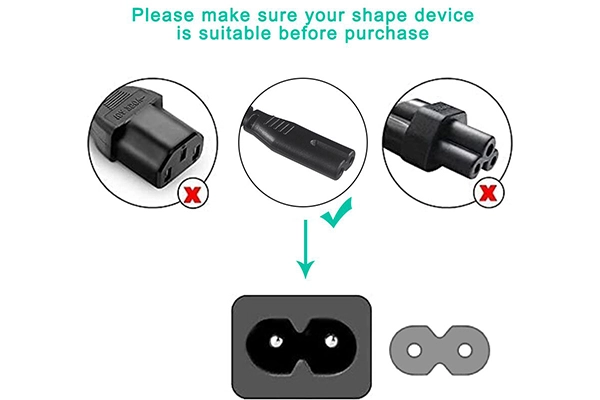

What Defines the IEC C7 Connector?

The IEC C7 socket has a unique two-prong shape that looks like the number eight. It is also known as the figure-8 or shotgun plug. This non-polarized interface works with devices that only need line and neutral inputs and not earth grounding like earth grounding like earth C5 or C13 plugs. The design is based on the IEC 60320 standard, which makes sure that products from different makers can work together. Because of this standardisation, a VDE-certified Europlug to C7 cord from Europe works perfectly with products in North America that use NEMA 1-15P plugs, as long as the voltage levels are the same.

Voltage and Current Ratings Explained

There are regional differences in the 2.5A 250V rating of most figure-8 power cords. In North America, models with 18 AWG stranded copper wires can handle up to 10A at 125V, leaving heating room for devices that are getting close to their maximum draw. The size of the wire has a direct effect on efficiency. Conductors that are larger lower electrical resistance and heat buildup. Our H03VVH2-F flat wires with 0.75mm² conductors are the best combination of flexibility and current carrying ability. They also have the least amount of voltage drop over normal cable lengths of one to two meters.

Pin Configuration and Physical Characteristics

The C7 socket can hold two flat blades that are horizontal and have smooth edges. The blades should be about 7.4 mm apart. This is not the same as the squared-side C7P polarised version, which makes sure that sensitive equipment is properly aligned with the neutral line. The non-polarized design makes it fit all devices, but devices further downstream have to handle polarity on their own. Go/No-Go gauges are used to test the dimensions of precision-molded connectors to make sure that the contact springs securely grip the device outlet pins. By paying close attention to tolerance, the infamous "connector wiggle" that leads to power outages, arcing, and early oxidation is avoided.

Compliance with International Safety Standards

Real power cords have their certifications moulded right into the plug housings, not written on stickers that are easy to peel off. VDE approval shows that the product meets European low-voltage guidelines and safety standards for materials. If something has a CE mark, it means it meets EU safety standards. If it has a UL or cUL mark, it means it meets North American safety standards. RoHS compliance limits dangerous materials like lead and cadmium, which is needed for gadgets to get into controlled markets. We make sure that every cord we sell passes a 2000V AC Hi-Pot test, which checks the insulation's strength under stress conditions that are much higher than regular use.

By understanding these basics, buying teams can tell the difference between real approved wires and options that don't meet the standards. It's not always clear what the difference is between a properly designed figure-8 cord and a common one until it stops working in the field.

​

Procurement Best Practices: Buying IEC C7 Power Cords for Your Business

Sourcing from Reputable Suppliers and Platforms

Verification qualifications for a C7 power cord are the first step in finding reliable sellers. When a business is Alibaba Verified, it means that it has been registered, had its facilities inspected, and has quality control systems in place. This check lowers the chance of dealing with a bad person when buying things from other countries. Regional wholesalers may offer better guarantee service and technical support than direct manufacturers, but they may limit the customisation options that direct manufacturers can offer.

We have sites in Dongguan, which is a center for making electronics. This gives our clients access to Asia's most advanced supply chain environment. Our more than 300 trained workers and ISO-compliant production lines make sure that the quality of our work is the same whether you buy 500 or 50,000 units. Because they are close to component sources and transportation infrastructure, they can respond quickly. Samples ship within three to seven business days, so customers can make sure they fit before committing to large orders.

Bulk Purchasing and Cost-Efficiency Strategies

When you buy in bulk, you can take advantage of economies of scale, which lowers the cost of each unit by making production runs and material purchases more efficient. We have tiered price models that reward bigger investments while keeping trial order minimums low. This adaptability works for both established buyers whose needs are known and new businesses that are trying the market to see if it fits.

Cost-efficiency is more than just unit price. Integrated logistics planning, which includes combining packages, making the best use of container loads, and choosing the right means of transportation, has a big effect on the total landing cost. Our location in Dongguan/Shenzhen gives us access to cheap freight choices by air, sea, and rail. Our experienced logistics managers will help you choose the mode of transport based on your time frame and budget.

Smart buyers weigh the savings they get up front against the costs of keeping goods and the risk of items going out of style. Just-in-time purchasing tactics are possible because we have low minimum order amounts and fast production processes. This cuts down on storage costs while keeping supplies steady. The 24-hour reaction promise makes sure that urgent needs are met right away, so production doesn't have to be held up when demand comes up out of the blue.

Key Features Matching Operational Needs

Right-angle plug designs reduce cable strain in tight placements, which makes cables last longer when straight cord openings are not possible. When rack-mounted tools or items are placed against walls, this design factor becomes very important. We have 90-degree moulded choices that have the same approvals and current values as straight connections.

When used in places where radio frequency interference is a problem, ferrite core integration stops transmitted emissions. This feature is helpful for medical facilities, recording studios, and precision measurement labs because it keeps power line noise from messing up signals that need to be clear. Although the addition makes production more difficult, it does better performance in certain situations.

Colour-coded coats made just for you make it easier to handle cables in complicated setups. Colour separation makes it easier for techs to see which circuits go with what, which cuts down on fixing time and stops accidental disconnections. We can custom match Pantone colours and add client logos by pad printing or laser cutting, which helps build brand recognition in OEM applications.

Warranty Management and Supplier Support

Comprehensive guarantees protect against flaws in the way the product was made and show that the source trusts the quality of the product. Our one-year guarantee covers problems with both the materials and the work, and simple repair methods keep downtime to a minimum. The warranty terms should be clear about what is covered, how to return the item, and when you will be contacted. General promises are often not enforceable when problems appear.

Manufacturers of the C7 power cord are different from product sellers because they can offer technical help. Before investing in tools, our engineering team does design reviews for unique setups to find any problems that might come up. This consultative method has helped customers find the best wire specifications in terms of both cost and performance. In some cases, it has shown them that standard catalogue items meet their needs better than the custom designs they had planned.

Long-term ties with suppliers pay off in the long run. Loyalty isn't just about the lowest price. Consistent quality, institutional understanding of your needs, and priority care when capacity is limited are all reasons to stay loyal. We keep thorough accounts of each client that include their standard preferences, packing needs, and shipping routines. This makes it easier for them to place repeat orders and cuts down on the work that needs to be done for each transaction.

​

Practical Applications and Case Studies in B2B Environments

Corporate IT Infrastructure and Office Electronics

There are hundreds of figure-8 lines in modern offices that power laptop chargers, computers, printers, and other devices. Standardising on approved wires simplifies inventory while making sure safety rules are followed at work. The light, unground design works well with low-power devices where earth grounding is not needed, making installation easier than with three-prong options.

Our VDE-certified Europlug to IEC C7 lines have recently been made standard in all of the European offices of a global consultancy company. The flat cable shape made installations easier in hot-desking areas where wires run through channels built into the furniture. Building fire rules were met by flame-resistant PVC jackets, and RoHS compliance met the company's green goals. The project included delivering 12,000 cords in six countries, which showed that we can handle large-scale operations.

Gaming and Entertainment Systems

Figure-8 plugs connect power supply bricks to gaming systems like the PlayStation and Xbox. These bricks send stable DC energy to the electronics inside the consoles. Power quality has a direct effect on performance; changes in power lead to slower frame rates, system crashes, and parts breaking down early. High-purity copper wires reduce resistance, which keeps voltage within tight limits even when working loads are at their highest.

An electronics store that serves gamers came to us because customers were complaining about new plugs that didn't fit properly, which caused power to go out sometimes. It was found that their old provider used out-of-tolerance moulding to make plugs that don't fit tightly into normal C8 inlets. When we switched to our precision-molded connections, the problem went away, and over the next quarter, guarantee returns dropped by 73%. This case shows how seemingly small differences in dimensions can have real effects on customer happiness and repair costs.

Audio Equipment and Home Theater Applications

To get the best signal-to-noise ratios, high-fidelity audio devices need clean power delivery. Low-resistance cables keep ground loop hum and interference from happening with powered speakers, soundbars, and AV receivers that use figure-8 connectors. Audiophile uses sometimes call for improved wires with insulated construction or specific line shapes, but it's still not clear how much better the performance is.

Our flat profile wires are the ones that a professional audio installation company always uses in meeting rooms and auditoriums. The thin design hid the wires inside building features, so it looked good and met electricity rules at the same time. Ordering in bulk with custom lengths cut down on waste because techs could give accurate measurements for each installation instead of cutting down stock that was too long. This precise method cut the cost of materials by 18% and made work go more quickly.

Case Study: Enhancing Equipment Stability Through EMI Filtering

Diagnostic equipment placed in hospitals with thick wireless infrastructure sent sporadic reports of problems to a medical device dealer using a C7 power cord. The interference was found to be caused by leaks that are carried along power lines. Radio frequency noise messes up analogue devices that are sensitive. Upgrading to power lines with ferrite cores cut the number of incidents reported by 91%, proving the theory without having to spend a lot of money redesigning equipment.

This result shows how important it is to choose cables based on their unique use. For installs near wireless access points, cellphone base stations, or high-power emitters, the dealer now specifies wires that have been screened. The small extra cost keeps expensive field service calls from happening and saves the brand's image much more efficiently than fixing problems after they happen.

How to Choose the Right IEC C7 Power Cord: A Decision Support Framework?

Defining Business Requirements and Use Scenarios

To do good buying, you must first understand what the program needs. Purchasing managers should write down the details of the device, where it will be installed, and any operating limitations before they start working with providers. Some of the most important factors are the current draw, the temperature range, the flex cycle needs, and the regulation compliance needs. This paperwork lets you have smart talks with suppliers and do a good job of meeting technology needs.

Engineers use their scientific knowledge to make sure that the connection specs match the needs of the gadget. People often make the mistake of choosing wires based only on the type of connection, not taking into account the line size, the insulation temperature grade, or the certification standards. When buying and engineering work together to create specifications, costly mistakes are avoided that are only found after installation.

Compliance, Durability, and Supplier Trustworthiness

Regulatory compliance is one of the most important criteria for choosing. For devices to be sold in controlled areas like the European Union or North America, all of the parts that supply power must be verified. Cables that don't follow the rules can put companies at risk of lawsuits, fines, and damage to their image if they fail. Checking the legitimacy of a certificate includes comparing the number of the certificate to databases maintained by the granting body. Reliable providers will provide this information on request.

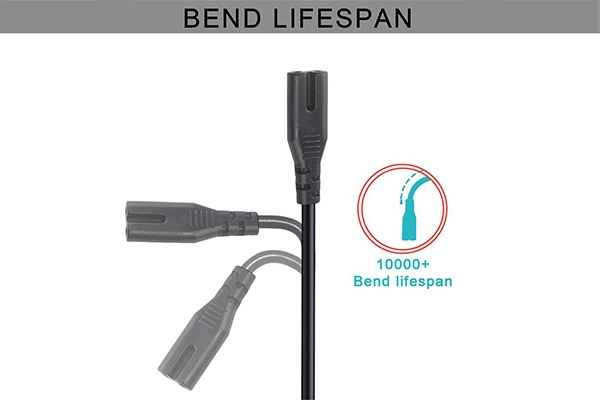

To judge durability, you have to look at building features that aren't usually shown in marketing materials. Service life is affected by the strain relief design, the number of wire strands, and the way used to join the terminals. We give experts cross-sectional models to look over so they can see how the inside is built before they place big orders. This makes it easier to trust that the specs match the goods that are provided.

Supplier reliability for a C7 power cord includes how stable their finances are, how much they can produce, and how quickly they can help customers. Our 17-year history of business and Alibaba Verified standing are proof that we are a real company. For buyers who are worried about taking risks, client recommendations and building tours are extra ways to make sure. The connection goes beyond the finish of the deal. A real partnership includes continued professional help and quick settlement of problems.

Actionable Recommendations for Different User Segments

Our tiered product offers help purchasing managers find the best balance between price and quality. Standard VDE-certified cords are good for most uses and don't cost too much. For more specific needs, luxury cords with better conductors and EMI filters are available. This portfolio method stops people from defining too many expensive features when they aren't needed and makes sure they are available when applications need better performance.

Distributors need minimum order amounts that can be changed to meet the needs of a wide range of customers. Our low MOQ policy and quick sample production let wholesalers keep enough stock on hand without having to spend too much working capital. Options for private label packing and logo stamping help brands stand out, turning generic wires into labelled product lines that command premium placement.

OEM makers who put wires into finished goods like being able to customise them and keep getting supplies. From the trial stage to production, we help designers work together to make sure that the cable specs are the best for both performance and cost. Long-term supply deals that include price stable clauses make it possible to accurately price products and protect margins over longer product lifecycles.

Finalizing Supplier Relationships and Planning for Scalability

Pilot programs make sure that the product fits well before a full commitment, which is how successful supply partnerships grow. With our low minimums, we encourage customers to place trial orders that let them check quality, wait times, and service timeliness with little risk. By building trust through actions rather than words, this method gradually boosts confidence.

Scalability planning looks at how the business will grow in the future. Our production ability can handle more orders without slowing down or lowering the quality of our work. Forecasting, teamwork, and sale stocking systems are some of the advance planning tools that can help growing businesses keep track of their working capital and make sure they have enough supplies. With these tools, providers become strategic partners who care about each other's success.

Documentation and being able to track orders become more important as they get bigger. We keep detailed records that connect groups of output to lots of raw materials, test results, and delivery paperwork. This allows for quick identification of the root cause if problems occur in the field, reducing damage through focused fixes instead of mass recalls.

Conclusion

To choose the best C7 power cord option, you have to weigh technical requirements, provider skills, and legal compliance. Knowing about the types of circuit materials, licensing standards, and features that are special to each application helps buying teams make smart choices that will pay off in the long run. The framework helps sellers define their needs, evaluate suppliers, and build relationships with them, making sure that the electrical infrastructure supports operating goals instead of getting in the way of them. As more and more industries use electronics, it's becoming more and more important to work with experienced manufacturers who can offer customisation, quality assurance, and quick support in order to stay ahead of the competition and keep operations running smoothly.

FAQ

What kinds of gadgets use IEC C7 power cords most often?

Figure-8 plugs are most often found in power adapters for laptops, handheld game systems like the PlayStation and Xbox, audio equipment like powered speakers and portable radios, camera battery chargers, LED light strips, and small home products. The unground design works with devices that are double-insulated or have very low leaking current, so grounding them to the earth is not needed for safety.

How can I be sure that safety guidelines are being met?

Real approved wires have approval marks moulded right into the plug housings. Look for marks from VDE, UL, CSA, PSE, or other well-known certification bodies that are paired with file numbers. Check these numbers in the records of the granting bodies. For example, you can check VDE marks at vde.com and UL licenses at ul.com/database. Reliable providers give test records and badges of fitness that prove they follow the rules.

Do EMI screens make office tools work better?

Electromagnetic interference screening helps devices that are sensitive to noise that travels along power lines. It is possible to tell that filtered lines work better with audio equipment, medical devices, and precise measuring tools. Computers, printers, and other common office tools don't usually need to be filtered unless they are known to be having interference problems. The small price rise is only worth it when the application is sensitive or the electrical environment is difficult and needs better noise reduction.

Partner With a Trusted C7 Power Cord Manufacturer

Kuncan Electronics specialises in providing figure-8 power options for businesses that are reliable and meet world standards. Our Europlug to IEC C7 cords are VDE-certified and come with H03VVH2-F flat wires, precision-molded joints that have been tried to withstand more than 3,000 flex cycles, and specs that can be changed to fit your exact needs. With 17 years of experience making things, ISO-compliant factories, and a wide range of approvals, such as VDE, CE, UL, and RoHS, buying teams can be sure that the products they buy will meet all safety standards.

As part of our buying strategy, we offer free samples to make sure they fit right, low minimum order numbers that allow for trial programs, and fast production cycles that get samples to you in three to seven days. Standard parts can be turned into unique product lines by offering custom length, colour, and marking choices. Get in touch with our engineering team at rhea@szkuncan.net to talk about your c7 power cord provider needs and find out how our production skills can help you keep your supply chain strong while staying competitive in tough markets.

References

International Electrotechnical Commission. (2018). IEC 60320-1: Appliance Couplers for Household and Similar General Purposes – Part 1: General Requirements. Geneva: IEC Publications.

Underwriters Laboratories. (2020). UL 817: Standard for Safety Cord Sets and Power-Supply Cords. Northbrook: UL Standards & Engagement.

VDE Testing and Certification Institute. (2019). VDE 0620-1: Plugs and Socket-Outlets for Household and Similar Purposes. Offenbach: VDE Verlag.

National Electrical Manufacturers Association. (2021). NEMA WC 70: Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy. Rosslyn: NEMA Standards Publication.

European Committee for Electrotechnical Standardization. (2017). EN 50525-2-11: Electric Cables – Low Voltage Energy Cables of Rated Voltages up to and including 450/750 V. Brussels: CENELEC Publications.

Institute of Electrical and Electronics Engineers. (2019). IEEE 1100: Recommended Practice for Powering and Grounding Electronic Equipment. New York: IEEE Standards Association.
