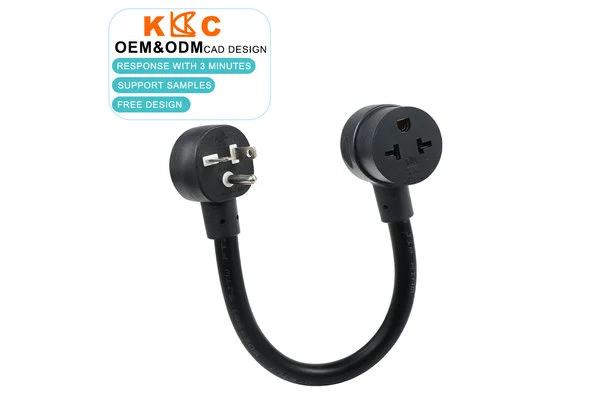

Changing the Receptacle Does Not Convert Voltage: Preventing 125V/250V Misuse with NEMA 5-20P Adapter Cords

Short adapter cords are often used in equipment commissioning, industrial maintenance, and OEM integration to address a physical plug-and-receptacle mismatch. A connector that can be physically attached, however, does not mean that the supply voltage has changed. NEMA 5-series devices are grounded 125V configurations, while NEMA 6-series devices are grounded 250V configurations. A passive cord without a transformer or power-conversion module changes only the interface; it does not convert 125V into 250V. Dongguan Kuncan Electronics Co., Ltd. recommends treating NEMA 5-20P to 5-15R, 5-20R, 6-15R, and 6-20R as separate engineering configurations rather than one product with freely interchangeable female ends.

What Electrical Boundary Does the NEMA 5-20P Input Establish?

NEMA 5-20P is a 20A, 125V AC, 2-pole, 3-wire grounding straight-blade plug. Its three paths normally serve line, neutral, and protective ground. The plug requires a compatible 20A, 125V receptacle and cannot enter a standard 5-15R outlet.

With a 5-20P supply end, the source remains in the 125V class. Installing a 5-15R, 5-20R, 6-15R, or 6-20R on the opposite end does not raise the voltage or automatically turn neutral into a second line conductor. Buyers must verify the supply circuit first, followed by the equipment nameplate, plug, and internal input design.

Why Must a 5-20P to 5-15R Cord Be Limited to 15A?

The 5-20P input is rated 20A, but the 5-15R female connector is a 15A, 125V configuration. The lowest-rated component limits the complete adapter, so this version cannot be labeled as a 20A output merely because it uses a 20A male plug.

If the connected load exceeds the 5-15R rating, the female contact area may become the thermal limiting point and create labeling, acceptance, or after-sales concerns. The OEM specification should clearly state “5-20P to 5-15R, 15A at 125V maximum,” with the final rating further confirmed against the complete cord construction, length, and approval.

Why Is 5-20P to 5-20R the Standard 125V Direction?

NEMA 5-20P and 5-20R belong to the same 20A, 125V class and use a 2-pole, 3-wire grounding arrangement. Among the four options, this is the most direct voltage-class and conductor-function match for extending a 20A, 125V equipment connection.

For a finished cord designed at 20A, 12 AWG/3C can serve as an engineering baseline. This parameter matters because conductor cross-section, cable length, ambient temperature, and load duration jointly affect resistance, voltage drop, and temperature rise. The final gauge must still be confirmed against jacket construction, routing environment, applicable standards, and finished-cord approval rather than inferred from the plug rating alone.

Why Do 5-20P to 6-15R and 6-20R Require Separate Approval?

NEMA 6-15R and 6-20R are 250V-class configurations that normally use two line conductors and protective ground without neutral. In contrast, a 125V NEMA 5-20P input normally provides line, neutral, and protective ground. The two groups differ not only in voltage rating but also in conductor function.

Directly wiring a passive 5-20P cord to a 6-series receptacle does not deliver 250V to the equipment. Mapping neutral to one line position on the 6-series interface does not make the source a genuine 250V circuit. The equipment may not start, or the resulting supply arrangement may conflict with its nameplate, wiring diagram, or project requirements.

These two versions should therefore not be marketed as general-purpose “125V-to-250V adapters.” They may be evaluated only as special-purpose interface cords after the equipment manufacturer confirms the input range, expressly approves the pin mapping, and the project completes a compliance review. Product, packaging, and quotation documents should prominently state “No Voltage Conversion.”

Why Should the Four Receptacles Not Share One Wiring Diagram?

NEMA 5-15R and 5-20R require line, neutral, and protective ground. NEMA 6-15R and 6-20R normally require two line conductors and protective ground. Although each has three contacts, their electrical functions cannot be copied from one appearance to another.

Every variant needs a separate controlled drawing, point-to-point wiring table, SKU, and label. Production inspection should perform continuity and wiring tests against the approved documentation to verify the relationship between every blade and slot. Combining all four options under one ambiguous drawing increases the risk of incorrect batch wiring, warehouse mix-ups, failed equipment tests, and installation rework.

How Do Wire Gauge, Jacket, and Length Affect the Final Rating?

For the 15A 5-20P to 5-15R version, 14 AWG/3C may be evaluated as an engineering starting point. For the 20A 5-20P to 5-20R version, 12 AWG/3C may be evaluated. These are not production facts established by the product name alone. Conductor material, cable marking, jacket construction, and certification scope still require verification through the specification and approved samples.

Increasing length raises circuit resistance and voltage drop and may add cable weight and connector strain. Indoor, outdoor, damp, oily, or elevated-temperature environments do not necessarily use the same jacket. The OEM order should define finished length and tolerance, wire gauge, conductor count and material, full jacket designation, use environment, tests, and certification target.

How Can Procurement Prevent Voltage-Class Misuse?

First, separate the product family into standard 125V versions and special-purpose interface versions. Second, state the male end, female end, current, voltage, and “No Voltage Conversion” on the product name and label. Third, require the buyer to provide the equipment nameplate and target plug information. Fourth, create a separate wiring drawing and point-to-point test for every SKU. Fifth, verify finished-cord certification separately for each connector, gauge, jacket, and length combination.

An adapter cord solves an interface or installation problem; it does not perform power conversion. Dongguan Kuncan Electronics Co., Ltd. recommends prioritizing the 125V 5-20P to 5-15R and 5-20R versions. The 6-15R and 6-20R options should proceed only with equipment-compatibility evidence, an approved wiring drawing, and project review. A clearly defined boundary helps reduce 125V/250V misuse, incorrect ratings, batch rework, and after-sales disputes.
