Kuncan Electronics SAE to DC Adapters: Power Your Electronics from a Battery

The SAE to DC 5.5mm x 2.1mm adapter is an important part of working with battery-powered systems in the field, like when you need to power heated gear during a winter ride, connect portable solar panels to a power station, or power industrial sensors from a 12V battery bank. The rugged SAE connector is often found on battery tenders and solar systems. This small but important part turns it into the widely known DC barrel jack that powers thousands of consumer and industrial devices. Kuncan Electronics has spent 17 years improving this connecting point to make sure that every adapter we make transfers power in a safe, stable, and reliable way for demanding real-world uses.

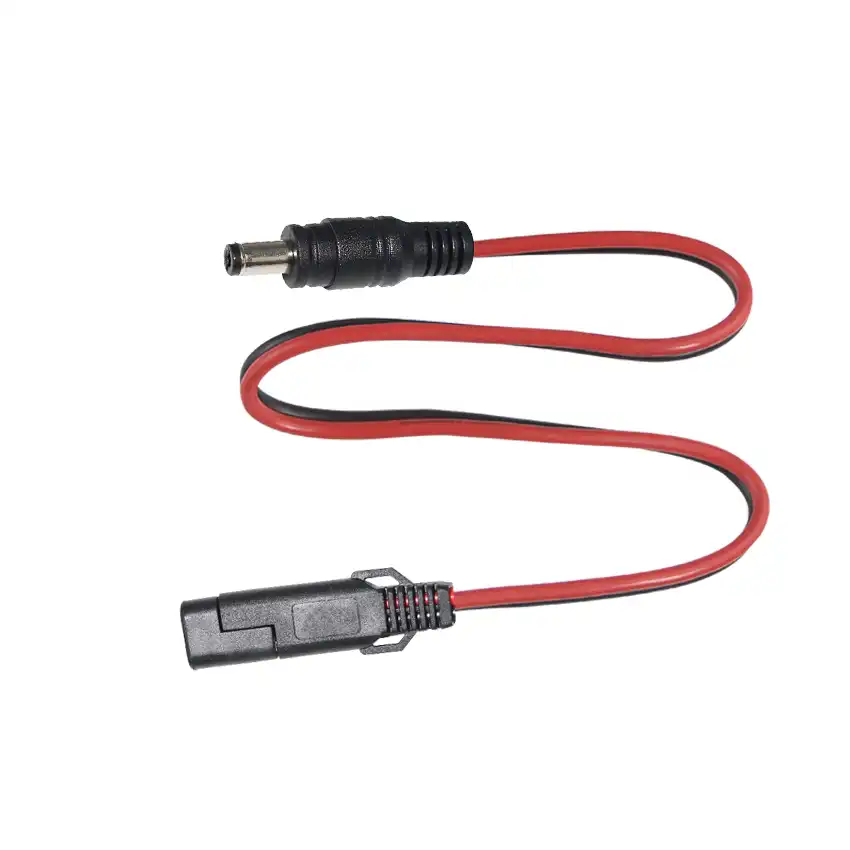

Understanding SAE to DC 5.5mm x 2.1mm Adapters

The SAE to DC 5.5mm x 2.1mm adapter acts as a translator between two different types of electricity. SAE connectors, which are actually called SAE J928 quick disconnects, were first made for the car industry, where they were valued for being weatherproof and having a secure locking mechanism. The DC 5.5mm x 2.1mm barrel jack, on the other hand, is now the usual way for many devices, from handheld radios to LED lighting systems, to get low-voltage DC power.

What Makes This Adapter Essential?

It's not enough for these two standards to be physically compatible to be able to be converted. In tough situations like vibrations from motorcycle engines, temperature changes from subzero to summer heat, and being exposed to moisture while being used outside, the SAE to DC 5.5mm x 2.1mm adapter must keep its electrical integrity. Kuncan's adapters use high-purity copper wires between 18AWG and 20AWG, which means that there is almost no voltage drop even when up to 10 amps of power are being sent. The molded connector housings relieve stress, which keeps the wires from wearing out at the most important connection places, which is where most failures happen.

Pin Configuration and Polarity Considerations

Polarity is something that people often don't expect. Whether they're attached to a power source or a charging source, SAE connections can have either a positive or a negative charge on either pin. Our SAE to DC 5.5mm x 2.1mm adapters have a center-positive DC barrel design that works with most consumer gadgets. We do, however, offer unique polarity choices for equipment that needs center-negative connections. Before it is shipped, every unit goes through 100% polarity verification testing. This makes sure that sensitive electronics are never damaged by reverse-polarity.

Versatility Across Applications

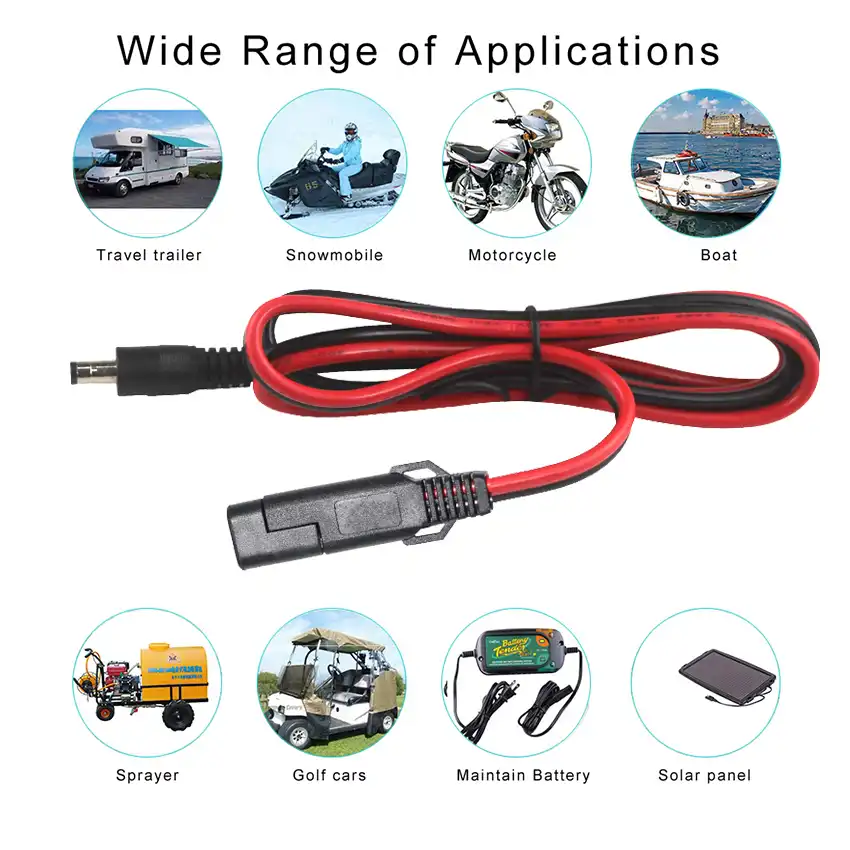

The connector is useful for a lot more than just looking nice. In powersports, riders connect heated jackets and gloves straight to the battery tender lead on their motorbike. Solar fans use the SAE to DC 5.5mm x 2.1mm adapter to connect portable panels to power sources that don't have SAE ports built in. Industrial workers use these adapters to quickly set up 12V devices in the field without having to make lasting changes to the wires. This modular method cuts down on the time needed for installation, makes servicing easier, and lets you change the way equipment is set up without having to rewire the whole system.

Comparison and Selection of SAE to DC 5.5mm x 2.1mm Adapters for Industrial Use

It is important to note that not all SAE to DC 5.5mm x 2.1mm adapters work the same, especially when used in harsh industrial and outdoor settings. Knowing the technical differences helps buying teams make smart choices that keep expensive equipment from breaking down and keep downtime to a minimum.

Voltage and Current Rating Considerations

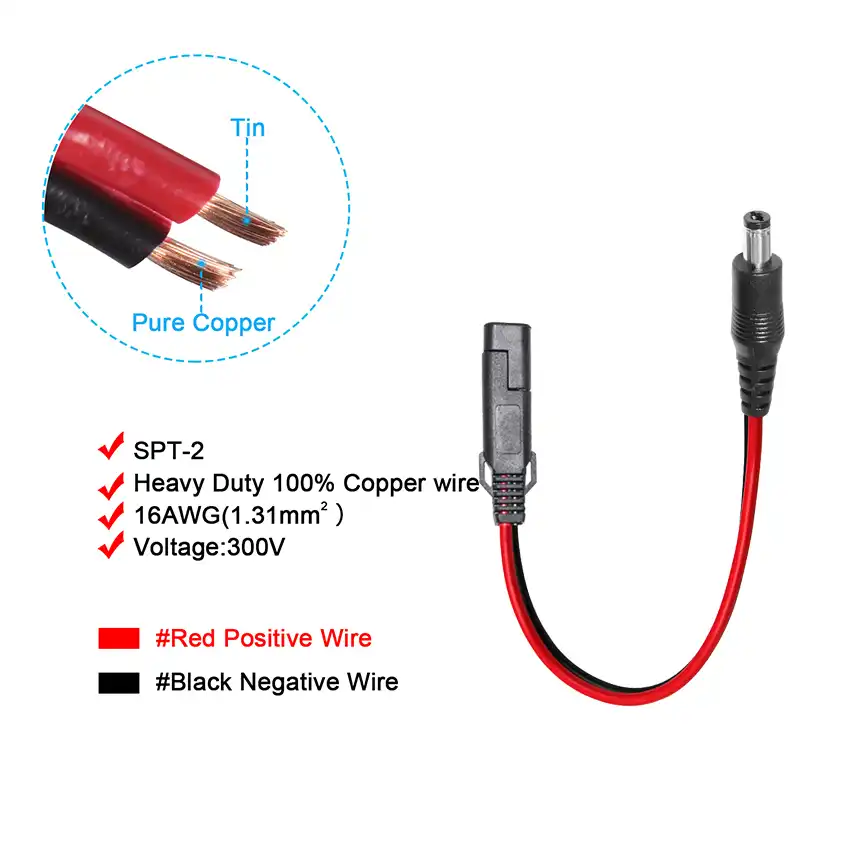

The SAE to DC 5.5mm x 2.1mm adapter is an inactive part that doesn't change the voltage. What determines safe current capacity is the wire gauge and connection quality. A normal 18AWG adapter can handle loads of up to 7 amps continuously without getting too hot. For tasks that need more power, like running multiple LED lights or high-wattage transmission gear, you need to choose a 16AWG or 14AWG version. Kuncan's engineering team can help you choose the right wire diameter based on your load needs and connection length, making sure that the system works safely and has enough thermal headroom.

Durability Features for Harsh Environments

Connectors used in industrial and outdoor settings have to deal with weather stresses that consumer-grade goods can't. Our manufacturing method includes a number of safety measures that make the product last longer in tough circumstances. The PVC/TPE jacket material doesn't break down when exposed to UV light, so cables don't become weak and break after being out in the sun for a long time. Brass contacts that are nickel-plated don't oxidize in damp places, so they keep their low contact resistance over time. The connecting strain relief can withstand pull forces greater than 20 newtons without coming apart. This is very important for installations that might be shaken or accidentally pulled.

Application-Specific Selection Criteria

Which type of SAE to DC 5.5mm x 2.1mm adapter to use depends on what you want to do. Shorter connection lengths are better for solar power uses because they reduce voltage drop and power loss. This is especially true when the battery voltage is low. In motorcycle and powersports uses, wires need to be longer to get from the battery compartment to places where the user can reach them. Depending on how the equipment is set up, setups of industrial control panels may call for either male or female DC connections. Kuncan lets you customize the cable length, connector gender, wire size, and even the color of the jacket to make it fit your needs perfectly.

Procurement Guide: Buying SAE to DC 5.5mm x 2.1mm Adapters for Business Needs

Finding the cheapest SAE to DC 5.5mm x 2.1mm adapters per unit is not enough to get a lot of good ones. Reliability, lead times, expert support, and supply chain stability are all part of the total cost of ownership. These are very important factors when your production or processes depend on parts being available all the time.

Sourcing Options and Partnership Models

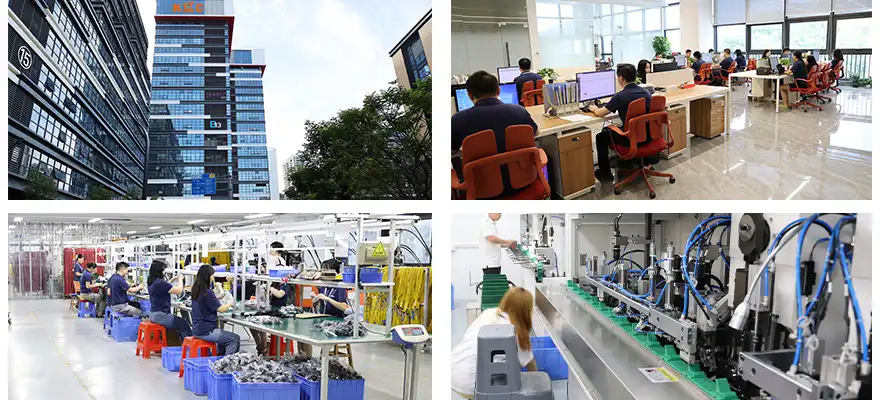

Direct factory relationships are much better than multi-tiered distribution platforms in many ways. We are an Alibaba Verified Supplier with our own factories in Dongguan. This means that there are no markups for us and we can talk directly with your engineering and buying teams. Because of this direct connection, technical questions can be answered quickly, samples can be sent out more quickly, and changes to specifications can be made without having to go through multiple organizational layers. With our OEM and ODM services, we go from being a provider of parts to becoming an extension of your team working on making the product.

Understanding Bulk Pricing Dynamics

You can save money by buying more SAE to DC 5.5mm x 2.1mm adapters, but the price-per-unit link isn't just a straight line. As production volumes go up, setup costs go down, and as commitment numbers go up, so does the buying power of materials. In addition to saving money on unit cost, buying in bulk lowers your per-shipment transportation costs and the work that comes with managing lots of small orders. Our flexible minimum order method works for both initial test runs and large-scale production ramps. This lets you buy more as your product becomes popular in the market without worrying about running out of stock.

After-Sales Support and Logistics

The bond between the buyer and the seller goes far beyond the initial purchase order. Kuncan offers full help throughout the whole lifetime of a product. This includes expert advice during integration, a warranty that covers manufacturing flaws, and quick replacement for any quality problems. With a normal wait time of 15 to 25 days for production orders, we can keep our inventory levels low without having too much working capital locked up in parts. When samples are sent within 3–7 business days, fast development and qualification testing can happen. International shipping knowledge makes sure that the right paperwork and packing are used to get goods through customs in major markets like the US, where labels and certifications must be carefully checked to make sure they meet government regulations.

Technical Insights and Troubleshooting for Optimal Adapter Performance

To apply an SAE to DC 5.5mm x 2.1mm adapter correctly, you need to know both what the device can do and what the system needs from it. Many connection problems are caused by mismatched specifications instead of bad products, so technical understanding is needed for secure operations.

Critical Specifications for System Integration

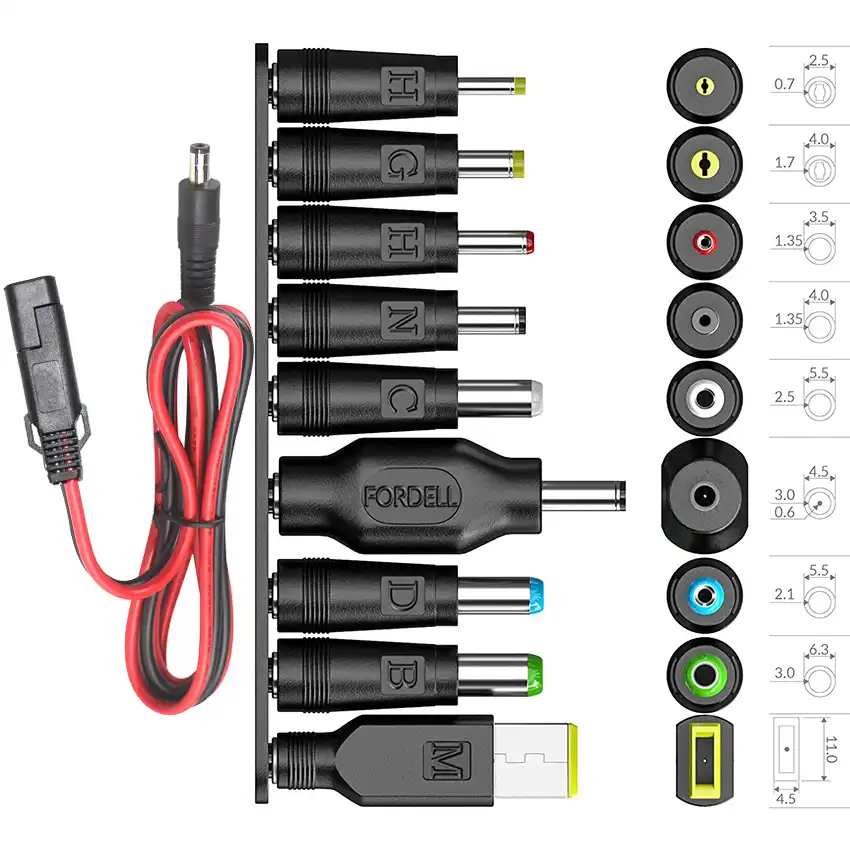

The DC barrel jack standard includes a number of versions that look the same at first glance but are actually different in important ways. The outside diameter stays at 5.5mm, but the inside width of the pins changes from 2.1mm to 2.5mm. When you put a 2.1mm plug into a 2.5mm jack, you make a weak link that can make contact and arc. In the other direction, trying to push a 2.5mm plug into a 2.1mm jack can damage the connection. These problems can be avoided by checking both measurements before placing an order. Our technical paperwork makes it clear what size connectors are, and our sales team can confirm that they will work with the tools you want to use them with.

Common Connection Issues and Solutions

Problems with devices that don't give power as expected can be quickly fixed by following a set of steps. Lagging connections usually mean that the connectors of the SAE to DC 5.5mm x 2.1mm adapter don't match up properly or that there isn't enough force applied during placement. If the voltage drops when the load is applied, it means that the wire size is too small for the current demand or the line is too long. Problems with polarity show up as devices that won't turn on at all, not just occasionally working. Kuncan's quality assurance tests find these problems before they are shipped, but knowing how they fail helps with field analysis when problems happen in complicated systems with many parts that are all linked to each other.

Real-World Performance Validation

A local solar dealer came to us because they were having a lot of problems with their previous SAE to DC 5.5mm x 2.1mm adapter provider and had to send a lot of products back. When using SAE-terminated solar panels, their portable power station users said the charge would go in and out. A root cause study showed that the contact resistance was more than 50 milliohms because the connectors weren't properly plated. We sent test samples that met our highest requirement of 30 milliohms, and the dealer confirmed this in their test lab by cycling the temperatures and shaking the samples. Once they were qualified, they switched all of their products to Kuncan adapters. During the next product year, they had 73% fewer warranty claims.

Why Choose Kuncan Electronics for Your SAE to DC Adapter Needs?

Manufacturers of good SAE to DC 5.5mm x 2.1mm adapters know that these small parts are very important to the stability of the whole system. After 17 years in the power connection business, we know where to cut corners and where smart engineering gives our customers long-term value.

Certifications and Manufacturing Excellence

Our factory has certificates for many important markets around the world, including ETL for safety compliance in North America, VDE for European standards, CE marking for EU legal requirements, and SAA for safety compliance in Australia and New Zealand. These approvals aren't just pieces of paper; they're a result of strict rules over the design, materials, and production process that make sure the quality of each SAE to DC 5.5mm x 2.1mm adapter is the same from batch to batch. RoHS and REACH compliance shows that we care about the environment by getting rid of harmful materials without affecting the electricity performance or longevity.

Customization Capabilities That Solve Real Problems

Standard stock items work well for many uses, but sometimes specific needs for an SAE to DC 5.5mm x 2.1mm adapter call for custom solutions. Together with our customers, our engineering team makes unique wire systems that solve specific problems with integration. Different cable lengths can be used with different types of tools. Different gadget needs can be met by polarity choices. Different types of connectors make it possible to use non-standard tools. Private labeling and unique packages make your branded product lines look more professional. Because of this, buying is no longer a search for "close enough" compromises, but a relationship that gives you exactly what your application needs.

Technical Support That Understands Your Business

When technical questions come up regarding the SAE to DC 5.5mm x 2.1mm adapter, like during the initial design phase, production scaling, or fixing in the field, you need quick answers from people who know both the part and your application. Our expert support team has both theoretical knowledge in electrical engineering and real-world experience in a number of different businesses. We don't just read from datasheets; we help you figure out what's wrong with your system and suggest fixes that get to the root of the problem instead of just fixing the symptoms. We have long-term relationships with businesses that make industrial equipment, green energy, and powersports accessories all over North America and Europe because we listen to their needs.

Conclusion

More than just a connector, the SAE to DC 5.5mm x 2.1mm adapter is the solid link that makes it possible for current battery-powered systems to work safely and effectively in a wide range of situations. With 17 years of experience making high-quality parts, Kuncan Electronics brings this important part to you, along with high-purity copper wires, strict testing methods, and full customization options. Because we have global certifications, quick technical support, and adaptable OEM services, companies that need reliable power connectivity solutions see us as their key partner. Our adapters give you the performance and dependability that your image counts on, whether you're setting up a fleet of field service vehicles, a line of heated outdoor gear, or industrial automation equipment.

FAQ

What devices commonly use SAE to DC barrel jack adapters?

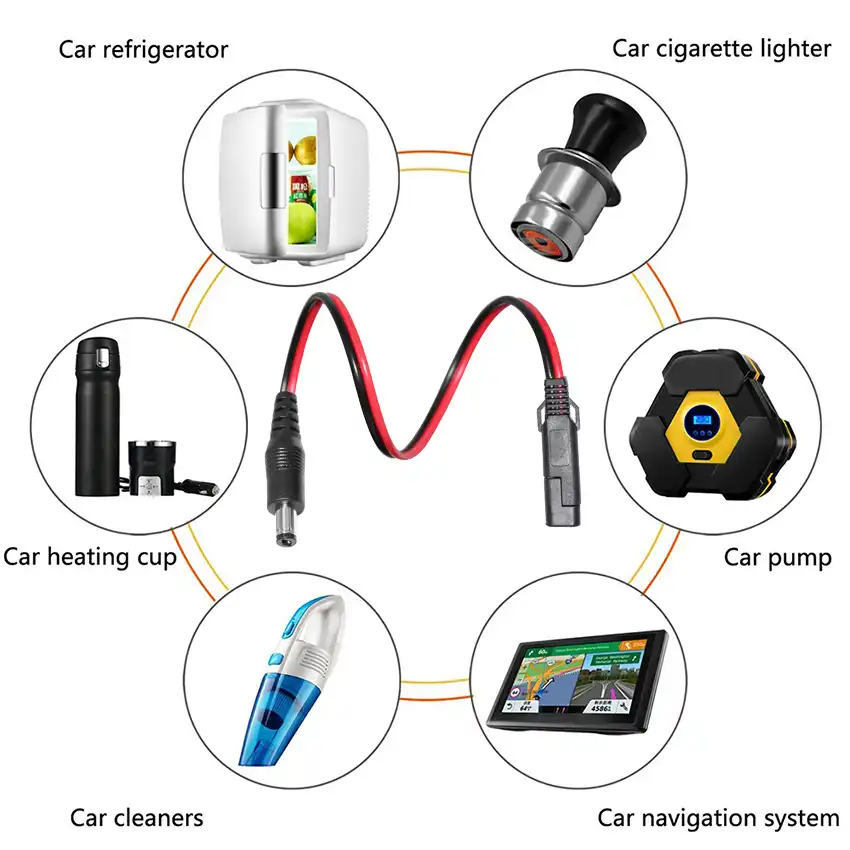

These SAE to DC 5.5mm x 2.1mm adapters let motorcyclists and outdoor workers power heated clothing and gear, connect portable solar panels to power stations that don't have SAE inputs, power 12V LED lighting and security cameras from battery banks, and power communication equipment in RVs and marine installations. These adapters are useful for any task that needs to change between SAE plugs used in cars and DC jacks used in consumer electronics.

Can generic adapters damage my equipment?

There are some risks with generic SAE to DC 5.5mm x 2.1mm adapters that aren't there with quality-controlled goods. Electronics that are sensitive can be destroyed right away by polarity mistakes. Too much contact resistance leads to voltage drops that stop devices from working properly and heat that breaks down connections over time. When high current loads are applied to wires with an inadequate diameter, fire risks arise. These risks are taken away before goods reach buyers by Kuncan's 100% electrical and polarity testing.

How do I verify compatibility with my power system?

Check three important factors for your SAE to DC 5.5mm x 2.1mm adapter: the voltage rate should match your battery system (12V or 24V); the current capacity should be at least 20% higher than your device's maximum draw; and the DC barrel measurements should be 5.5mm on the outside and 2.1mm on the inside. Check the polarity needs. Center-positive is what most consumer electronics use, but make sure before you join. When specs aren't clear, our expert team can help with checking for compatibility.

Partner with a Trusted SAE to DC 5.5mm x 2.1mm Adapter Manufacturer

Reliable systems are built on high-quality parts, and buying an SAE to DC 5.5mm x 2.1mm adapter from a manufacturer with a lot of knowledge makes sure that your projects will work from the start. Kuncan Electronics uses ISO-certified production methods, thorough testing procedures, and easy customization to make adapters that work better than you expect them to. Our range of foreign certifications makes it easier to get into new markets, and our fast sampling and production keep your projects on track. Our technical consulting services are valued by engineering teams, and our clear communication and on-time performance are valued by buying departments. Get in touch with our experts to talk about your unique needs, ask for technical documentation, or get personalized quotes for large sales. You can contact our sales team at rhea@szkuncan.net to start working together in a way that is quality, reliable, and good for both of us. This is the end of your search for reliable power connection options.
