Understanding the IEC C5 Power Cable: The Essential Guide

It turns out that the IEC C5 power cable is one of the most important parts for connecting power to portable gadgets in the business computing, professional audiovisual, and medical equipment industries. This three-conductor cloverleaf connection solves a very important engineering problem: it keeps device sizes small while providing the grounding security that Class I safety standards demand. Kuncan Electronics has been making these specialised cables for 17 years, and we've seen firsthand how choosing the right cables can directly affect the stability of equipment, compliance with regulations, and operating efficiency. This guide takes the mystery out of the technical specs, quality factors, and buying strategies for power cords so that B2B buyers can make smart choices when adding them to their supply lines.

What Is an IEC C5 Power Cable? Technical Specifications Explained

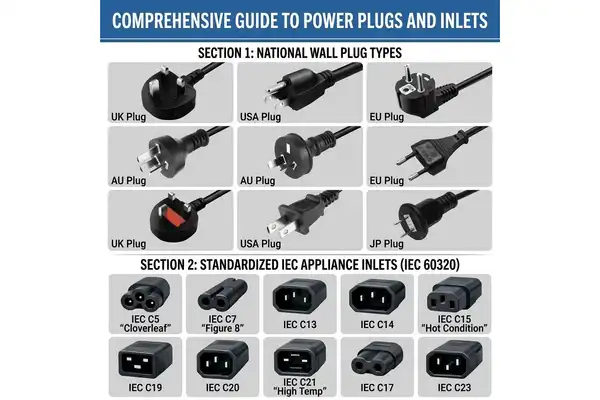

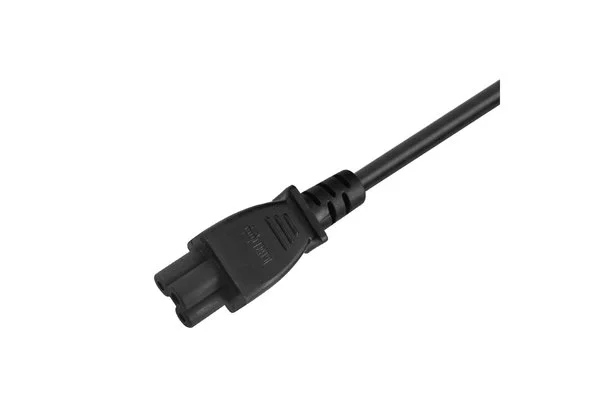

The cloverleaf connection is a standard option that meets the requirements of IEC 60320 world standards. It is designed to fit with C6 input sockets. Its unique three-lobed cross-section—which is why it's sometimes called the "Mickey Mouse" connector—holds three cylinder-shaped contact ports that are grouped in a polarised way. This design makes sure that the Line and Neutral are properly aligned, which is an important safety feature for keeping electrical dangers from happening in work areas.

Electrical Ratings and Performance Parameters

Internationally, standard setups can handle 2.5A at 250V, but UL-certified versions can handle up to 7A or 10A, based on the wire size requirements. Our VDE-approved CEE 7/7 to IEC C5 lines have 0.75mm² (18AWG equivalent) conductors made from 99.99% Oxygen-Free Copper, which reduces resistance and keeps heat from building up during long-term use. The three-conductor design (3C setup) has specific ground continuity, which makes it different from two-pin connectors like the C7 that are not grounded.

At 70°C, the pin contact temperature keeps the temperature ratings fixed, and the withdrawal force ratings stay between 1.5N and 15N. This precise engineering stops arcing from weak connections while keeping the usefulness of being able to be removed by the user, which is important for mobile workers who have to move tools around a lot.

International Certification Standards

Compliance with regulations is the basis for choosing a safe line. Along with RoHS and REACH environmental compliance marks, our wires have VDE, KEMA, and CE approvals for European markets. These approvals show that strict leaking current requirements, insulation integrity tests, and flame-retardant material requirements meeting UL94 V-0 flammability standards have been met.

Because cloverleaf connectors are polarised, they make sure that the electrical path from the wall outlet to the device power source is aligned correctly. This is a safety feature that is required in both consumer electronics and commercial settings. Knowing about these technology basics helps buying teams choose cords that meet both safety standards and device connection requirements.

Comparing Cable Quality: Materials and Construction Standards

The choice of material has a big effect on how long a wire lasts, especially in hard industrial automation or outdoor placement situations. The success under external conditions like temperature changes, chemical contact, and solar radiation depends on the jacket material (PVC, TPE, rubber, or LSZH).

PVC Versus Advanced Jacket Materials

Our normal PVC jackets are very resistant to wear and tear and keep the right bend radius for laptop power adapters that are wound up over and over again. The high-flexibility recipe doesn't crack in mobile uses and meets the standards for being flame-resistant. Because of these qualities, PVC-jacketed wires are perfect for business computer settings where cost and reliability are important.

Rubber or TPE options for an IEC C5 power cable are good for industrial robotics clients who need to work in harsh situations. These materials can stand up to temperatures between -40°C and +85°C. They can also stand up to oils, acids, and mechanical vibrations. The increased stretch keeps the jacket from breaking in robots or industrial settings where cables move over and over again.

Low Smoke Zero Halogen (LSZH) jackets are used for specific tasks in confined areas like hospital facilities and data centers. LSZH materials don't give off many harmful fumes or acid gases during fires, which protects sensitive equipment and escape paths for people. This choice of material is very important in smart building designs that have power and data systems built in.

Conductor Quality and Molded Strain Relief

For cables to last a long time, the moulded strain relief design at connection terminations is essential engineering. This part of the structure keeps mechanical stress off of the electrical connections. This keeps the conductors from breaking from repeated bends, which is a typical way for portable equipment cords to fail. In our manufacturing process, strain relief is built in during injection moulding. This makes a single unit that can withstand more than 10,000 flex cycles in reliability tests.

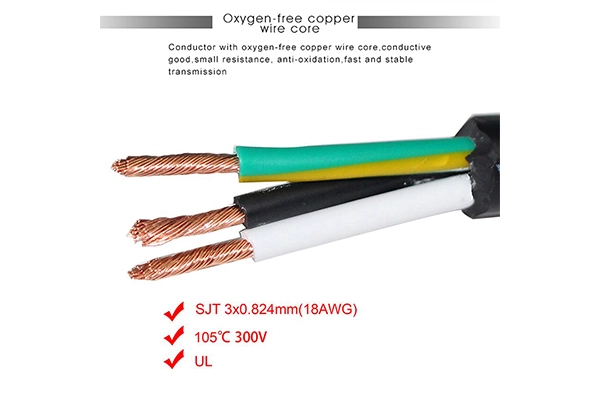

Copper Clad Aluminium (CCA) conductors, which are sometimes found in general wires, are not as good at conducting electricity as pure copper conductors. Because pure copper has less resistance, there is less voltage drop along the length of the wire. This keeps the power source efficient and lowers the amount of heat it makes. Before being put together, each wire strand is tested for continuity and insulator resistance. This makes sure that all production runs have the same level of electrical performance.

Comprehensive testing procedures are part of quality assurance. Every wire goes through a full set of electrical tests, which include checking the high-voltage dielectric strength, consistency, and mechanical stress. This thorough testing makes sure that safety standards are met and finds problems with the way the goods were made before they get to stores.

Selecting the Right Cloverleaf Cable for Business Applications

When making choices about purchases, you have to weigh technical requirements against business needs and spending limits. The selection framework looks at electricity grades, the surroundings, and device connection factors that have a direct effect on how reliable the equipment is.

Voltage and Amperage Capacity Considerations

When you match the wire rates to the power needs of the equipment, you keep it from overheating and breaking down early. Most laptop adapters and pocket projectors, which draw between 1.5A and 2.0A when they're fully charged, can be used with standard cords rated at 2.5A. Applications that need more power, like medical monitoring tools or industrial control systems, might need wires that are designed for 7A or 10A. This means that the conductors need to be bigger and the insulation needs to be better.

The choice of cable length affects both the freedom of placement and the performance of the electrical system. From 1m for desktop accessories to 3m for projector setups in meeting rooms, our choices can be changed to fit your needs. There are worries about voltage drop when wires are longer. For common 0.75mm² conductors, keeping lengths under 5 meters keeps efficiency high and avoids problems with sensitive power sources.

Bulk Procurement Versus Custom Manufacturing

Strategies for buying IEC C5 power cable in bulk rely on the size of the project and the unique needs of the buyer. Our ability to offer in bulk helps businesses that need hundreds or thousands of standard wires. Lead times range from 15 to 25 days, based on the size of the order. This method lowers the cost of goods for system designers who set up business campuses or schools with standard equipment setups.

Custom production is used for unique tasks that need non-standard specs. We offer OEM and ODM services, such as custom jacket colours that match company logos, changed wire materials for chemical protection, and special plugs for connecting proprietary equipment. The customisation process includes a free review of your design by our engineering team, the creation of a prototype within 3–7 days, and the protection of your intellectual property through private tools security.

To show how this selection process works in real life, we outfitted a client's fleet of Dell laptops with 1.8-meter cords that had strengthened strain relief and navy blue jackets that matched the client's brand. The customisation kept the VDE approval while meeting the client's needs for good looks and reliability for a mobile workforce.

Procurement and Supply Chain Optimization Strategies

Finding makers that consistently meet quality standards, follow regulations, and rely on the supply chain is important for navigating global supply networks. There is a big difference between authorised wholesalers and generic providers when it comes to product validity and customer service after the sale.

Supplier Qualification Criteria

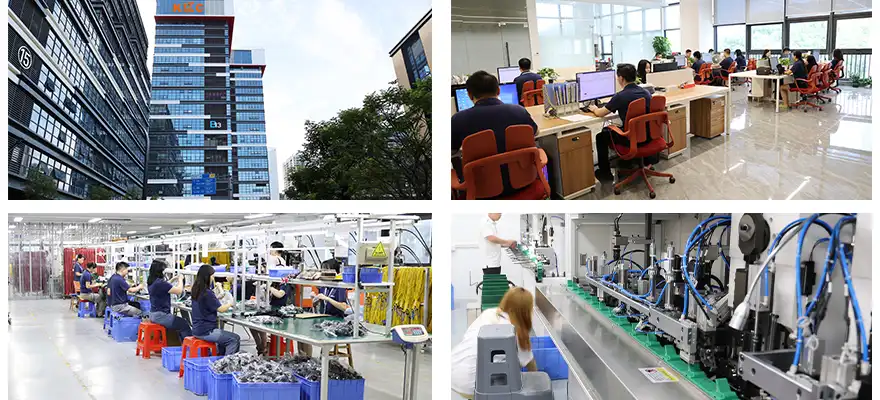

Verification of factory licenses sets a basic level of trustworthiness. Our ISO-certified factory in Dongguan has clear quality control systems with written checking processes for arriving materials, assembly in progress, and final packing. This makes it possible to track the quality of each batch and quickly fix problems if they happen in the field.

Being in the Dongguan/Shenzhen industrial hub gives businesses in the supply chain benefits by putting them close to producers of raw materials and shipping hubs. We can handle a variety of transportation needs, including fast air freight for pressing orders, cost-effective sea freight for large packages, and rail links to European markets. This ability to use multiple modes of transportation guarantees on-time deliveries while keeping freight costs low.

Wholesale Advantages and Custom Order Processes

When you buy in bulk, you can get economies of scale through tiered price systems that reflect gains in production efficiency. Not only do big sales lower unit costs, they also help you plan your inventory better. By matching purchase cycles to expected consumption patterns, you can avoid running out of stock during peak deployment times. Our flexible minimum order amounts can be used for both big projects and smaller restocking orders. This means that you don't have to pay to keep extra stock of specialised wire types.

The process of making a custom order starts with a talk of the specifications. During this meeting, our expert team looks at the power needs, the surroundings, and the certification requirements. By making samples within a week, you can test them for quality before going to mass production. This iterative method lowers the risk in mission-critical systems like medical equipment or industrial control systems where a broken wire could stop operations.

Included in warranties are extra protections against risk. Our normal one-year guarantee covers problems with the way the product was made. If something needs to be replaced or fixed, our customer service team will get back to you within 24 hours. In fields like healthcare, where equipment lasts 7–10 years and long-term supply of parts is important, extended guarantee choices are useful.

Building Confidence Through Manufacturer Reputation and Certification

Suppliers of IEC C5 power cable can earn your trust if they can show that they control quality, are honest in their business practices, and follow international standards. Certification level, customer reviews, and expert help skills make it clear which is which between well-known makers and common providers.

Quality Assurance and Testing Protocols

Our 17-year background of making gives us a lot of experience with the moulding of connectors, the end of conductors, and the extrusion of jackets. This experience leads to process improvements that lower the number of mistakes and make production more consistent. Under ISO 9001 quality management systems, more than 300 skilled workers run specialised tools and keep statistical process control going to find differences before they affect product performance.

The thorough testing program backs up claims about safety and efficiency. Continuity testing makes sure that the conductors are properly terminated and that there are no high-resistance links that cause the voltage to drop. Insulation resistance tests at high volts proves that the stability of the jacket stops current leaking. Mechanical stress testing mimics years of coiling and bending, making sure that strain release works well before the product goes on sale.

Customer Feedback and Brand Recognition

Reputation in the market is based on how customers have felt about different products over time. As an Alibaba Verified Supplier, we run our business in an open way, with clear records of our production capacity, financial stability, and export compliance. This third-party proof lowers the risk of buying for people from other countries who don't know much about Chinese production.

Customer reviews from companies that make medical devices, install AV systems, and sell IT tools show that the product works well in tough situations. These partnerships often turn into long-term ones where engineers work together to meet new needs, like fast-charging methods or special licenses for new companies that want to get into the market.

Authorised partner networks go beyond producing to make sure quality. When you work with approved wholesalers, you can be sure that your products will be stored properly and that you will get local expert help. This infrastructure is especially useful in controlled fields like healthcare, where compliance checks can use traceability documents and group tracking to find problems.

Conclusion

To make sure equipment is safe and operations keep going, choosing the right IEC C5 power cable cloverleaf power lines means combining technical specs, material quality, and source dependability. The polarised three-pin design meets the needs for small grounding while still meeting international safety standards. When choosing between PVC, rubber, and LSZH covers, the surroundings and the performance needs of the product must be taken into account. Strategies for buying things should focus on certified makers with clear quality systems, thorough testing procedures, and helpful customer service. By knowing these selection factors, B2B buyers can improve the stability of the supply chain, keep costs low, and make sure they follow all the rules for uses in medical equipment, consumer electronics, and industrial automation.

FAQ

What kinds of devices use cloverleaf plugs all the time?

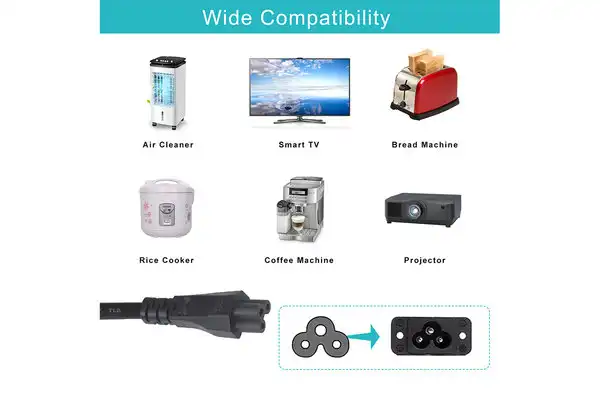

In workplace computer settings, millions of units from big brands like Dell, HP, and Lenovo are used as laptop power adapters, making them the most common use. This small grounded link keeps audio and video from getting messed up by ground loops in portable screens used in classrooms and meeting rooms. These wires are used in medical monitoring tools like portable ultrasound machines and patient monitors because they are reliable at grounding and meet hospital-grade electrical safety standards.

Can cloverleaf wires be used instead of C13 power cords?

No, these types of connectors are not suitable because they are used for different things and have different electricity values and sizes. C13 plugs have rectangular shapes and can handle 10A of constant power, so they can be used with desktop computers and network gear. The cloverleaf's 2.5A rating and small three-lobed form make it perfect for grounding handheld items that don't take up much room. Using the wrong types of connectors can be dangerous because they can get too hot, and they also void the guarantee on the equipment.

How can I be sure of the quality of the wire before I buy it?

Check the plug's body for certification labels like VDE, UL, CCC, or PSE marks, which show that it has been tested for compliance by a recognised safety laboratory. You can tell a good cable is good by measuring the weight of the wires and the electrical resistance. Good cables have pure copper conductors, not copper-clad aluminium. Flexible strain relief at connecting joints shows that the moulding was done correctly, which keeps the wire from breaking too soon. Ask the maker for test results that show the insulating strength, insulator resistance, and mechanical longevity.

Partner with Kuncan Electronics for Reliable Power Connectivity Solutions

Kuncan Electronics sells VDE-certified cloverleaf power cords that are designed to meet the strict needs of uses in medical equipment, household electronics, and industrial automation. As a well-known company that has been making things for 17 years, we offer solutions that can be tailored to your needs, from standard 1m setups to specialised cables with custom jacket materials and stronger strain relief. Our ETL, CE, and RoHS certifications make sure that our products are safe for use in all markets around the world, and our 100% electrical testing makes sure that every production batch works the same way. Our engineering team works with you from the creation of a prototype all the way through mass production, whether you need a lot of laptops for a business rollout or OEM specs that are specific to a piece of equipment. Get in touch with our experts at rhea@szkuncan.net to talk about your unique needs and get a full quote for high-quality IEC C5 power cable provider options that come with clear pricing, quick samples, and dedicated technical support.

References

International Electrotechnical Commission. (2018). IEC 60320-1: Appliance Couplers for Household and Similar General Purposes - Part 1: General Requirements. Geneva: IEC Publications.

Underwriters Laboratories. (2020). UL 817: Standard for Safety Cord Sets and Power-Supply Cords. Northbrook, IL: UL Standards & Engagement.

Association of Home Appliance Manufacturers. (2019). Power Cord Selection Guidelines for Portable Electronics. Washington, DC: AHAM Technical Publications.

European Committee for Electrotechnical Standardization. (2017). EN 60320-1: Appliance Couplers - Safety Requirements and Testing Procedures. Brussels: CENELEC Standards.

National Electrical Manufacturers Association. (2021). NEMA WD 6: Wiring Devices - Dimensional Specifications. Rosslyn, VA: NEMA Publications.

Institute of Electrical and Electronics Engineers. (2019). IEEE 1100: Recommended Practice for Powering and Grounding Electronic Equipment. Piscataway, NJ: IEEE Standards Association.
