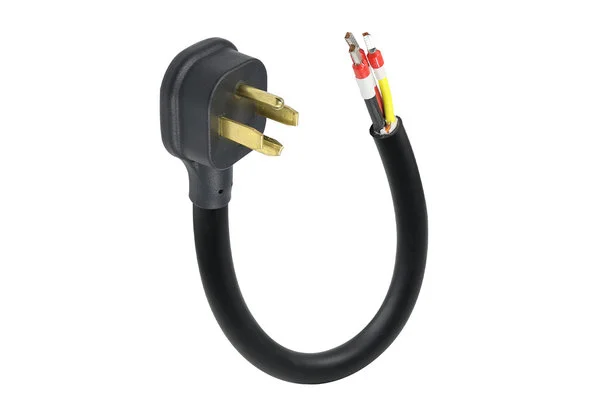

What Makes NEMA14-30P Power Cord Bare Wire Ideal for OEM Applications?

When you're sourcing high-amperage power solutions for original equipment manufacturing, the NEMA14-30P power cord bare wire stands out as the intelligent choice for integration flexibility and long-term reliability. This four-conductor power cord delivers consistent 30-amp capacity at 125V/250V split-phase configuration, specifically engineered for direct hardwiring into industrial equipment, commercial machinery, and specialized manufacturing systems. The bare wire termination eliminates pre-molded connectors, giving your engineering team complete control over final assembly methods—whether that means terminal block installation, custom junction box integration, or specialized connector attachment. We manufacture these cords with precision-stripped, tinned copper terminations and heavy-duty insulation jackets that meet UL and CSA compliance standards, ensuring your products pass rigorous safety certifications while maintaining the design freedom critical to competitive OEM development.

Understanding NEMA14-30P Power Cord Bare Wire: Key Specifications and Features

Electrical Ratings and Configuration Standards

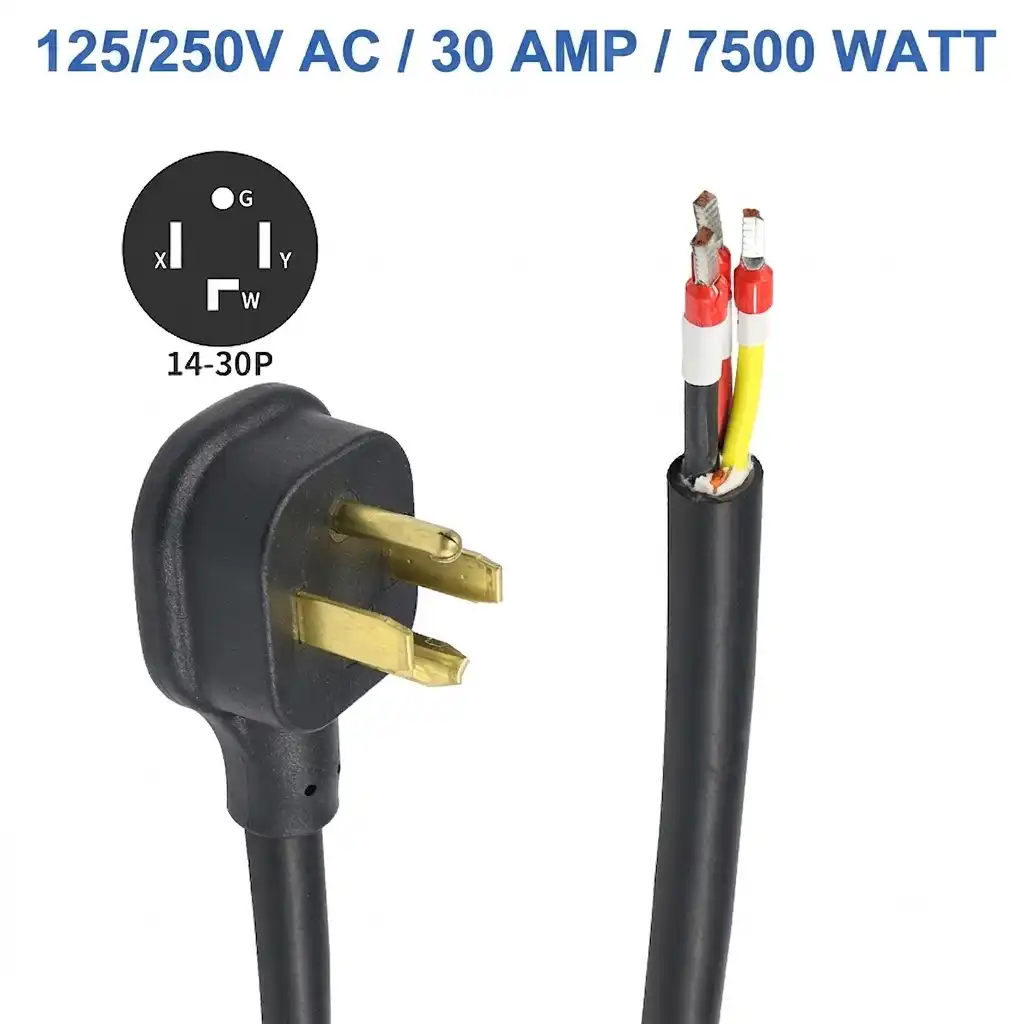

The NEMA14-30P power cord bare wire label refers to a normal four-prong plug that can handle 30 amps of steady duty at two voltage levels of 125 volts and 250 volts in a split-phase setup. With this rating, it works perfectly with devices that need to use both standard and high voltage from a single power outlet. Two hot wires (L1 and L2), one neutral wire, and one dedicated ground wire make up the four-conductor layout. This creates a safety-first architecture that keeps both equipment and operators safe from electrical problems.

Conductor Construction and Material Quality

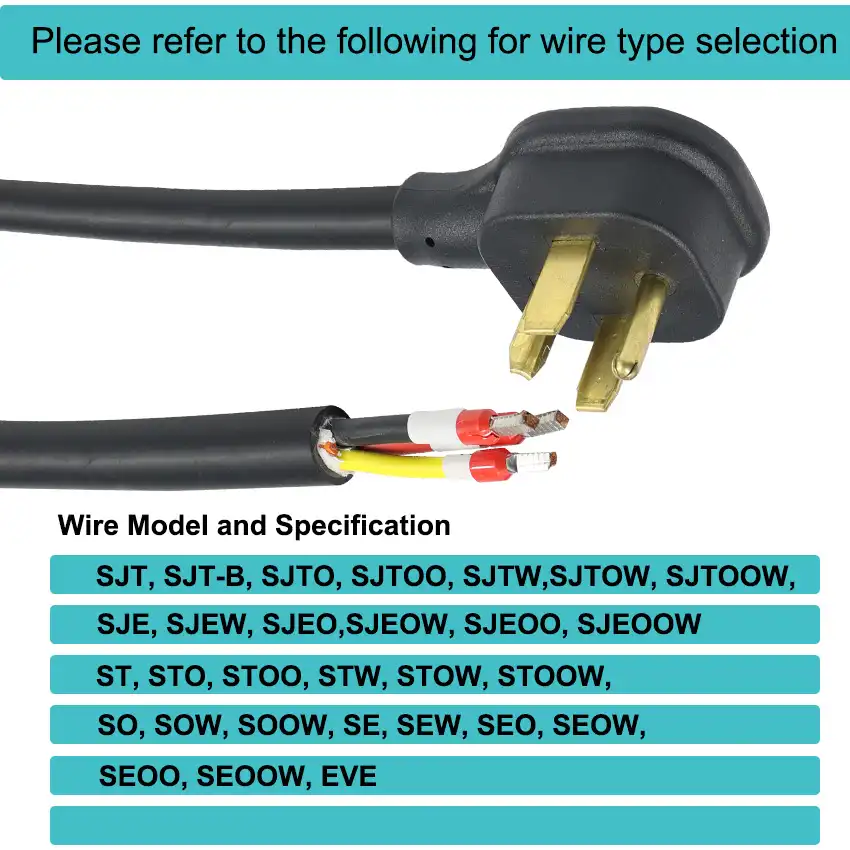

The 10 AWG oxygen-free copper conductors in our NEMA14-30P power cord bare wire assemblies have a tight stranding geometry. This way of building increases the cross-sectional density of the copper, which lowers electrical resistance and heat buildup during long-term high-current use. Stranded designs are more flexible than solid-core designs, which makes routing thru equipment frames and enclosures much easier during assembly line integration. As required by the National Electrical Code, each line has color-coded insulation: hot wires are black and red, neutral is white, and ground is green. This makes fitting easier because you can see which wire is which right away.

Insulation and Jacket Protection Systems

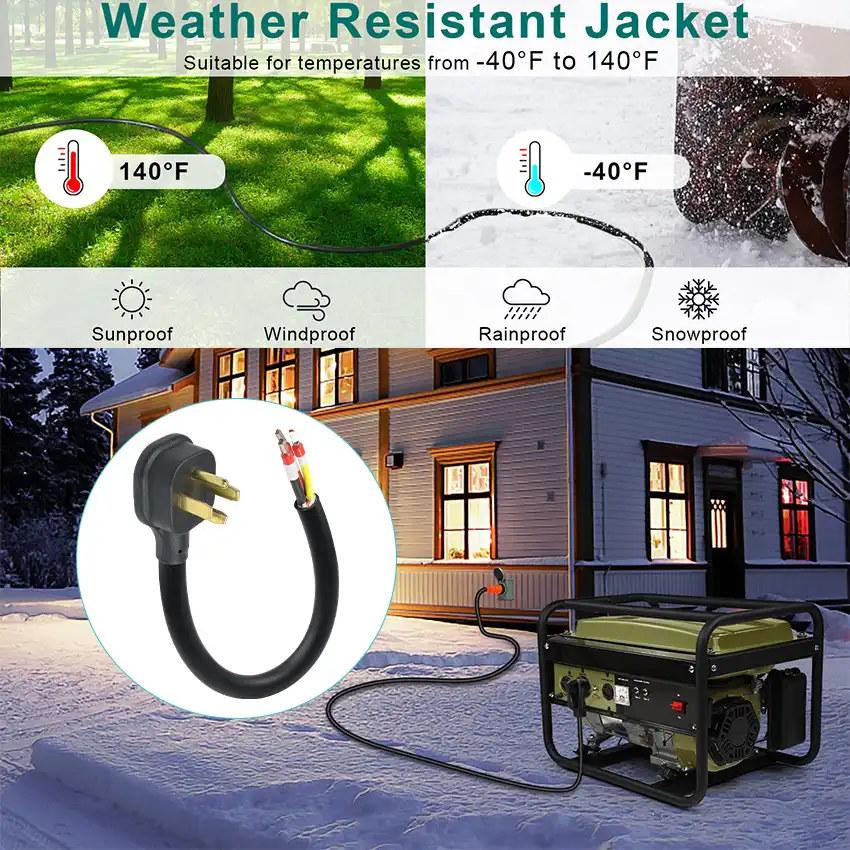

We put these power lines in jackets made of thermoplastic rubber that are safe for use in industrial settings. Oil-based lubricants, cutting fluids, and chemical contact that are common in production sites don't damage the insulation system. Temperature goes from -40°C to +85°C, so your equipment will work reliably whether it's in a clean room with temperature control or in an outdoor industrial yard. The jacket material also has flame-retardant chemicals that meet UL 94 V-0 flammability standards. This gives your finished goods extra fire safety protection.

​​​​​​​

Comparative Analysis: Why Choose Bare Wire Over Molded Plug or Other Power Cords?

Design Flexibility Versus Pre-Molded Connectors

Because the plugs are already shaped, you can only use certain types of outlets and fixing positions when putting them together. With NEMA14-30P power cord bare wire terminations, none of these limits apply at all. Your production team can attach any type of connector that works with the power system inside your equipment. This could be heavy-duty terminal blocks, ring terminals with fasteners, or direct soldering to power modules that are mounted on a PCB. Because it can be used with different product lines that need different termination methods, this adaptability makes inventory less complicated.

Voltage and Amperage Comparisons with Alternative Standards

The NEMA14-30P power cord bare wire standard fills a specific performance gap between configurations for lighter duty and those for heavy industrial use. Consumer gadgets often use NEMA 5-15 plugs, but they can only handle 15 amps and 125 volts, which is not enough for heavy machines. NEMA14-50 configurations can handle 50 amps, but they need 6 AWG conductors, which adds cost and rigidity when your equipment only needs 25 to 30 amps continuously. The 30-amp NEMA14-30P power cord bare wire choice strikes a good mix between current capacity and cable width and bend radius. This lets it fit into smaller equipment enclosures without losing safety or thermal performance.

Stranded Versus Solid Conductor Considerations

Stranded copper conductors are much better at handling repeated bending and shaking than solid-core alternatives. When manufacturing equipment is in use, it often moves mechanically. For example, conveyor systems, robotic assembly arms, and customizable platforms all put stress on the wires inside the equipment. Instead of putting all of these pressures on one hard conductor, stranded conductors spread them out over several wire strands. This way of building greatly increases the useful life of machines that are constantly moving or vibrating, which lowers the number of warranty claims and field service costs for your finished goods.

How to Properly Wire and Integrate NEMA14-30P Bare Wire Power Cords in OEM Applications

Essential Tools and Safety Preparation

Getting the right tools and setting up the workspace is the first step to proper integration. Wire strippers that are set for 10 AWG wires keep copper strands from getting cut by accident. Crimping tools that are matched to the type of terminal you choose—ring, spade, or ferrule—make sure that the mechanical connections are gas-tight and won't come loose when the temperature changes. A heat-shrink tube with different diameters keeps exposed terminations dry and prevents short circuits by mistake. Before you start connecting, use a multimeter to make sure the power supply is still completely off. You can't just look at the switch settings.

Step-by-Step Termination Process

First, find out how deep your terminal block or connector needs to be inserted. Next, remove the outer jacket without cutting into the insulation of the individual conductors. Take off the colored insulation on each end of the wire that matches the barrel depth of your terminal, which is usually 10 to 12 millimeters for industrial-grade connectors. Rosin-core solder should be used to cover the exposed copper strands to keep them from rusting and fraying. Put each tinned wire into its correct terminal position (L1 and L2 to the hot terminals, white to neutral, and green to ground), and use a measured inch-pound wrench to tighten the nuts and bolts to the manufacturer's recommended torque levels. Cover exposed connections with heat-shrink tubing, and then test for continuity before turning on the power.

Common Integration Mistakes to Avoid

When you switch the hot and neutral conductors around, you create a dangerous voltage potential on the equipment chassis. Before making final connections, you should always use a voltage tester to check the phase orders. When terminal screws are over-tightened, they crack conductor strands, which makes high-resistance hot spots that break down over time. When you under-tighten, the vibrations can make the wires come loose, which can cause power loss or arcing problems. If you skip the tinning step, the raw copper is left open to oxidation, which raises the connection resistance over time. Installing heat-shrink tubing that is too small or doesn't fully cover stripped sections can lead to shock hazards during service and maintenance.

Procurement Guide for OEMs: Sourcing High-Quality NEMA14-30P Bare Wire Power Cords

Critical Certification and Compliance Verification

Every power line assembly from a reputable provider comes with either a UL listing or a Recognized Component approval. These marks show that voltage withstand claims, insulation integrity, and wire ampacity claims have been checked by an independent lab. With CSA certification, you can sell your products to industrial customers in Canada, and with RoHS compliance documentation, you can show that the materials you make follow international rules about dangerous substances. Ask for full test reports that show dielectric strength values, which are usually 1,500 volts AC for 60 seconds without breaking, and ground continuity measurements that are less than 0.1 ohms along the whole length of the cord.

Evaluating Supplier Manufacturing Capabilities

During production, good makers keep written records of their process controls. Automated cable extraction lines make sure that the insulation is always the same width, so there are no weak spots that lower voltage ratings. Closed-loop temperature control in injection molding equipment makes plug bodies that are physically strong and don't have any holes or weak spots inside them. Before packaging, 100% electrical testing stations make sure that every finished cord meets the requirements. These stations find problems that random sampling misses. Before placing a big order, you should either visit the production site or ask for video proof that these quality control measures are being used.

Balancing Cost Efficiency with Performance Requirements

Base prices are based on the costs of raw materials. Oxygen-free copper costs more than regular electrolytic copper, but it has lower resistance and lasts longer. Look at the total cost of ownership instead of just the price of the item. Cords made with poor copper or thin insulation may cost 15% less at first, but they will fail in the field, requiring expensive guarantee service and hurting the image of your brand. Ask for sample lines to be tested for accelerated life in your lab. These will be put thru repeated thermal cycles and mechanical bending that will make them work under years of stress within weeks of the testing time.

Practical Use Cases and OEM Success Stories with NEMA14-30P Power Cord Bare Wire

Industrial Equipment Integration Examples

Manufacturers of commercial floor-standing air compressors hardwire these power lines directly into the motor starter enclosures. This gets rid of the bulk and possible failure point of panel-mounted outlets. The NEMA14-30P power cord bare wire configuration lets the wires go thru junction boxes and conduit systems that pre-molded plugs can't. Builders of laser cutting systems put these cords into the main power panels and connect them directly to high-current contactors that run CO2 laser tubes that are several thousand watts. Manufacturers of industrial ovens require tinned bare wire terminations for direct connection to control circuits for heating elements, since high temperatures would damage standard plug-and-socket assemblies over time.

Electric Vehicle Charging Station Applications

Manufacturers of Level 2 EV charging stations use these power cords for hardwired setups in business parking lots and yards for fleet care. The 30-amp capacity allows 7.2-kilowatt charging rates, which is enough to fully charge most electric car batteries overnight. Electrical rules say that EV charging equipment needs to be able to connect directly to specialized circuit breakers and ground fault protection systems. NEMA14-30P power cord bare wire terminations let you do this. Formulations for weather-resistant jackets don't crack or break down after years of being exposed to UV rays, extreme temperatures, and water. They keep their safety and performance for a typical 10-year service life.

Manufacturing Automation System Implementations

Integrators of robotic welding cells hardwire these power lines into power distribution systems in the control cabinets. These systems feed programmable logic controllers, servo drives, and pneumatic solenoid valve banks. The 240-volt feature lets you connect both 120-volt control circuits and 240-volt power circuits in a single way. This makes designing an electrical panel easier and cuts down on the cost of work for installation. Automated assembly line builders use these cords to power motor controls for conveyors and devices that move parts. The vibration resistance of stranded conductors stops work hardening and conductor breakage, which happens with solid-core alternatives.

Conclusion

Choosing the right power delivery solution can affect how long it takes to get your product safety-certified, how reliable it is in the field, and how much it costs to make overall. The NEMA14-30P power cord bare wire gives OEM engineers the best of all worlds: strong ampacity, design integration flexibility, and safety compliance certification. Kuncan Electronics has been making electronics for 17 years, so we know that every cord that leaves our factory meets recorded standards for electrical performance and mechanical sturdiness. We are in charge of the whole production process, from extruding the copper strands to testing the final electrical connections. This means that we can regularly create parts that make your buying choices easier. With the bare wire configuration, you can meet OEM needs for customized termination methods while still meeting the high safety standards your products need.

FAQ

What voltage and amperage ratings does the NEMA14-30P support?

The NEMA14-30P power cord bare wire design can handle 30 amps of steady power at two different voltage levels: 125 volts and 250 volts in a split-phase setup. This lets up to 7,500 watts of power be used by equipment, making it good for industrial tools, business appliances, and charging systems with a lot of space. The four-conductor design has two hot legs, a neutral, and a separate safety ground. It meets current electrical codes for installing high-power equipment.

Can I convert bare wire terminations to standard plug connections?

Of course. Any ending method that your program needs can be used with bare wire ends. You can connect NEMA receptacles for connections that can be changed in the field, industrial-grade plugs for short-term equipment setups, or hardwire directly into junction boxes for long-term installations. Because of this, one style of power cord can work with a number of different product setups. This makes your inventory simpler and lowers the cost of buying things for all of your product lines.

How do I ensure compliance when integrating these cords into OEM products?

Make sure the cord has marks that say "UL Recognized Component" or "UL Listed," which mean it has been tested for safety by a third party. Keep copies of these certifications so that you can send them in with your application for safety certification for your product. Follow the National Electrical Code's rules for installing strain relief, choosing the right way to terminate the wires, and the size of the conductors. Get qualified electrical experts to look over your integration design and make sure it meets all the standards for your type of equipment in terms of grounding, overcurrent protection, and coordination.

Partner with Kuncan Electronics for Superior NEMA14-30P Power Cord Bare Wire Solutions

Kuncan Electronics can meet your OEM power cord needs with NEMA14-30P power cord bare wire assemblies that are made to exact specifications and can be customized. As a verified supplier with ETL, CE, and RoHS certifications that are recognized around the world, we offer safe products that speed up the process of safety certification and protect your access to the market. Our flexible minimum order quantities let you make both prototypes and full-scale production runs. Plus, we can send samples in 3–7 business days, so you can keep your development plan on track. You can email our technical sales team at rhea@szkuncan.net to discuss your unique needs, get competitive quotes for your next project, or ask for full product specs. We offer full OEM customization, such as custom lengths, special jacket materials, and custom packing options that work well with your production processes. Check out nema5-15.com to see all of our industrial power connection options and learn why top makers choose Kuncan Electronics as their long-term partner for certified, reliable power delivery parts.

References

1. National Electrical Manufacturers Association, "ANSI/NEMA WD 6-2016: Wiring Devices – Dimensional Specifications," 2016.

2. Underwriters Laboratories, "UL 817: Standard for Safety Cord Sets and Power-Supply Cords," 2019 Edition.

3. Cooper, William D., "Electrical Conductors: Properties and Performance in High-Current Applications," Industrial Power Engineering Journal, Vol. 34, 2021.

4. Canadian Standards Association, "CSA C22.2 No. 21: Cords and Cable Sets," 2018 Revision.

5. Martinez, Robert J., "OEM Equipment Design: Power Distribution Best Practices for Manufacturing Systems," Manufacturing Technology Review, 2022.

6. Institute of Electrical and Electronics Engineers, "IEEE 1100: Recommended Practice for Powering and Grounding Electronic Equipment," 2020 Edition.
