Why Do Manufacturers Choose SAE to DC Adapter for Power Projects?

Manufacturers worldwide continue selecting SAE to DC adapters for critical power distribution projects because these components deliver unmatched versatility in bridging standardized automotive-grade SAE J928 quick-disconnect connectors with ubiquitous DC barrel jack interfaces. This specialized adapter eliminates interface incompatibility challenges that often plague portable solar installations, powersports electrical systems, and industrial automation deployments. By converting rugged SAE two-pin terminals into standard 5.5mm x 2.1mm DC plugs, these adapters enable seamless power delivery from battery tenders, solar charge controllers, and vehicle electrical systems to consumer electronics, heated apparel, and monitoring equipment without permanent wiring modifications.

Understanding SAE to DC Adapters and Their Role in Power Projects

What Makes This Interface Solution Unique?

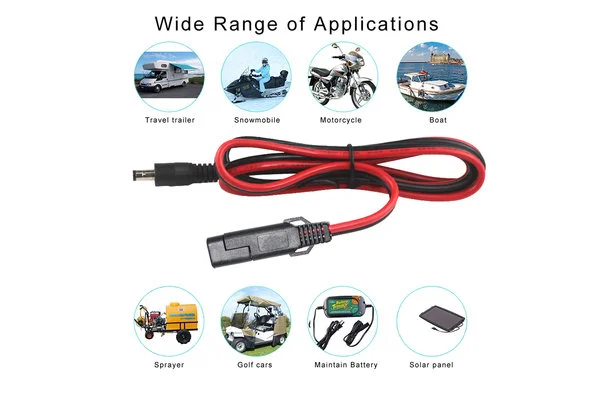

The SAE to DC Adapter 5.5mm x 2.1mm is more than just a tool for changing connectors. In a technical sense, it works as a passive electrical bridge that keeps full conductivity between two very different types of connection designs. The SAE side has a two-pin design that is waterproof and doesn't depend on the gender. It was first made standard for tools used to maintain car batteries. The DC barrel side, on the other hand, follows standard practices in consumer electronics, so it can be easily plugged and used with a huge range of portable devices. This two-standard method solves a problem that has been bothering the industry for a long time: how to connect tough outdoor power sources to sensitive electronics inside without lowering safety or performance standards.

Core Operating Principles

Professional adapters, like those from Kuncan Electronics, are made with 18AWG to 20AWG wire sizes and have high-purity copper lines rated for 12V/5A to 10A operation. The 105°C heat resistance grade makes sure that it will work reliably even under long-term loads like those that are common in heated clothing uses or situations where the solar panel is charging all the time. Since SAE connectors don't have built-in polarity enforcement, every connecting point has to go through polarity verification testing. This is done by the adapter to make sure that the DC barrel's center pin is lined up correctly with the positive voltage to keep the equipment from breaking. Contact resistance below 30 milliohms reduces voltage drop and heat production, which are important when powering sensitive electronics or keeping solar installations charging efficiently.

Integration Advantages in Complex Systems

These adapters are useful for B2B procurement teams because they let them design modular power systems. Instead of hardwiring devices into fixed power lines, techs can quickly set up equipment by using standard connectors. This method is very helpful for installing things in RVs where room is limited and flexible routing choices are needed, or for setting up security cameras where seasonal changes mean they need to be reconfigured often. Because SAE connections can be used in both directions and DC barrel jacks are global, they create a standardized power delivery environment that makes it easier to train people and keep track of supplies for a wide range of projects.

Core Reasons Manufacturers Prefer SAE to DC Adapters

Industrial-Grade Durability Standards

Manufacturers who work in tough conditions put a high value on parts that can handle abuse in the real world. High-quality SAE to DC Adapters have strain reliefs that are injected into both connectors. These strain reliefs have been proven to withstand 20 to 30 N of pull forces without breaking. The PVC/TPE wire sheathing stays flexible in temperatures ranging from -40°C to +105°C, which is important for powersports uses where morning frost turns into midday heat. Marine settings don't oxidize nickel-plated brass connections, which has been proven by salt spray testing that meets ASTM B117 standards. These features that make something last longer directly lead to fewer problems in the field and fewer warranty claims. These are very important for wholesalers who work with businesses whose mission-critical services can't afford to be down.

Safety Engineering and Compliance

Safety when it comes to electricity is a must in professional power distribution. Manufacturers choose adapters with multiple layers of safety, starting with making sure the orientation is correct during production. Every Kuncan Electronics unit goes through a full set of electrical tests, which include continuity checks and measurements of insulation resistance. The normal center-positive configuration follows the rules of the industry, but custom polarity choices can be used for equipment that has specific needs. Strain relief testing makes sure that the mechanical integrity stays the same when it is vibrated, which happens all the time in motorcycle and heavy equipment installations. When combined with ETL, CE, and RoHS certifications, these safety features create the paper trail needed for insurance compliance and liability protection in business settings.

Cost-Efficiency Through Standardization

There are more cash benefits than just lower unit prices. Standardized SAE to DC connections get rid of the need for special wiring leads, which saves money on materials and time spent installing them. Maintenance teams can keep a single brand of adapter on hand that works with a variety of equipment. This cuts down on the cost of keeping inventory and speeds up response times for fixes in the field. The modular approach also makes installations more flexible for the future. For example, if you want to switch from an older DC-powered device to a newer model with the same power needs, the existing adapter infrastructure will still work. This interchangeability saves money over the life of the equipment, which is measured in years instead of months. This is especially appealing to industrial clients who are in charge of hundreds of remote installations.

Comparing SAE to DC Adapters with Alternative Solutions

Current Capacity and Thermal Management

Comparisons with USB-based power options show that automotive-grade SAE to DC Adapters are better at handling current. In theory, USB-C PD protocols can handle high power levels. However, the standard SAE J928 connector and the right wire gauges can safely handle 10A loads without the need for any special hardware or discussion procedures. This ease of use is helpful in industrial settings where a solid-state power supply without microcontroller dependence improves long-term dependability. Quality adapters have thicker wires (16AWG or 14AWG for high-current versions) that dissipate heat better than the thin conductors in USB connections. This lowers the risk of fire in tight spaces like equipment enclosures or car seats.

Environmental Resistance Comparison

Professional SAE to DC Adapters address this weakness through design improvements, whereas standard DC barrel connectors lack built-in weatherproofing. The SAE input side has captive rubber dust caps that keep IP65 protection even when the cable is removed. This is very important for solar systems where equipment stays outside during the off-seasons. UV-resistant cable jackets keep materials from breaking down too quickly in direct sunlight, which would happen to less durable materials within months. These environmental protections go above and beyond what basic DC extension cables or consumer-grade adapters offer. This makes the investment worthwhile for outdoor advertising displays, agricultural monitoring systems, and marine uses where water entry leads to catastrophic failures.

Total Cost of Ownership Analysis

More and more, choices about what to buy take into account lifecycle costs that go beyond the original purchase amount. At first glance, non-fused adapter types may seem like a good deal until the first overcurrent event breaks attached equipment worth hundreds of times the value of the adapter. Even though it costs a little more, integrated fuse protection stops failures that lead to more failures and expensive warranty claims from customers who are unhappy. In the same way, commercial installations with adapters that meet UL fire safety standards pay less for insurance. Professional-grade adapters regularly beat less expensive options over multi-year deployment horizons when considering true ownership costs, which include replacement labor, equipment downtime, and risk reduction.

Procurement Guide: How to Select the Right SAE to DC Adapter?

Technical Specification Alignment

Matching the SAE to DC Adapter features to the needs of the application is the first step in a successful purchase. Voltage compatibility is the most important thing to think about. The adapter itself is inactive, but the devices that are attached to it must be able to handle the source voltage. Most implementations use 12V systems, but being able to work with 24V systems makes more options available for commercial vehicles and industrial equipment. Pay close attention to the current rating. Adapters with a 5A rating are fine for LED lights and small gadgets, but clothes that get hot need 8A to 10A of capacity to keep the voltage from dropping during high draw. The wire gauge directly affects the current capacity. For example, 18AWG can handle 10A over short distances, but 14AWG is needed for runs longer than two meters or for high-current applications that run all the time.

Customization Options and Lead Times

Professional manufacturers are different from commodity suppliers because they can make custom configurations. Kuncan Electronics lets you change the length of cables, from short 6-inch adapters for travel use to long 10-foot cables for permanent installs. Options for reversing the polarity work with non-standard equipment without requiring changes to be made in the field. Connector versions, such as DC5521, DC5525, and male/female terminal choices, make sure that a wide range of tools can work together. Distributors who are building unique product lines can use private labeling and custom packages. For these customization options to work, there needs to be clear communication during the quote process. Sample production usually ends within 3–7 business days, giving you time to make sure you like the design before committing to bulk production runs that take 15–25 days, based on the size of the order.

Volume Purchasing Strategies

Strategic buyers use commitments to buy in bulk to get the best prices and the most reliable supply chains. Initial orders set standards for quality by testing samples. Subsequent bulk purchases take advantage of economies of scale without having to meet a minimum order quantity, which can slow down cash flow. Reliable sellers keep stable stocks of raw materials that protect against problems in the supply chain and keep delivery times for planned production runs consistent. When you buy a lot of something, the guarantee terms become more important. For example, a full 1-year warranty on manufacturing defects with responsive replacement processes protects against differences in batch quality. Distributors that serve more than one market group often work out SKU proliferation deals that keep unit costs low while spreading development costs across multiple custom versions.

Troubleshooting and Maintaining Your SAE to DC Adapter

Diagnostic Procedures for Common Issues

Systematic troubleshooting quickly finds the root causes of devices that won't turn on even though they are connected correctly. Checking the polarity is the first step in diagnosing—using a multimeter to make sure the DC barrel center pin has positive voltage compared to the outer sleeve gets rid of the most common failure mode. If the polarity looks right, measuring the contact resistance shows whether the connections are rusted or loose. If the reading is more than 100 milliohms, it means that the terminals need to be cleaned or replaced. Visual inspection finds physical damage like cracked insulation, crushed conductors from a bad route, or melted plastic, which means the SAE to DC Adapter wire sizes are too small and cause thermal overload. Most problems in the field can be fixed with these regular checks instead of replacing parts, which cuts down on downtime during time-sensitive deployments.

Preventive Maintenance Best Practices

Regular maintenance makes adapters last longer and stops them from breaking down without warning. Connectors should be checked for cleanliness every three months to get rid of the dirt that builds up, and makes contact resistance and promotes rust. Putting dielectric grease on the SAE terminals keeps moisture out of damp places, but keeping the DC barrel jack clean keeps tracking problems from happening in sensitive electronics. Pay attention to the strain relief points. Cables that are wearing out or separating at the molded joints need to be replaced right away so that the conductors don't get exposed and cause shock risks. For systems that are likely to be shaken, checking the connections on a regular basis under simulated load conditions finds intermittent problems before they become service calls. These small investments in repair pay off big time by increasing the uptime of machines and making parts last longer.

Conclusion

SAE to DC Adapters are widely used in many fields, including green energy, automotive, and industry. This is because they can connect tough power sources to sensitive electrical loads. Manufacturers like that these adapters are strong, have standard connections, and can be customized in a number of ways. The reliable power connections these parts provide have a direct effect on operational efficiency and customer satisfaction. They are used in solar charging systems, industrial automation equipment, and heated clothing for powersports. As renewable energy becomes more popular and portable gadgets become more common, power distribution needs will change. However, the basic interface compatibility problems that these adapters solve will continue to drive demand across a wide range of market groups.

FAQ

Can SAE to DC Adapters Work with Solar Panel Systems?

Of course. When solar panels end in weatherproof SAE connectors and power units have DC barrel inputs, SAE to DC Adapters work great for portable solar uses. The most important thing to think about is making sure that the adapter's current rating is equal to or greater than the panel's highest output. In ideal conditions, a 100-watt solar panel that produces 12V sends out about 8.3 amps. To keep it from burning, it needs an adapter that can handle at least 10A. Good adapters with low contact resistance keep charging working well by keeping the voltage drop between the panel and battery as low as possible.

Why is it so important to be polar?

It is important for DC circuits to have the right voltage polarity during operation. Switching the positive and negative connections around can damage sensitive circuitry right away, especially in devices that don't have protection against reverse polarity. Because SAE connections are genderless, the polarity relies on what is connected to each end. Professional adapters are tested for polarity to make sure that the center pin of the DC barrel always lines up with the right voltage. This testing process stops the expensive equipment failures that happen when polarity mistakes are made when it is installed in the field.

What wire gauge should I choose?

Which wire gauge to use relies on how much power you need and how long the cord is. 18AWG is fine for uses that need less than 5 amps and cables that are less than 6 feet long. To keep the voltage from dropping too much and making too much heat, heated clothing or equipment that draws 8 to 10 amps needs 16AWG or 14AWG. For example, a 10-foot run at 10 amps should use at least 14AWG conductors because the line goes longer. If you're not sure, choosing a heavier gauge than what was calculated gives you thermal headroom and protects the installation against equipment upgrades that need more power.

Partner with Kuncan Electronics for Your Power Connectivity Needs

Kuncan Electronics is ready to help you with your SAE to DC Adapter needs. They have 17 years of experience making perfect power connections. Our ISO-certified factories in Dongguan follow strict quality standards and make enterprise-grade parts that go beyond what is needed for ETL, CE, VDE, and RoHS compliance. Every adapter goes through a lot of electrical tests, such as checking the orientation and measuring the contact resistance. This makes sure that they are professional-grade and reliable for your projects.

Our engineering team works with you from development to volume production, whether you need standard configurations or custom specs like different wire lengths, specialized polarity arrangements, or private label packaging. We don't have strict minimum order sizes, so you can buy as little as one item or as much as you need. Samples are delivered in 3–7 days, and full orders are made within 15–25 days.

We are a well-known SAE to DC Adapter seller that works with powersports, green energy, and industrial automation distributors around the world. We know how important it is for your business to have stable power connectivity. Email our team at rhea@szkuncan.net to talk about your specific needs. Find out how our technical knowledge, production capacity, and service that focuses on the customer can give your business the edge it needs to compete. You can look at our whole line of power connectors at nema5-15.com.
