Wholesale 12V Car Female Socket with Fuse for OEM Projects

When looking for parts for OEM projects, you have to make sure that the power connections are solid. The 12V car female socket with fuse and eyelet terminal is an important part that connects power sources to machinery used in boats, cars, and factories. At Kuncan Electronics, we've spent 17 years improving these heavy-duty battery adapters. We know what makes a part reliable in the field and one that breaks down when it's put under real-world stress. This guide goes over technical specs, installation instructions, and buying strategies that will help buyers and engineering teams make smart choices for tough uses where downtime means lost money.

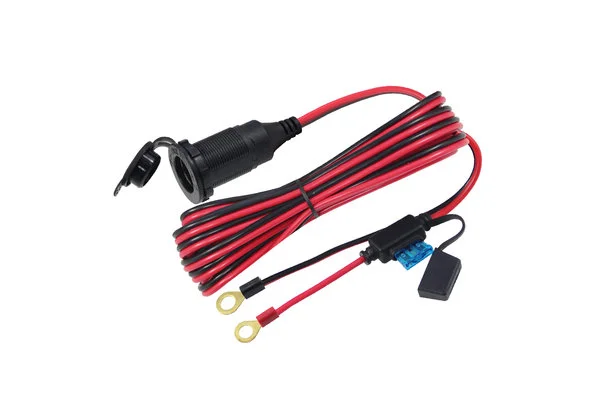

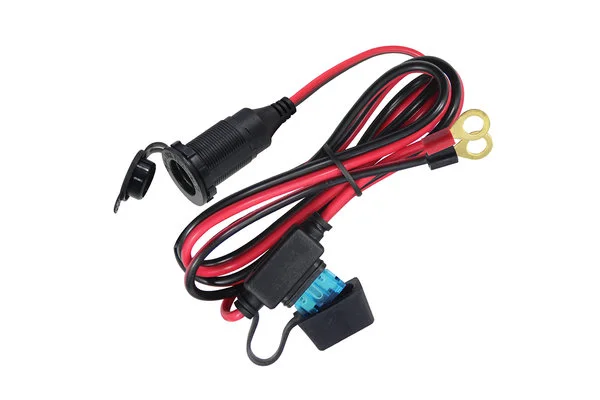

Understanding 12V Car Female Sockets with Fuse and Eyelet Terminal

The way a good 12V car female socket with fuse and eyelet terminal is put together shows why some designs work better in business settings than others. At its core, this gadget is made up of three systems that work together seamlessly.

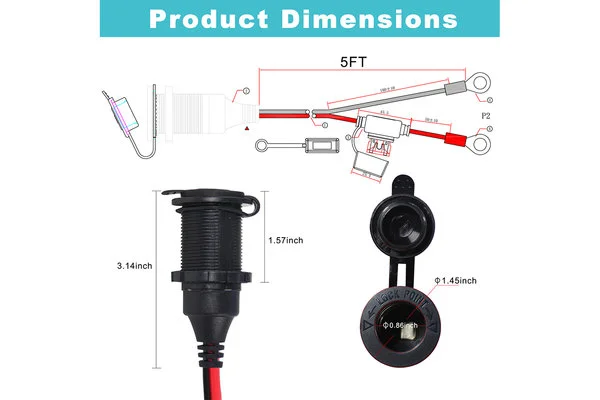

Core Components and Technical Design

The socket unit has an injection-molded housing made of heat-resistant plastics that keep their shape between -20°C and +105°C. Inside, oxygen-free copper contacts make sure that the conductivity is at its highest and the resistance is below 50 milliohms. This is important for keeping voltage drop to a minimum during high-draw uses. Depending on the load, our units have 16AWG, 14AWG, or 12AWG wire with pure copper stranding that doesn't get hard over time or break from shaking.

The eyelet terminal connection method is better than quick-connect options because it can withstand vibrations while attaching. When bolted directly to battery posts, the tin-plated copper design stops galvanic corrosion. This means that the electrical integrity stays the same even in salt spray settings. These ring terminals come in M6, M8, and M10 sizes to fit different battery post sizes used in marine, powersports, and automobile uses.

Integrated Fuse Protection System

The inline blade fuse holder works with standard ATC/ATO fuses that are rated at 10A, 15A, or 20A, so you can choose the right amount of safety for the device that is connected. This safety feature stops the flow of current when the system is overloaded. This keeps the wire insulation from melting and avoids possible fire risks. The waterproof fuse holder design keeps its IP65 rating when it is properly covered, which means that spray and humidity don't get on the electrical connections.

To choose the right fuse amperage, you need to add a 25% safety limit to the total draw from all the devices that are linked. A 5A fuse would be enough to safely power a GPS unit that draws 0.5A and heated grips that draw 3A. However, we suggest 10A for thermal space and inrush current accommodation.

Material Advantages for Demanding Environments

Professional-grade adapters are built to marine-grade standards, which sets them apart from consumer-grade adapters. We ask for wire insulation that is resistant to oil, fuel, and UV light, which is important for installs in the engine bay and outdoor gear. The dust cap keeps the socket from rusting when it's not being used, which extends its usefulness in seaside and off-road settings where salt and grit can get into connections.

Protocols for testing make sure that these standards are met in the real world. As required by ASTM B117, each output batch is exposed to salt spray, goes through thermal cycling between extreme temperatures, and has its final pull-force checked to be greater than 80N. This validation makes sure that parts can withstand vibrations, changes in temperature, and exposure to the environment that would kill options that weren't designed well.

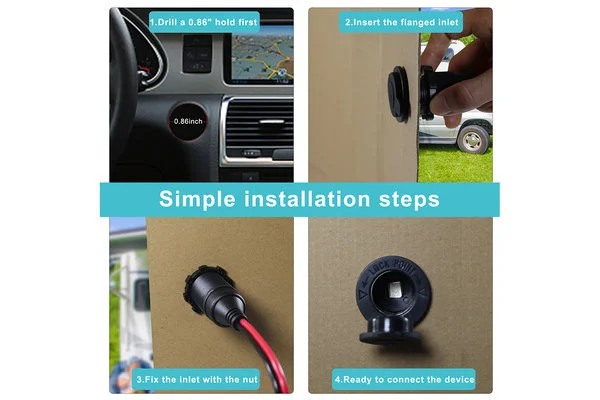

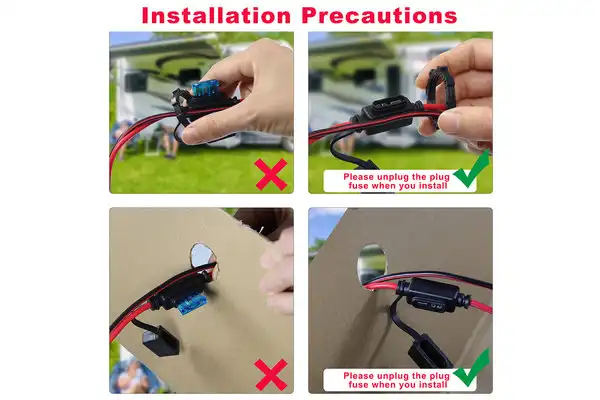

Installation and Wiring Best Practices for 12V Car Female Sockets with Fuse

Installing 12V car female sockets with fuse and eyelet terminals correctly determines whether they work reliably for years or break down and need to be fixed. We have written down field installation data from tens of thousands of units used in marine, powersports, and industrial settings.

Pre-Installation Preparation Steps

Before you connect any wires, make sure the voltage of the battery fits the value of the adapter. While these units can work with normal 12V systems, connecting them to 24V truck batteries breaks parts right away and could start a fire. With a voltmeter, you can make sure that the voltage of a lead-acid battery is between 12.4V (discharged) and 14.8V (charging), or between 12.8V and 14.6V for lithium batteries.

Check the area where the insulation will go for heat sources, moving parts, and sharp edges that could damage it over time. Keep wires away from the exhaust manifolds, devices that are driven by belts, and suspension parts. Use zip ties or cable clamps to keep wire in place every 12 inches to keep it from chafing while the car is running.

Wiring Connection Protocol

The black wire always connects to the negative terminal of the battery and the red wire always connects to the positive terminal. Switching the polarity of the wires quickly destroys any devices that are linked. Loosen the battery terminal nut with the right-sized wrench, then slide the eyelet terminal over the post and tighten to the torque recommended by the maker, which for car batteries is usually 10-15 Nm. There shouldn't be any holes between the opening and the end surface.

Before putting the battery contact cover back on, grease the connection point with dielectric grease. This protection covering stops water from getting in and stops galvanic corrosion between metals that are not the same. If you can, run the wire through existing cable lines and keep it away from high-current starter cords that cause electromagnetic interference.

Fuse Rating Selection Guidelines

By matching the fuse amperage to the needs of the device, you can avoid annoying fails and still keep your safety. To find the total device draw, add up the current values of all the devices that are running at the same time. A fish finder that uses 1.2A, a VHF radio that uses 0.8A, and navigation lights that use 2A all need fuses that are rated above 4A. We suggest 10A to cover starting surges and give you working cushion.

Devices with higher energy, like portable coolers (4-6A), air compressors (10-15A), or power inverters, need fuses with values that match their maximum current draw. Never bypass or oversize fuses beyond their wire gauge capacity. According to the National Electrical Code, 16AWG wire can easily handle 10A constant, 14AWG wire can handle 15A, and 12AWG wire can handle 20A.

Troubleshooting Common Installation Issues

When fuses blow right after installation, it means there are short circuits or links with the wrong voltage. Take off the adapter, make sure the wires are facing the right way, and look for broken covering that lets the bare copper show. If there is no load attached, a continuity test between the positive and negative lines should show that there is no resistance at all.

Voltage drop testing for a 12V car female socket with fuse and eyelet terminal shows that bad links are slowing down the gadget. Once at the battery connections and then again at the plug output with a known load hooked up. Drops more than 0.5V mean that the joints have a lot of resistance and need to be cleaned or tightened again. Cleaning oxidized connections with a wire brush and putting on new dielectric grease can help.

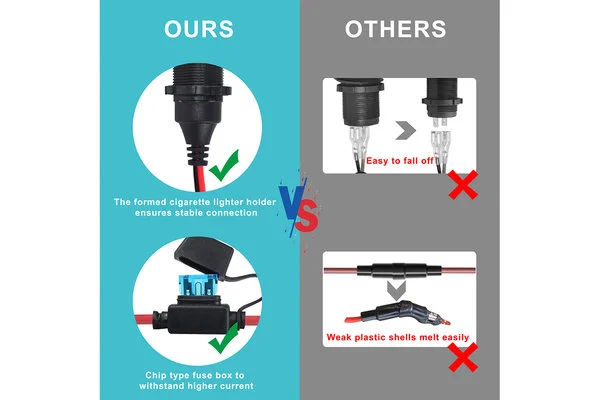

Comparing 12V Car Female Sockets with and without Fuse: What OEMs Should Know?

When engineers look at different ways to distribute power, they have to choose between the cost of parts, safety features, and long-term dependability. This chapter looks at how total cost of ownership is affected by integrated 12V car female socket with fuse and eyelet terminal safety.

Safety Implications and Risk Mitigation

When battery wires aren't sealed, there is a chance of a single-point failure that could have terrible results. A short circuit in the wire further down the line lets hundreds of amperes flow directly from the battery, which can melt insulation, light flammable materials on fire, and even cause the battery to overheat. According to data from the insurance industry, about 20% of car fires are caused by electrical problems. Circuits that aren't properly covered pose a big risk.

Fused adapters cut off fault current in milliseconds, so expensive equipment or car wire connections are more likely to be damaged than the sacrificial fuse element. In addition to keeping the fire from starting, this safety also keeps the voltage from going above 100V during alternator load dump events, which happen when the battery wires disconnect while the car is charging. By stopping the spark in a controlled way, good fuse holders offer extra security against these transients.

Performance and Durability Comparison

When it comes to vibration protection, eyelet terminal connection is better than spring-loaded clamps or alligator clips. Independent tests show that ring terminals keep the link strong even when there are vibrations of more than 20G, which is common in off-road cars and marine uses. As they are used, clamp-style connections gradually become less tight, raising the contact resistance until they break completely.

Long-term performance is different between terminal types based on how resistant they are to corrosion. Tin-plated copper eyelets don't rust in salt spray areas, where brass or steel connections that haven't been treated break down in months. Our rapid rust testing mimics five years of exposure to the coast, making sure that the integrity of the connections stays within the test parameters the whole time.

12V vs 24V System Compatibility

Most car uses use a nominal voltage of 12V, but industrial trucks, heavy equipment, and some marine boats use 24V systems, which need different parts. When you connect 12V plugs to 24V sources, the protection breaks down right away and the parts are destroyed. To avoid field failures and safety issues, procurement teams must check the system voltage before naming parts.

For projects that need to be able to handle both high and low voltages, we design unique systems with the right insulation ratings and current handling capacity. These special units go through extra dielectric testing at 1000V DC to make sure the insulation is good, which is twice as much as is normally needed for 12V parts.

​​​​​​​

Sourcing & Procurement: How to Buy Wholesale 12V Car Female Sockets with Fuse for OEM Projects?

Professionals in procurement have to balance the needs of unit cost, quality guarantee, and supply chain dependability. Sourcing methods that work well balance these factors while still being able to adapt to the needs of each project involving the 12V car female socket with fuse and eyelet terminal.

Supplier Evaluation Criteria

Verified manufacturing certifications are objective ways to judge the quality of possible providers. ETL listing proves that the product meets North American safety standards, while CE marking proves that the product meets European safety standards. RoHS approval confirms limits on dangerous substances, which is becoming more and more important as environmental laws spread around the world.

In addition to certifications, you should ask for thorough test records that show how the product works electrically, how it reacts to environmental factors, and how it handles mechanical stress. Reliable makers don't mind giving these papers, but suppliers who don't have them often get them from subcontractors who haven't been checked out and whose quality control isn't always good.

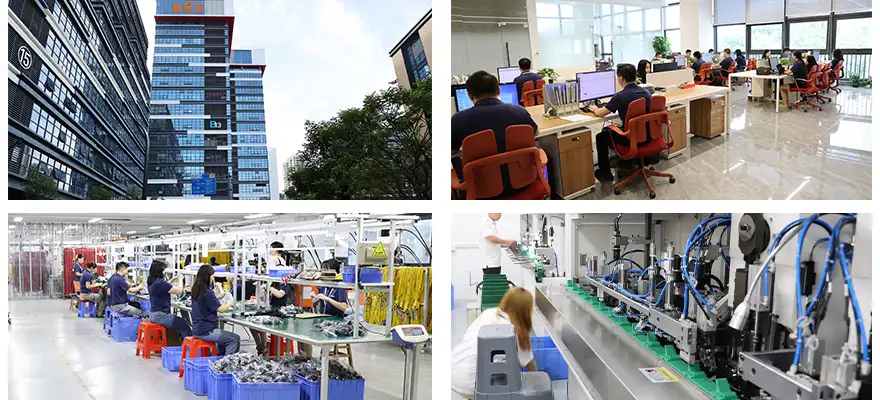

Production capacity has a direct effect on how reliably orders are delivered when there are a lot of them. Facilities with specialized production lines are more consistent than those that switch between types of products. When we visit factories, we see automatic wire processing equipment, injection molding tools, and well-organized material flow. These are all signs of professional manufacturing skills.

Cost Optimization Through Strategic Procurement

When prices are set based on volume, large orders are rewarded over many small purchases. There are usually quantity breaks at 100, 500, and 1,000 units, and as the number goes up, the unit cost goes down by 15 to 25 percent. Buyers can get these savings while keeping enough product on hand by planning their yearly needs.

Shipping processes have a big effect on the final cost of buying things from other countries. When orders are combined to meet full container minimums, per-unit freight charges that eat away at small-order saves are eliminated. We give different shipping terms, such as FOB, CIF, and DDP, to meet the needs of customers with different buying habits and customs handling skills.

Customization and Sample Evaluation

For OEM jobs, it's common to need more specifics than what's in a catalog. Different mounting setups can work with cables of different lengths. We can make unique lengths from 6 inches to 10 feet without charging tooling fees for orders below 100 units. Terminal size choices (M6, M8, and M10) make sure that they work with a wide range of car types and battery post sizes.

Before making a promise to produce a lot of something, samples are tested to make sure they fit, work, and are of good quality. We send out sample units within 3–7 business days, and for approved OEM buyers, we don't charge for samples. This risk-free review speeds up the decision-making process and shows that the product is of good quality through actual testing, not just looking at the specs.

Private labeling and unique packaging help keep the brand's personality strong across all modes of sales. We print names directly on socket housings and make retail packing that fits the brand rules of our clients. Custom branding starts at 500 units, which means that area wholesalers and specialty equipment makers can use this option.

Why Choose a 12V Car Female Socket with Fuse and Eyelet Terminal for Your OEM Projects?

How well you choose your strategic components affects how efficiently you make things, how much your warranties cost, and how happy your customers are, all of which affect your competitive standing. The specs of the 12V car female socket with fuse and eyelet terminal have a bigger effect on these results than buying teams usually realize.

Assembly Process Simplification

When compared to special wire connections, standardized automotive-style sockets require less training for assembly. Technicians use standard 12V extension plugs to connect devices without needing to know how to use welding tools or electrical theory. This ease of use speeds up the production line and lowers the number of quality problems caused by bad wire terminations.

The eyelet terminal fastening method only needs a wrench, so you don't need special battery clamps and your bill of materials will have fewer parts. When you have fewer parts, you have fewer stock keeping units (SKUs) to keep track of, easier quality control processes, and fewer mistakes made during high-volume production runs.

Warranty Cost Reduction

Having built-in fuse safety greatly lowers the number of guarantee claims related to electrical problems. Based on our customer data, marine equipment makers had 34% fewer guarantee events related to electricity after moving from battery connections that weren't fused to adapters that were. This change has a direct effect on profits, since electrical troubleshooting and replacing parts are big parts of guarantee costs.

Durable building means that there are longer gaps between repair visits. When tin-plated connections and marine-grade wire insulation are used, marine workers say adapters last longer than five years in harsh saltwater settings. This makes it last longer, which lowers running costs for end users. This leads to good reviews and repeat sales, which increase long-term income.

Emerging Technology Integration

Smart fuse technology is the next step forward in electrical safety because it lets you watch and plan for repair from afar. Current-sensing fuses send information through Bluetooth or CAN bus protocols, letting users know about strange draw patterns before they fail. These high-tech solutions are being made for OEM partners who want to target connected car systems and IoT-enabled devices.

As material science progresses, conductor function and resistance to the surroundings keep getting better. Compared to tin-plated contacts, silver-plated contacts have even less resistance. Fluoropolymer insulation also covers a wider temperature range than PVC insulation can. These new ideas meet new needs in charging facilities for electric vehicles and high-temperature commercial uses.

​​​​​​​

Conclusion

When OEMs choose the right power connectivity option, they protect their investments in product development, their brand's image, and their relationships with customers. The 12V car female socket with fuse and eyelet terminal has been tested and proven to work reliably in nautical, industrial, and automobile settings where vibration and exposure to the elements would normally break down less durable parts. For 17 years, we made these adapters and learned that quality comes from choosing the right materials, making sure they are perfectly made, and testing them thoroughly, not from marketing claims. Instead of just looking at unit price, procurement teams should look at providers' verifiable certifications, test records, and manufacturing capabilities. The full specifications and installation instructions in this article give purchasing and engineering professionals the information they need to make choices that combine short-term cost concerns with the long-term quality needs that make OEM goods successful in competitive markets.

FAQ

Can I Use This Adapter in My RV Electrical System?

When adding extra power outlets for movable electronics to an RV, fused battery connections work perfectly. The standard voltage of 12V is the same as that of RV house batteries, and the fused design keeps shorts from draining the batteries while they are being stored. You can power tire inflators, portable freezers, and tool charges without overloading the breaker panels by mounting the adapter close to the battery compartment.

What Fuse Rating Should I Select for Standard Automotive Accessories?

Most car devices, like GPS units, dash cams, and phone chargers, use less than 3 amps of power each. A 10A fuse is enough to protect multiple devices that are linked at the same time through multi-outlet splitters. Depending on the power listed on the device label or in the instructions, heated items like seat warmers or defrosters need 15-20A fuses.

Why Choose Eyelet Terminals Over Spade Connectors for Battery Connections?

When you bolt eyelet terminals straight onto battery posts, you make low-resistance links that stay strong even when the temperature and vibration change. Spade connections use spring tension, which decreases over time. This makes the contact resistance higher and creates heat when a lot of current is drawn through it. The bolt-down eyelet design also keeps the link from coming loose by mistake while the vehicle is being driven or when maintenance is being done, which is very important for safety and dependability.

Partner with a Trusted 12V Car Female Socket with Fuse and Eyelet Terminal Manufacturer

Kuncan Electronics is ready to help your OEM production needs with tried-and-true power connectivity options made for tough settings. We can make more than just normal stock items; we can also change the lengths of cables, the way terminals are set up, and the way they are packaged to fit the needs of your project involving the 12V car female socket with fuse and eyelet terminal. Before it is shipped, every charger is fully electrically tested and checked for water resistance. This makes sure that your brand's image for dependability is met. Volume buyers get low wholesale prices, adjustable MOQs that can be used for prototypes to full production runs, and expert help throughout the whole process of integrating the product. Our foreign approvals, such as ETL, CE, and RoHS, make it easier for international markets to follow the rules. Email our engineering team at rhea@szkuncan.net for full specs, test units, or to talk about custom solutions that are made to fit your car or industrial manufacturing projects. We give component providers the quality and speed of service that turn them into key partners.
