What Is a 1 to 3 SAE Splitter Cable and How Does It Work?

A 1 to 3 SAE splitter cable changes one SAE power input into three separate output links. This lets several 12V-24V DC devices work at the same time from a single power source. With its weatherproof connectors and high-purity copper conductors, this heavy-duty accessory splits electricity while keeping the voltage stable across all outputs. The cable uses the SAE two-pin connector standard, which has a polarised plug design that stops reverse polarity. This makes it suitable for solar panels, motorcycle accessories, battery maintenance systems and industrial equipment where space is limited, and wiring is complicated.

​

Understanding the 1 to 3 SAE Splitter Cable

Core Design and Operation Principle

The SAE connector standard was first used in the auto industry and is now the standard for all low-voltage DC applications. Each connector has two pins and positive terminals that are set back from the edge to prevent accidental short circuits. When you connect the 1 to 3 SAE splitter cable to your battery or charge controller, internal junctions send current through three different output branches while keeping the voltage levels stable.

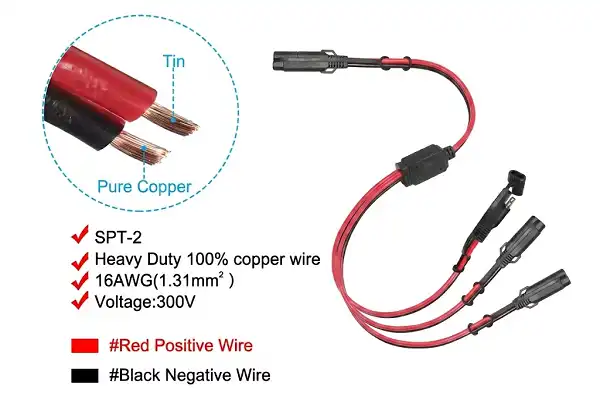

For the main input lead, our splitter cable architecture uses 16AWG or 14AWG gauge wire. For the three output branches, the wire gauge changes to 18AWG. Up to 20A can be drawn from 12V to 24V circuits with this setup. The junction point has strengthened strain relief moulding that keeps the wires from coming apart, which is a frequent place where cheaper goods fail.

Typical Deployment Scenarios

One of the most difficult tasks is installing solar power systems. RV owners connect multiple portable solar panels in parallel to get the most out of charging. Off-grid setups use stored battery power to power lights, phones, and monitoring gear. The splitter gets rid of the need for various charge controls, which cuts the cost of the system by about 60%.

Riders of motorcycles and ATVs have limited access to the battery terminals. The small splitter design fits under seats or behind fairings and lets warm gear, GPS navigation units, and battery feeders all connect at the same time. Fleet maintenance shops use these cables to work on multiple vehicles from a single tender unit, which saves a lot of money on equipment.

In industrial automation settings, SAE splitters are used in control systems where sensors, actuators, and monitoring tools need reliable 12V DC power. The temperature-resistant design works from -40°C to +105°C, so links stay stable in foundries, cold storage facilities, and outdoor machinery sites.

Key Features and Technical Specifications

Voltage Ratings and Current Capacity

When power and amperage are matched correctly, equipment doesn't get too hot or break. Our 1 to 3 SAE splitter cable works with both 12V and 24V DC systems and can handle up to 20A of load across all three outputs. To stay safe, figure out the total current draw of all the gadgets you want to power before you start. When you run three 5A devices at the same time, you're getting close to the limit; going over 20A risks breaking the insulation and the connectors.

How much voltage drops over distance is directly related to the wire gauge, and for a 1 to 3 SAE power strip, this means that the internal wiring and output leads must be sized appropriately to minimize voltage loss when powering multiple devices simultaneously. At 3 feet of output, 18AWG wire keeps less than a 0.3V drop at a 5A load, which is fine for most accessories. Thicker conductors are needed for longer runs or higher current needs. When purchasing managers understand these electrical principles, they can choose the right cable configurations for each application.

Quality Factors and Material Composition

Professional-grade cables are built differently from consumer cables in the following ways, which have a direct effect on performance, safety, and longevity:

Conductor Material: Copper that doesn't contain oxygen is 99.9% conductive, which means it doesn't create much resistance or heat. Copper-clad aluminium, which is used in cheaper options, has 40% higher resistance and breaks down faster when heated and cooled.

Insulation Type: Weatherproof PVC jacketing doesn't let oil, UV rays, or wear and tear damage it. Our requirements include insulation that is rated SPT-2, SPT-3, or UL2468 and stays flexible in cold weather while being exposed to engine heat.

Connector Quality: Nickel-plated brass connections keep them from rusting in damp places. The built-in dust caps provide IP65 protection when ports are not being used, stopping moisture from getting in and causing contact oxidation.

Strain Relief Design: Reinforced moulding at junction points spreads mechanical stress over a larger area. This engineering detail stops conductor fatigue where wires meet connectors, which is the main way things break in situations with a lot of vibration.

These quality factors lead to changes in stability that can be measured. Our testing shows that cables that are properly built keep their electrical continuity through more than 10,000 connection cycles and can withstand 50-pound pull forces without the terminals coming apart. Such long-lasting quality lowers the number of replacements needed and the cost of upkeep over the lifecycle of the equipment.

Installation Layout Considerations

When cables are installed correctly, they last longer and continue to work safely. Keep cables away from parts that rotate or have sharp edges that can damage them. Using cable ties to attach splitters to solid mounting points stops them from moving, which would stress the connections. Place the junction near battery banks to keep the voltage drop on the combined input leg to a minimum when splitting solar panel outputs.

When things are outside, waterproofing is very important. Our connectors have built-in seals, but for naval and farm use, extra security with heat-shrink tube or silicone conformal coating makes them last longer. In industrial settings where chemicals are present, it is important to get advice on the best insulation materials to use.

Comparison and Selection Guide for SAE Splitter Cables

Evaluating Splitter Configurations

Different uses need different splitting designs. A 1 to 3 SAE splitter cable configuration works best when three gadgets need a modest amount of power. For more devices, you need 1-to-4 or 1-to-6 splitters, but each extra branch lowers the amount of current that can flow through each output. By figuring out how many devices you actually have and how much power they need, you can avoid buying options that are too small or too big.

Waterproof vs. Standard Models

Standard cables with basic PVC insulation work well in controlled settings, such as workplaces and cars with temperature control. For outdoor uses like solar farms, farm tools, and boats, a waterproof design with an IP65 or IP67 rating is needed. Waterproof types usually cost 25–35% more than other models. This is because they last longer between repairs and are less likely to break down in harsh circumstances.

Our waterproof version has sealed connector housings with O-ring gaskets and circuit junctions that are conformally coated. Field data from solar installations in desert and coastal areas shows that waterproof cables are 98% reliable after three years, while standard models are only 72% reliable in the same conditions.

Fused vs. Non-Fused Cables

Overcurrent protection is provided by inline fuses, which shut off circuits automatically when loads go over safe limits. This feature keeps the wires from getting too hot, which could start a fire if something goes wrong with the equipment or a short circuit happens. Fused connections cost a little more, but they make unattended systems safer, like remote monitoring units and power banks that aren't connected to the grid.

Non-fused versions are good for situations where there is already circuit safety or where there isn't enough room for extra parts. Maintenance shops that take care of fleets often choose non-fused splitters because battery tenders already have protection built in. This choice is based on an analysis of your system's general security design.

Flexibility and Durability Balance

The flexibility of the cable affects how easy it is to install in tight spaces. It's easier to bend softer insulation around corners and through small holes, but it may not be as resistant to wear and tear. Buildings that are used in industrial settings with a lot of vibration and mechanical stress need to be stiffer and stronger. Our engineering team chooses the right materials and patterns for stranding the conductors to meet all of these different needs.

Changing temperatures can also make things less flexible. Over time, the plasticisers in PVC insulation move around, which makes the wires stiffer. Premium formulas with stabilised plasticisers stay flexible over a wider range of temperatures and for longer amounts of time. When choosing wires for tools that will last 10 years or more, using temperature-stable materials lowers the total cost of ownership.

Troubleshooting, Compatibility and Usage Tips

Identifying Common Issues

Most connection issues are caused by connectors that don't match up. Even though SAE connectors have set sizes, some makers make pins that are a bit too big or too small. Installing things faster and for less money is easier if you test-fit connectors before deploying the 1 to 3 SAE splitter cable on a large scale. Keep adapters on hand in case you need to connect to non-standard devices.

When the voltage drops, lights dim or charging takes longer to complete, and for a 1 to 3 SAE power strip, this is a common symptom of undersized internal wiring or poor connection quality, which can lead to inadequate power delivery to connected devices and potential system instability. Use a multimeter to check the voltage at the splitting outputs when they are loaded. Readings that are more than 0.5V lower than the input voltage mean that there is too much resistance due to wires that are too small, bad connections, or terminals that are corroded. Usually, replacing faulty wires fixes the problem.

Wires inside the insulation break when they are vibrated, which causes intermittent connectivity. This secret failure mode makes debugging harder because there is no damage that can be seen. When you bend the cable while using a multimeter to check for continuity, you can see where the breaks are inside. This way of failing is less likely to happen with our strengthened strain reduction design.

Best Installation and Maintenance Practices

Before the first placement and every year after that, clean all of the connections with electrical contact cleaner. When metal is left out in the open, oxidation builds up, even if caps are used to protect it. Putting dielectric grease on terminals in places that are prone to corrosion will create a barrier against moisture that will increase the contact life.

Check the cable routing every so often to make sure it's not rubbing against moving parts or sharp edges. Abrasion-induced insulation failure can be avoided by moving cables and adding protective sleeves. Check the pressure release points for cracks or separation, and replace any wires that are clearly getting worse before they break completely.

Write down when key systems were installed and what needed to be done for upkeep. By keeping an eye on the history of cable service, you can find early failures that are caused by certain applications or environmental factors. This information helps people decide what to buy and how to install things in the future.

Procurement Considerations and Where to Buy

Assessing Volume Requirements and Pricing Factors

Small businesses that only need 5 to 20 units can save money by buying in bulk from specialised suppliers. If you buy more than 50 units of the 1 to 3 SAE splitter cable at a time, you can save money by buying in bulk. At 100 units or more, tiered pricing usually saves you 15 to 30 percent. Our flexible buying system lets us meet different demand patterns without requiring large minimum orders that put a strain on inventory budgets.

Tradeoffs between quality and cost need to be carefully thought through. When you buy very cheap cables, you have to give up on things like pure conductors, good insulation, and precise manufacturing. These tradeoffs show up as more failures and less time between repairs. Total cost of ownership, which includes the initial price plus the costs of repairs and replacements, shows that mid-range professional products are the best value for demanding tasks.

Selecting Reputable Suppliers

Product quality is always the same when it comes from well-known makers with ISO certifications and thorough testing methods. Kuncan Electronics keeps its ETL, CE, VDE, and RoHS certifications, which show that it follows international rules for safety and the environment. Procurement managers can be sure that the supply chain is stable because we've been making products for 17 years and have a verified supplier status on major B2B platforms.

Sample evaluation programs let you try goods in real-world settings before placing a large order. We send samples within 3–7 business days, which lets you check them out quickly. Technical support during the evaluation phase helps you get the best cable specifications for your needs.

Customization Options for Specialized Applications

Standard setups work for most situations, but solutions that are made just for specialised tools are often needed. Connector spacing that can be changed works with different attachment conditions. Branded heat-shrink sleeves with company logos make OEM integrations look more professional. Custom cable lengths get rid of extra wire that gets in the way and could become a snag.

Our tech team is happy to help you find the best splitter setups for your needs at no cost. Small amounts are made by prototyping services so that they can be tested in the field before full production runs. This way of working together cuts down on development risk and speeds up the time it takes to deploy important projects.

Conclusion

The 1 to 3 SAE splitter cable is an important part of power distribution in solar systems, motorbike accessories, industrial automation, and fleet upkeep. Knowing technical details like conductor gauge, current capacity, insulation quality, and connector durability helps you make smart buying decisions that balance performance needs with budget limitations. When you put something in correctly and do regular upkeep, you can make it last longer and keep it connected. Purchasing managers can get better results when they work with well-known companies that offer certified goods, the ability to make changes, and quick technical help. When you look at the total cost of ownership instead of just the initial price, you get better long-term value because you don't have to replace things as often and the system is more reliable.

FAQ

Can I use a 1 to 3 SAE splitter cable for connecting multiple solar panels?

Of course. Multiple solar panels can be connected in line to a single charge controller using the 1 to 3 SAE splitter cable. This increases the total power and charging speed. Make sure that the total current from all the panels stays within the 20A limit of the cable. The 18AWG output branches can safely handle the output of a 100W panel. For best performance, match the wire gauge to the panel's requirements.

What voltage levels can SAE splitter cables safely handle?

Our splitters are made for professionals and can work with both 12V and 24V DC systems that are popular in solar, car, and industrial settings. The 20A limit works for all voltages in this range. For systems with higher voltage, the standards for connectors and insulation must be different. Before you use your tools, make sure it works with 12–24V DC.

How do I ensure compatibility between the splitter and my battery charger?

SAE connectors have standard sizes, so they can be used with a lot of different kinds of equipment. Make sure that your charger doesn't have private connections but instead uses the SAE two-pin interface. Make sure the splitter can handle the power of your charger by looking at its current level. By test-fitting plugs before installing them in bulk, you can avoid mistakes about compatibility.

Partner with Kuncan Electronics for Reliable Power Distribution Solutions

Kuncan Electronics provides high-quality 1 to 3 SAE splitter cables for businesses. These cables are made to strict standards using ISO-certified manufacturing methods. Our heavy-duty splitters have copper wires that don't contain air, weatherproof connectors that meet IP65 standards, and stronger strain relief that can handle temperatures from -40°C to +105°C. Before it is shipped, each unit is tested for 100% electrical continuity and pull strength.

We have been making 1 to 3 SAE splitter cables for 17 years and offer customisation services such as changing the spacing between the connectors, adding custom heat-shrink covers, and putting our own labels on the package. Our engineering team is happy to help you come up with the best cable specifications for your needs at no cost. Samples are sent out within 3–7 business days, and full production takes 15–25 days, depending on the size of the order.

To talk about your power distribution needs, email our technical sales team at rhea@szkuncan.net. We give you detailed product specifications, advice on how to use the products, and competitive quotes that are made to fit the needs and timeline of your project.

​
